SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 400Mbps

2.4G WiFi: 4x4 (Theoretical maximum speed up to 1147.1Mbps)

5G Wi-Fi Transmission Rate: 2167Mbps

5G WiFi: 4x4 (Theoretical maximum speed up to 5764.8Mbps)

Antennas: 7 external high-gain WiFi antennas + 1 internalhigh-gain WiFi antenna + NFC built-in antenna

Application: HOME

Brand Name: XIAOMI

Certification: CE

Choice: yes

Cooling System: Natural cooling

Device Interfaces: 4x10/100/1000/2500M Adaptive

Hign-concerned Chemical: None

LAN Ports: 4

LED Indicators: 7(1 SYSTEM indicator,1 INTERNET indicator4 LAN indicators, 1 AloT status indicator)

Max. LAN Data Rate: 1900Mbps

Memory: 1GB

Number of USB Interfaces: 1 x USB 3.0

Operating Humidity: 10%~90% RH (Non-condensing)

Operating Temperature: 0 ~ 40 °C

Origin: Mainland China

Package: Yes

Powerinput interface: 1

Processor: Qualcomm Quad-core A73 1.5GHZ

Product Name: Xiaomi Router BE7000

Reset/Mesh Buttonn: 1

Standards And Protocols: Wi-Fi 802.11g

Storage Humidity: 5%~90% RH (Non-condensing)

Storage Temperature: -40~70 °C

Supports WDS: Yes

Supports WPS: Yes

Type: WireLess

WAN Ports: 1 x10/100/1000Mbps

WAN/LAN ports: 1xUSB 3.0 port

Wi-Fi Supported Frequency: 2.4G & 5G

With Modem Function: No

XiaoMi Model: 7000

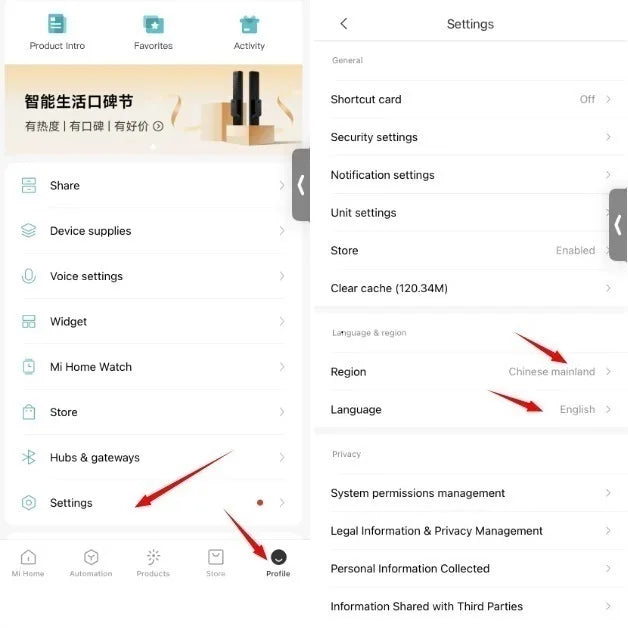

*The product will receive a firmware upgrade related to the WiFi 7 protocol by December 30, 2023. You can check the upgrade log and manually update it in the Router Management plugin of the Mi Home app, or toggle the 'Auto Update' switch in the upper right corner of the Upgrade Assistant page to accept our automatic updates.

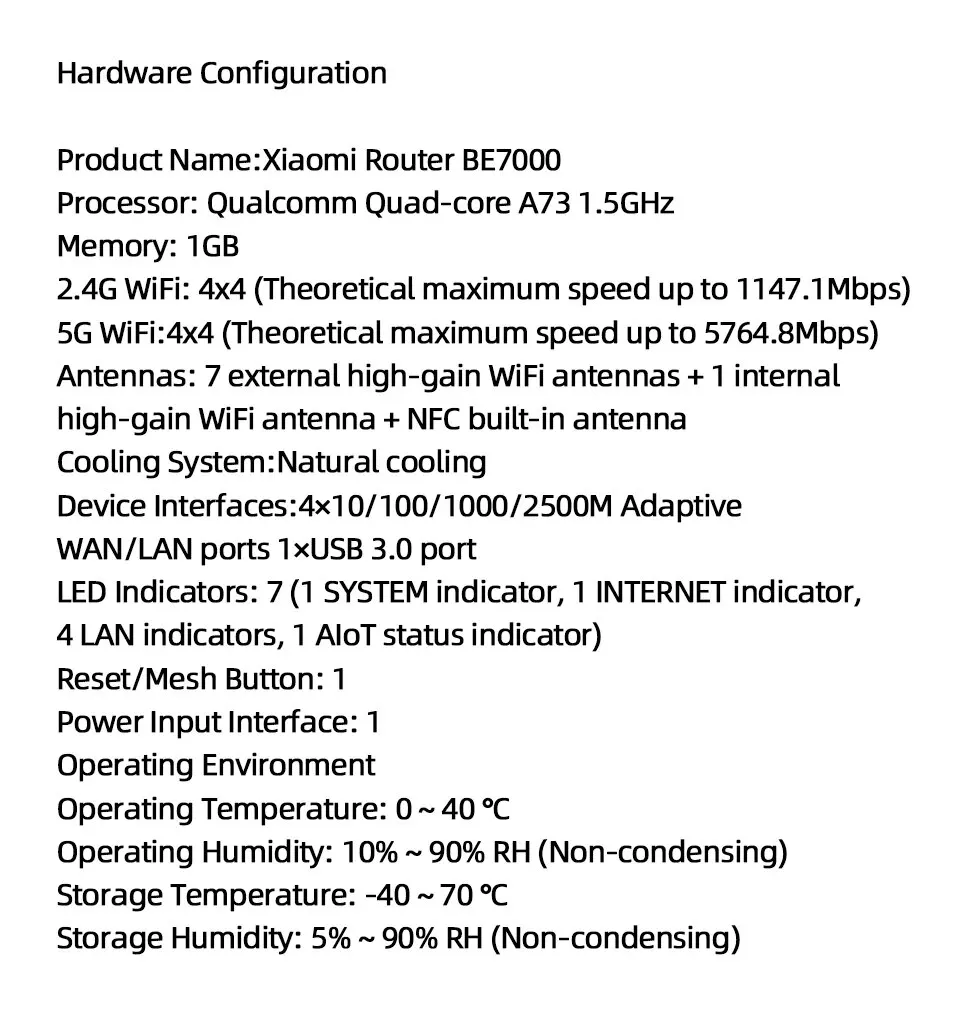

Hardware configuration:

Product Name: Xiaomi Router 7000 / BE7000

Processor: Qualcomm Quad Core A73 1.5GHz

Memory: 1GB

2.4G Wi-Fi:4 × 4 (Theoretical maximum speed can reach 1147.1 Mbps)

5G Wi-Fi:4 × 4 (Theoretical maximum speed can reach 5764.8 Mbps)

Product antenna: 7 external high gain Wi Fi antennas+1 internal high gain Wi Fi antenna+NFC internal antenna

Product heat dissipation: natural heat dissipation

Machine interface: 4 × 10/100/1000/2500M adaptive WAN/LAN port 1 × USB 3.0 interface

LED indicator lights: 7 (SYSTEM indicator lights × 1. INTERNET indicator light × 1. Mesh port light × 4. AloT status light × 1)

System reset button/Mesh button: 1

Power input interface: 1

Protocol standard: GB/T 9254.1-2021

GB 4943.1-2022

Wireless parameters

Dual frequency mode (default): 2.4GHz and 5GHz

Wireless channel: 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13

5GHz Channel:36,40,44,48,52,56,60,64,149,153,157,161,165

Triple frequency mode (requires manual switching) 2.4GHz, 5.2GHz, 5.8GHz

Wireless Channel :

          2.4GHz Channel:1,2,3,4,5,6,7,8,9,10,11,12135.2GHz

            5.2GHz Channel: 36,40,44,48,52,56,60645.8GHz

            5.8GHz Channel: 149,153,157,161,165

Software parameters

Wireless security: WPA PSK/WPA2 PSK/WPA3 SAE encryption, wireless access control (black and white list), SSID hiding, anti phishing network

Management application: supports web, Android, IOS

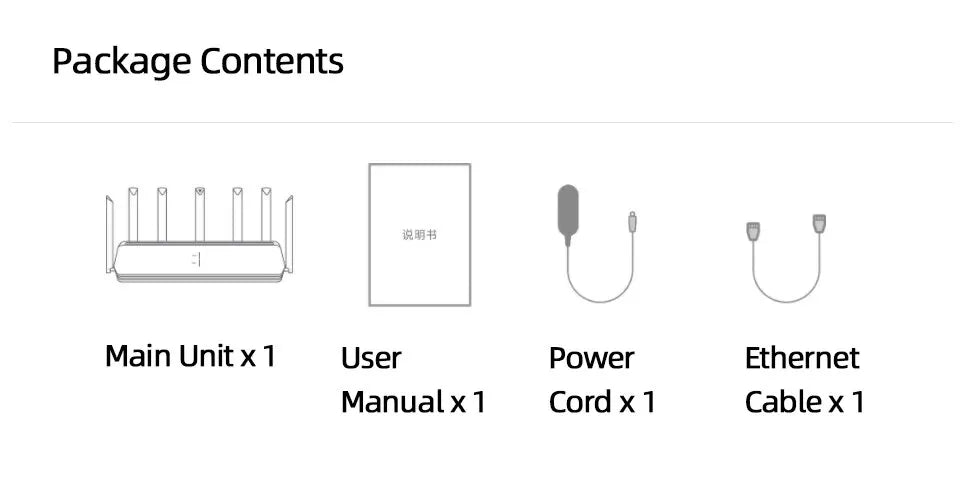

Package Contents

- Main Unit X 1

- User Manual X 1

- Power Cord X 1

-Ethernet Cable X 1

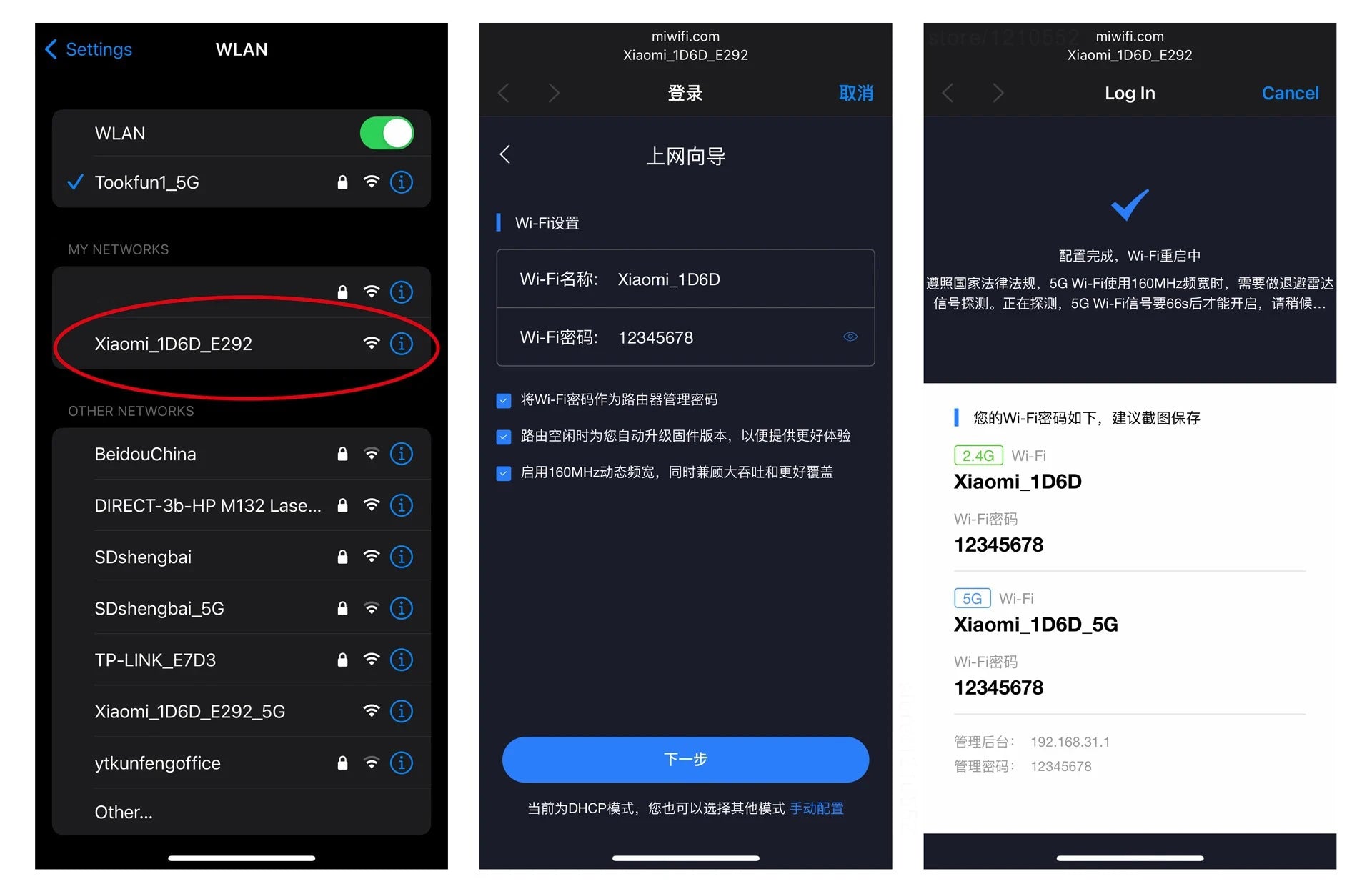

Xiaomi Router Connection Steps

1. Connect the router to the power supply and connect to the network cable

2. When the indicator light turns blue, use your mobile phone to search for the WiFi transmitted by the router

3. Connect to WiFi, it will automatically jump to the setting page, and set a WiFi password according to the prompt

4. After completing the settings, the WiFi will automatically restart, and it can be used normally after reconnecting

● Dual-band/tri-band free switching, allowing for personalized allocation of frequency bands and non-interference between game and device connections.

● 4-core A73 enterprise-level processor with 28,800 computing power and 1GB large memory

● 8 independent signal amplifiers that effectively cover large homes and reduce blind spots

● There are heat dissipation holes on the top, side, and bottom of the router, forming a fast circulation cooling channel

● With ample 2.5G Ethernet ports, the router supports IPTV and custom gaming Ethernet functions.

● Supports dual WAN/LAN with a maximum aggregation of 5Gbps, fully unleashing the performance of dual 2.5G NAS.

● USB 3.0 port with a transmission rate of up to 260MB/s for convenient photo and movie sharing.

● Xiaomi's self-developed Mesh networking technology that supports both wired and wireless networking options.

● Supports software acceleration for devices such as PS, Xbox, Switch, PC, and phones, reducing game latency and stuttering.

● Family online protection with targeted management of family members' devices, filtering harmful websites and information, and setting reasonable limits on the use of popular apps to promote healthy internet habits.

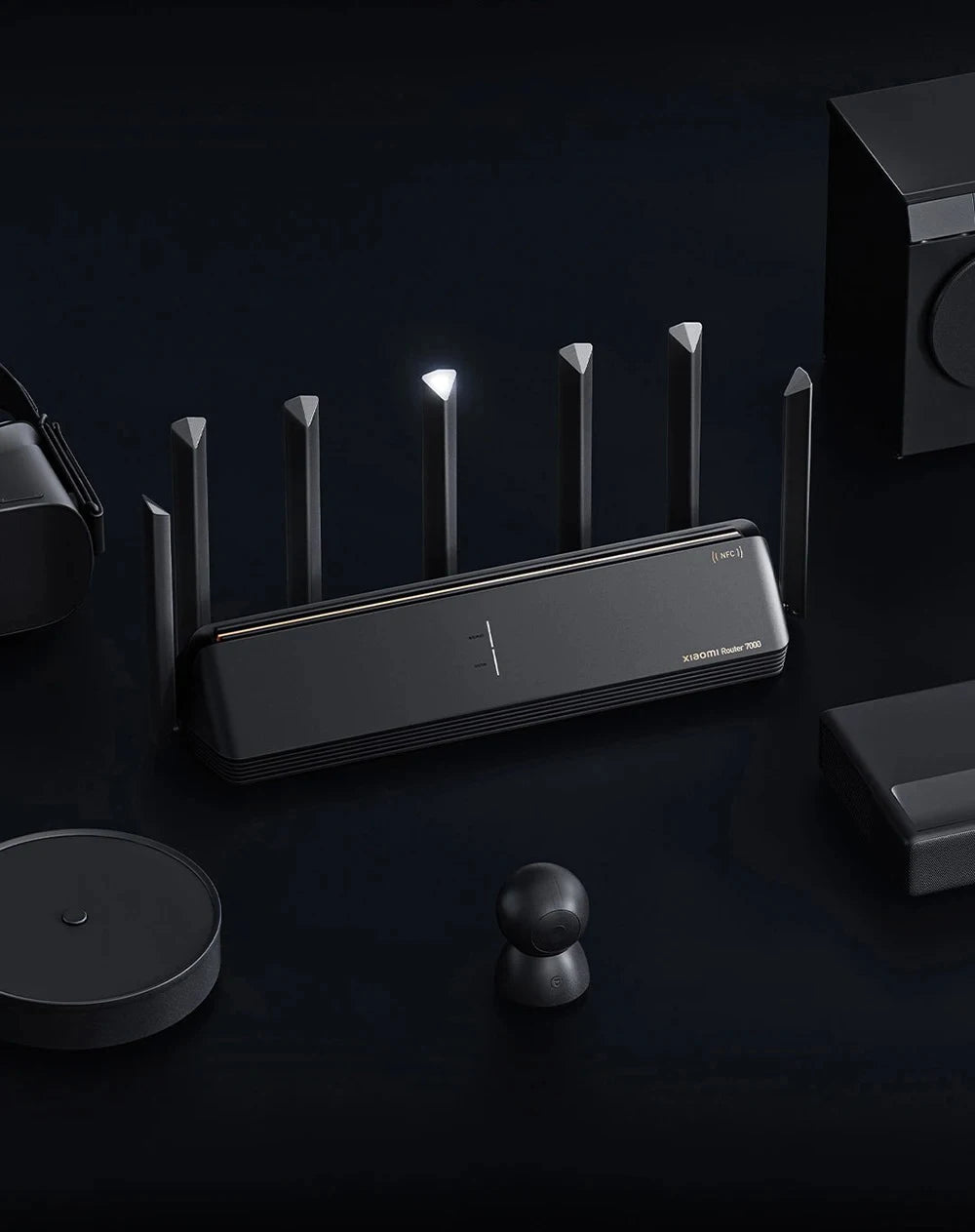

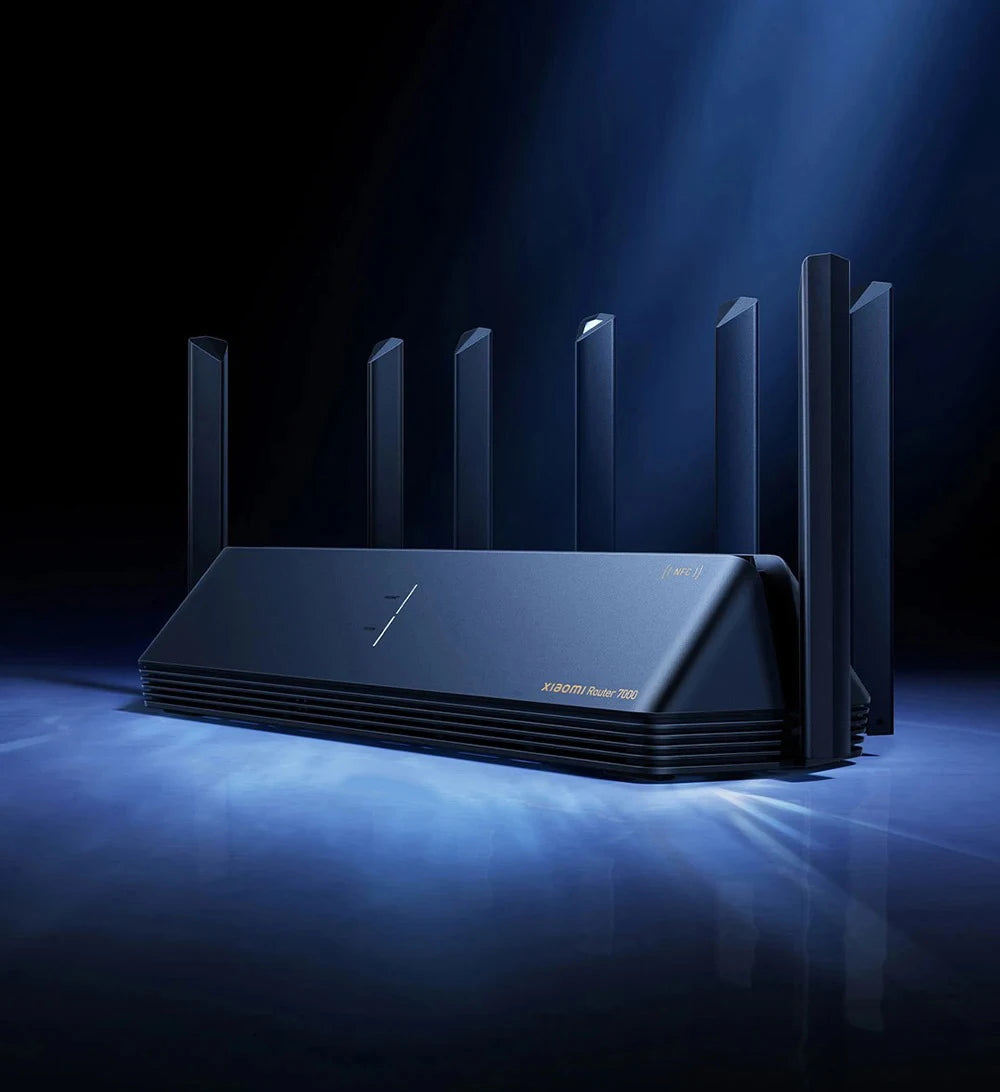

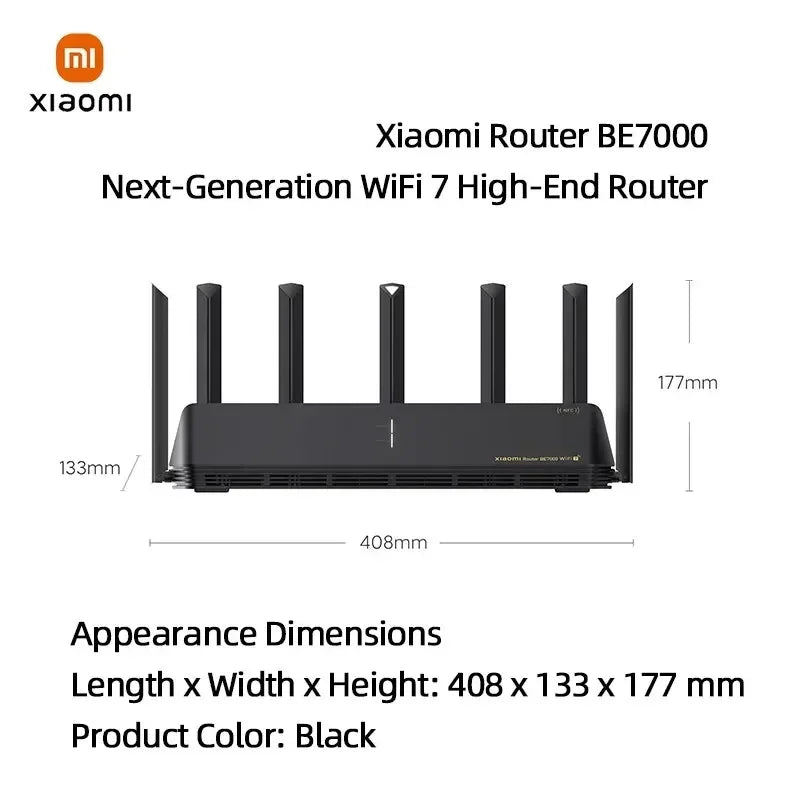

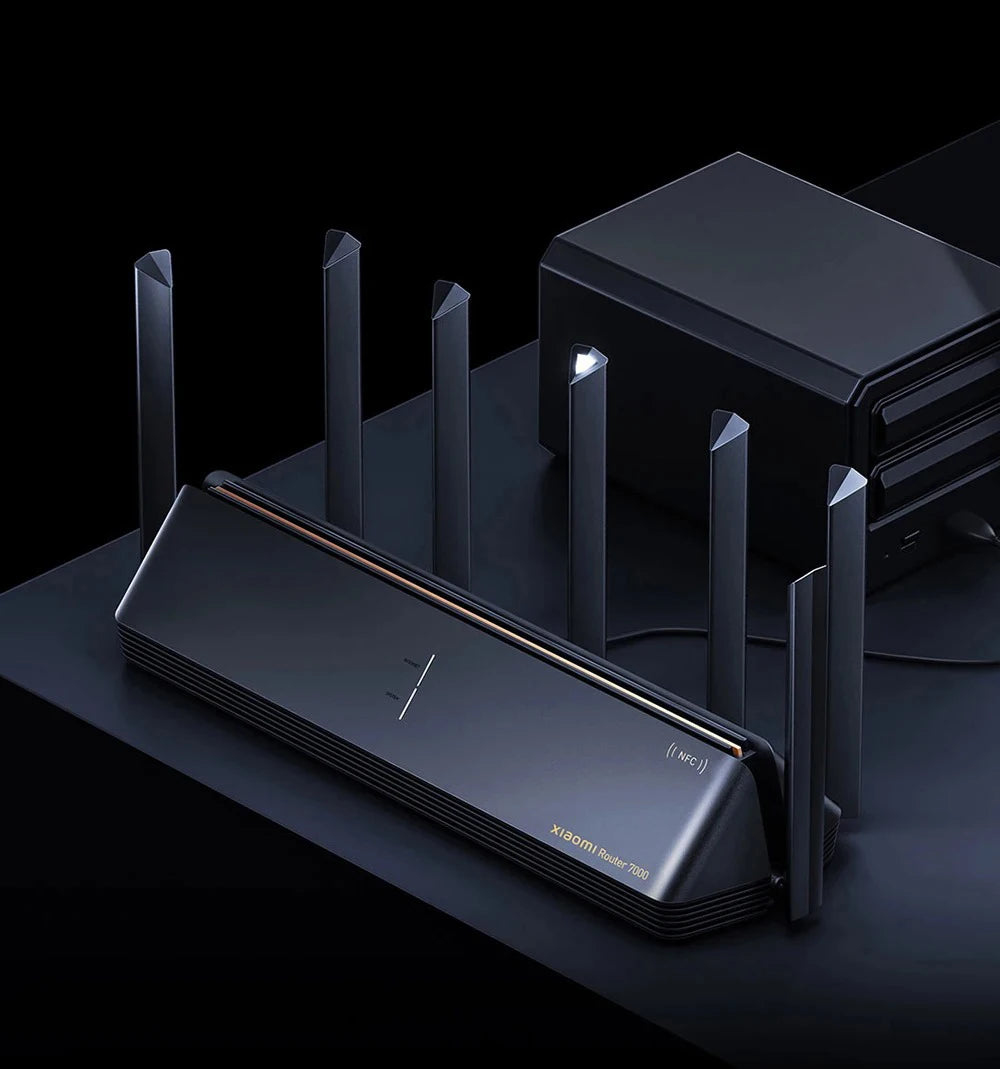

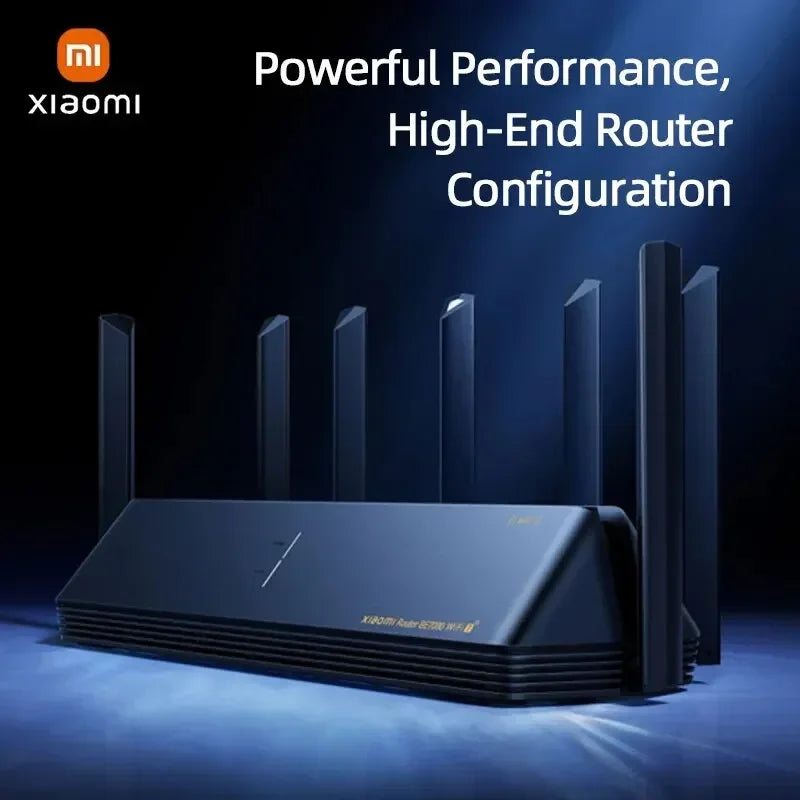

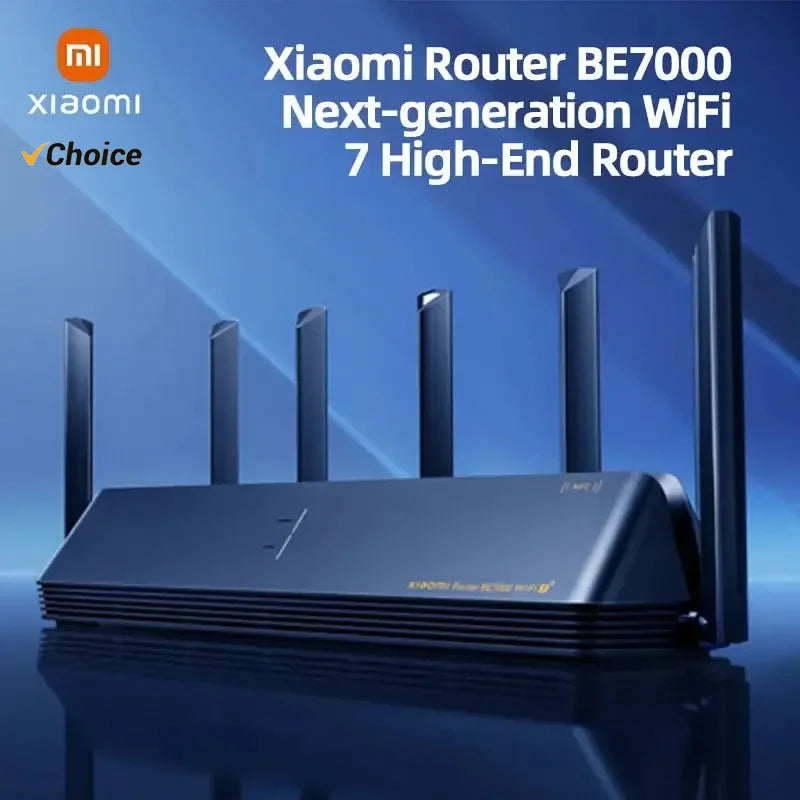

Xiaomi Router BE7000

A new generation of high-end routers

Faster, stronger, and performance fully upgraded.

7000M-class high-speed network

Supports WiFi 7 protocol, not only supports 4x4 160MHz large bandwidth, 4K QAM high-order modulation technology, but also supports MLO dual-band aggregation in tri-band mode. The theoretical wireless rate of the whole machine is up to 7000M, with lower latency and more stable connection.MLO dual-band aggregation, dual 5G speed full open

With mobile devices that support dual 5G MLO, you can connect to two 5G bands at the same time to achieve high-speed aggregation, and the theoretical rate is increased by 50%.

Dynamically select the optimal band for smoother network use.OFDMA enhanced version, more devices are connected at the same time

Bandwidth resources are allocated more accurately, live broadcasts, multi-player games, fast and smooth. The delay in some scenarios is reduced by up to 20%.Dual-band/Tri-band switchable, with the ability to allocate each band according to preferences.

Game and device connections won't interfere with each other.

Dual-band mode has wider coverage and is more versatile, while Tri-band mode not only supports Mesh networking for independent high-speed return but also provides a dedicated e-sports band.4-core A73 enterprise-level performance

New generation of Qualcomm enterprise-level processor, providing 28800 powerful computing power, combined with 1GB large memory, easily cope with high traffic data throughput.1GB large memory

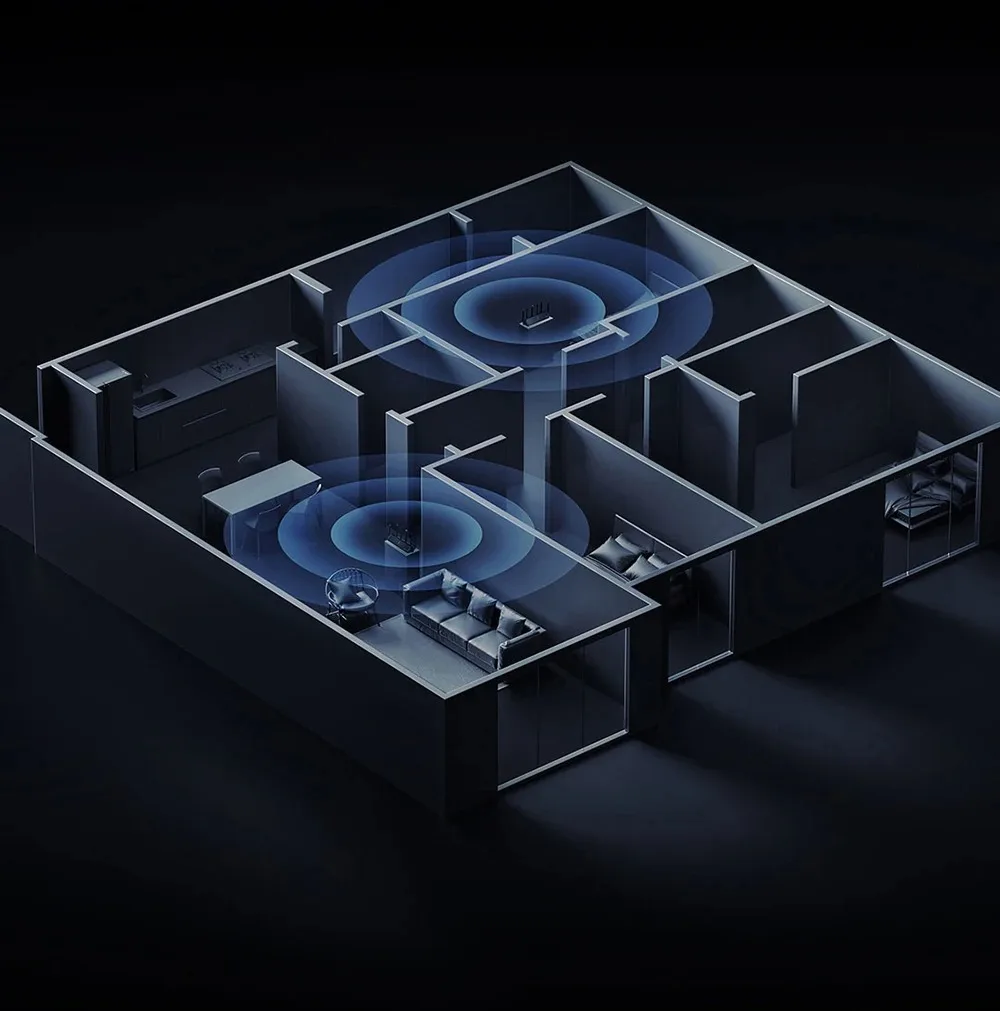

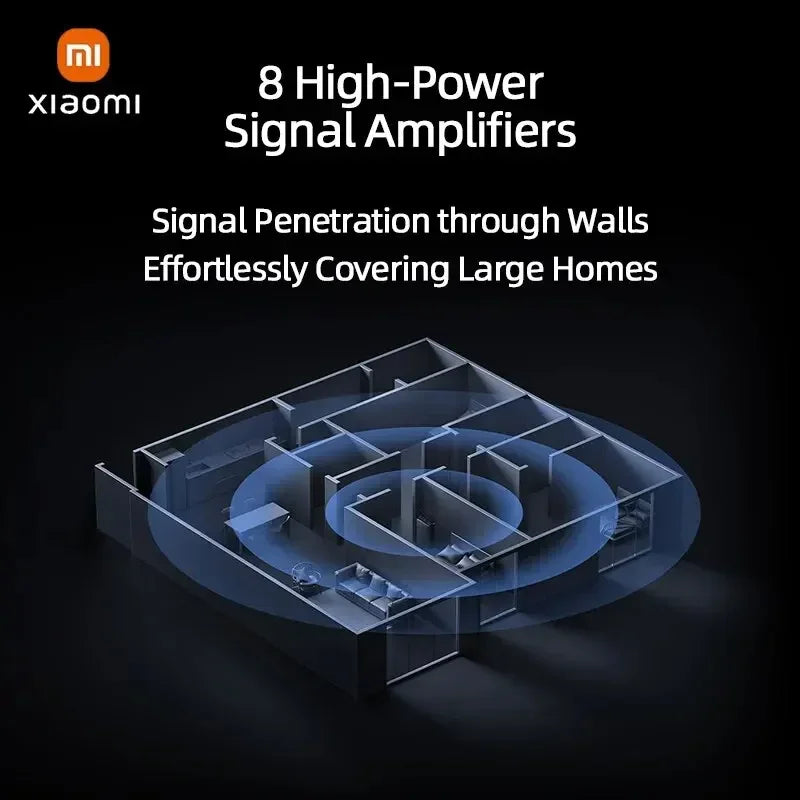

600 devices are connected stably8 independent signal amplifiers effectively cover large apartments.

Compared to the previous generation, 2 high-performance signal amplifiers have been added to the 2.4GHz band, making signal reception more sensitive and reducing blind spots. In combination with Mesh functionality, it provides good signal coverage throughout the house.Triple-sided circulation cooling design

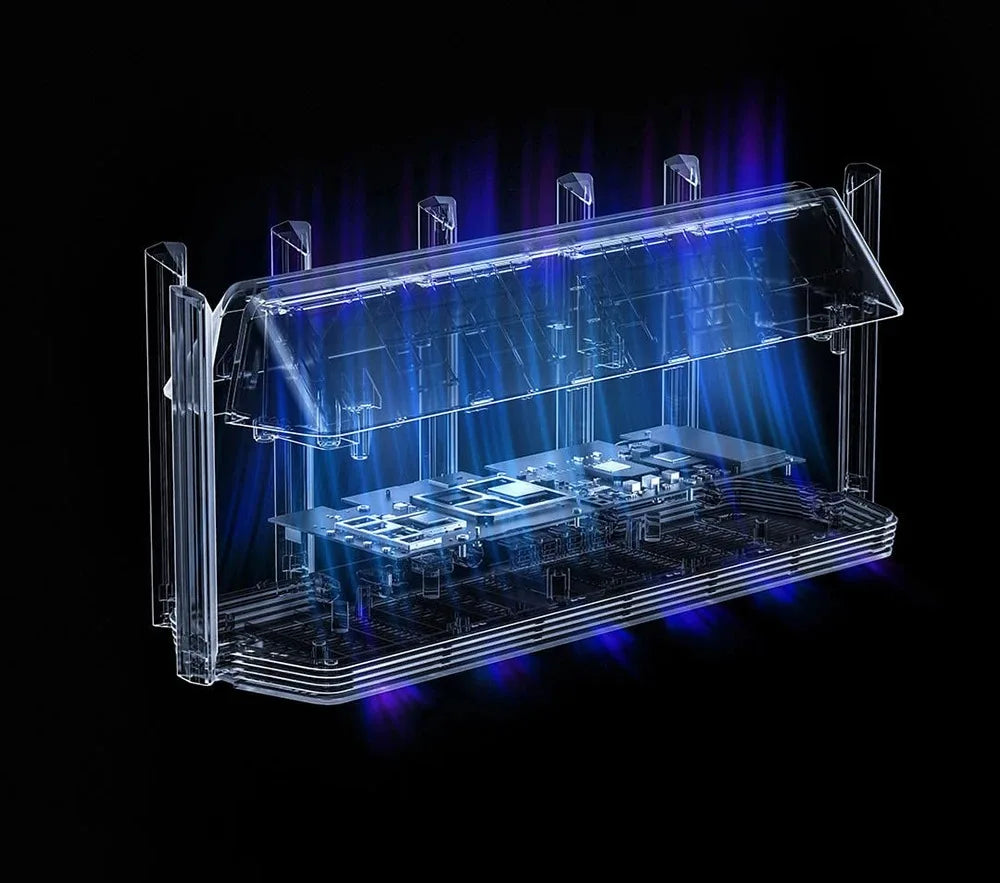

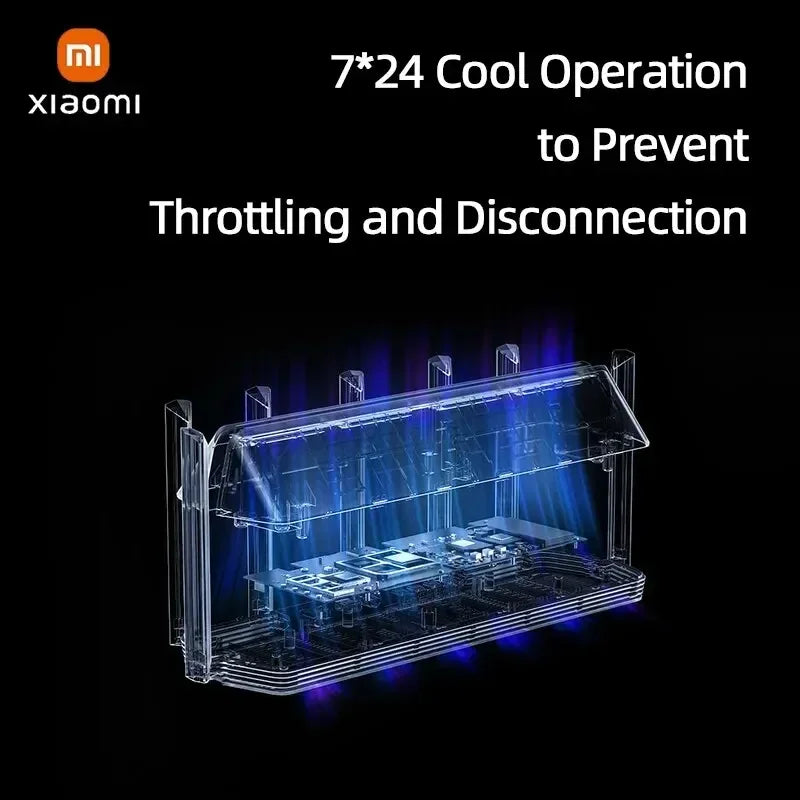

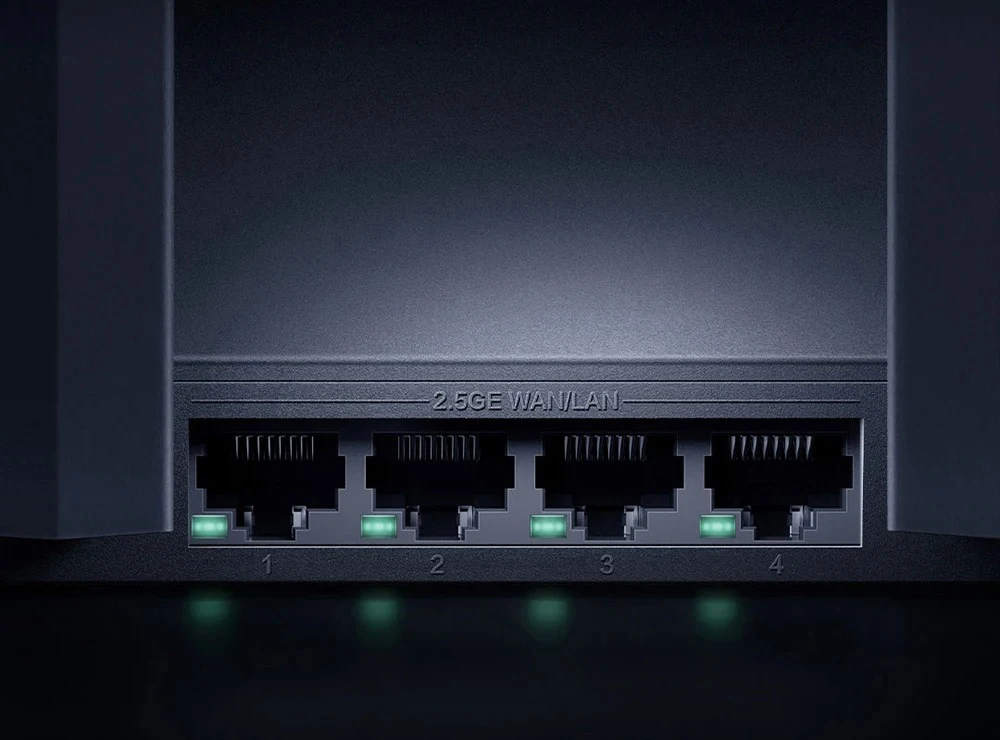

There are heat dissipation holes on the top, side, and bottom of the router, forming a fast circulation cooling channel. This keeps the router working in the best state at all times, avoiding router frequency reduction and device disconnection caused by overheating.4 x 2.5G Ethernet ports

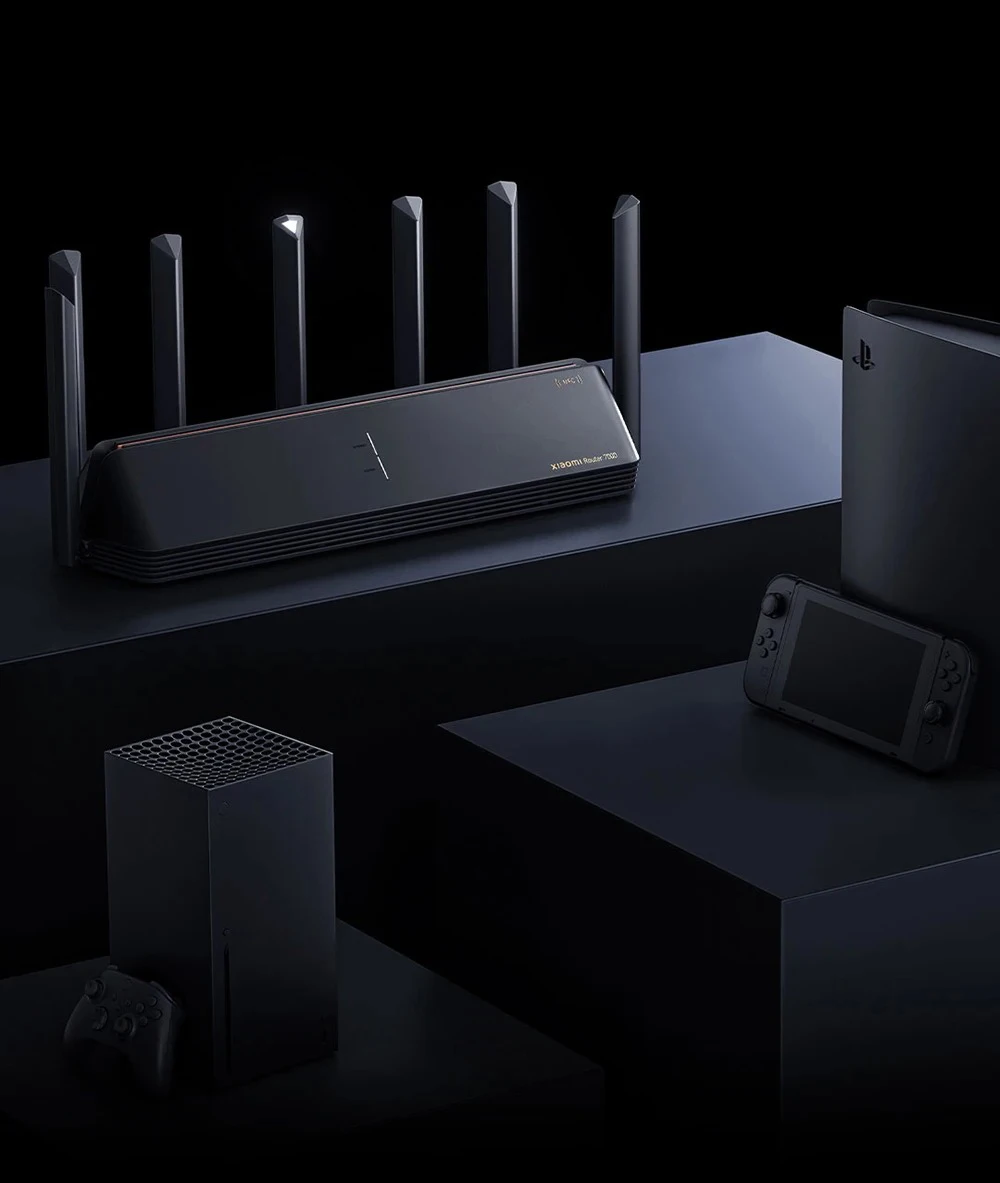

With ample 2.5G Ethernet ports, the router supports IPTV and custom gaming Ethernet functions. It can be directly connected to gaming consoles, TVs, and computers, satisfying the high-quality audiovisual needs of gamers. It also supports dual WAN/LAN with a maximum aggregation of 5Gbps, fully unleashing the performance of dual 2.5G NAS.USB 3.0 x1

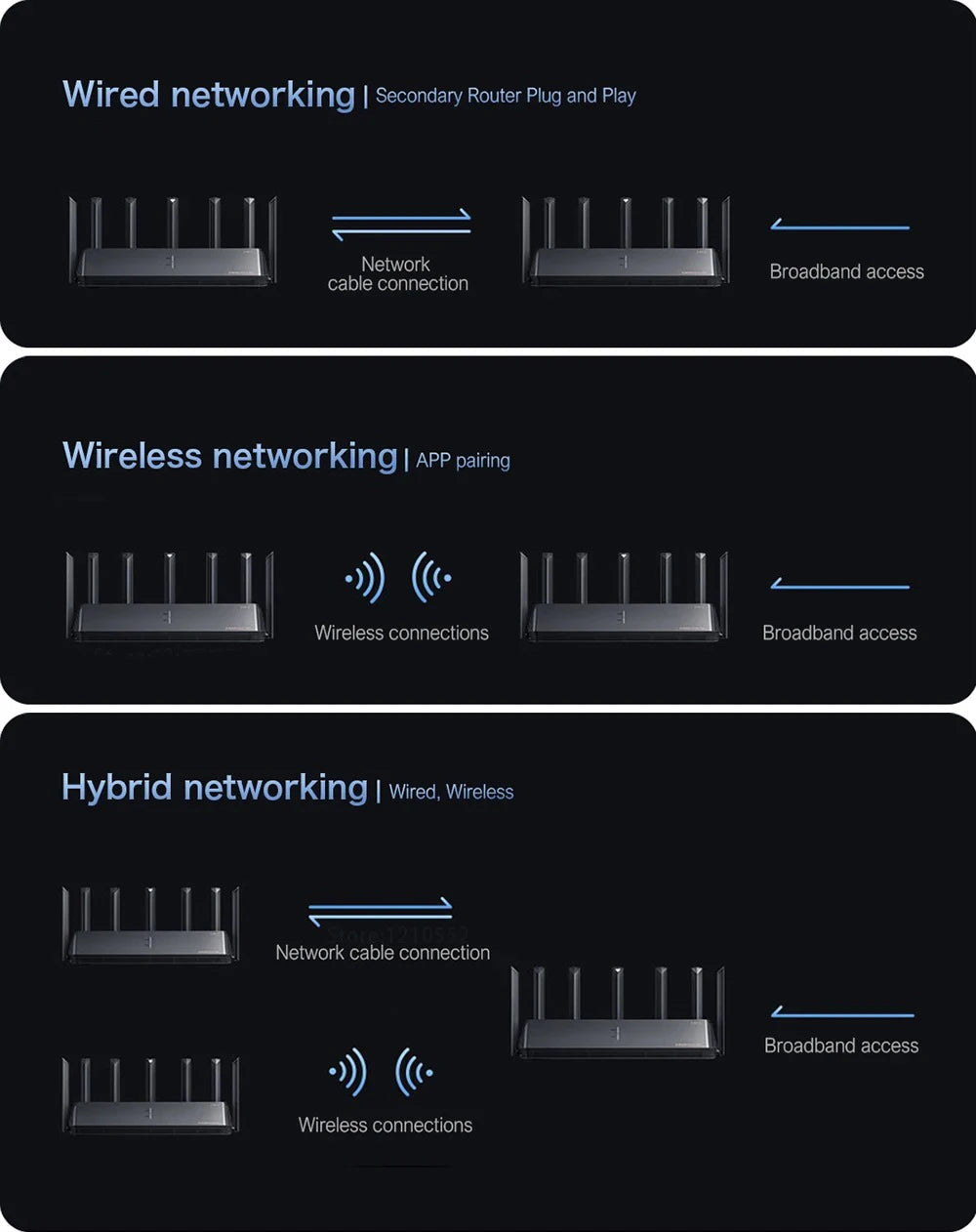

With a transfer rate of up to 260MB/s, you can easily share family photos, personal movie collections, and even access them from your phone or TV through LAN sharing.Xiaomi self-developed Mesh networking technology

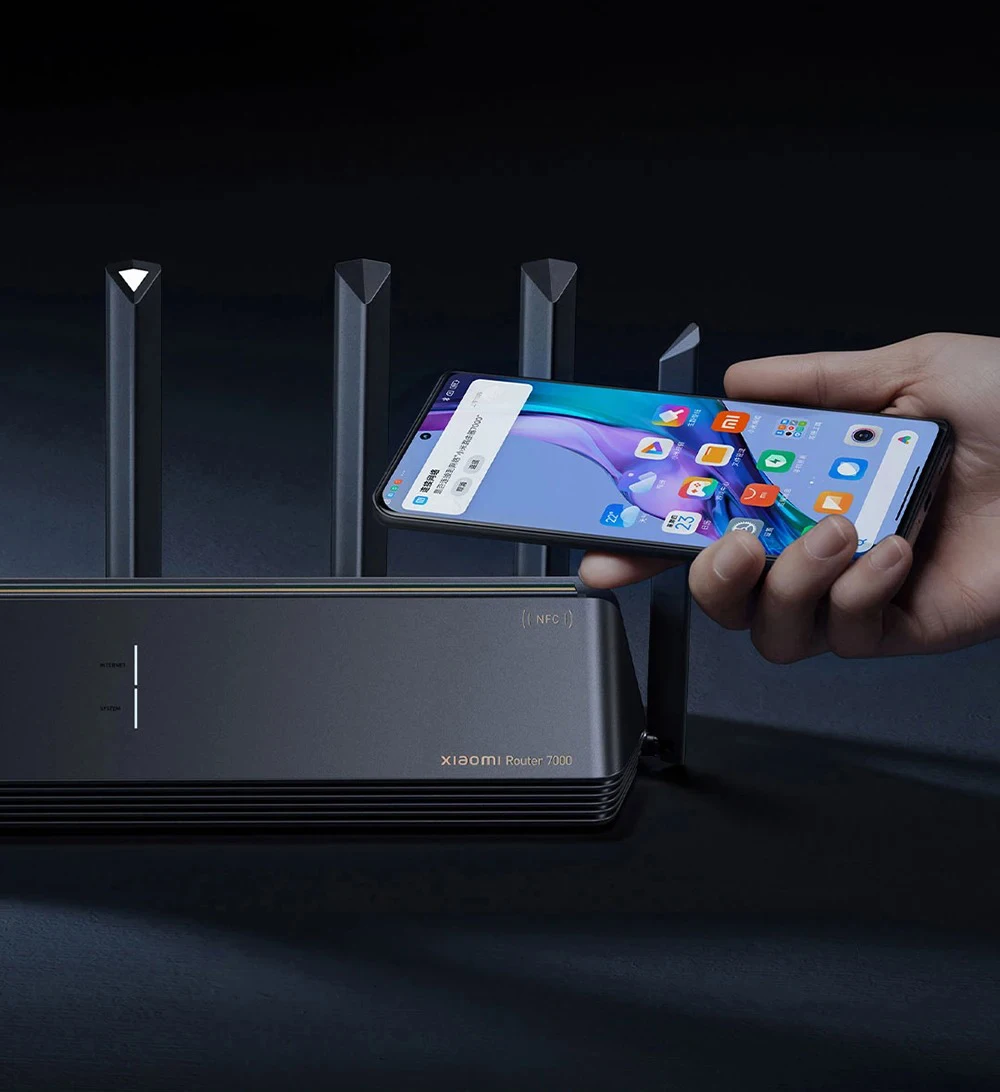

Support Xiaomi/Redmi router Mesh networking, wired networking and wireless networking for you to chooseSupports NFC function

Simply touch your phone to the router to connect to the network without entering a password.Smooth gaming acceleration

Intelligently recognizes your Xiaomi/Redmi phone and opens a dedicated acceleration channel for gaming. It also supports software acceleration for devices such as PS, Xbox, Switch, PC, and phones, reducing game latency and stuttering.Family Internet Protection

The router offers targeted management of family members' internet-connected devices, filtering out inappropriate websites and harmful information. It also allows you to set usage limits for popular apps, ensuring that network usage remains within reasonable and healthy limits.More technical supportPacking list

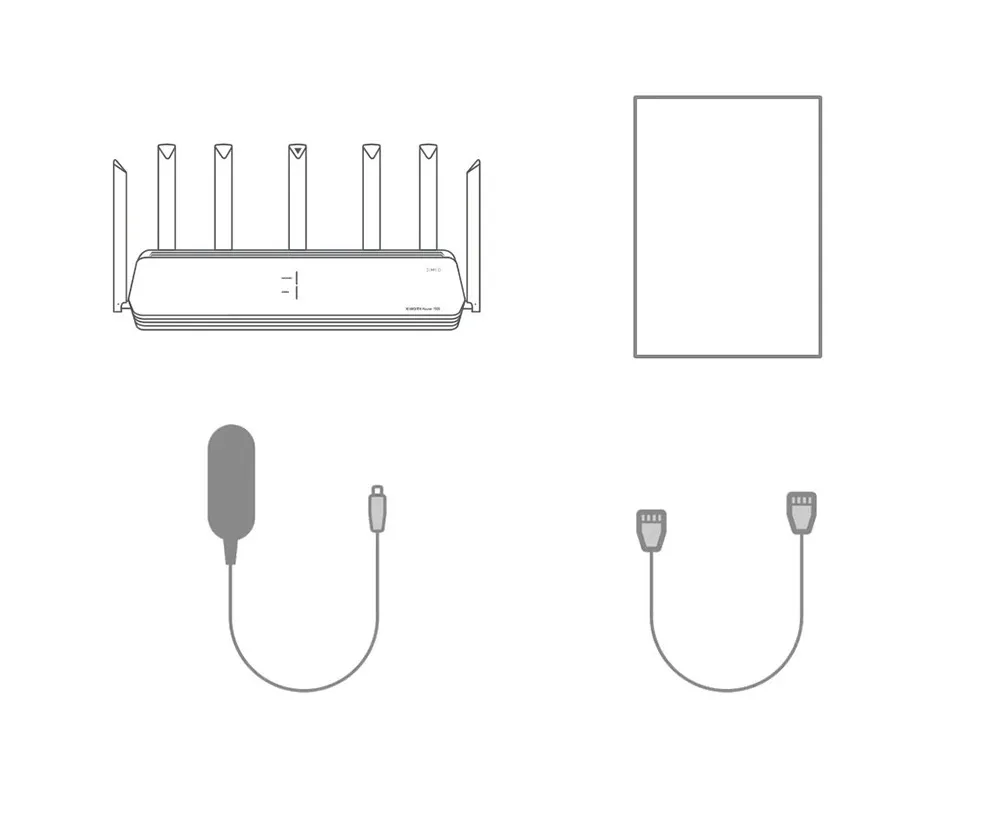

Router  X 1

Manual X 1

Power cable X 1

Cable X 1
