If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.Product Description:

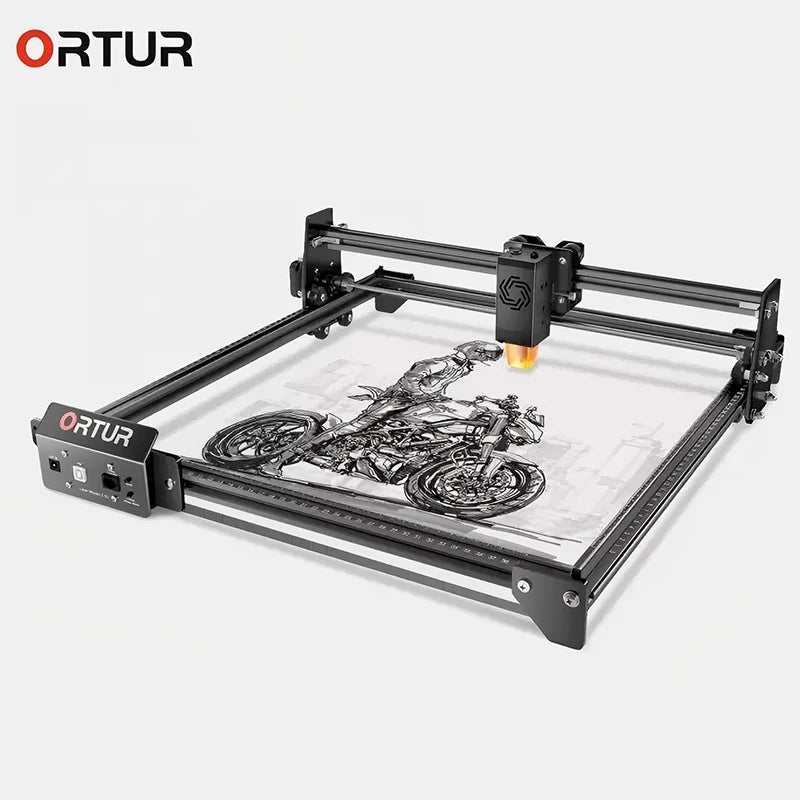

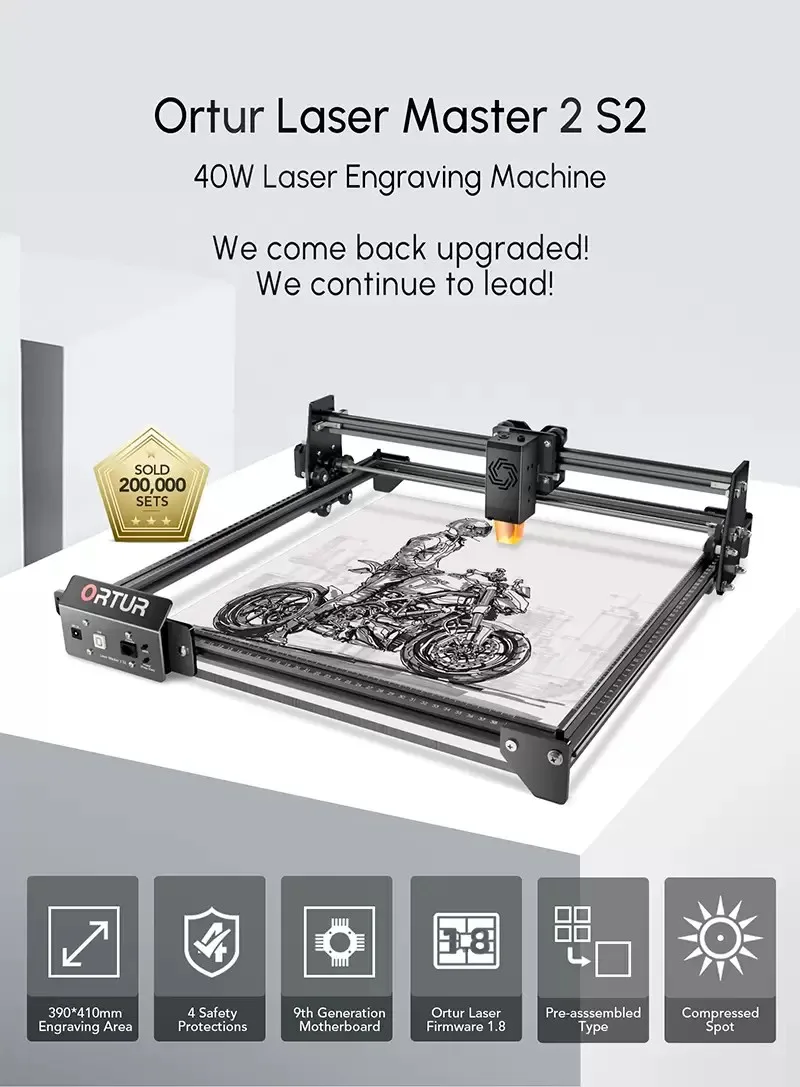

Top features of Ortur Laser Master 2 S2

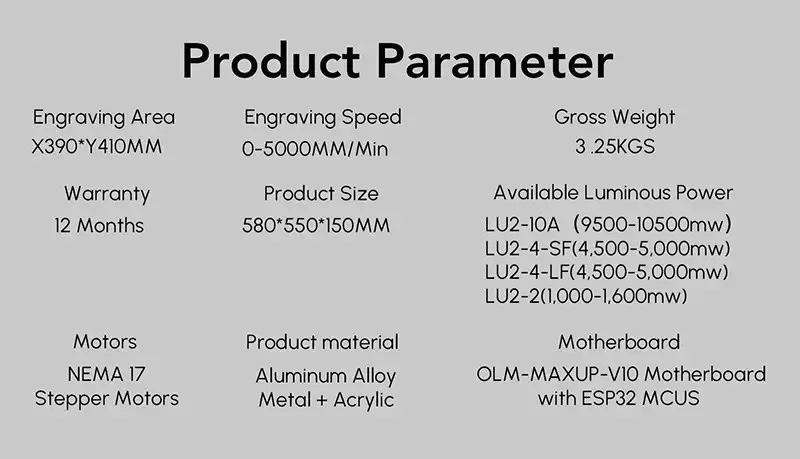

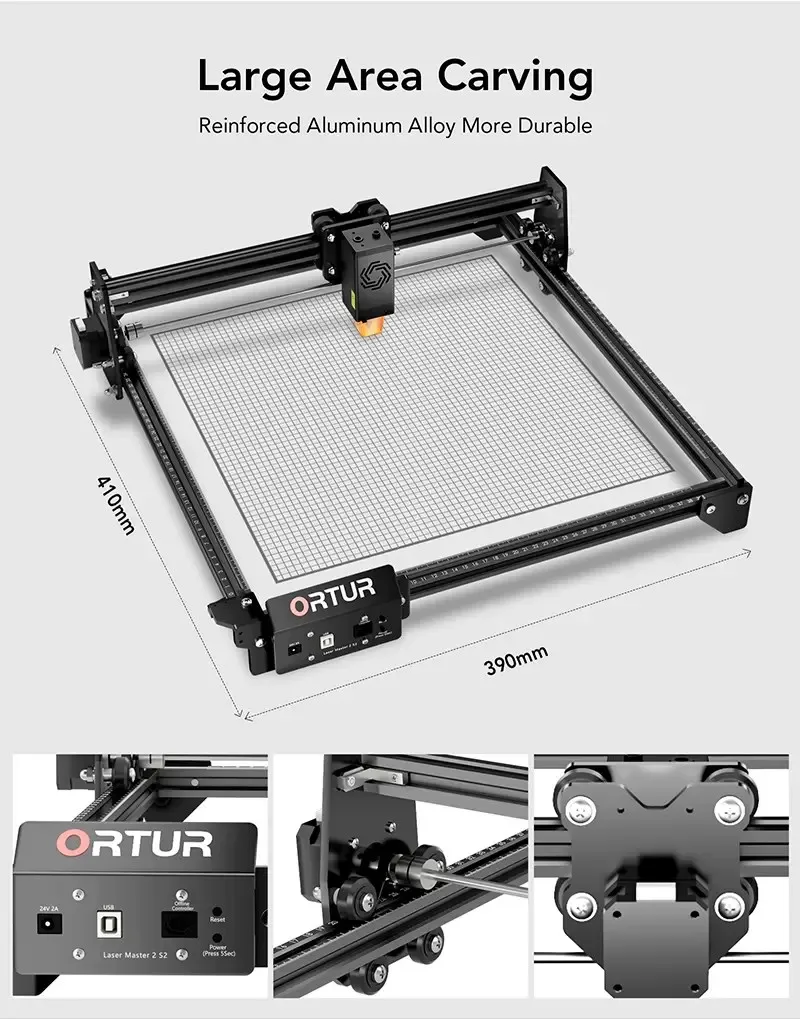

• 390x410mm Engraving area

• 4 Safety precautions

• • Active Position Protection

  • Exposure Duration Detection & Limitation

  • Laser Beam Safety Guard

  • Power Control System

• 9th Generation motherboard

• • Better grayscale result, higher precision and speed

• Precision scales are added to the X and Y axes to measure engraved objects quickly.

• Ortur Laser firmware 1.8

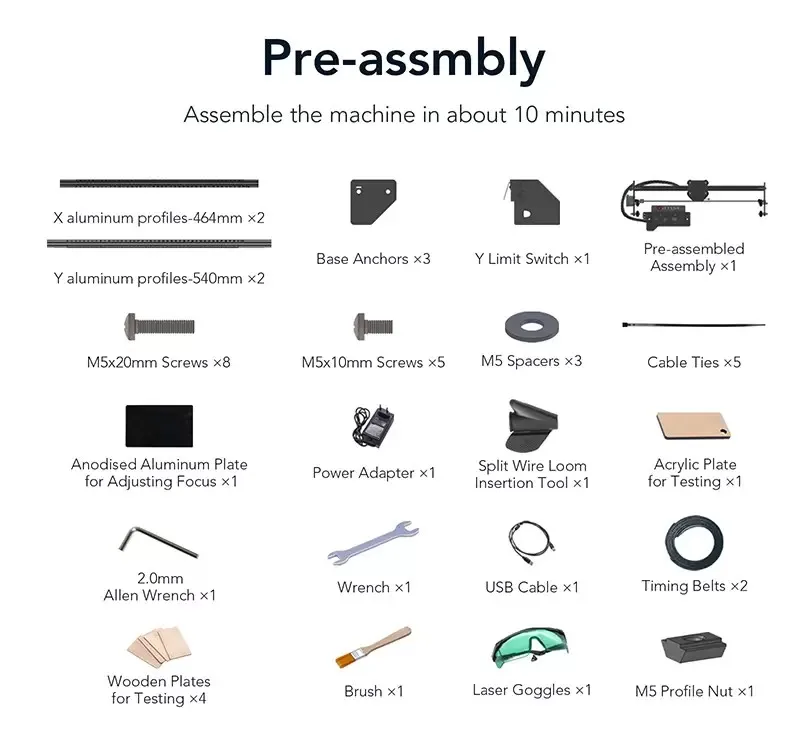

• Pre-assembled type

• Compressed spot

• Reinforced aluminum alloy for more durability

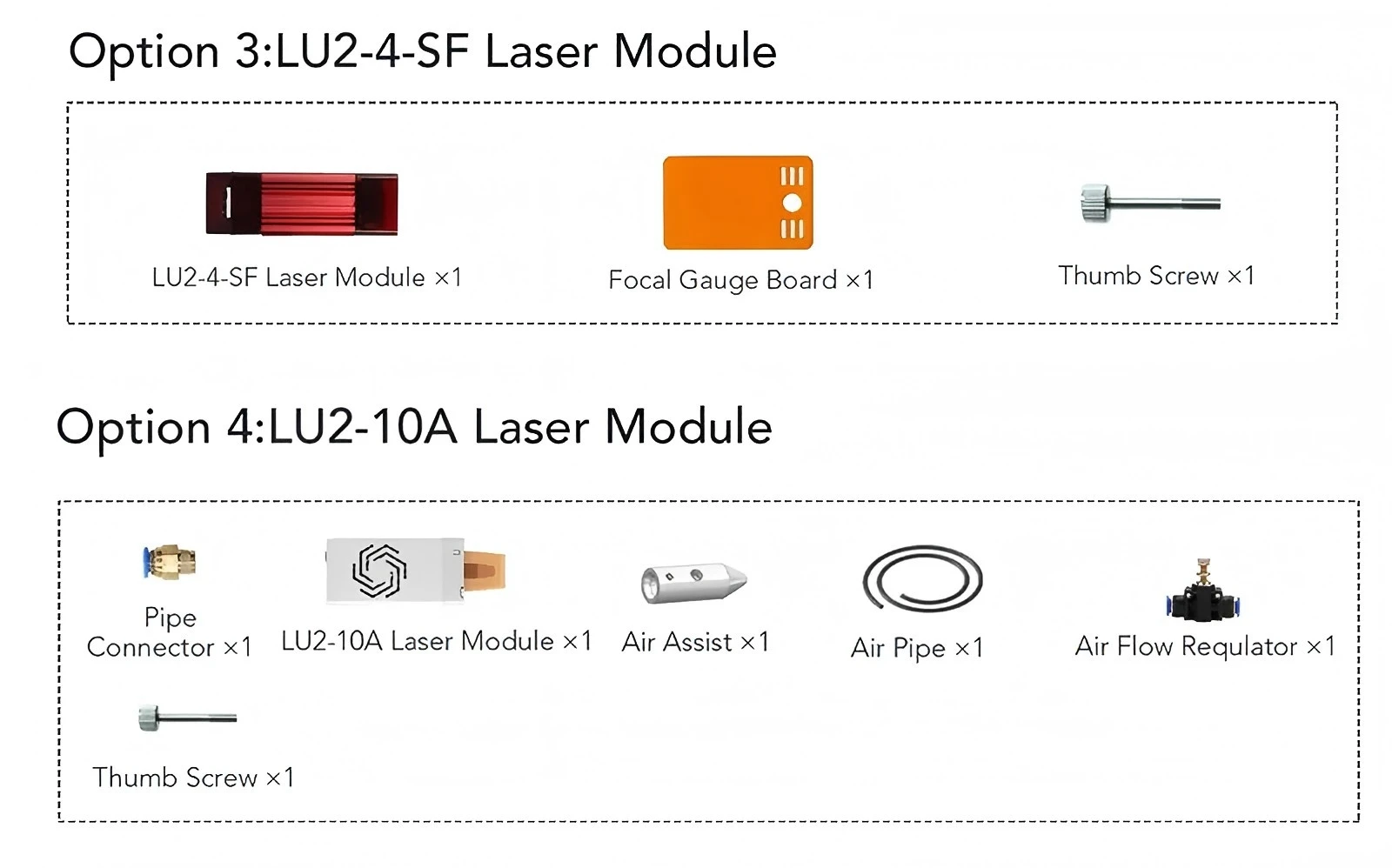

• Available with the below laser modules for your specific needs.

• • LU2-2 Laser Module (Real Luminous Power: 1,000-1,600mw)

  • LU2-4-SF Short Focus Laser Module (Real Luminous Power: 4,500-5,500mw)

  • LU2-4-LF Long Focus Laser Module (Real Luminous Power: 4,500-5,500mw)

  • LU2-10A Laser Modules (Real Luminous Power: 10,000mw)

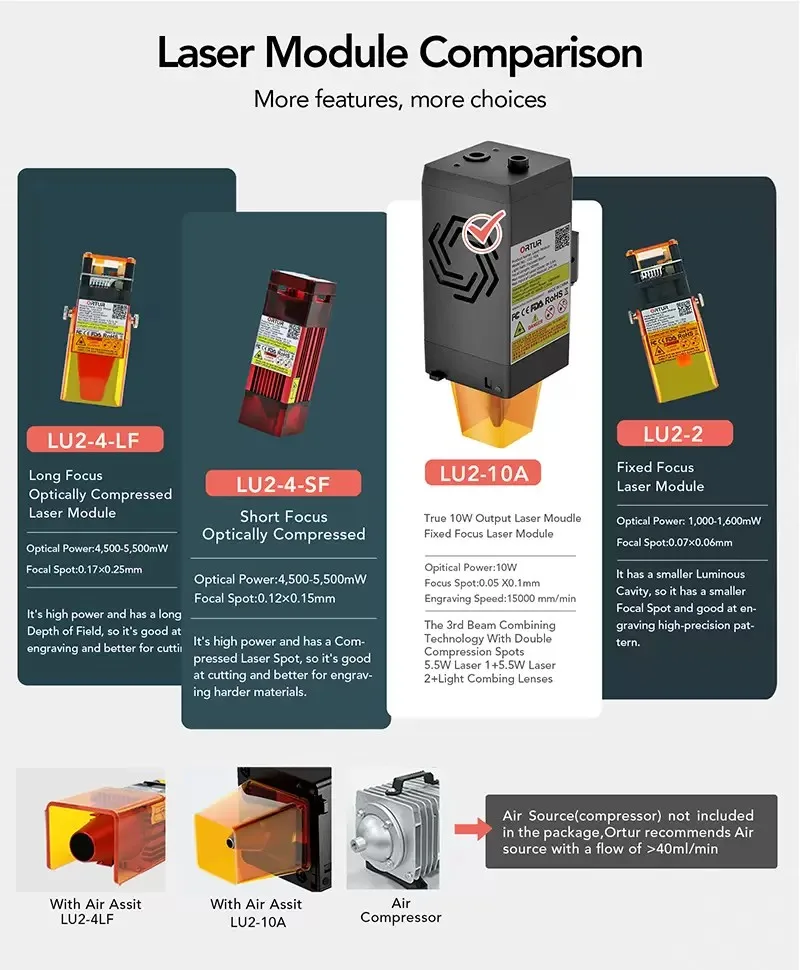

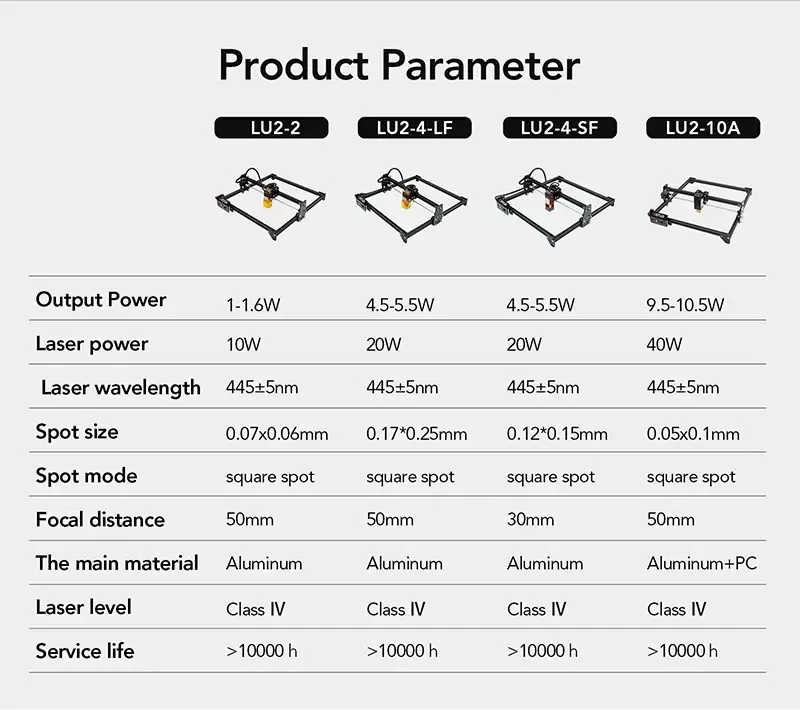

About second generation laser module

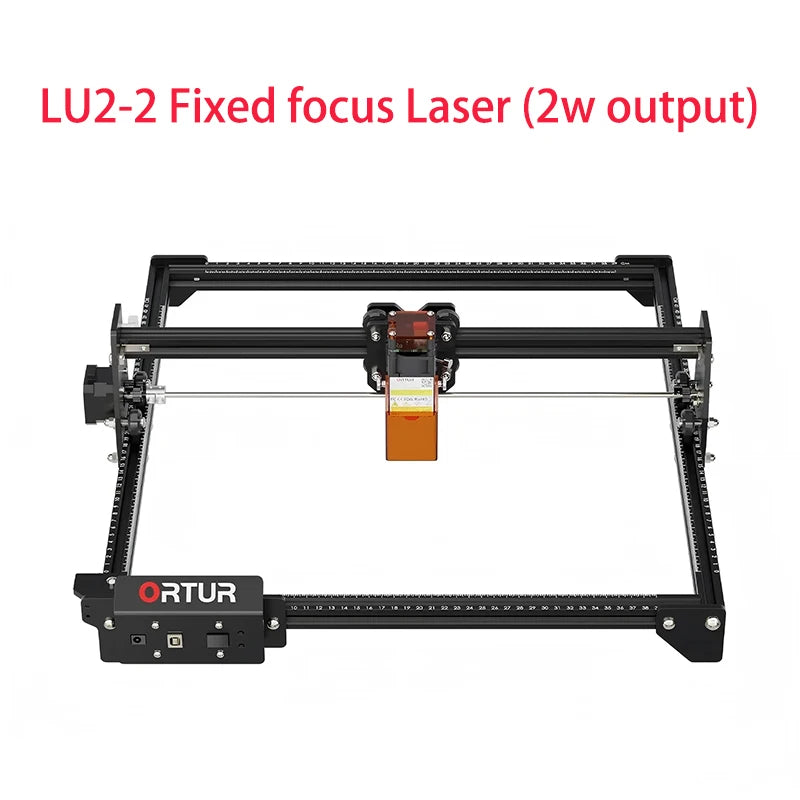

• LU2-2 Fixed focus Laser Module

• • Optical power: 1000-1600mW, Focal spot 0.07x0.06mm

  • It has a smaller Luminous Cavity, so it has a smaller Focal Spot and is good at engraving high-precision patterns.

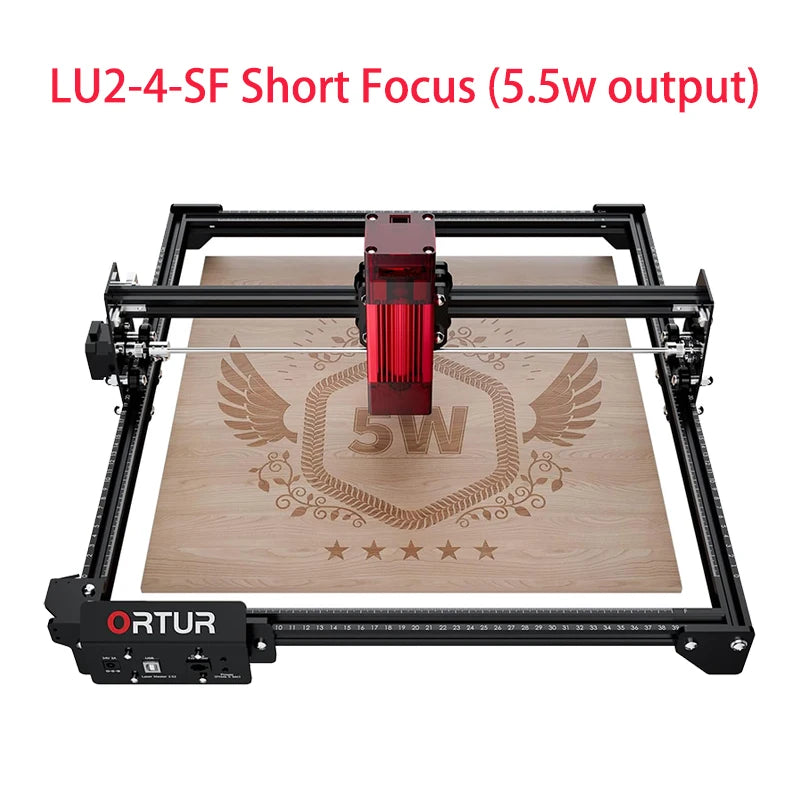

• LU2-4-SF Short Focus Optically Compressed Laser Module

• • Optical Power: 4.5KmW-5.5KmW Focal Spot: About 0.12×0.15mm

  • It's high power and has a Compressed Laser Spot, so it's good at cutting and better at engraving harder materials.

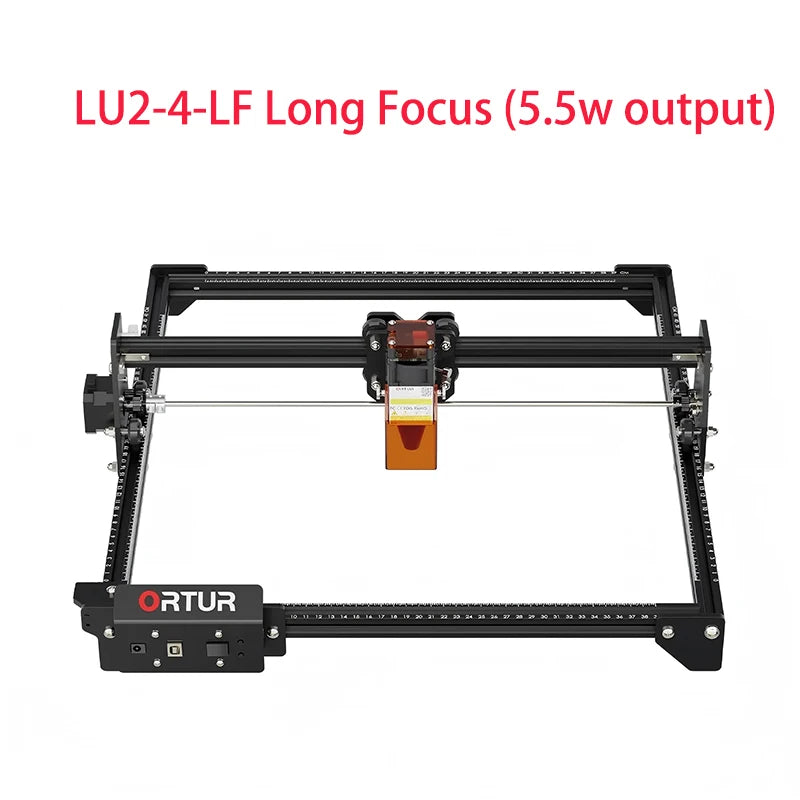

• LU2-4-LF Long Focus Optically Compressed Laser Module

• • Optical Power: 4.5KmW-5.5KmW Focal Spot: About 0.17×0.25mm

  • It's high power and has a longer Depth of Field, so it's good at engraving and better at cutting.

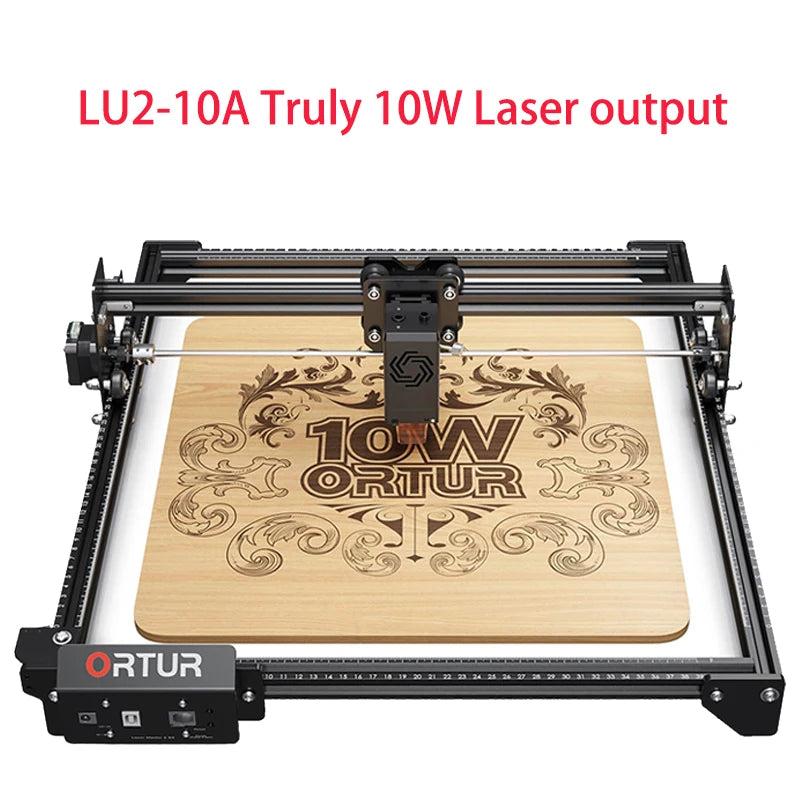

• LU2-10A Truly 10W Laser output Fixed focus Laser Module

• • Optical power: 10W , Focus spot 0.05x0.1mm, Engraving speed 15000mm/min

  • It yields Powerful & professional cutting & also it does extreme & precise engraving

  • With 24V LU2-10A with real 10W laser power. It has an ultra-thin square laser focus, and its cutting penetration and accuracy are twice of ordinary lasers. Even in the field of spot  lasers, LU2-10A has finer engraving marks and stronger cutting and penetration capabilities.

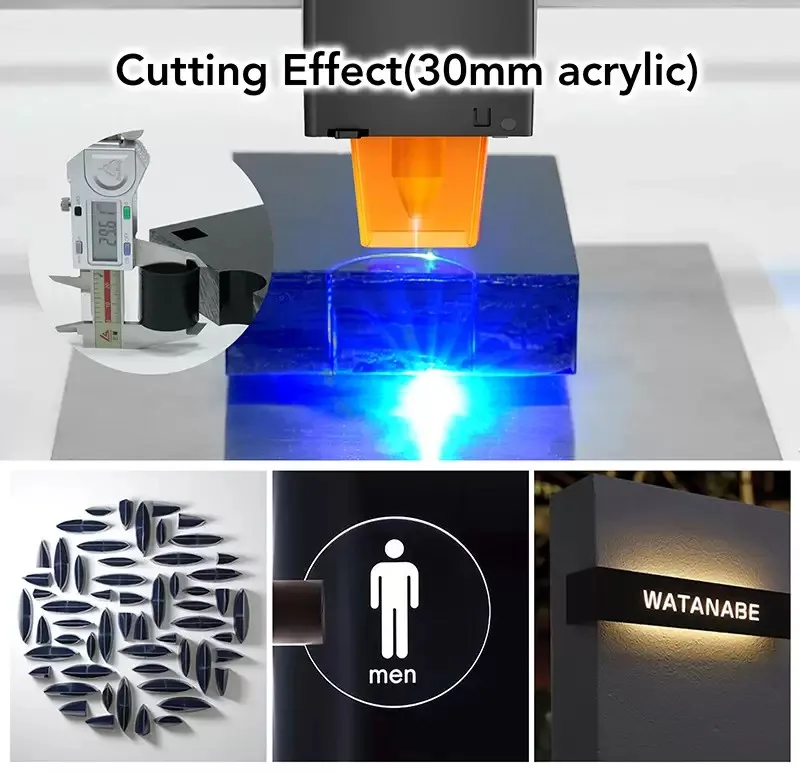

  • Cuts through 15mm wood, 20mm plywood, and 30mm acrylic at one pass which is almost beyond the capacity of 60W CO2 laser

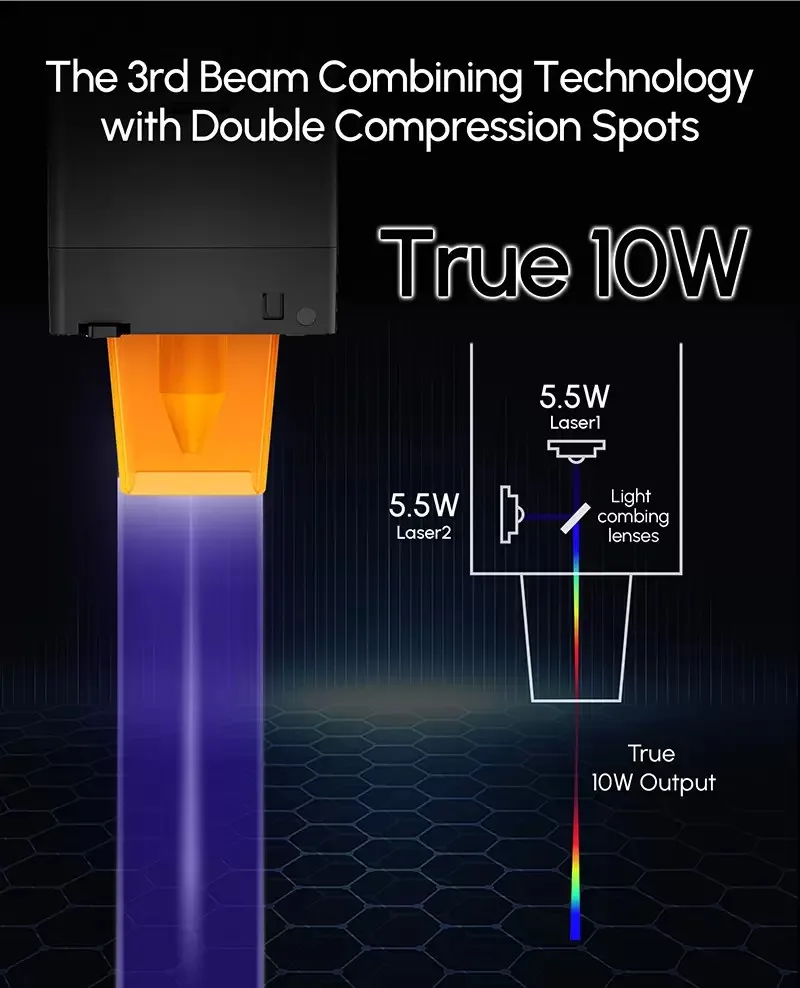

  • 3rd beam combining technology with double compression spots (True 10W)

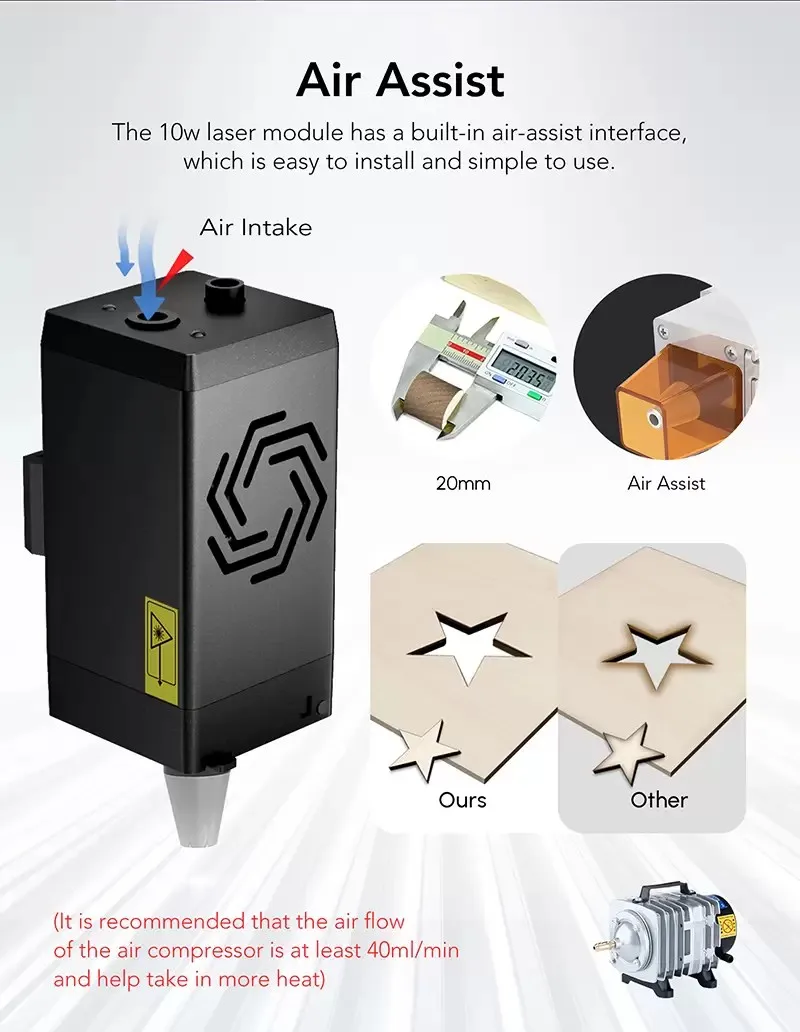

  • Built-in air-assist interface which is easy to install and simple to use

Note:

- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.

- Please do not touch the laser emitter with your hand, or it may burn your hand.

- Please avoid strong impact on the machine.

- Children under 14 are not allowed to use this product and children over 14 need adult supervision.

- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
