RCD RCCB Type B Earth Leakage Residual Current Circuit Breaker Evse 2P 4P AC 40a 63a 30ma 100ma 300ma 10KA Din Rail 230V TONGOU
RCD RCCB Type B Earth Leakage Residual Current Circuit Breaker Evse 2P 4P AC 40a 63a 30ma 100ma 300ma 10KA Din Rail 230V TONGOU
Couldn't load pickup availability

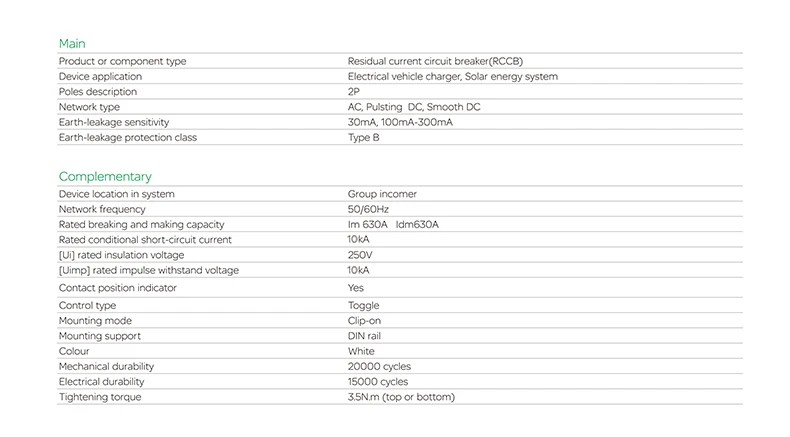

SPECIFICATIONS
Brand Name: TONGOU
Certification: CE
Choice: yes
Hign-concerned Chemical: None
Model Number: TORD4B-63
Origin: Mainland China
Type: Earth Leakage
is_customized: Yes
-
General
-
Tips: 30mA, 100mA, 300mA is electromagnetic type, 10mA is electronic type.10mA cannot be tested with 5V battery.
There is a wiring diagram above the test button, please follow the it. The power supply must enter from the top and output from the bottom. The neutral line on the left and the live line on the right.
The default rated voltage of the product is 230V, (110V needs to be customized, please contact customer service)

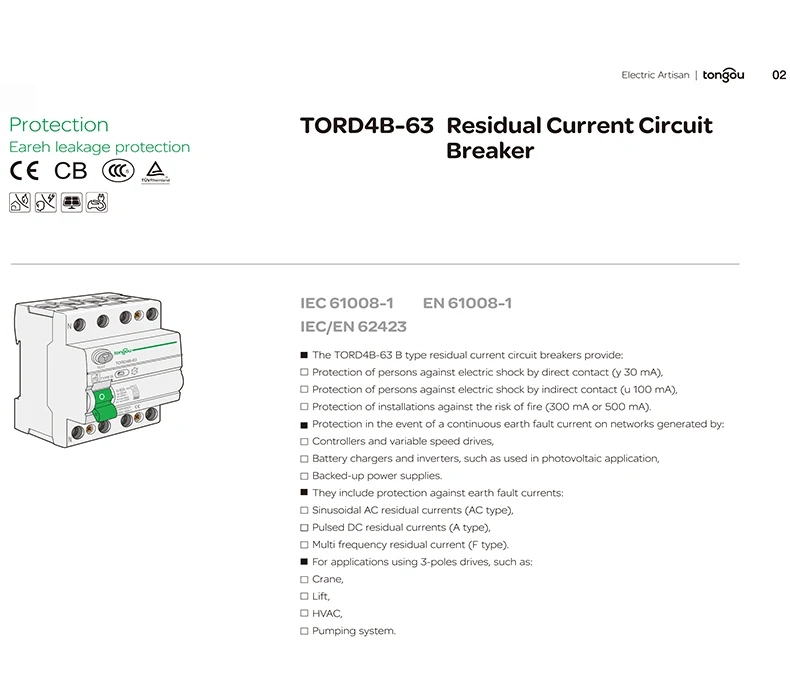

This is B Type Residual Current Circuit Breaker
-
Tip: Please noted the input MUST from TOP side, or will damage the product.
Type B RCCBs, in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. Reducing the risk of fire and/or electrocution through automatic disconnection of the electrical supply relies on the selection of the correct type of RCCB.
View 'B' Type
-
EV & PV installationsFrequency convertersUPS installationsHigh-frequency power convertersBuilding site power supply cabinets1.1 Function
-
Control electric circuits.Protect people against indirect contacts and additionalprotection against direct contacts.Protect installations against fire hazard due to insulation faults.Residual current circuit breakers are used in housing, tertiarysector and industry
-
1.2 SelectionDetectable wave formB classTripping is ensured for sinusoidal AC residual currents pulsed DCresidual currents,alternatingresidual sinusoidal currents up to1000Hz, pulsating direct residualcurrents and for smooth directresidual currents, whether applied suddenly or increasing slowly.Tripping sensitivity30mA -additional protection against direct contact.Tripping timeInstantaneous
It ensures instantaneous tripping (without time- delay).

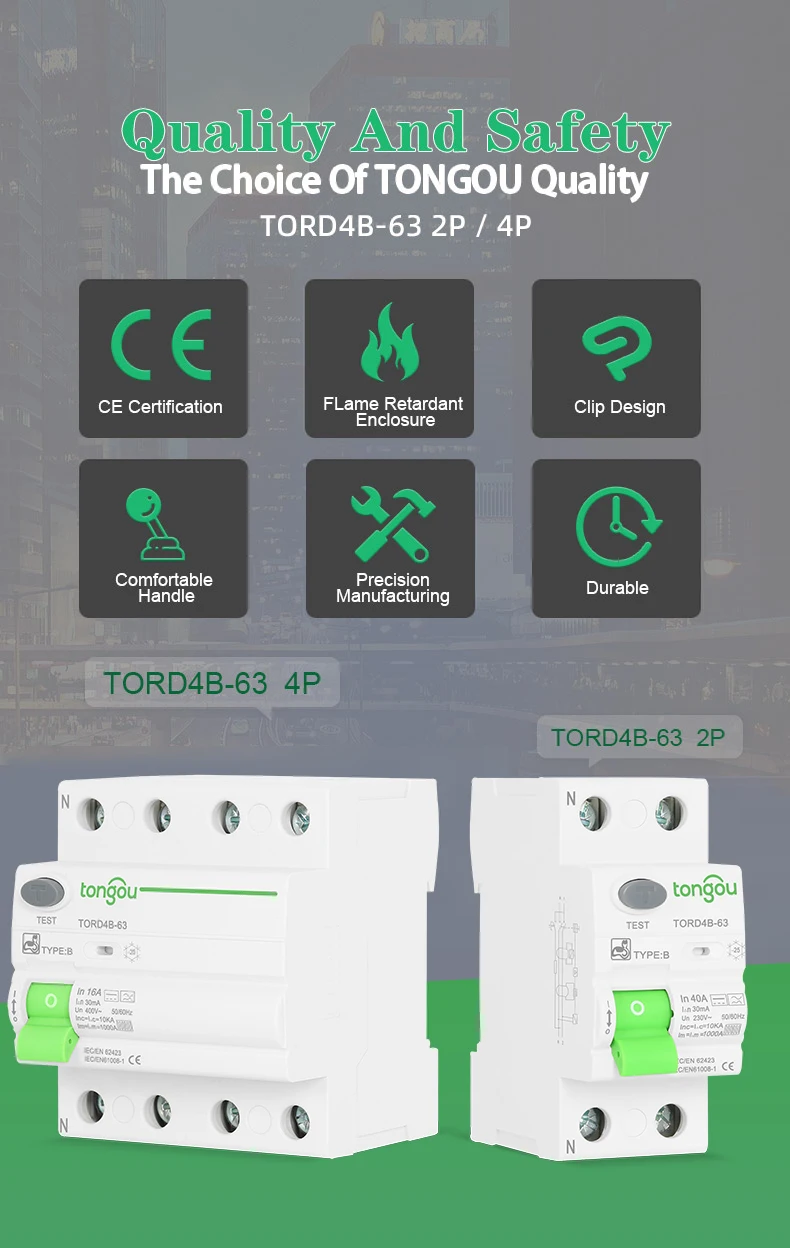

Quality And Safety
The Choice Of TONGOU Quality
TORD4B-63 2P/4P
CE Certification/FLame Retadant Enclosure/Clip Design/Comfortable Handle/Precision Manufacturing/Durable
Are You WorriedAbout These Problems
About electricity consumption electricity
Electric Shock/Charging Pile Cannot Be Matched AC Tpye.

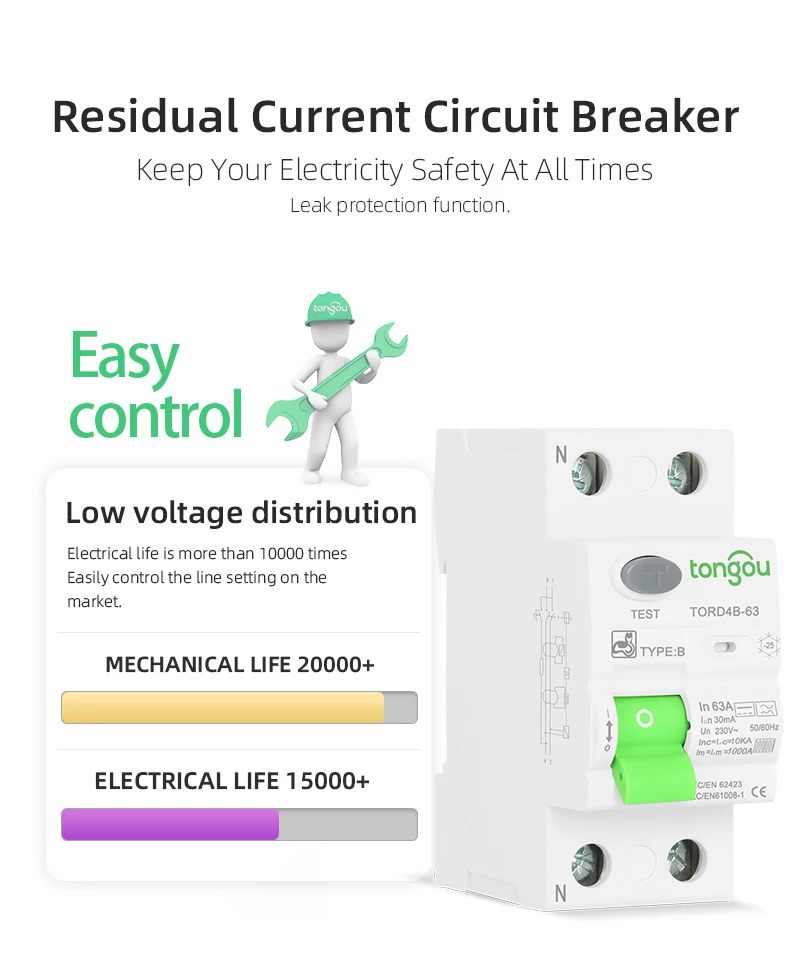

Residual Current Circuit BreakerKeep Your Electricity Safety At All Times
Leak protection function
Easy control
Low voltage distribution
Electrical life is more than 10000 times Easily control the line setting on the market
MECHANICAL LIFE 20000+
ELECTRICAL LIFE 15000+

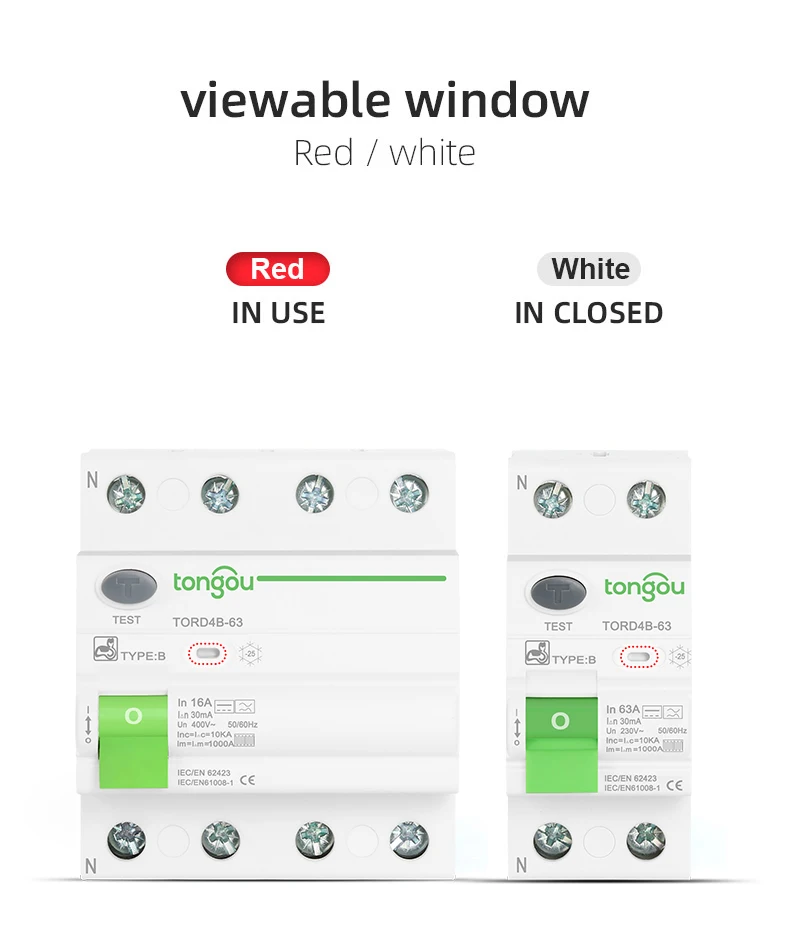

viewable windowRed/white
Red White
IN USE IN CLOSED

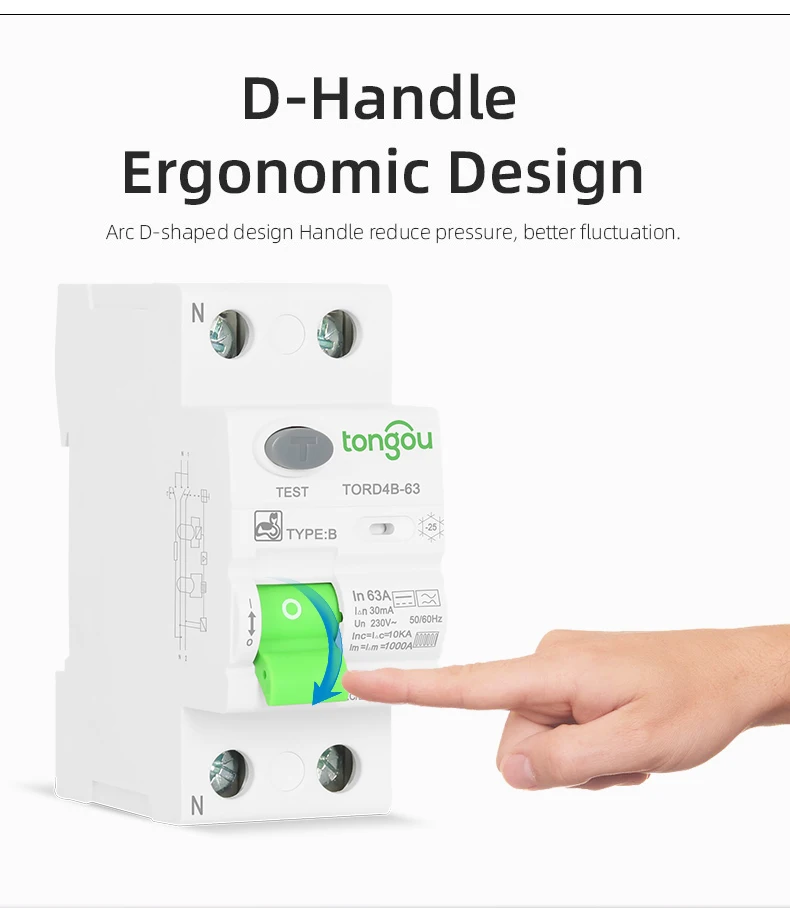

D-HandleErgonomic Design
Arc D-shaped design Handle reduce pressure,better fluctation.

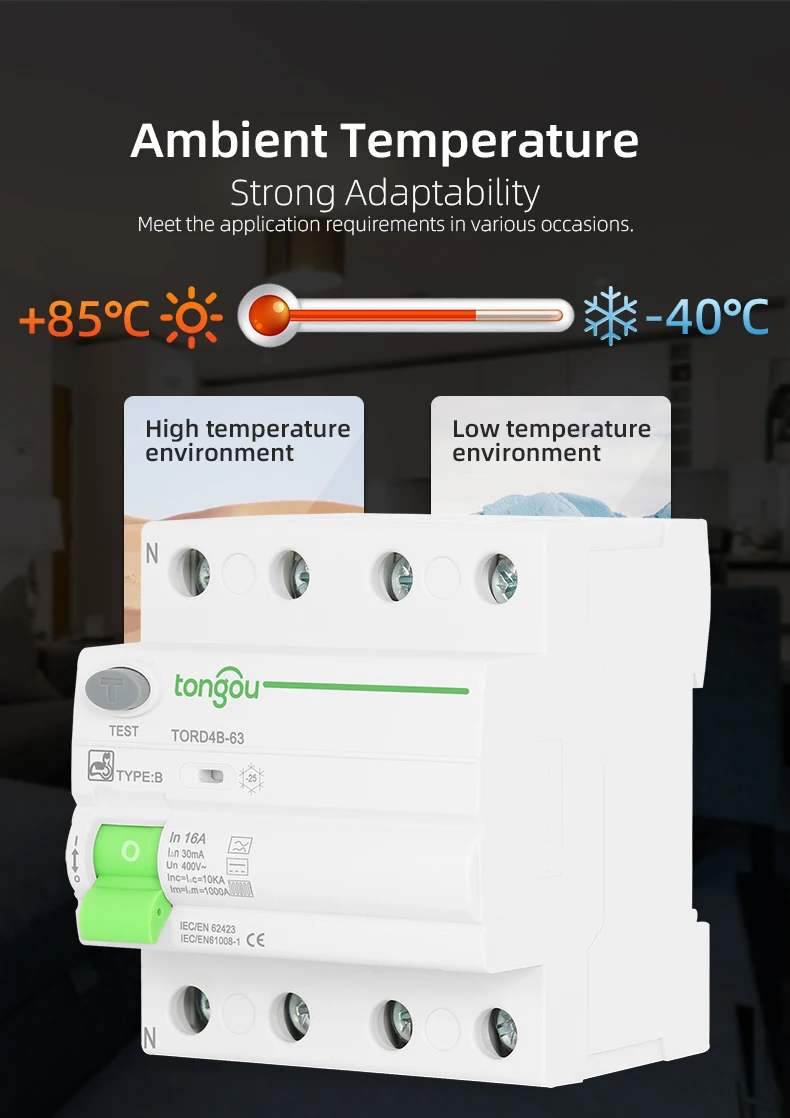

Ambient TemperatureStrong Adaptability
Meet the application requirements in various occasions.

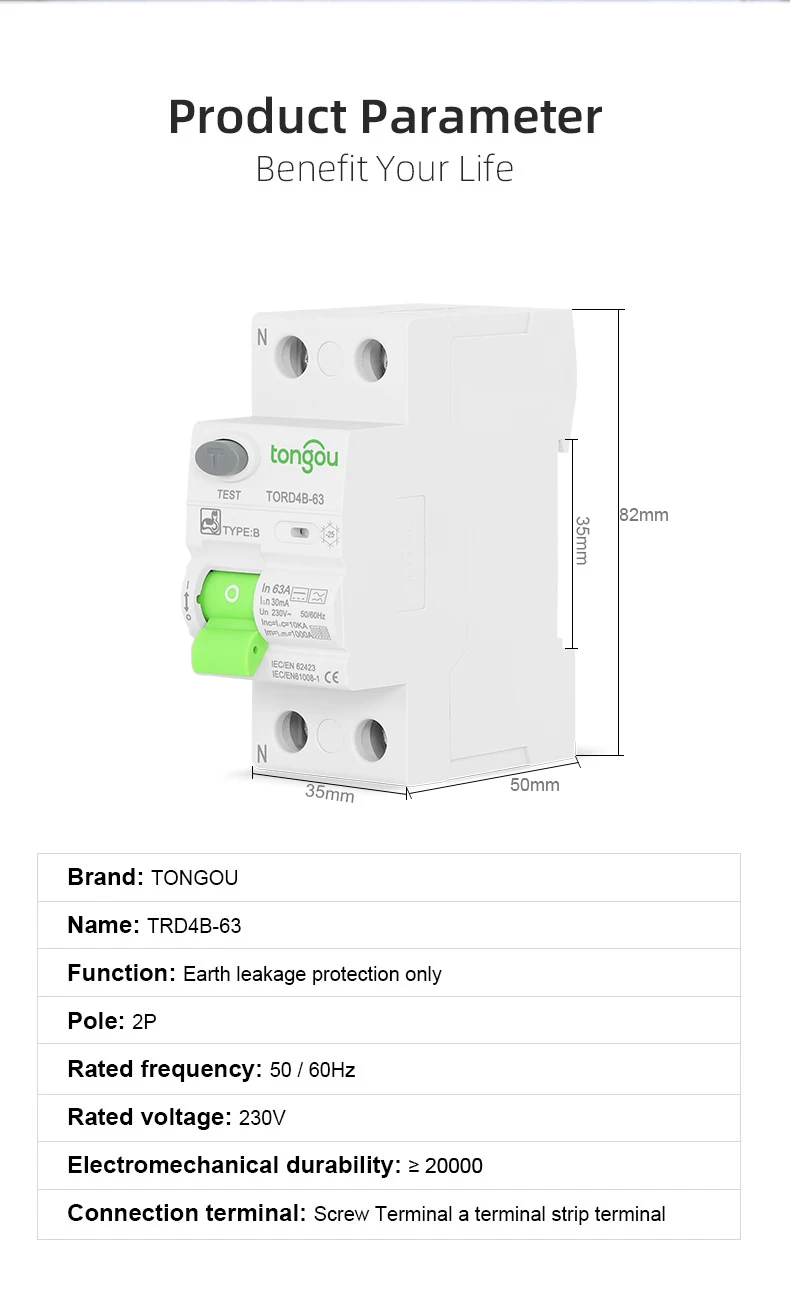

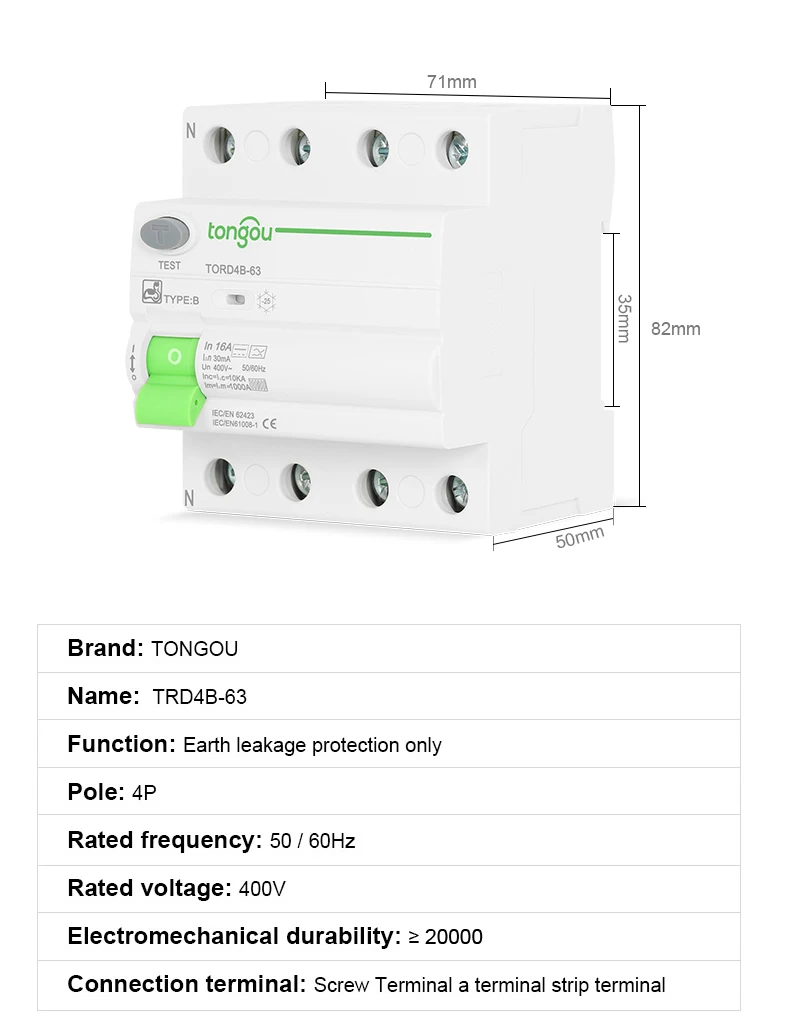

Product ParameterBenefit Your Life

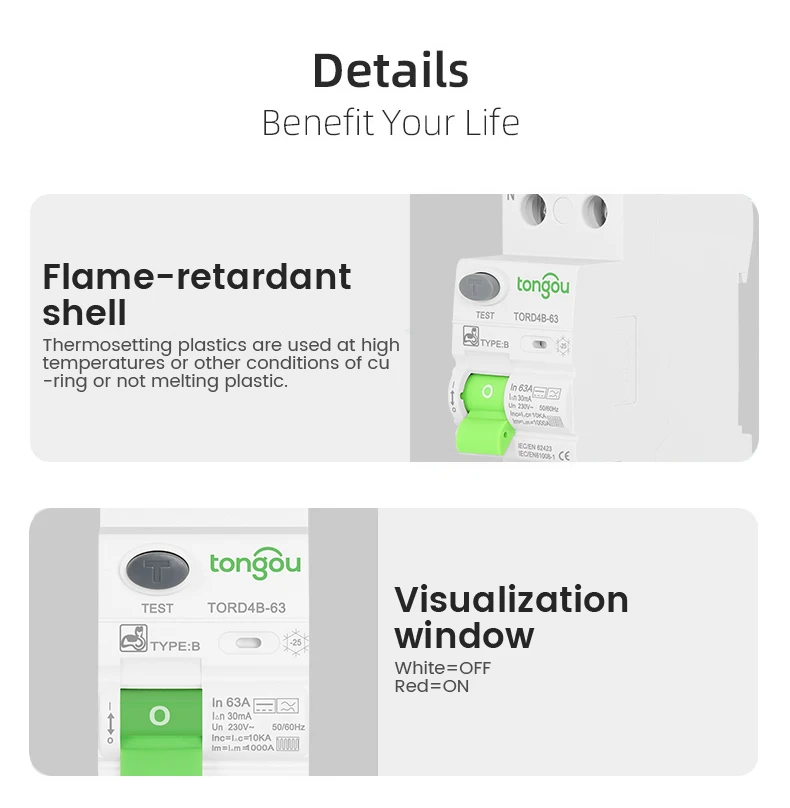

DetailsBenefit Your Life
Flame-retardant shell
Thermosetting plastice are used at high temperatures or other conditions of curing or not melting plastic
Visualization window
White=OFF Red=ON

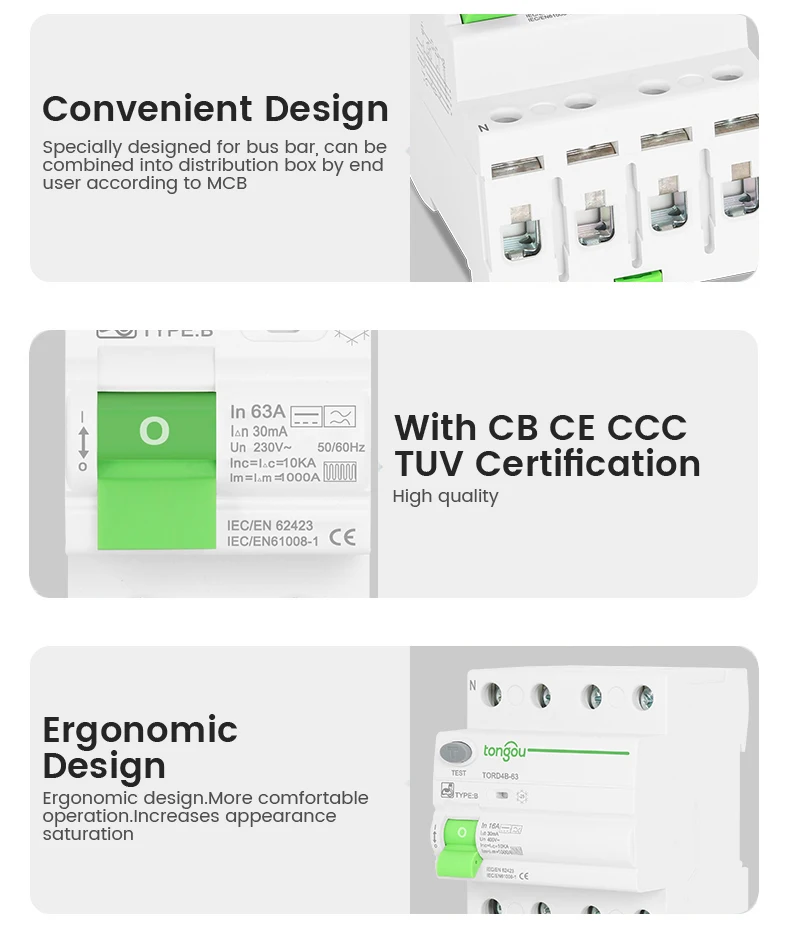

Convenient Design
Specially designed for bus bar,can be combined into distribution box by end user according to MCB

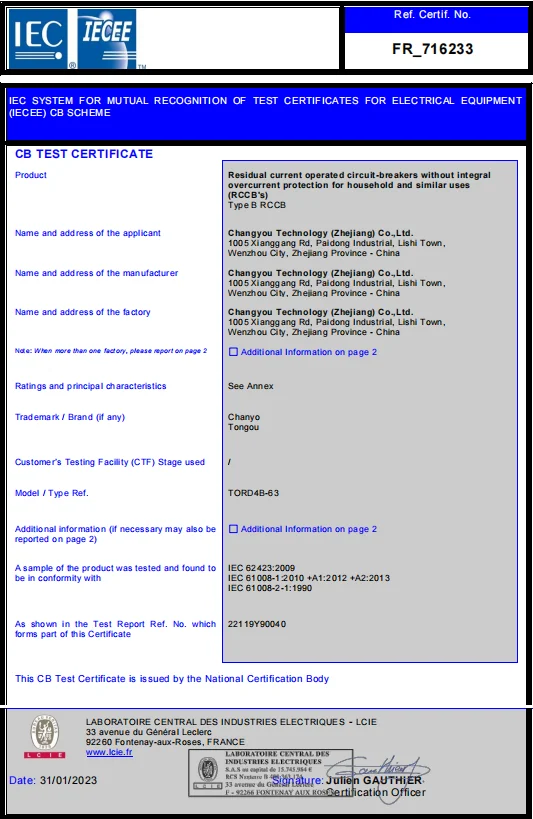

With CB CE CCC TUV Certification
High quality
Ergonomic Design
Eronomic design.More comdortable operation.Increases appearance saturation
Solution For YouBenefit Your Life
Frequency converter
Uniniterruptible power supply unit
Electric vehicle charging system
Solution For YouPhotovoltaic(PV) system
Welding equipment
Electric vehicle charging system
