RCEXL RC Model Remote Safety Kill Switch Stop Switch for RC Gasoline Engine Magneto Airplane DLE Fix Wing Plane

KSh5,079

~~KSh5,665~~ KSh5,079

Sale Sold out

Shipping calculated at checkout.

Default Title Default Title

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

Brand Name: SKYAREA

Certification: CE

Choice: yes

For Vehicle Type: Airplanes

Material: Plastic

Model Number: K2/V1

Origin: Mainland China

Plastic Type: PE

RC Parts & Accs: engines

Recommend Age: 14+y

Remote Control Peripherals/Devices: MOTOR

Size: --

Technical parameters: value 2

Use: Vehicles & Remote Control Toys

RCEXL RC Model Remote Safety Kill Switch Stop Switch for RC Gasoline Airplane DLE Engieen Fix Wing Plane

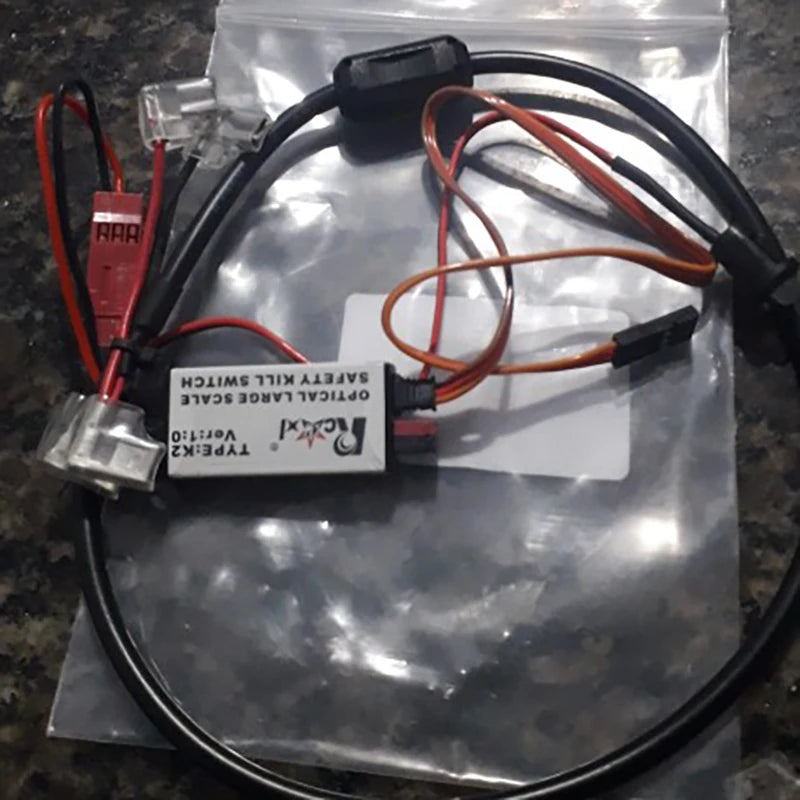

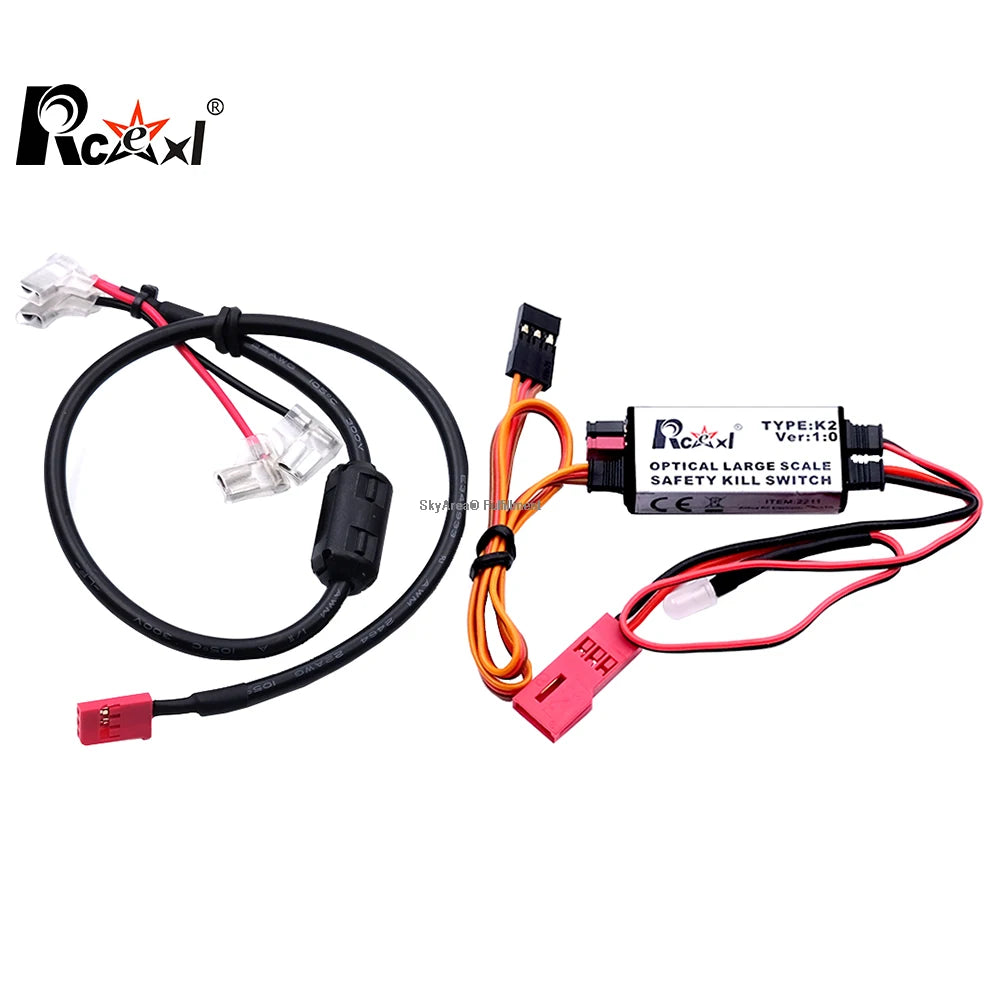

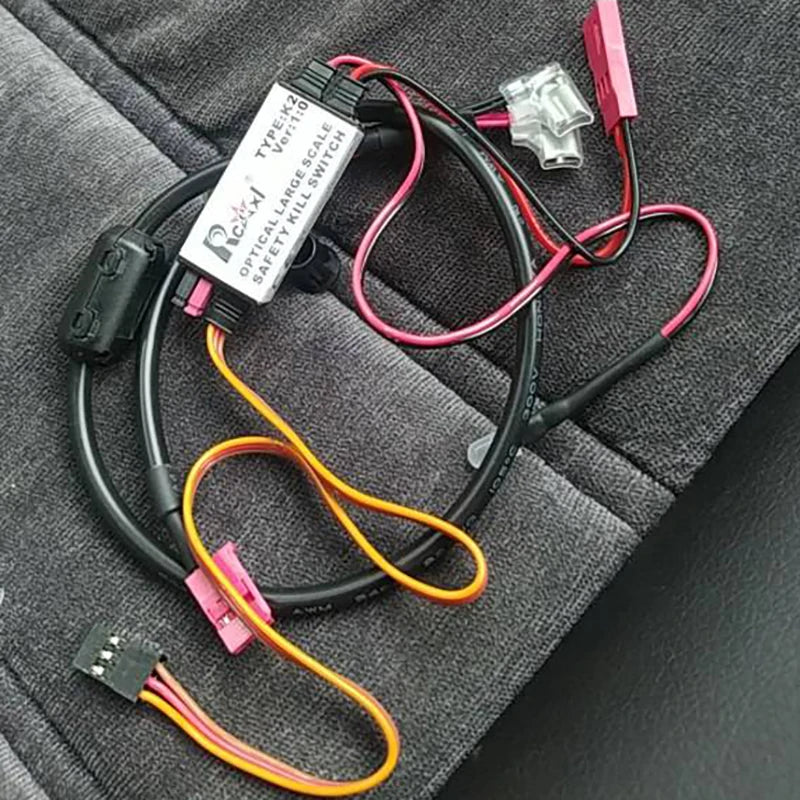

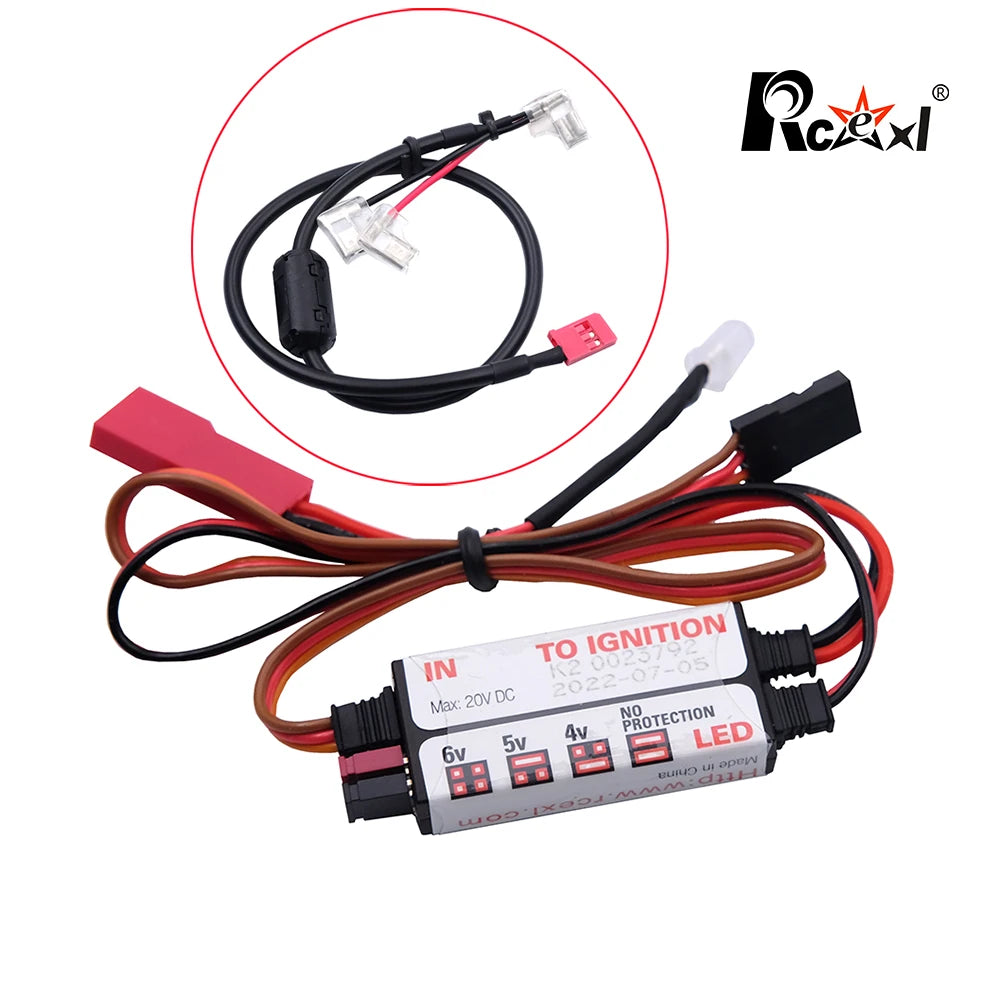

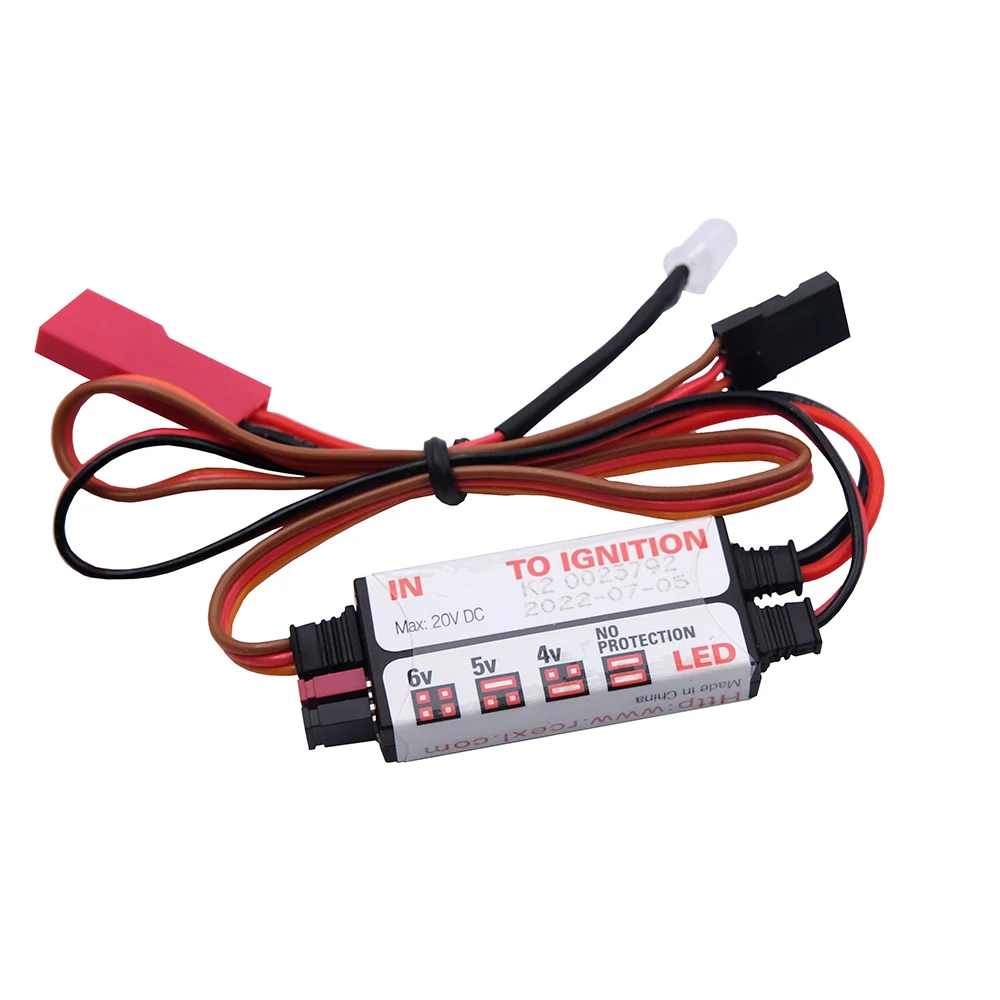

Product: Rcexl Large Scale Safety Kill Switch

Works on any gasoline engine land or sea with a magneto drive ignition (not compatible with CDI driven ignition systems）.
Remote LED to indicate if the ignition is live.
Fiber optically coupled to eliminate interference.
Li-Po/Li-Ion/LiFe/Ni-Cd/Ni-MH compatible.
Input range from 3V, 3 amps up to 20V, 16 amps.
Surface mount technology.
High-quality wiring with universal servo connectors.
Only 0.3 oz/8 g.
Manually shut off engine from assigned button on transmitter.
Automatically shuts down power to the ignition on loss of signal or low voltage.

How-to Connection:

1. Connect Safety Kill Switch into AUX1 or an open channel.
2. Install the kill switch in a convenient, secure and protected location. The receiver or receiver battery box is ideal.
3. Mount LED in a visible location.
4. Secure the Safety Kill Switch in position with foam tape in order to prevent vibration damage.

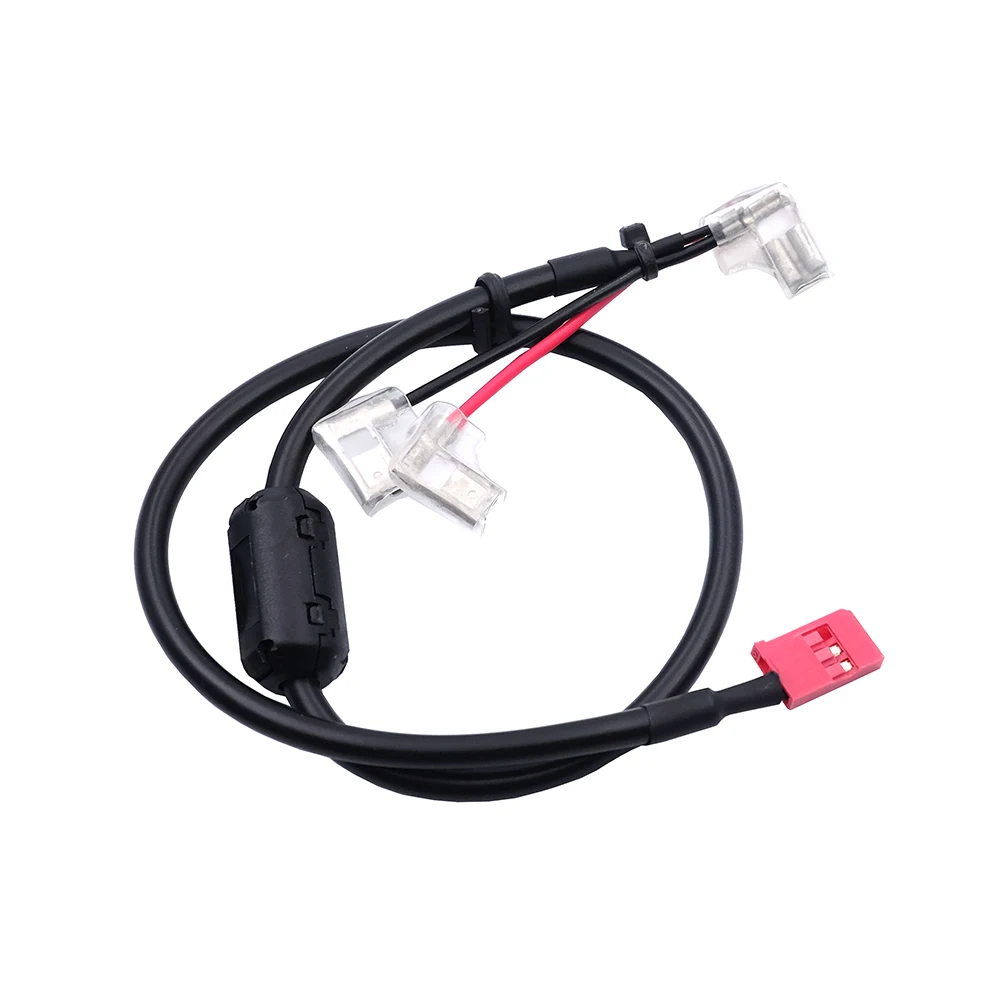

5. Connect the Safety Kill Switch cable to the ignition coil terminals. Polarity doesn’t matter.
6. Zip tie ignition cable away from the flywheel and any moving parts.
