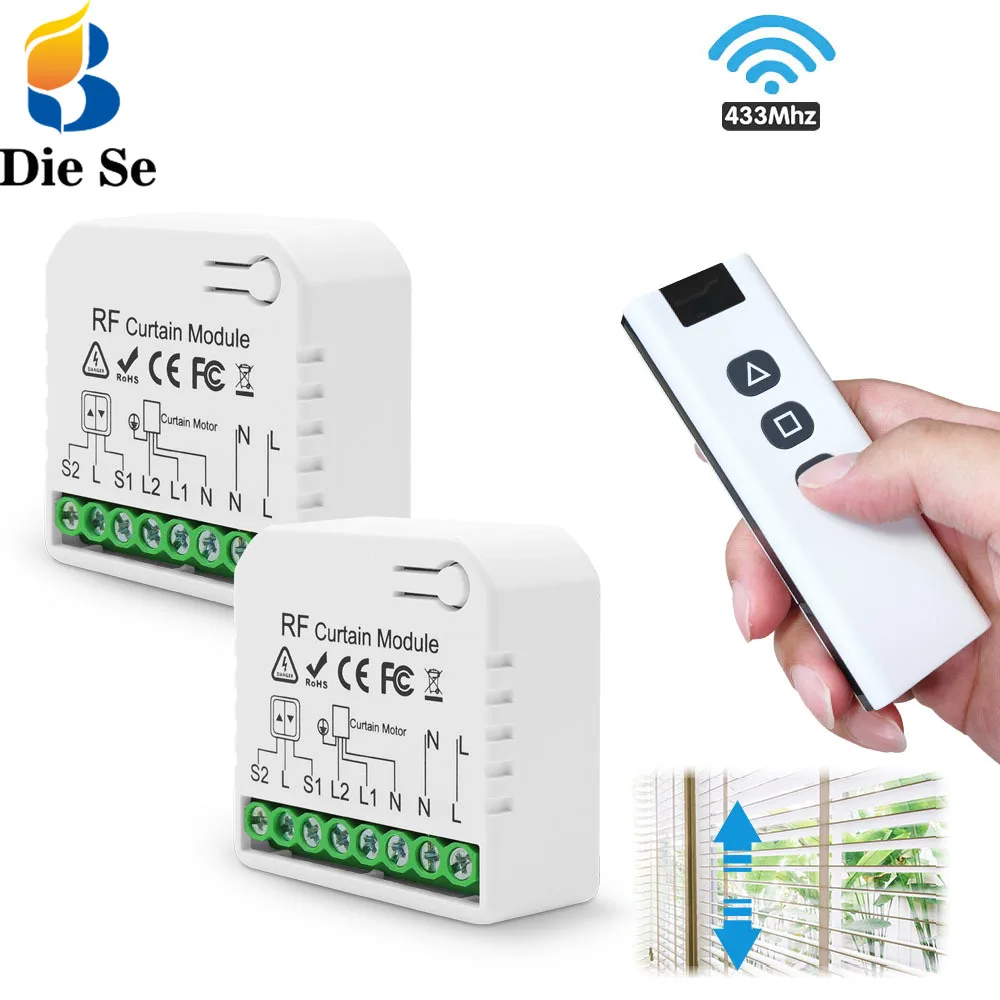

RF 433Mhz Roller Blinds Curtain Switch Module Remote Control 110V 220V 240V Smart Home for Roller Shutter Electric Blind Motor
RF 433Mhz Roller Blinds Curtain Switch Module Remote Control 110V 220V 240V Smart Home for Roller Shutter Electric Blind Motor
SPECIFICATIONS
Brand Name: Diese
Communication method: RF
Communication method: WI-FI
Origin: Mainland China
Compatibility: All Compatible
State of Assembly: Ready-to-Go
Camera Equipped: No
Certification: CE
Certification: FCC
Certification: RoHS
Model Number: 433MHZ Smart Curtain Module
Voltage: 110-240V
RF frequency: 433MHz
Maximum current: 16A
Certification: CE,FCC,RoHS
Operation range: 70 Meters
RF Curtain Module Size: 45*45*16mm
TWO Control modelS: Wall switch control, wireless control
5-in-1 Remote Control Size: 110*15*38mm
Module shell: White
Remote Control Battery: 23A 12V (not include)
Choice: yes
semi_Choice: yes

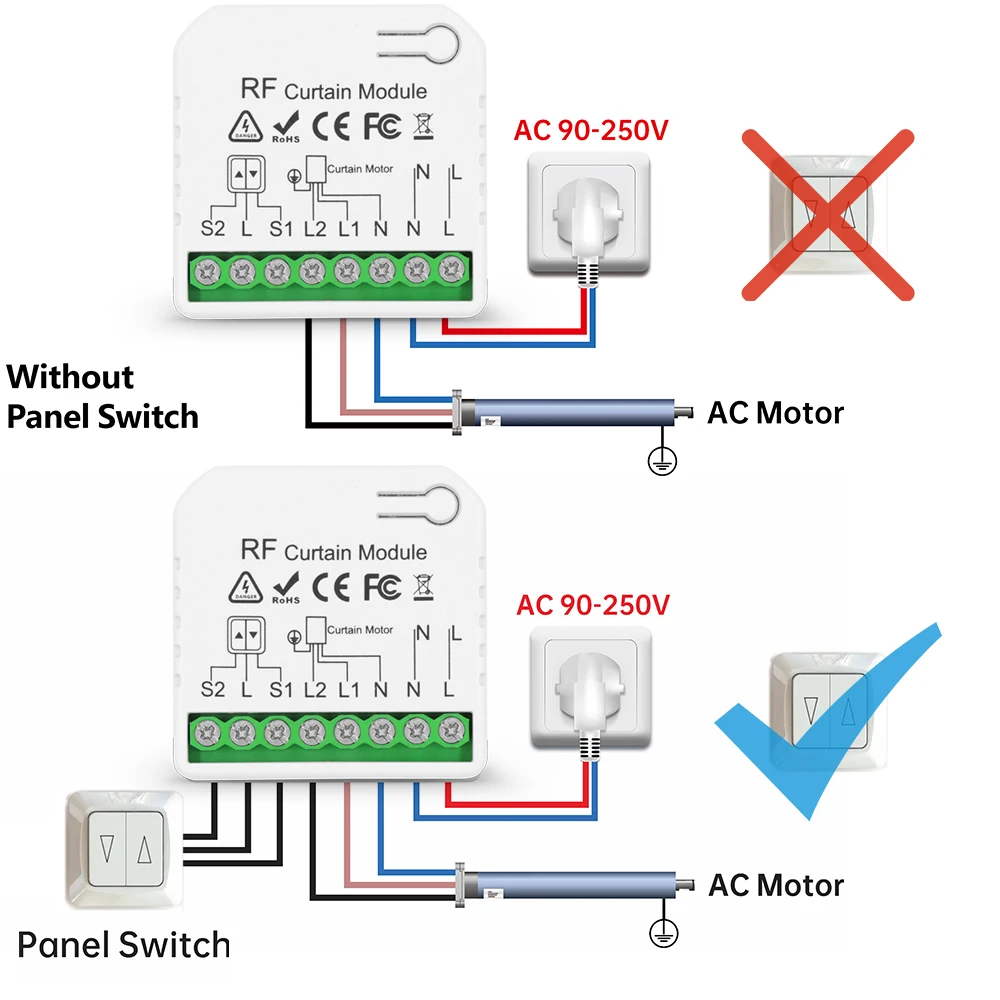

Two simple wiring methods:
It can be used with the original wall switch and can be directly connected to the motor wiring methods:
Features:
1: Diversity of control methods:
--When curtains are equipped with radio frequency curtain modules, they can not only be controlled by wall switches, but also by wireless remote controls.
2: Wide range of application scenarios:
--Curtain modules can be paired with different types of curtains. For example: roller blinds, Venetian blinds and other different types of curtains. Not only that, but it can be paired with garage doors and projection screens.
4: Long receiving distance:
-- The remote control signal is stable and can transmit signals up to 70 meters in open spaces.
5. Stable signal, Multiple receivers are used without interference:
--Support flexible pairing to enable multiple remote controls to control one/multiple curtain receivers at the same time, making it is convenient to turn on or turn off curtains.
Parameter

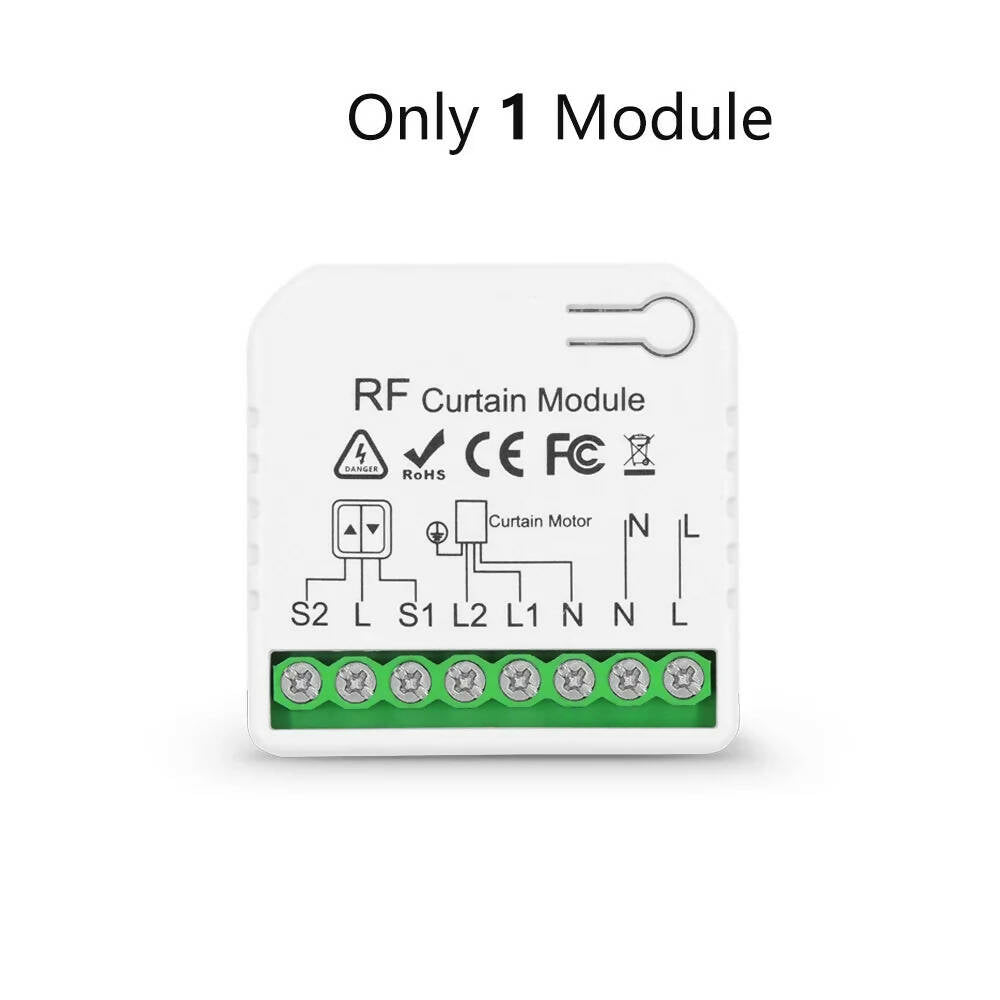

RF Curtain Module:
--Input Voltage: AC 110V~240V
--Connection port: 8 ports

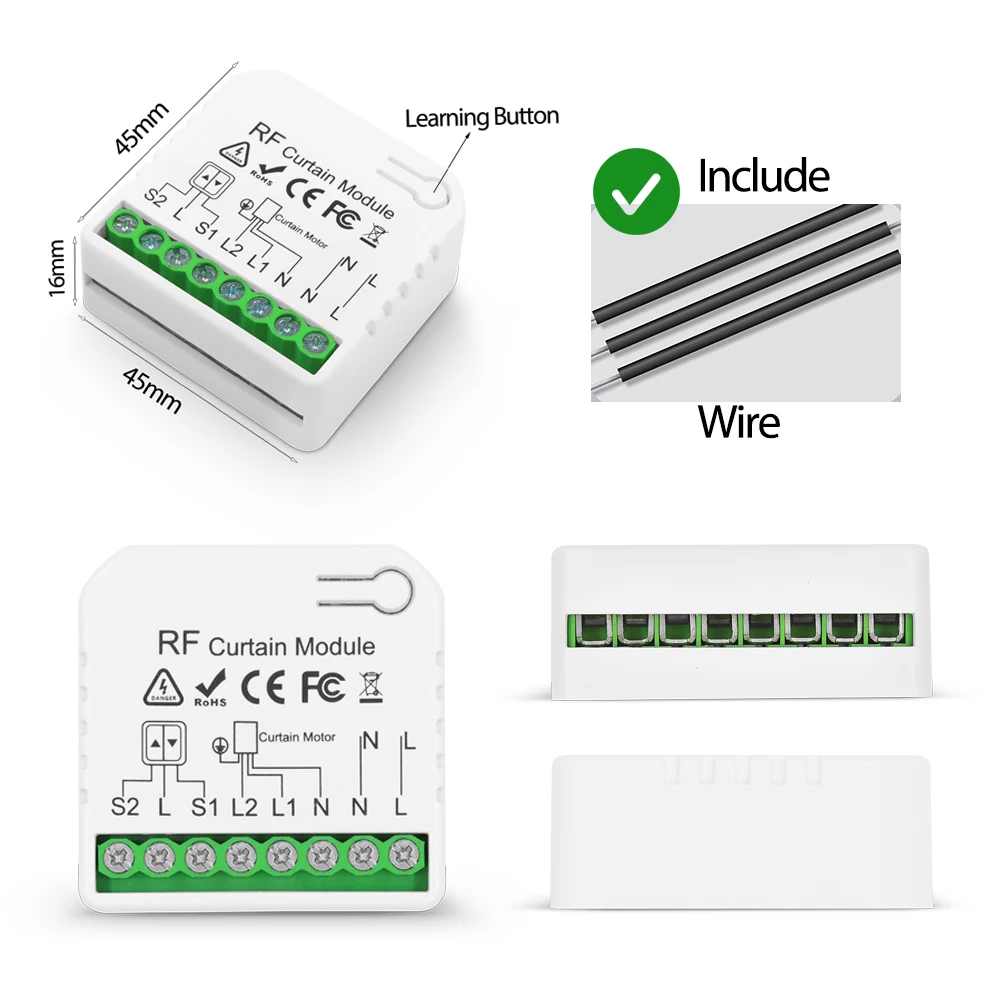

--Size:45*45*16 mm
--RF Frequency: 433MHz
--Max current: 16Amp
--Color: White (Outside Shell)
--Receiving Sensitivity: >97dbm
RF 433MHz 5-in-1 Rontrol:
--Size:110*38*15mm
-- Remote distance : up to 70 meters (theoretical distance)
--Battery : 23A 12V( NO Battery include )
--Screw: Include
--Base: Include

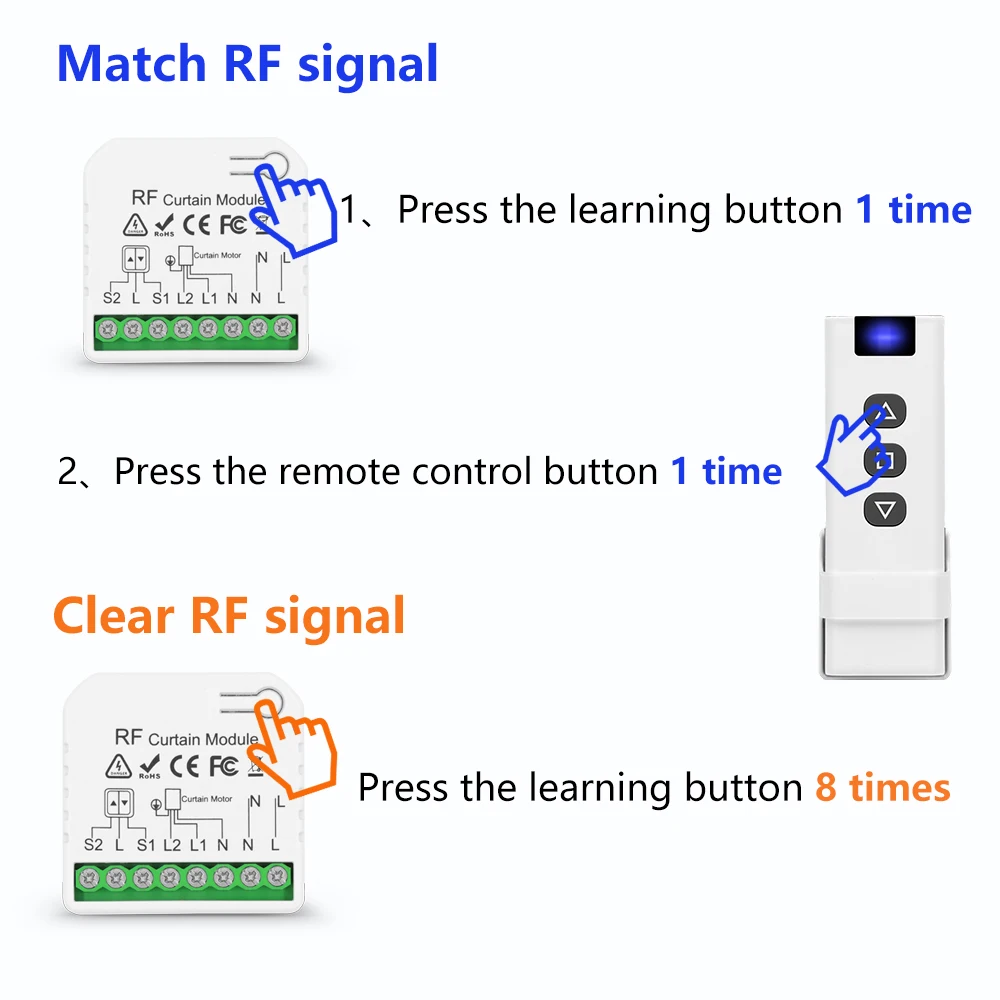

How To Pair and CLear 433Mhz Signals
How to pair 433Mhz signals:
1: Press the learning button 1 time.
2: Press button " ∆ " 1 time; Succeed.
How to delete 433Mhz signals:
Press the learning button 8 times.; the data has been cleaned successfully.
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!
