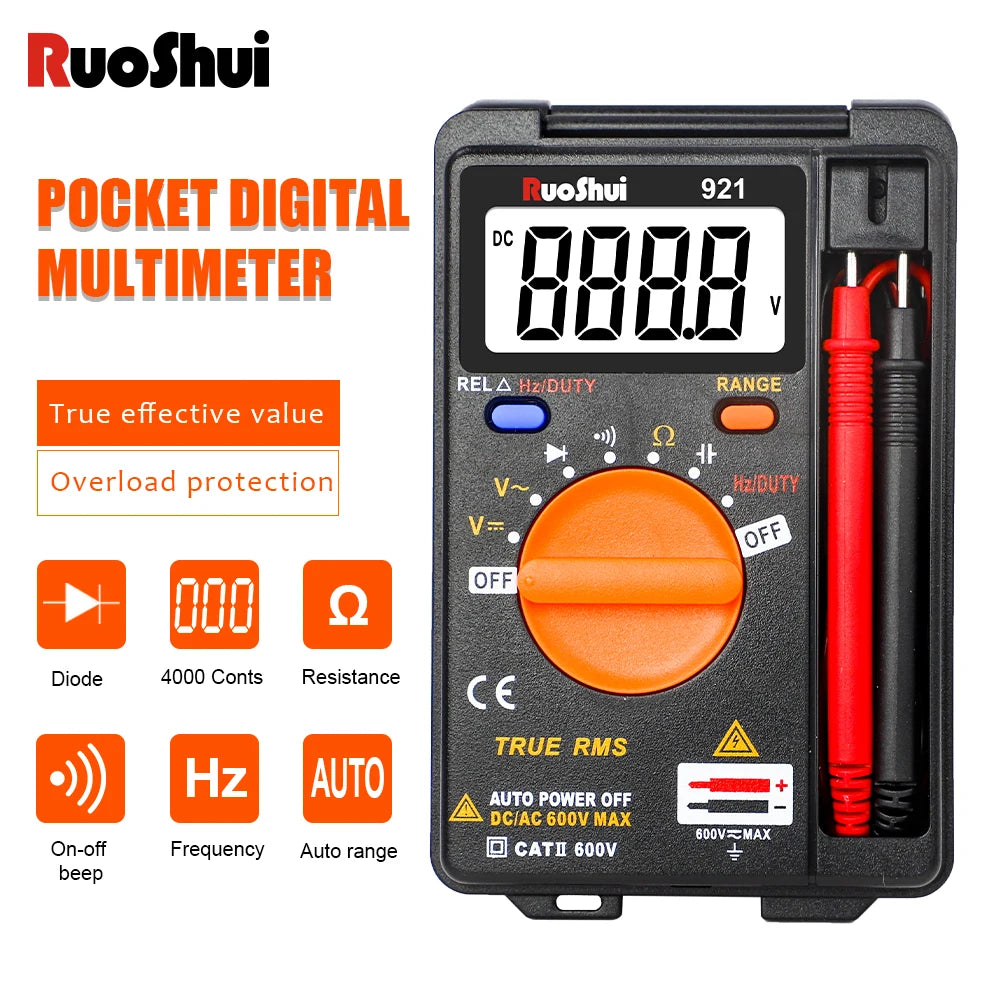

RuoShui 921 Digital Multimeters 4000 Counts Mini Auto Range Resistance Tranistor Capacitance Multimetros Multimeter Digital

KSh4,793

~~KSh5,346~~ KSh4,793

Sale Sold out

Shipping calculated at checkout.

Color 921

Ships From CHINA

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

AC Voltage: DC/AC 600V

Battery Included: No

Brand Name: RuoShui

Certification: CE

DC Voltage: DC/AC 600V

DIY Supplies: Electrical

Dimensions: 14*10*3 cm

Display Type: Digital Display

Hign-concerned Chemical: None

Is Smart Device: No

Measuring Resistance Range: 40MΩ

Model Number: 921

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

RUOSHUI Model: 921

We have two brands, Victor and RuoShui.

We will give priority to the RuoShui brand.

If RuoShui is out of stock, we will send the Victor brand.

we@chat/what@s app/ p@hone :+8618279045713

RuoShui 921 Digital Multimeters 4000 Counts Mini Auto Range Resistance Tranistor Capacitance Multimetros Multimeter Digital

This series meter meets the standard ofIEC61010 and CATII 600V. Read it before operation.1．Check the case of the meter and test
leads before operation.2．Do not input over range when testing.3. Be careful when measuring voltage over ACV 40V or DCV 60V.4．When
measuring, must select correct function and range.5．The test lead should be keep away from the tested point when change the
function.6.Do not try to modify the circuit,Or you may damage the instrument andendanger personal safety.7. Safety symbols “”
exists high voltage ,“” dual insulation ,“” warning8．Electric symbols“”GND， “”low battery “” AC “” DC “”continuity test “”diode“
”relative value measurement “”auto range

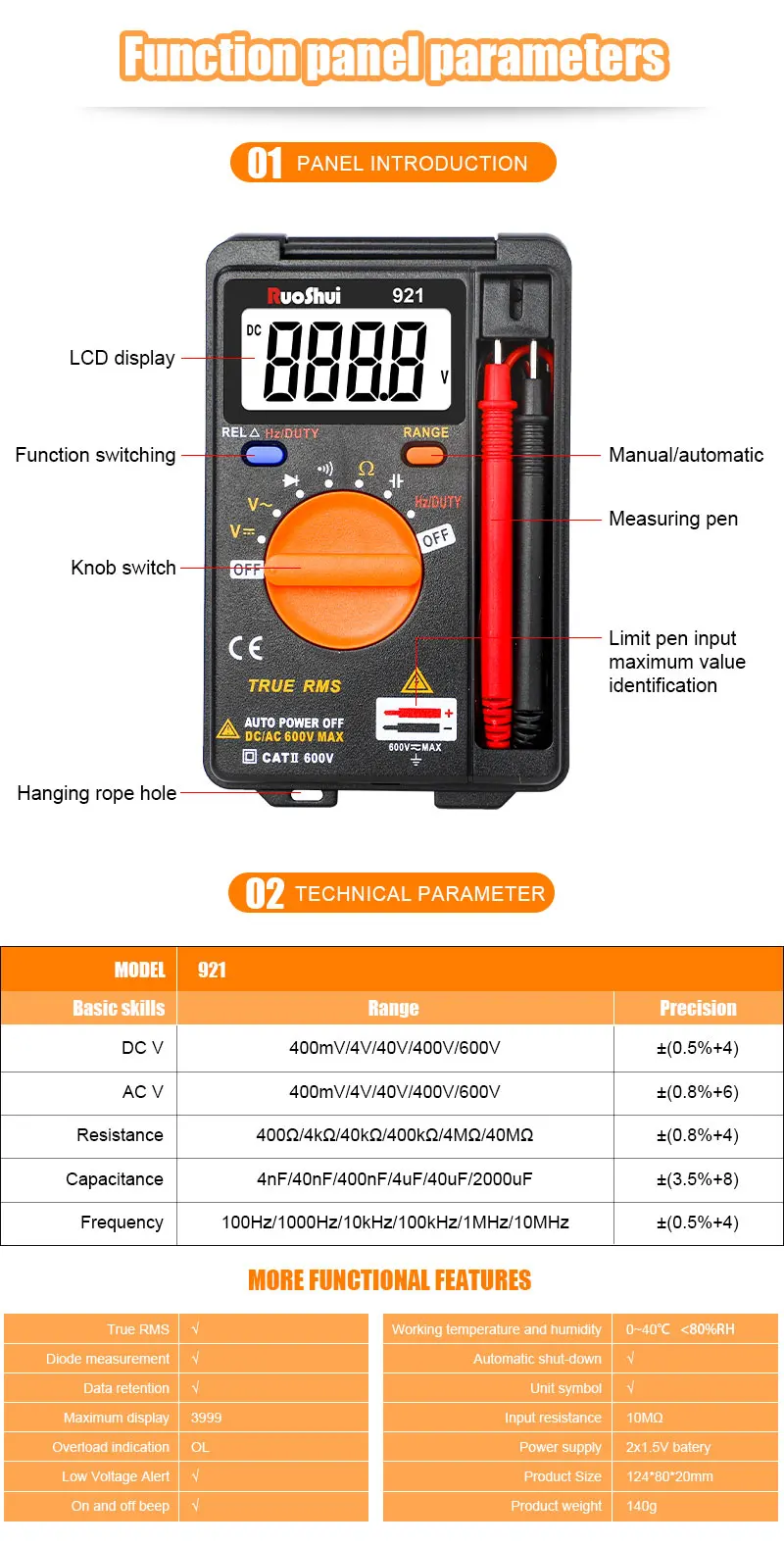

 1.REL: press this key ,readings back to zero , enter into relative measurement ,LCDdisplay “” symbol, press it again, out from
the relative value measurement function .when at Hz range, can switch to frequency or duty cycle (0.1~99.9%) measurement
mode.2.RANGE key :selecting operation mode of auto range or manual range .the default mode of this meter is auto range , LCD
display“” symbol, press this key will change to manual range, press it one more time to increase a new range, from low to high
cycle in turn .press the key for more than 2 seconds, will back to auto range mode.

 3-1-1．Displaying: LCD displaying3-1-2．Max. indication:3999（33/4）, auto polarity indication3-1-3．Measuring method: dual slope A/D
transfer3-1-4．Sampling rate: approx. 3 timesc3-1-5．Over range indication: displays “OL”3-1-6．Low battery indication: “” symbol

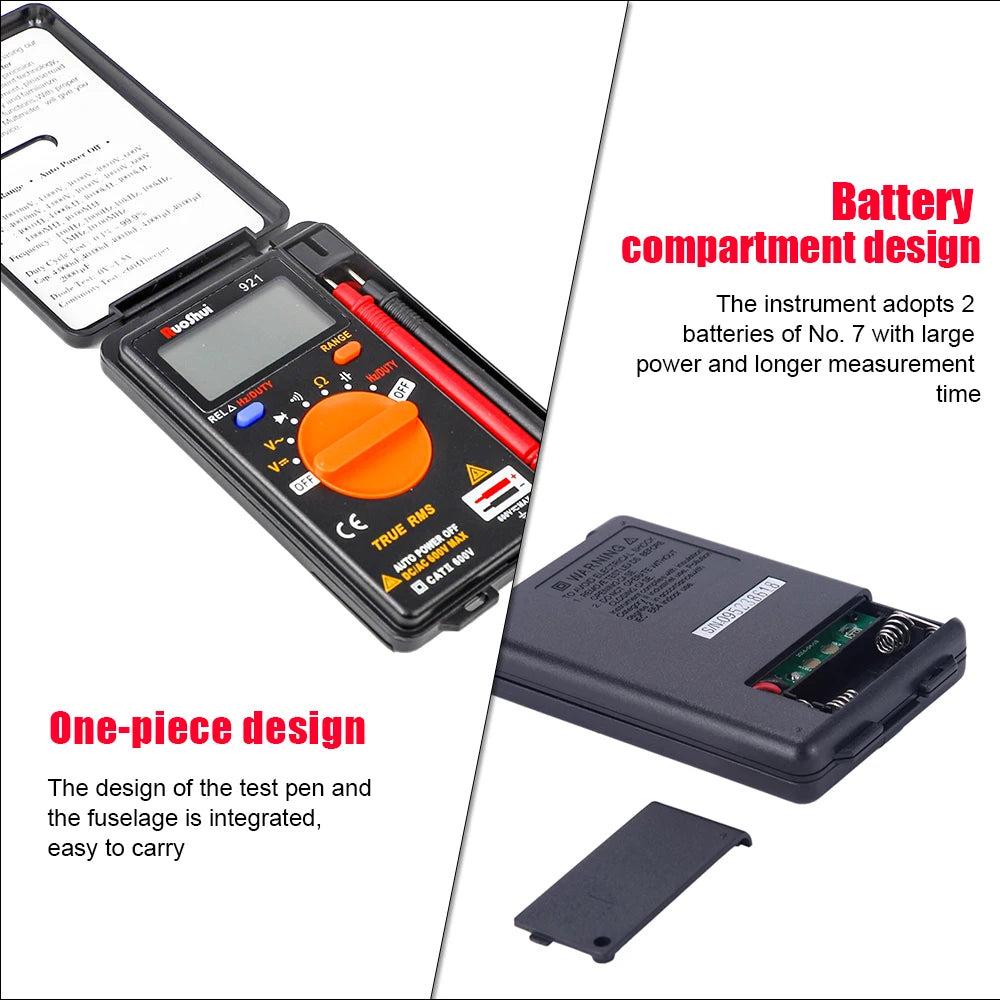

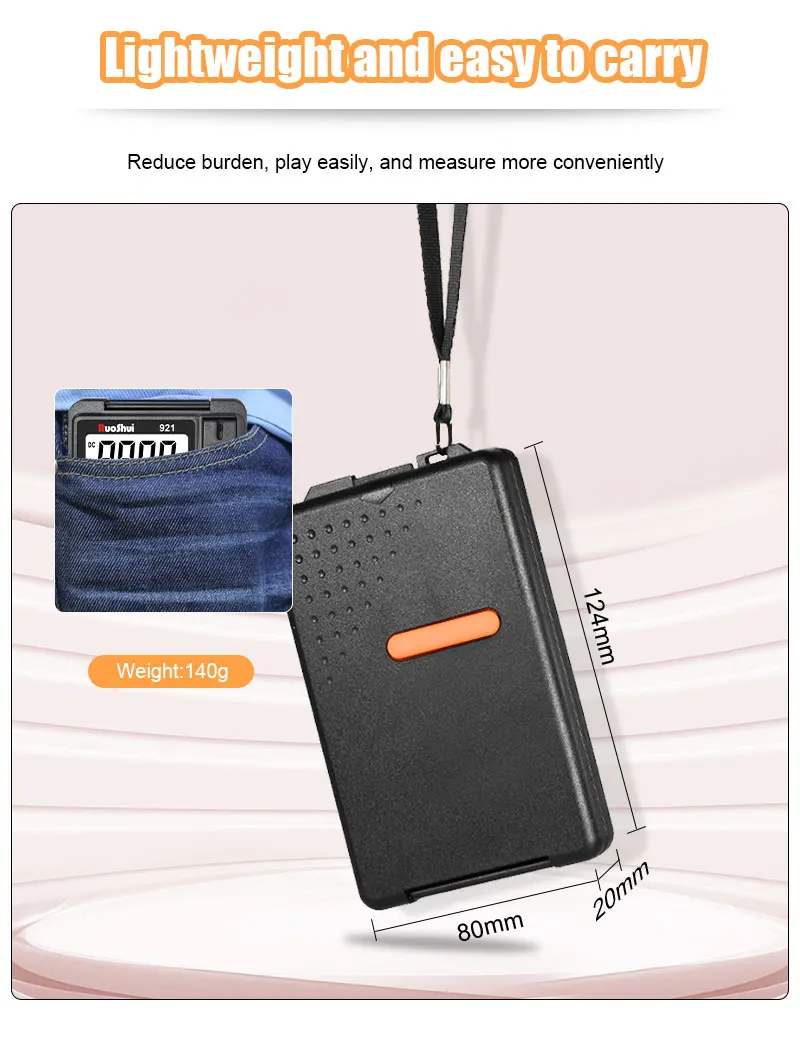

displays3-1-7．Operation:(0～40)℃，relative humidity <80%3-1-8．Power：2×1.5V battery3-1-9．Meas.:124×80×20 mm3-1-10．Weight:

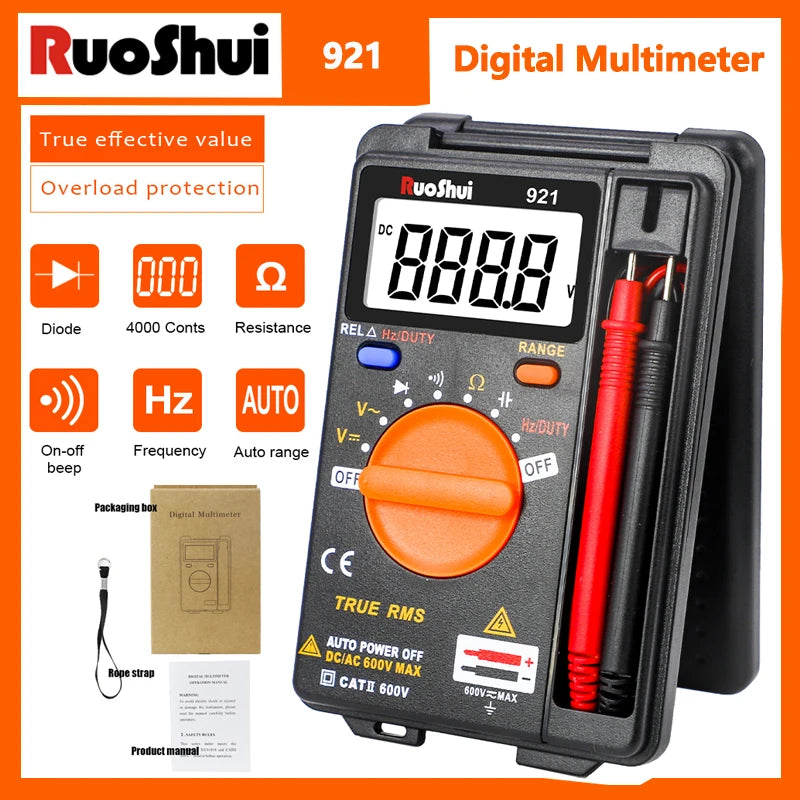

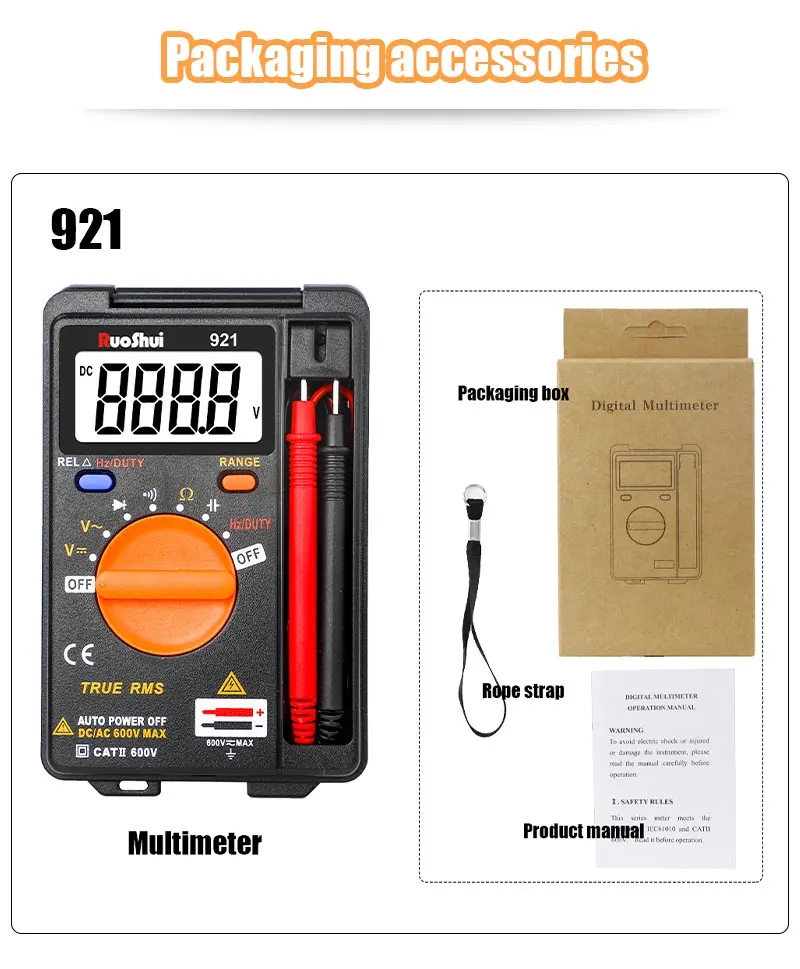

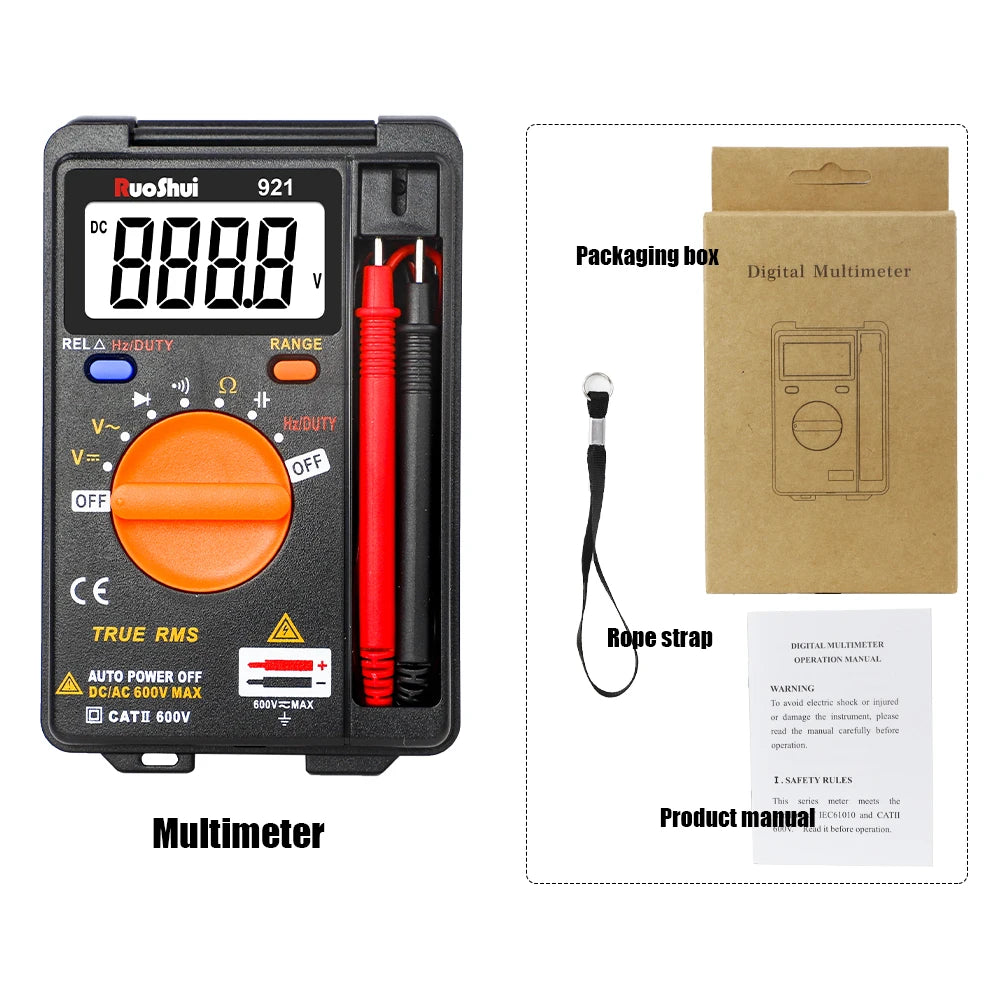

approx.140g（including battery）3-1-11. Accessories: instruction manual, gift box and battery
