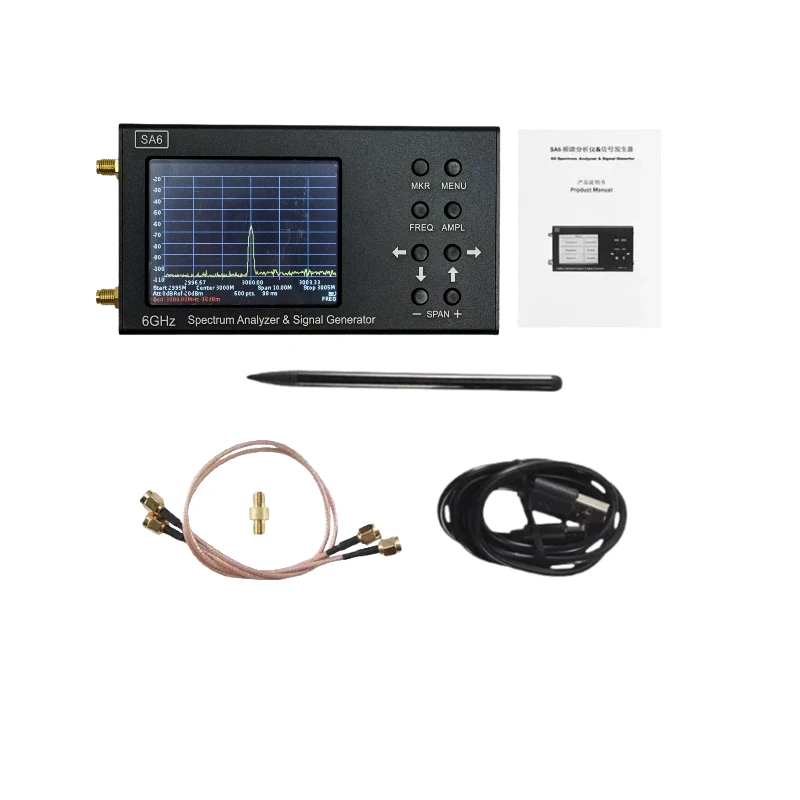

SA6 is a simple portable spectrum analyzer and signal source designed to display the spectrum of signals in the 35 to 6200 MHz frequency range.

Analyzer finds the amplitude and frequency of the spectral components of the process being analyzed. The spectrum analyzer can process signals from all widely used technologies:Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLON, ASS and more.

Performance Parameters:

3.2-inch color resistive touch screen

Wide frequency range: 35 to 6000MHz

Fast scanning of the frequency range: 500 points per point

High measurement accuracy: 2dB within 70-75dB dynamic range

Particularly easy to use in the field: weight as low as 380 grams

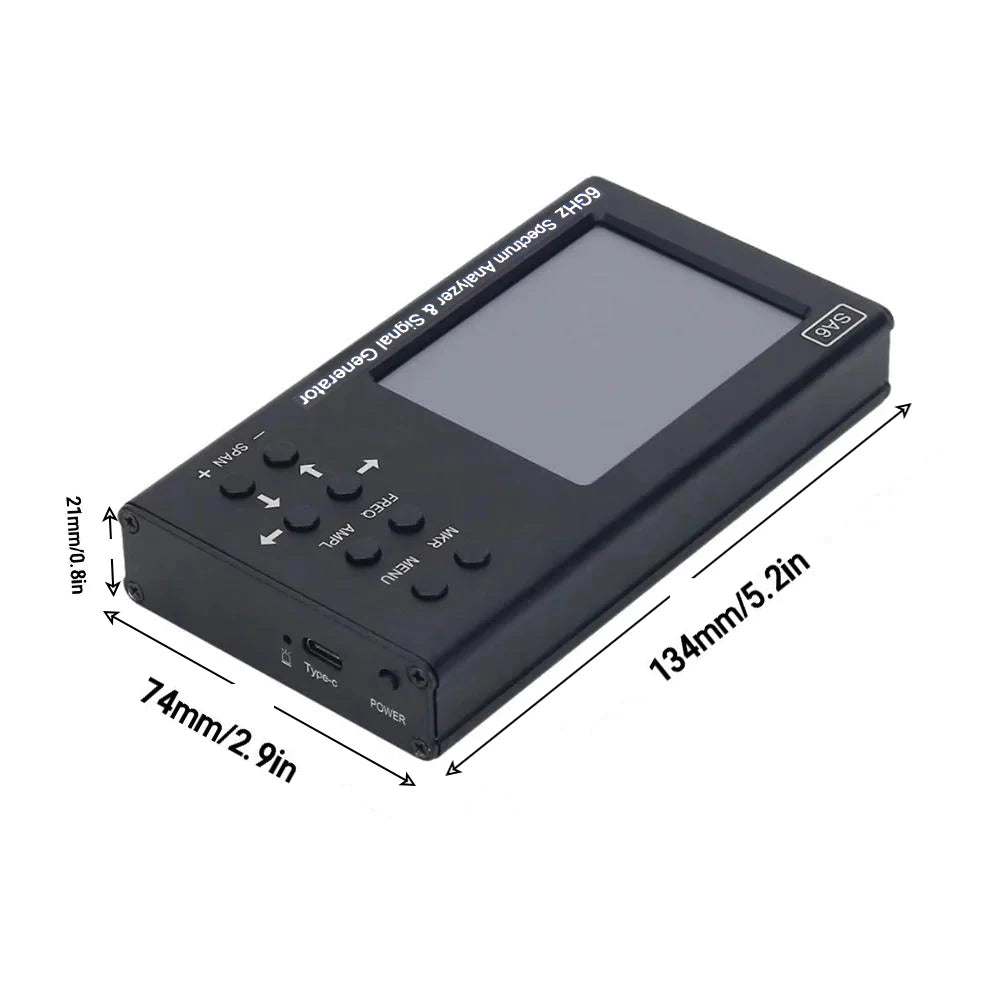

Dimensions 150x75x23 mm

Individually powered for up to 5-8 hours of uninterrupted operation .

Wired data transfer to PC

Dynamic range in the 35-3000MHz band: 75dB

Dynamic range in the 3000-4500MHz band: 70dB

Maximum span:6165MHz

Bandwidth:200kHz, fixed

Scanning speed for viewing bands above 100MHz:700MHz/sec

Scanning 100MHz:<0.25sec

Noise floor up to 3000 MHz:<-90dBm

Noise floor 3000-4500 MHz:<-85 dBm

Noise floor 4500-6200 MHz:<-80 dBm

Wave impedance: 50 ohms

VSWR over the operating frequency range:<1,5

Internal attenuator: 0-30 dB

Attenuation error up to 10 dB: 2 dB

Attenuation error from 10 to 20dB: 5dB

20 to 30dB attenuation error: 8dB

Tracking generator output power:-15... -25dBm

Accuracy in dynamic range: 2,0dB

Maximum input power of the attenuator at 0dB: 10dBm

Maximum input power with attenuation greater than 20dB: +20dBm

Maximum input measurement signal: +10 dBm

Maximum input DC voltage: 25 volts

Maximum current consumption when running from battery: 450 mA

Maximum current consumption when running from USB: 500 mA (when charging)

Battery: 2500 mA

Endurance:3 hours

Battery charging time:5 hours
