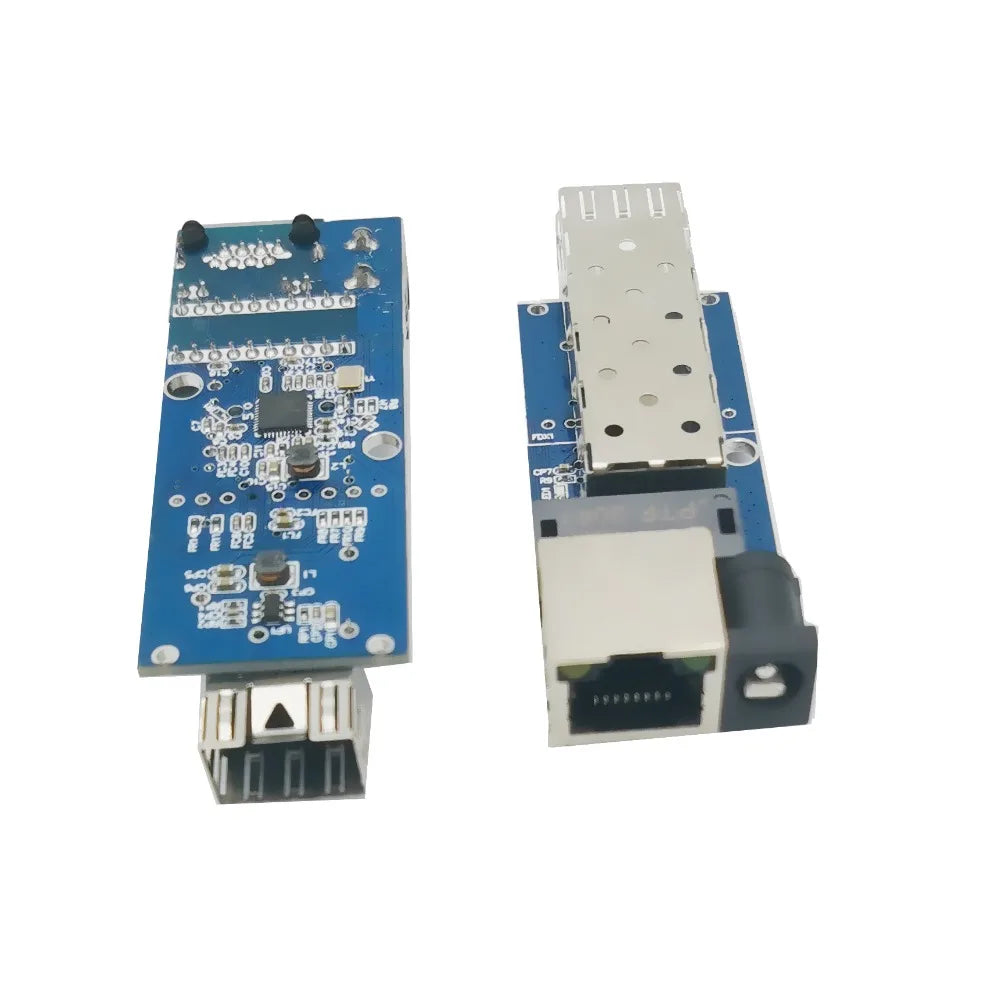

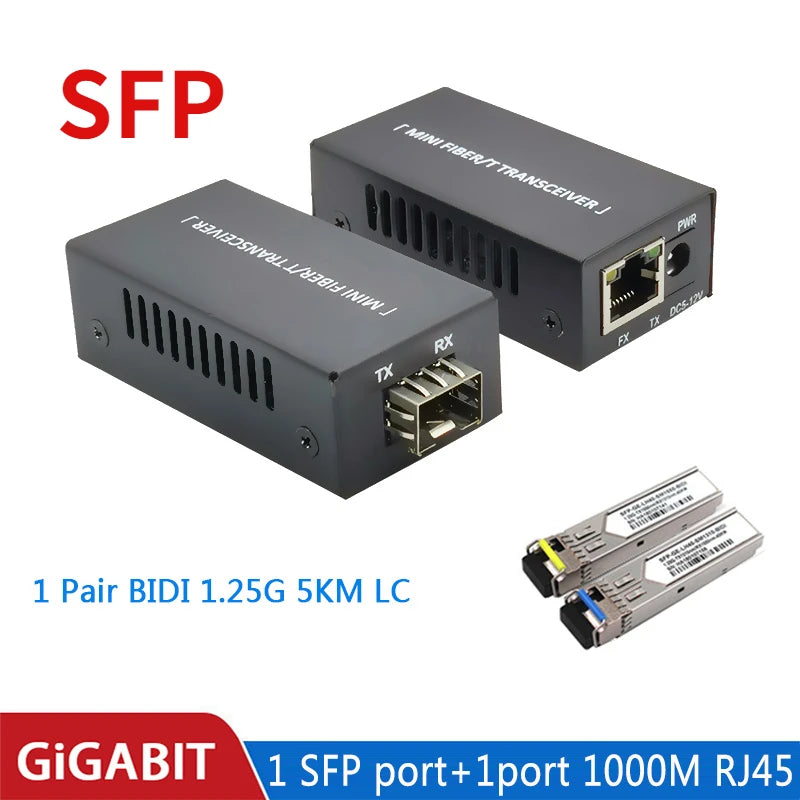

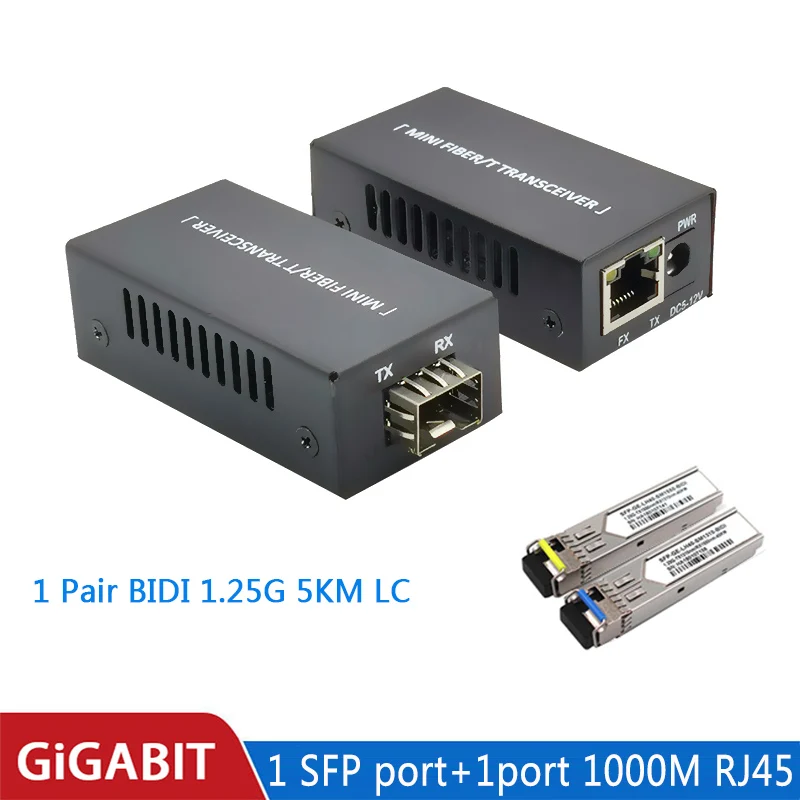

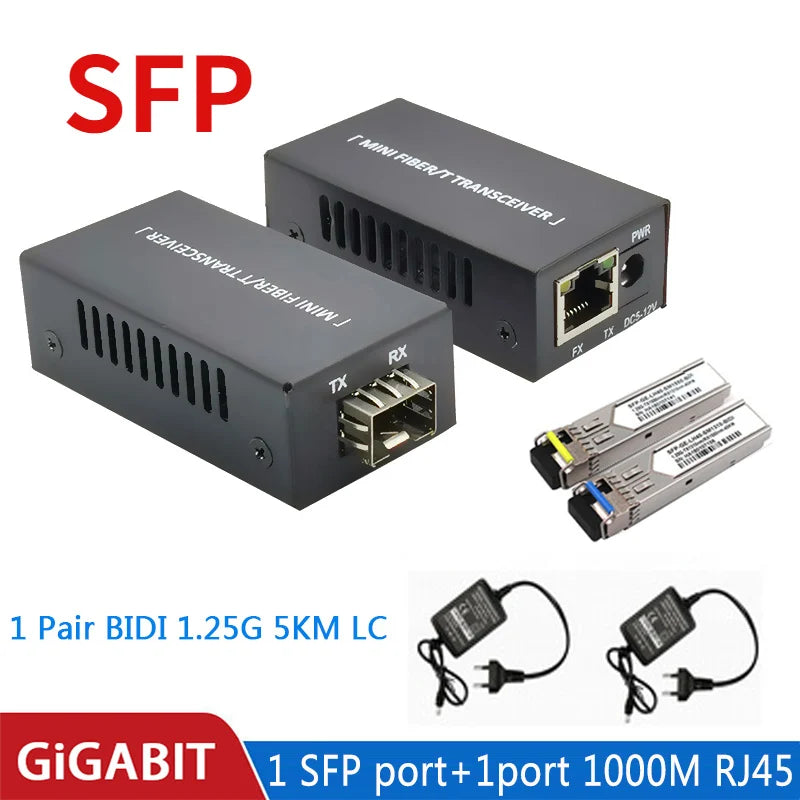

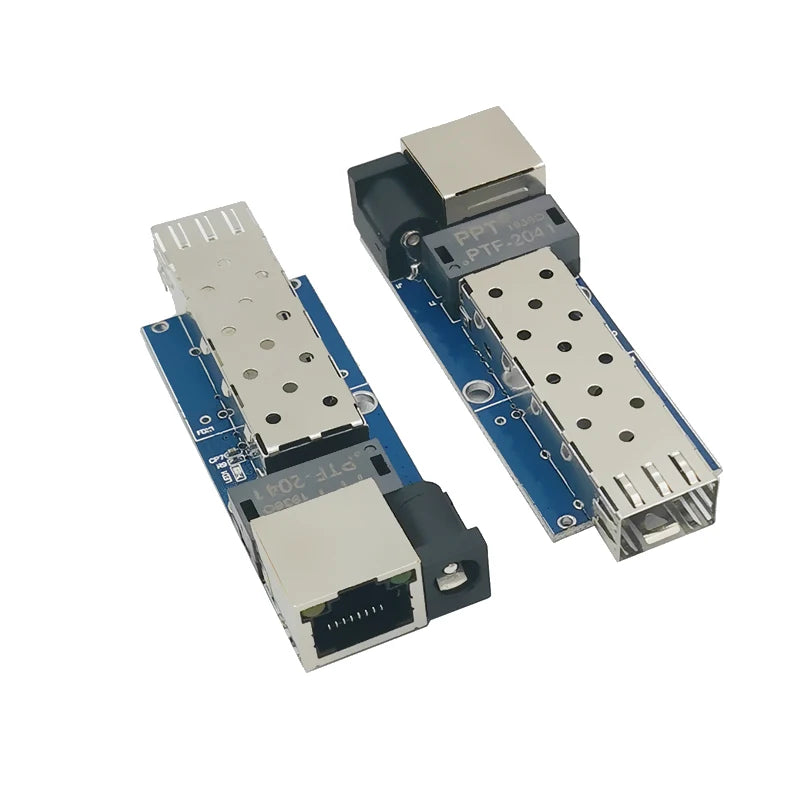

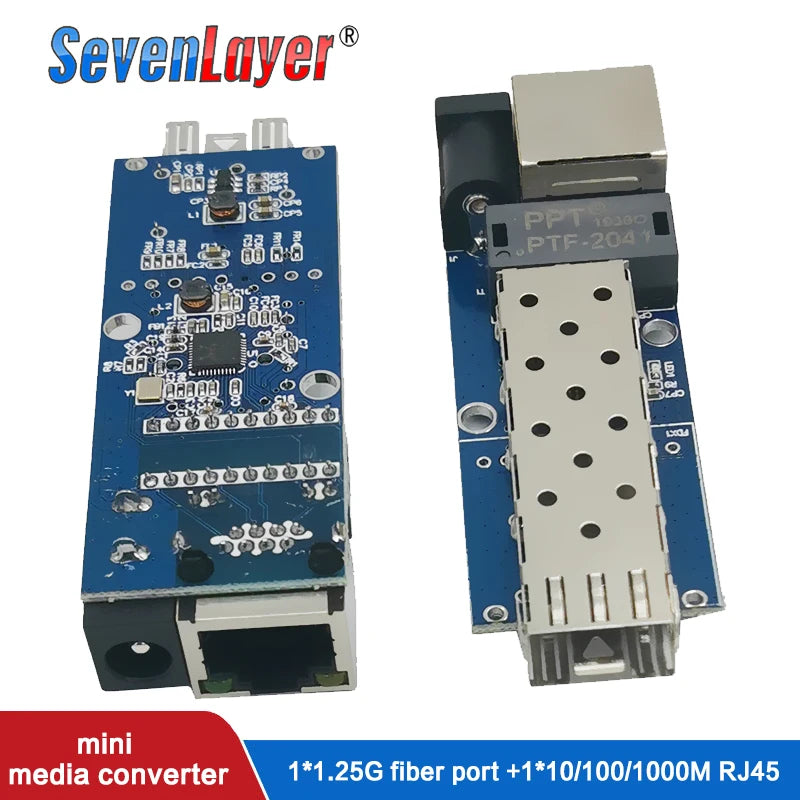

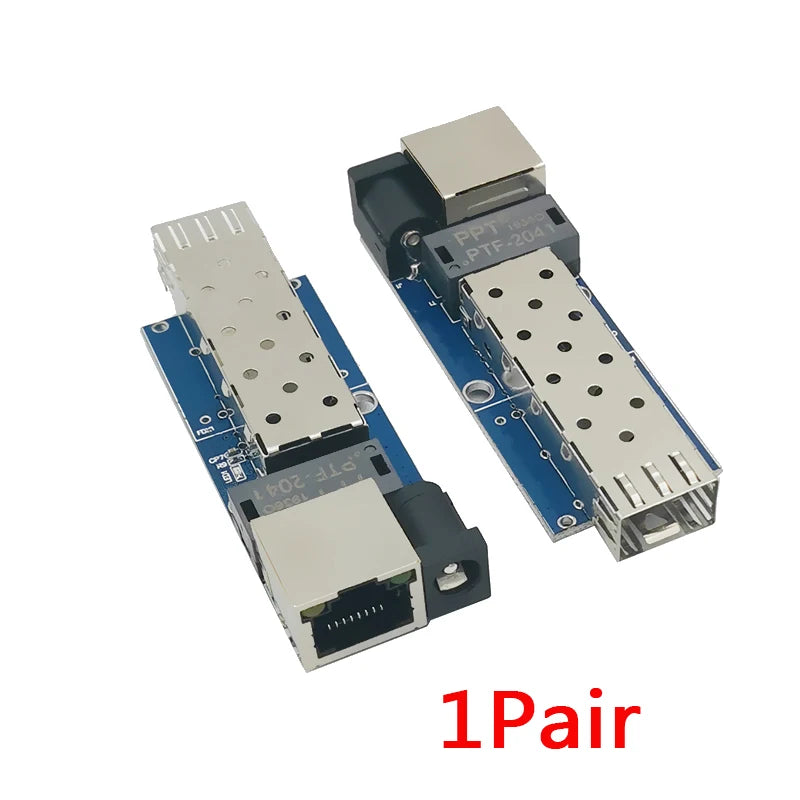

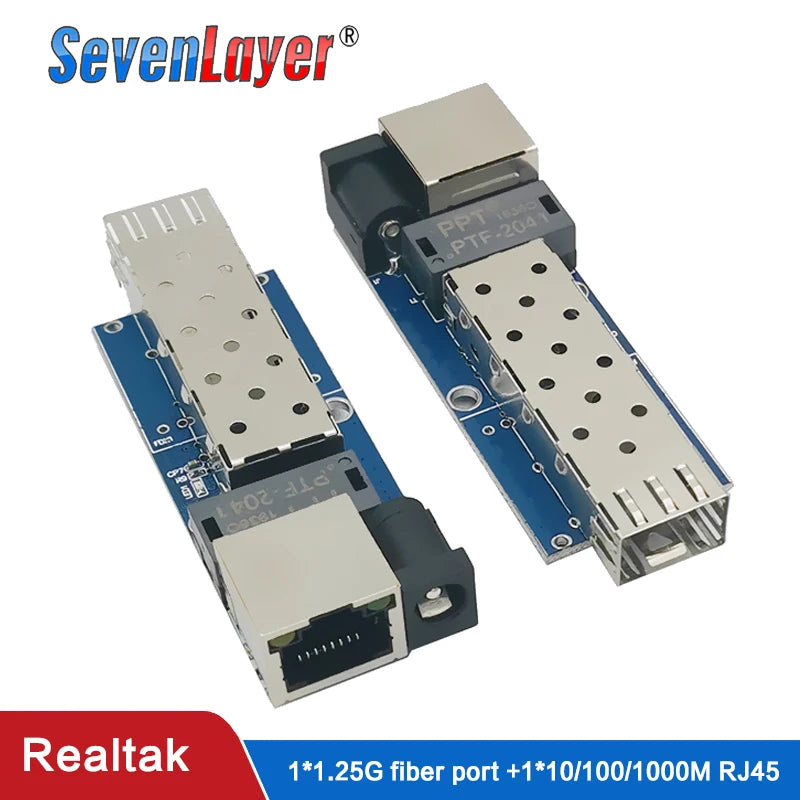

Sfp Media Converter Gigabit Mini10/100/1000Mbps Fiber Optical Ethernet Switch 1SFP1E 1F1E

KSh2,702

~~KSh2,415~~ KSh2,702

Sale Sold out

Shipping calculated at checkout.

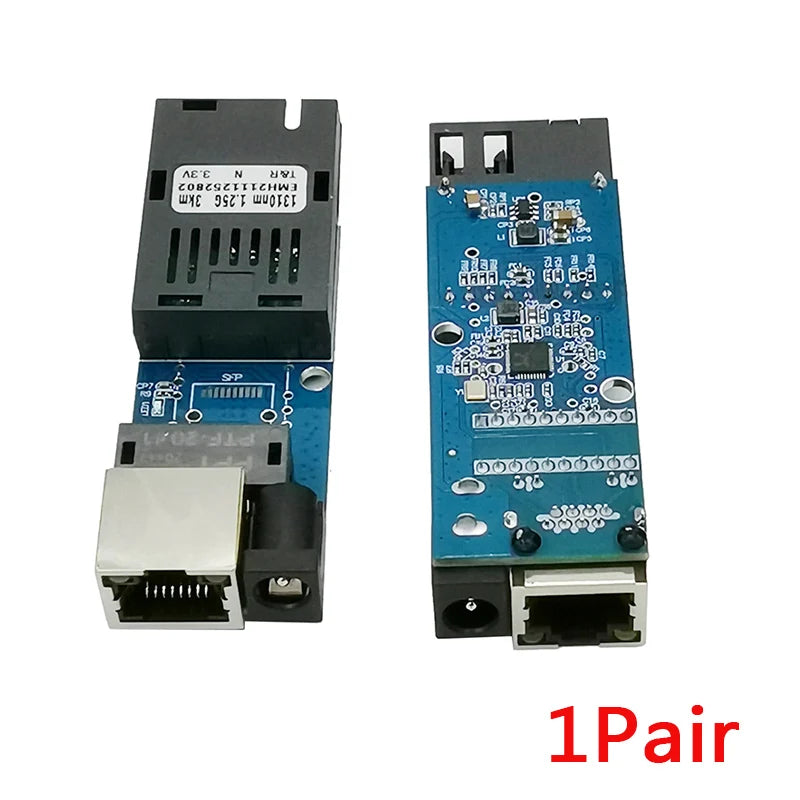

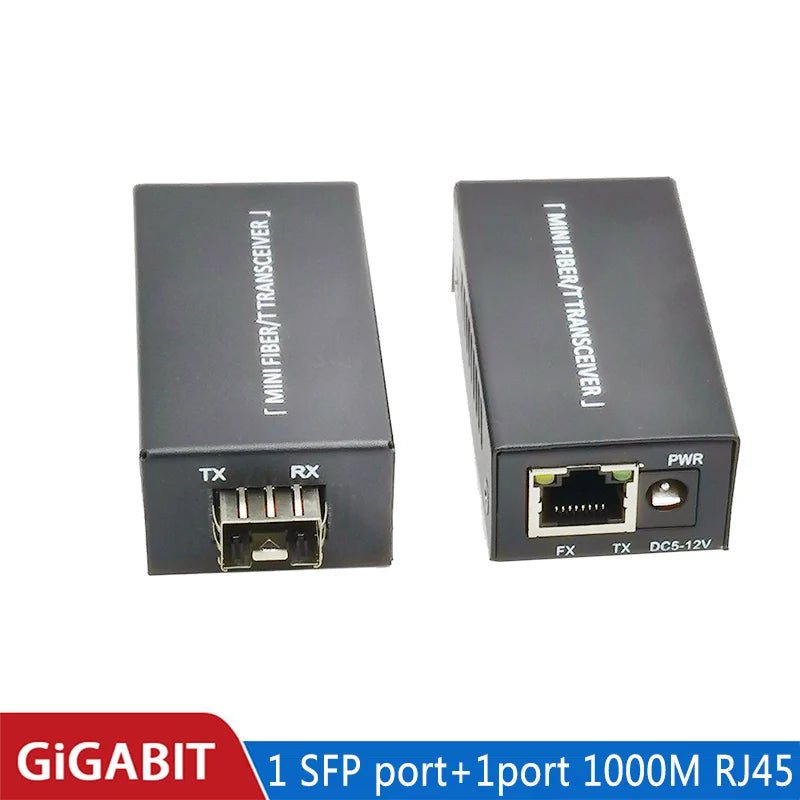

Color 1pair SC PCBA 1pair SFP PCBA 1pair iron SFP power 5pair SC PCBA

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

Brand Name: sevenlayer

Certification: CE

Choice: yes

Connector Type: LC/UPC

Fiber Type: Single Mode

Hign-concerned Chemical: None

Item Length: 30M

Model Number: JYD-2110SB

Origin: Mainland China

Size: 30*12*3

High quality 10/100/1000M Single mode fiber media converter with sc

Description

The Sevnlayer Ethernet media converters are designed to transmit and receive 10/100 /1000Mbps data over single
mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, 100 Mbps ,1000MEthernet rate
without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. LED indicators are provided
for rapidly ascertaining equipment operating status.

Features
1. Plug and play, high performance, Low power consumption
2. Compliant with IEEE802.3, IEEE802.3u, IEEE8.3ab,IEEE802.3z
3. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX),IEEE 802.3z/AB
10/100/1000Base-T 1000Base-SX/LX standards
4. Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
5. Automatic MDI/MDI-X crossover
6. Distances up to: Depend on SFP
8. LC optical connectors.
9. DC powered
10.Status LED's for TX,FX LINK/ACT, POWER,100M,1000M to easily monitor network statu

Technical Specification

Product Name	10/100/1000M Single Fiber ,Single Mode, Fiber Media Converter
Model	JYD-2110SB-GE
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI
Wavelength	Single Mode: 1310nm,1550nm
Port	One RJ45 port, One Fiber(SC)
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Forward Mode	Store and forward
LED Indicator	PWR: Green Illuminated to indicate unit is operating under normal operation TX Link/ACT: Green Illuminated indicates receiving link pulses from compliant copper device and flashes when data being sent / received FX Link/ACT: Green Illuminated indicates receiving link pulses from compliant fiber deviceand flashes when data being sent / received 1000M: Green Illuminated when data packets are being transmitted at 1000 Mbps
Power Supply	DC5V1A
Environmental requirements	Operating Temperature: 0°C~+70°C Storage Temperature: -45°C~+95°C Relative Humidity: 0~95% (non-condensing)
Transmission Distance	Fiber: Single Mode,20km; UTP: Cat.5/6, 100m
Diemension	11cm7cm2.5cm
