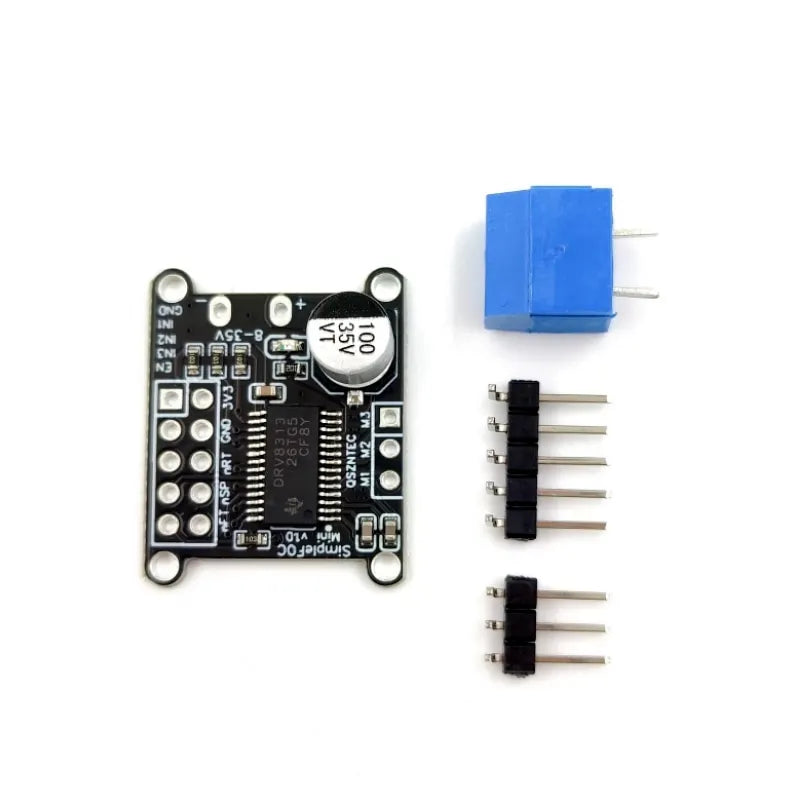

SimpleFOC Mini DRV8313 Module DC Brushless Motor Driver Board FOC Control Driver SVPWM Control DC 8-30V

SimpleFOC Mini DRV8313 Module DC Brushless Motor Driver Board FOC Control Driver SVPWM Control DC 8-30V

KSh2,674
KSh0 KSh2,674
Sale Sold out
Shipping calculated at checkout.
Color
block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

Brand Name: QSZNTEC

Choice: yes

Condition: New

Hign-concerned Chemical: None

Origin: Mainland China

Type: Drive IC

SimpleFOCMini DC brushless motor drive board adopts DRV8313 chips. DRV8313 provides three independently controllable semi H-bridge drivers, mainly used for Drive DC brushless motor. Just connect the control signal and motor UVW three-phase line to control The brake motor rotates. Support SPWM and SPVMW control algorithm, not traditional 6-step commutation control Algorithm. It can be quickly used through SimpleFOC.

Specification

  • Input power voltage: 8~30V

    • The maximum output current of each circuit is 2.5A

    • On board 3.3V LDO output, maximum current 10mA

    • The input control signal is compatible with 3.3V and 5V.

    • Support SPWM and SPVMW control algorithms

    • Powerful open source library, quick start.

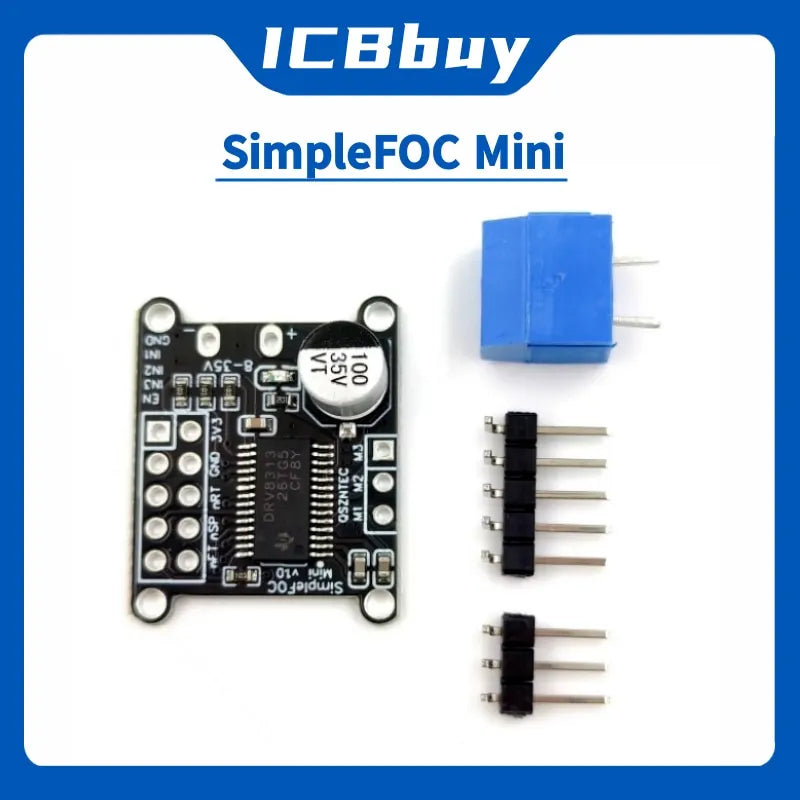

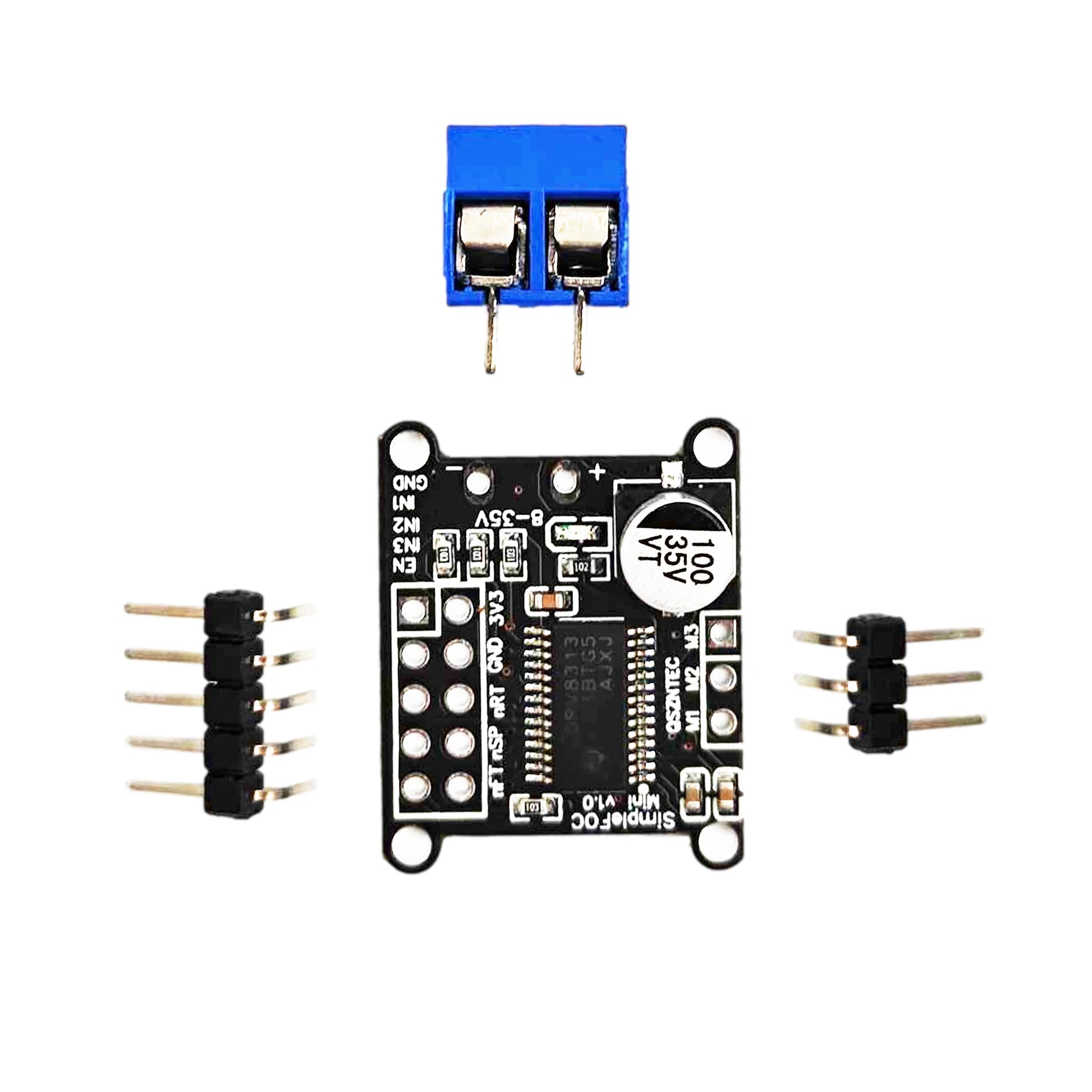

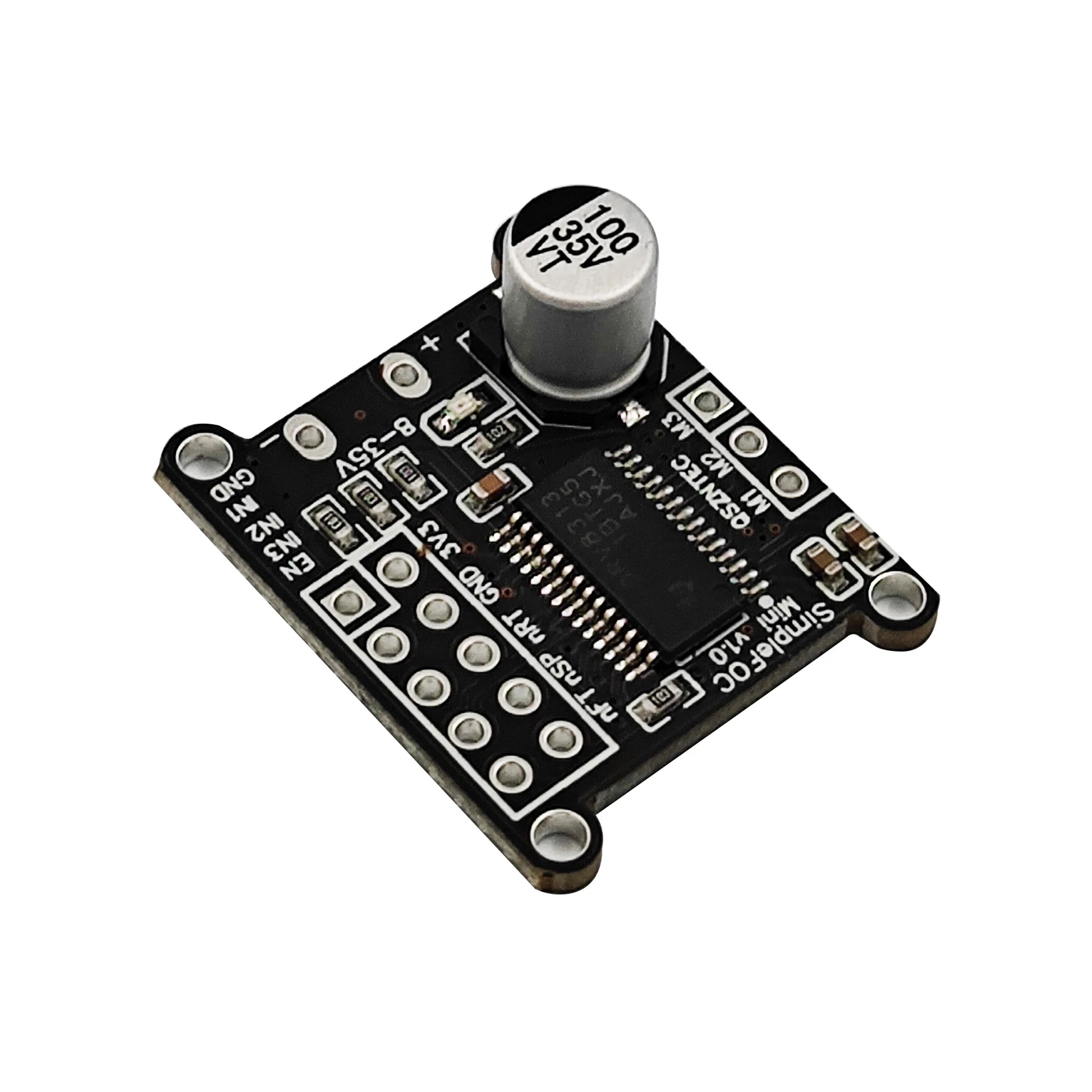

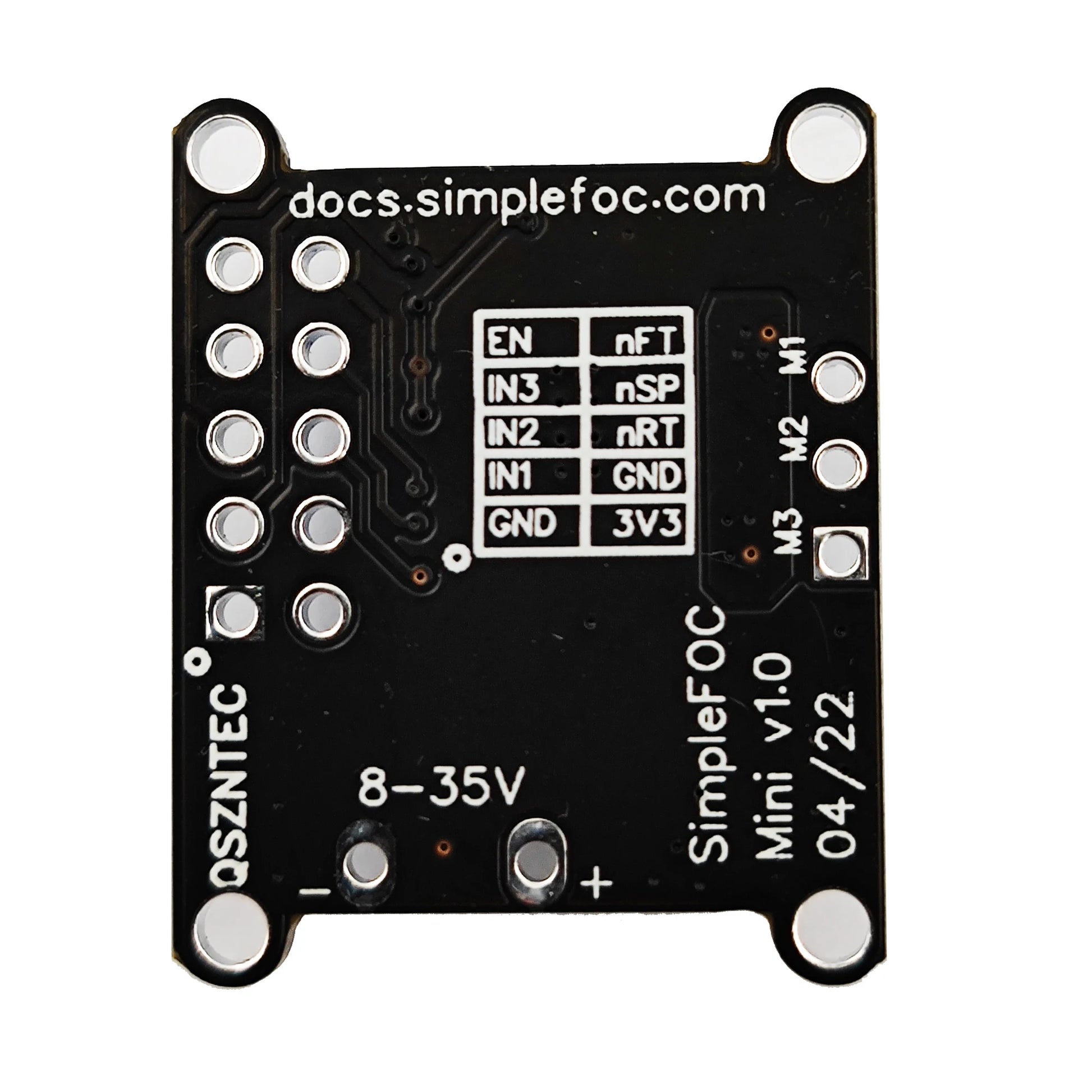

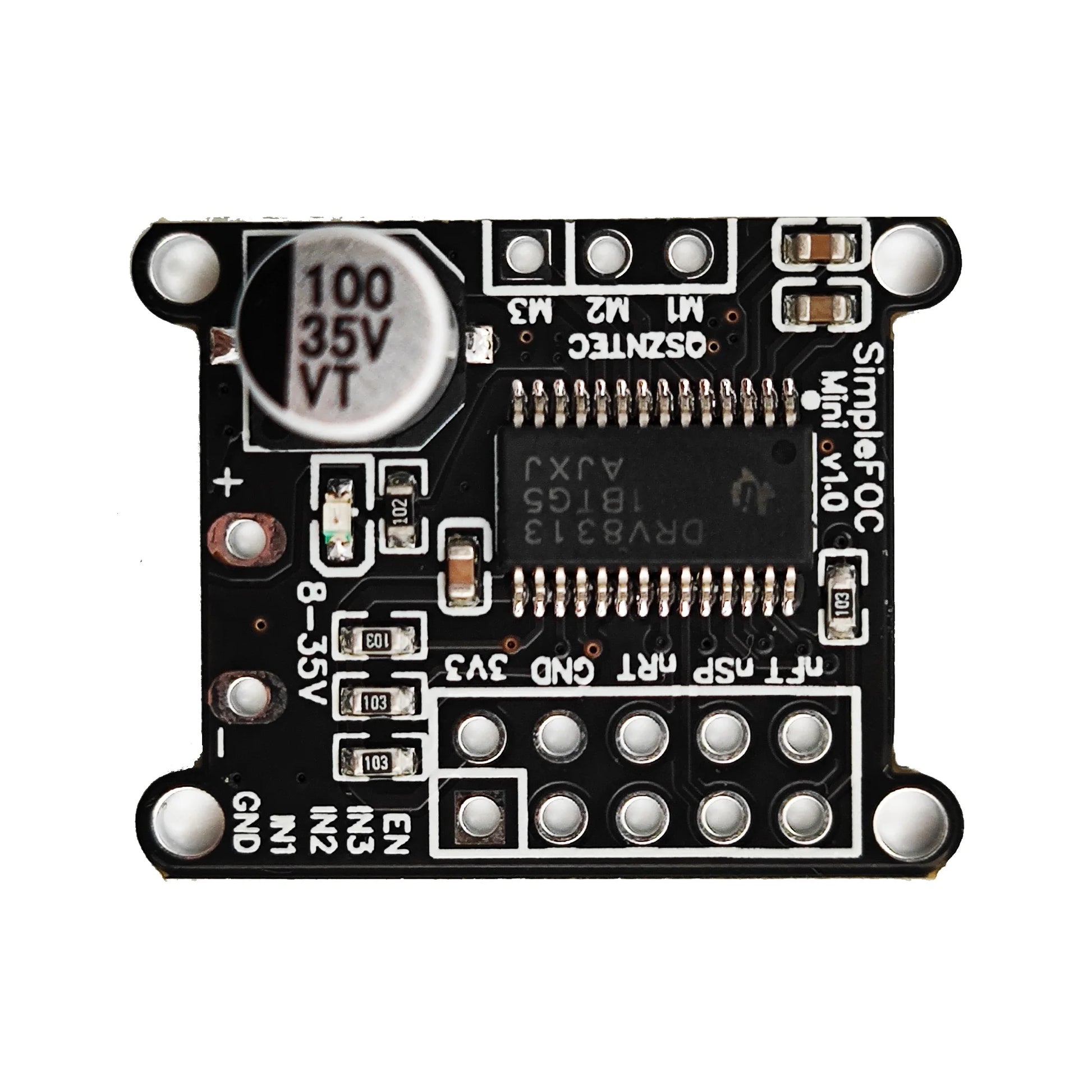

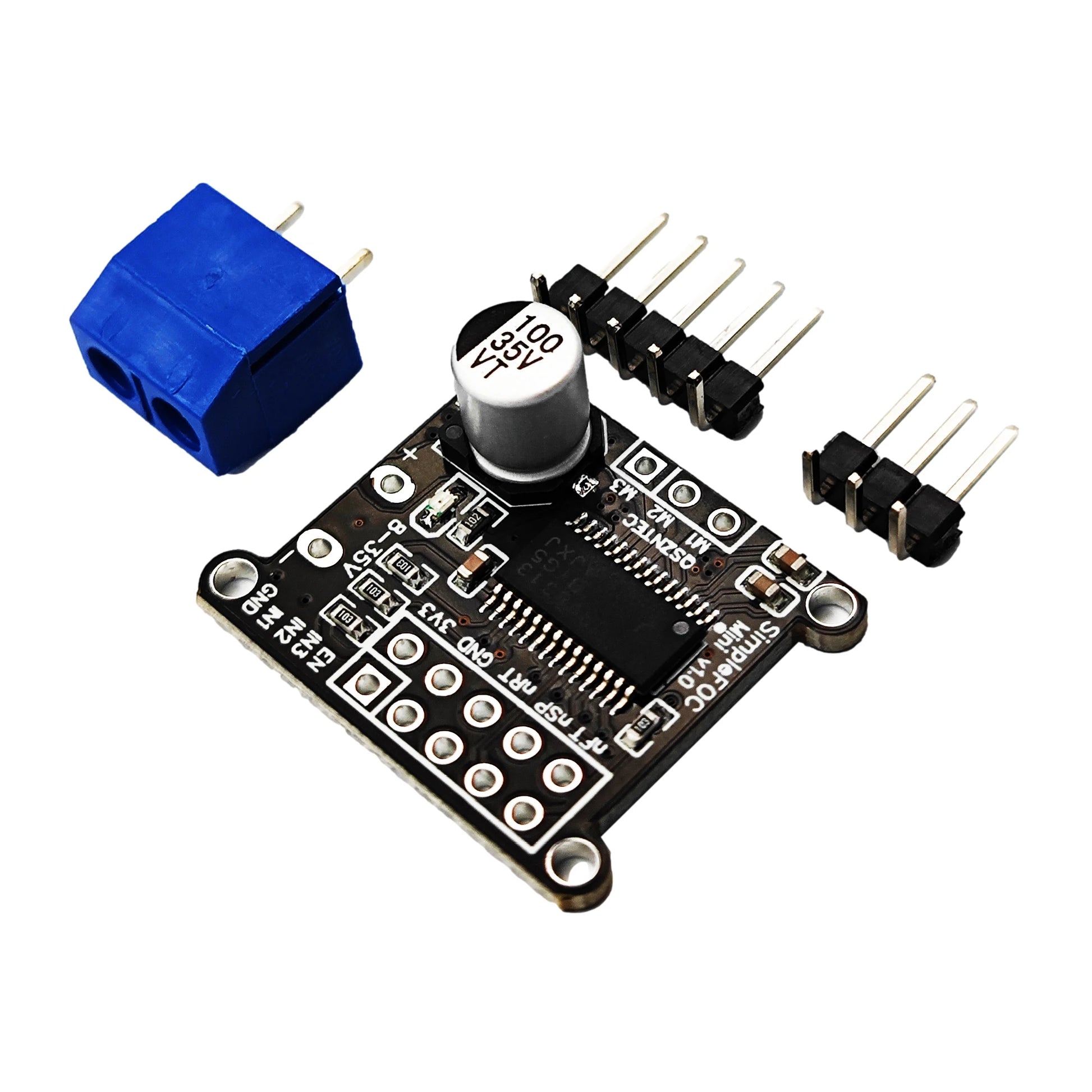

Product Display

Shipping List

  • Simple FOC Mini Board *1
