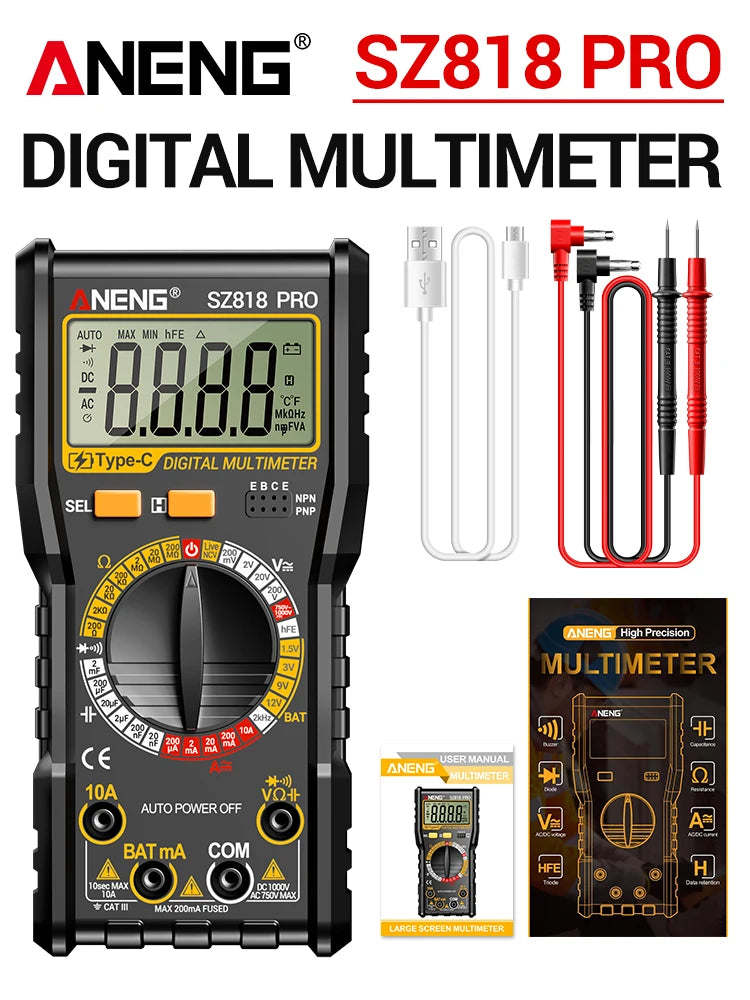

Smart Rechargeable Digital Multimeter Tester ANENG SZ818 PRO AC/DC Voltage Ammeter Pnp Npn Resistance hFE Capacitor tester tools

KSh4,276

~~KSh4,769~~ KSh4,276

Sale Sold out

Shipping calculated at checkout.

Color SZ818 PRO SZ818 PRO-1

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

AC Current: 0uA~10A

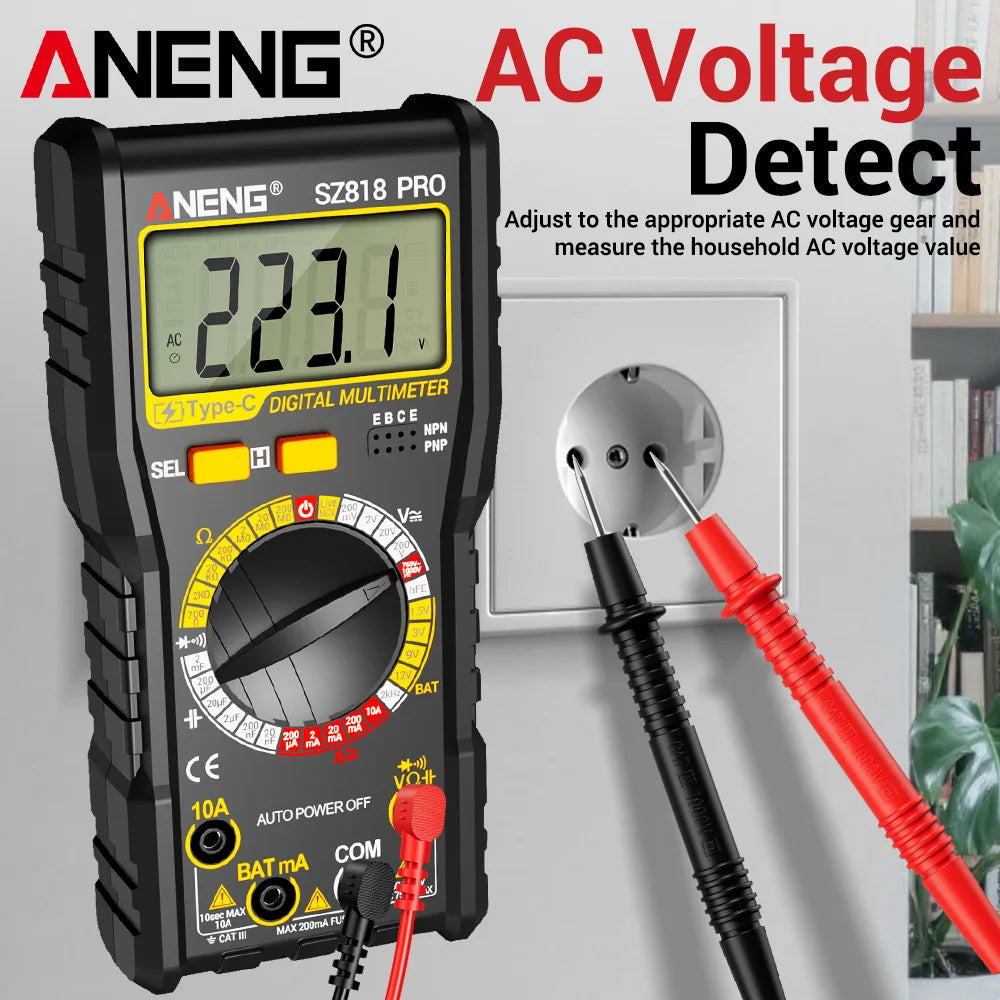

AC Voltage: AC

Battery Included: Yes

Battery type: 3.7V 14500 battery

Brand Name: ANENG

Certification: CE

Choice: yes

Color: Black

DC Current: 0uA~10A

DC Voltage: 0mV~1000V

DIY Supplies: Electrical

Dimensions: /

Diode: Yes

Display Type: Digital Display

Hign-concerned Chemical: None

Is Smart Device: No

Live: Yes

Max count: 1999 Count

Measuring Capacitance Range: 0nF~2mF

Measuring Inductance Range: /

Measuring Resistance Range: 0Ohm~200MOhm

Model Number: SZ818

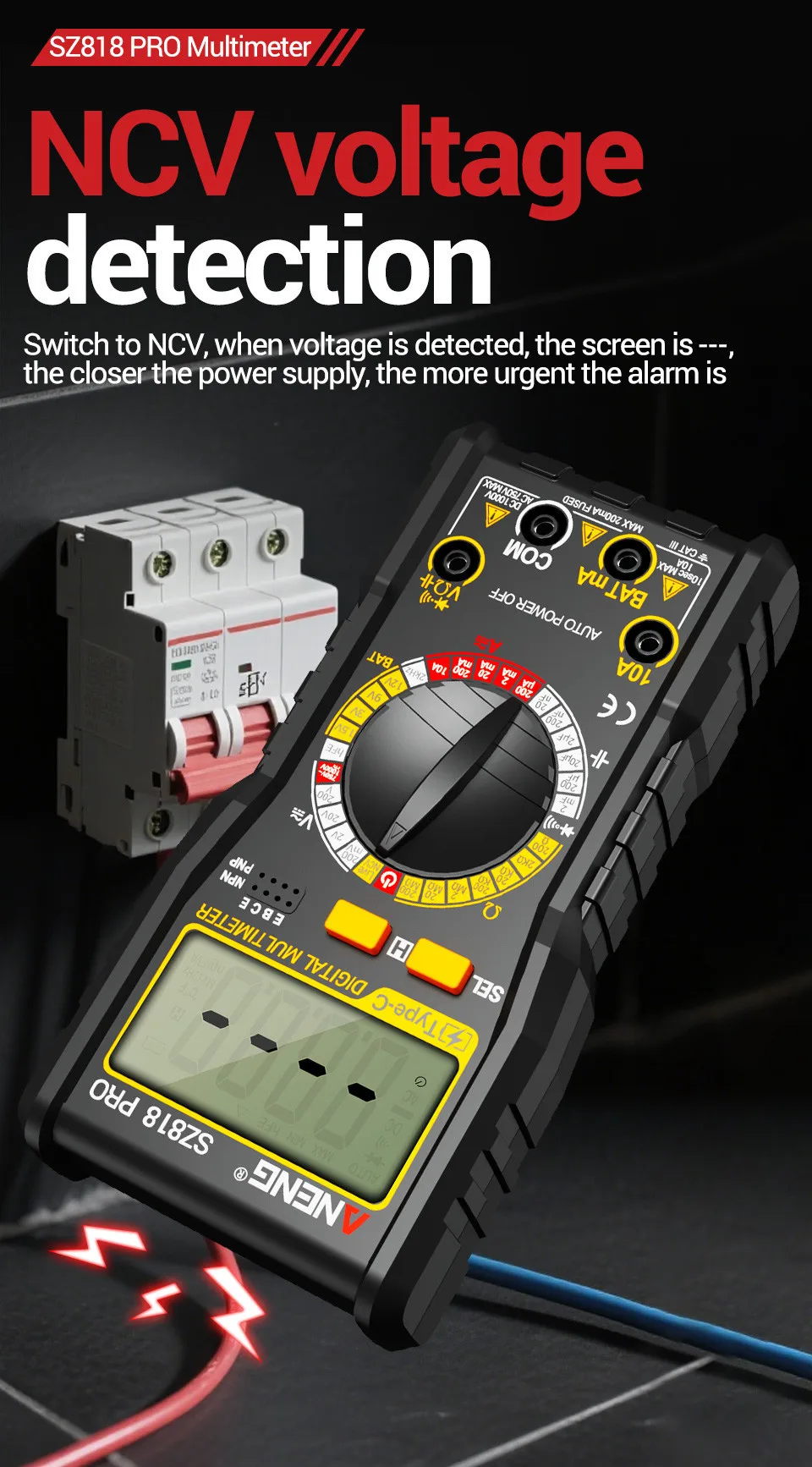

NCV: Yes

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Type-C charging: Yes

hFE triode: Yes

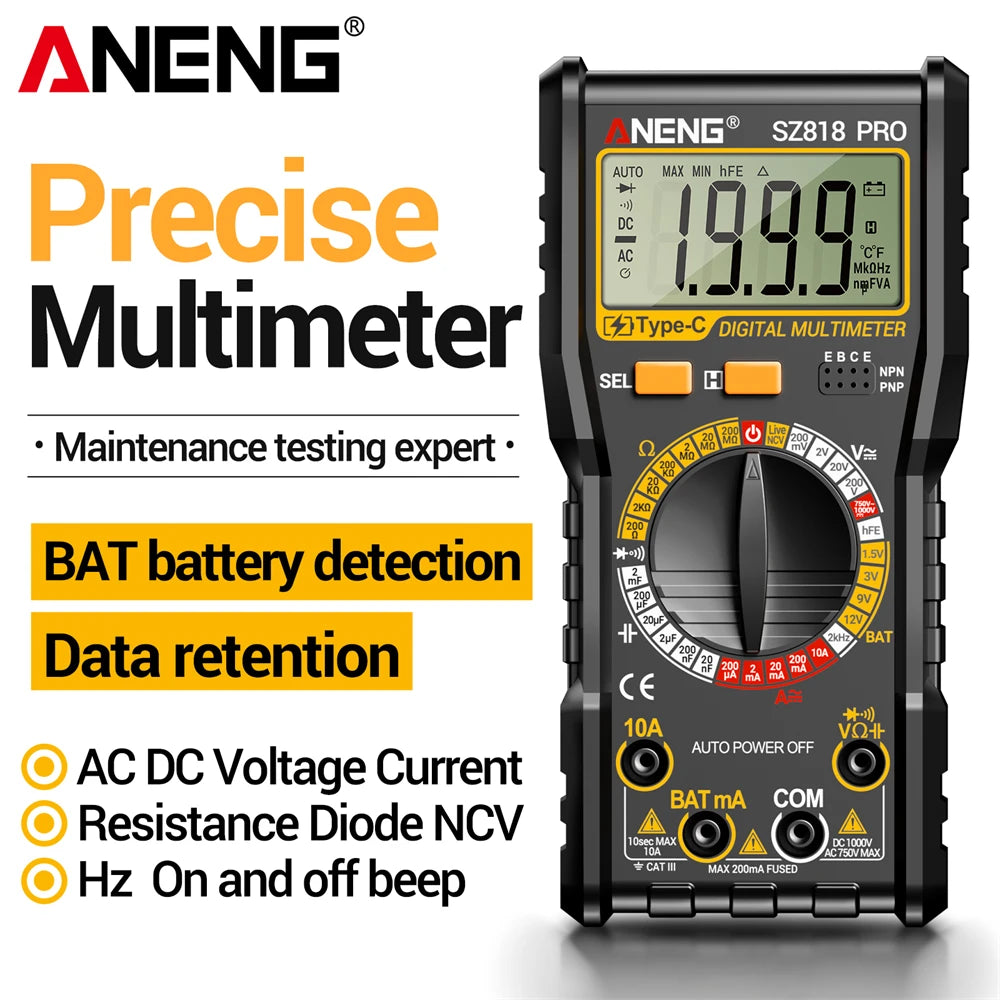

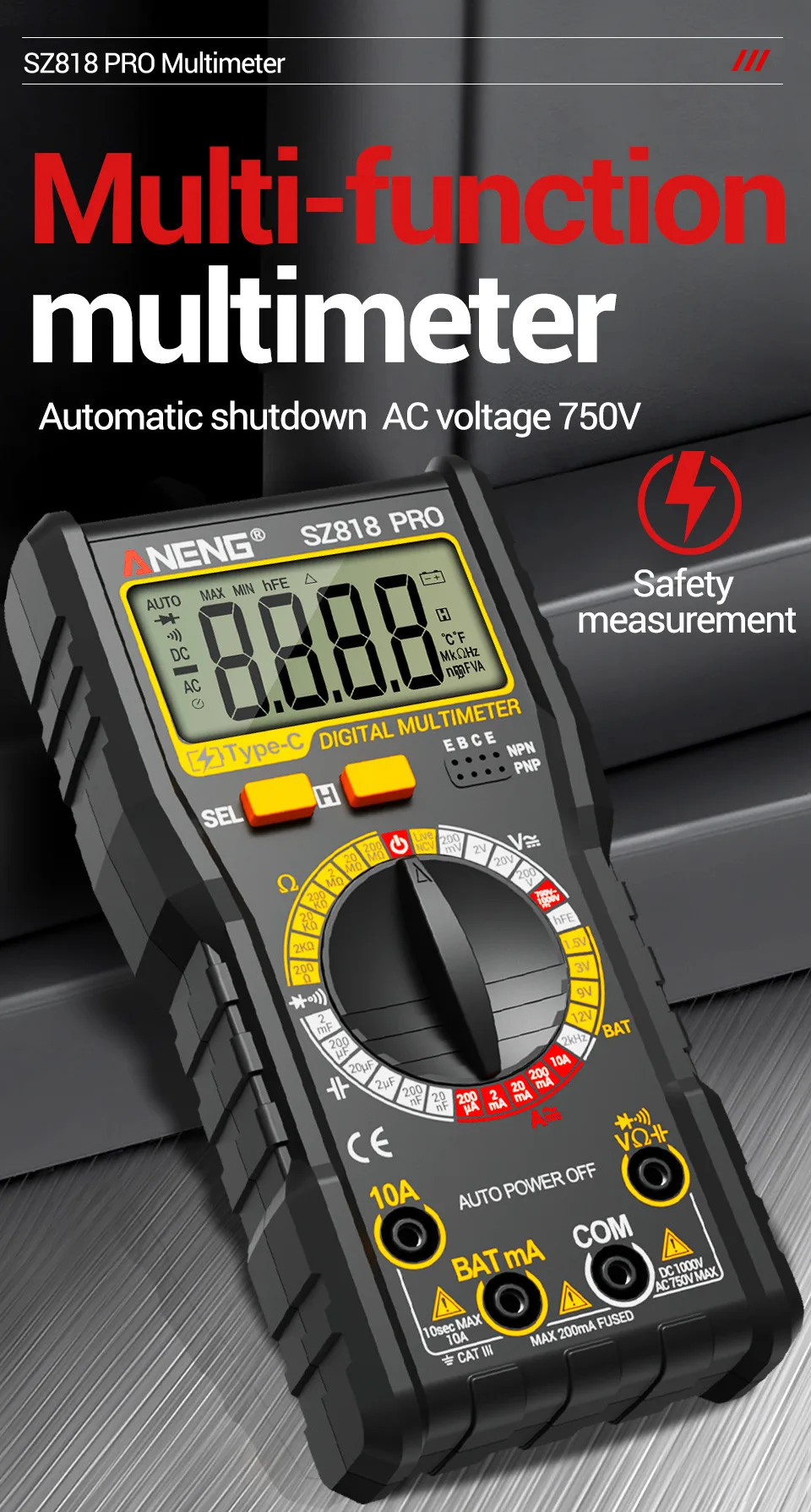

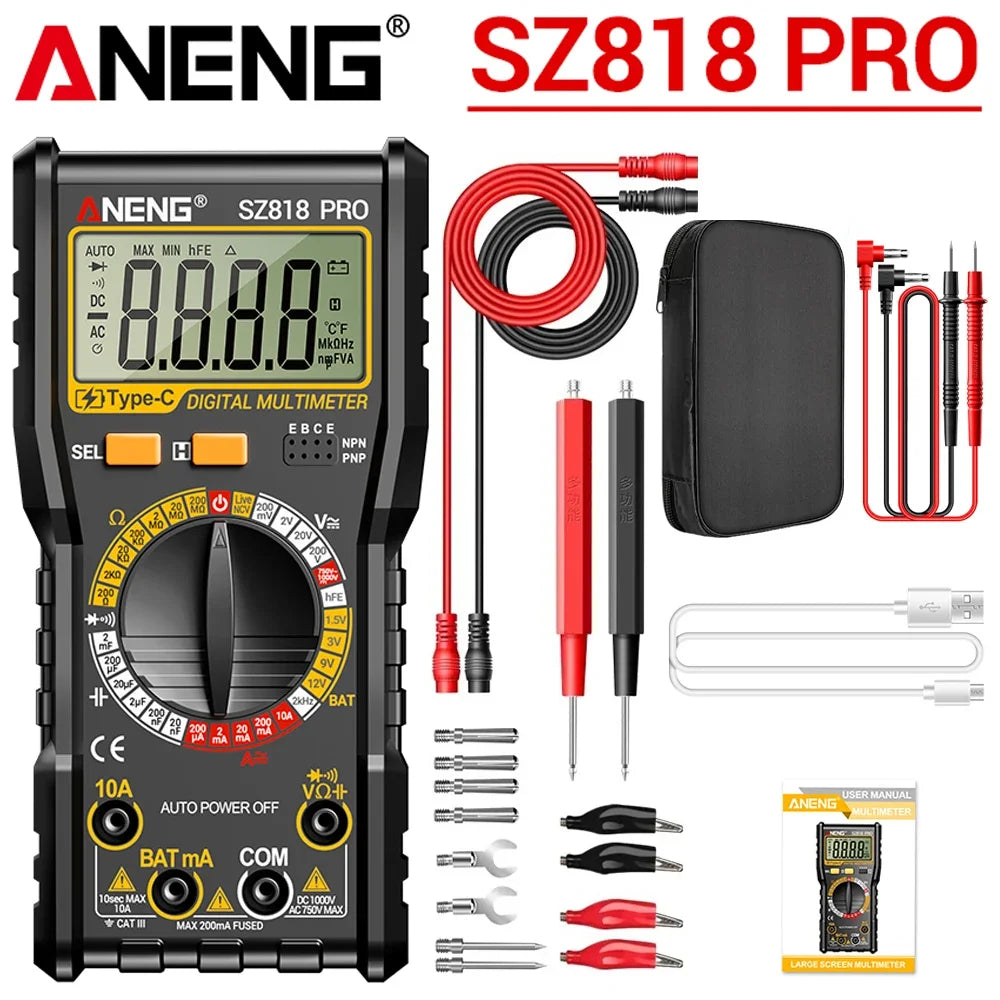

ANENG SZ818 PRO Smart Rechargeable Digital Multimeter Tester AC/DC Voltage Ammeter Pnp Npn Resistance hFE Capacitor tester tools

ANENG SZ818 PRO Multimeter Type-c Charge Battery Tester AC/DC Ammeter Multitester Transistor hFE Naught/Live Discriminate Test

Overiew:

This diaital multimeter is designed and produced according to the safety requirements of the intematonal electrical safety standard lEC-61010 for electronic measuring instruments and handheld diaital multimeters.

Compliant with 600V CAT IV, 1000V CAT.III and Pollution Degree 2 requirements of IEC61010. Before using this instrument, please read the instruction manual carefully and pay attention to the relevant safety work guidelines.

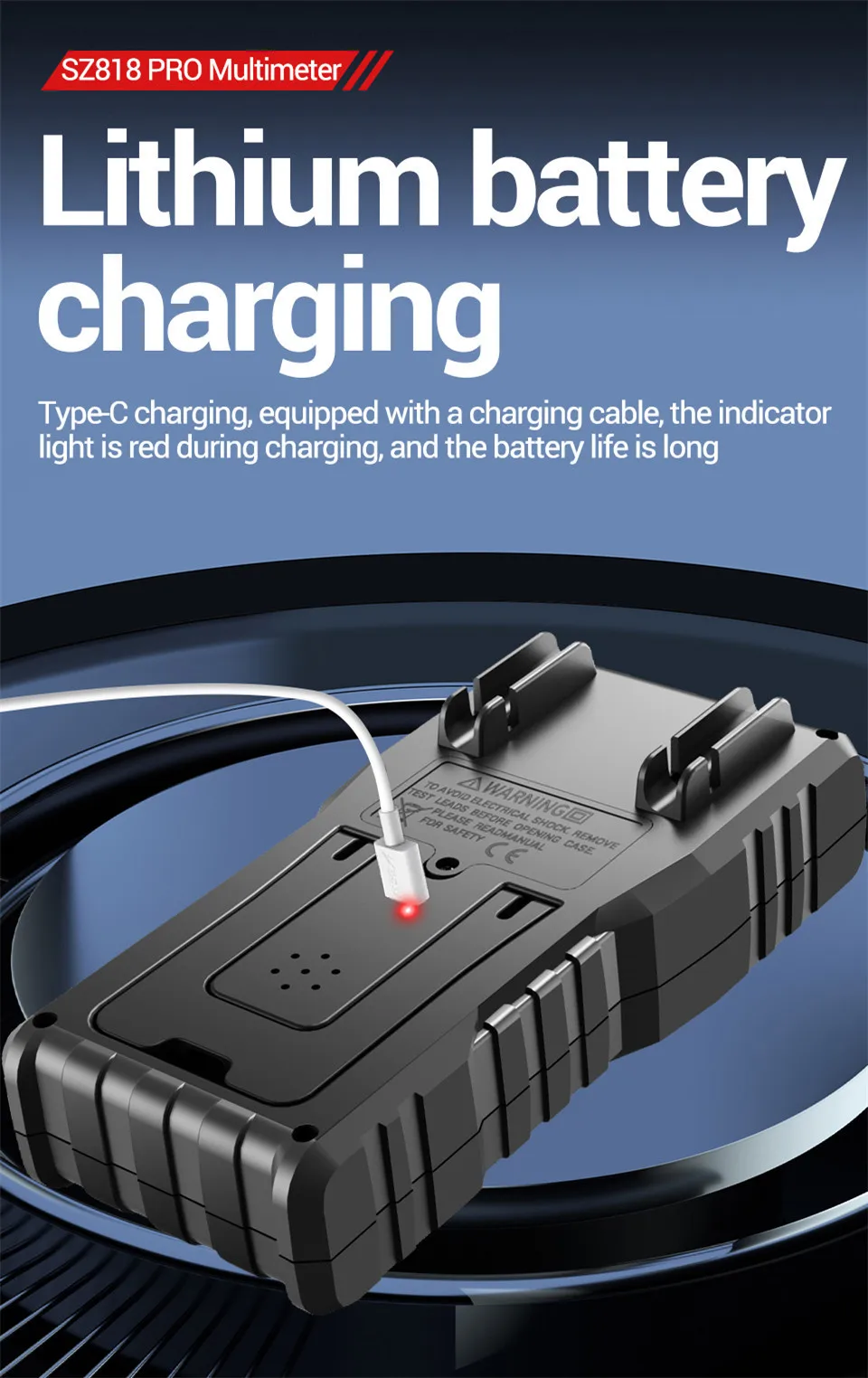

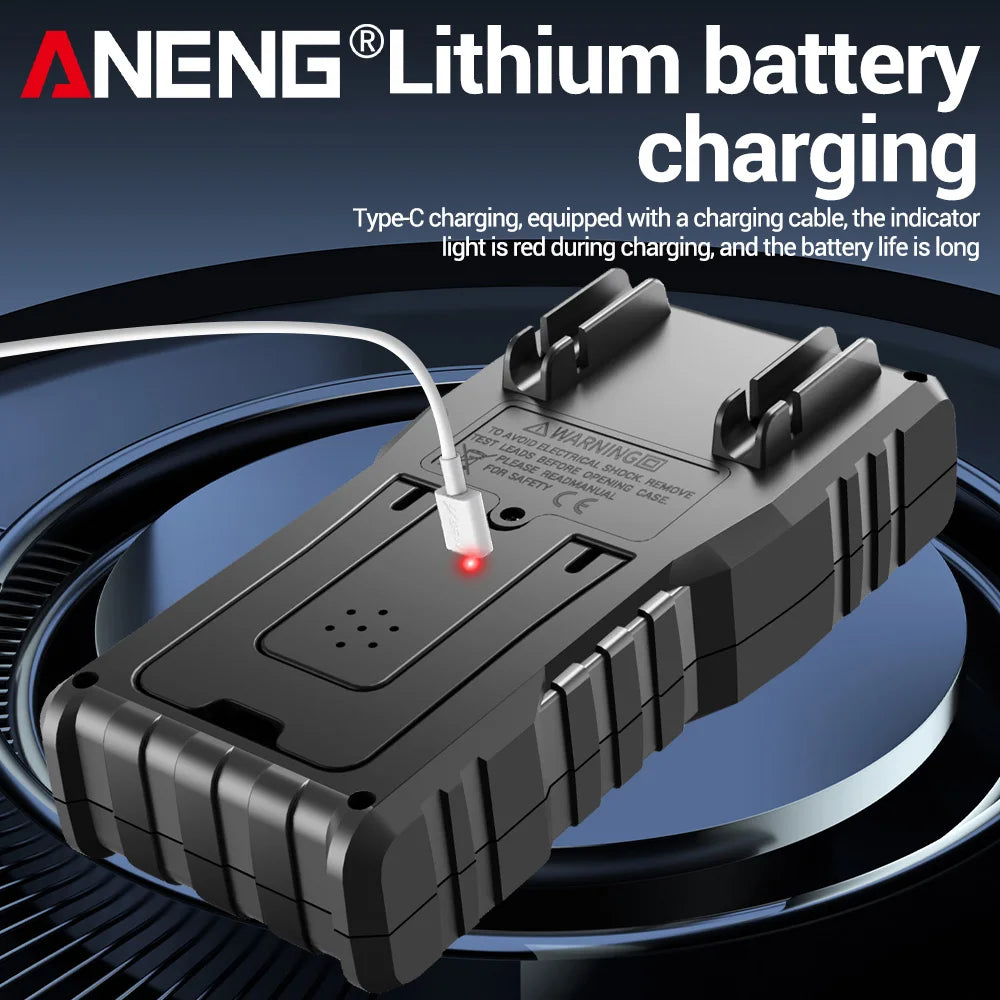

1. This instrument is powered by a built-in 3.7V lithium battery. After the power is exhausted, it needs to be fully charged before it can continue to be used. Please use a standard DC5V TYPE socket charger for charging.

2. When the battery indicator appears, the battery should be replaced or charged immediately. Low battery power will make the meter reading wrong.

3. Do not exceed 600V when perfomming measurement class III voltage measurement, do not exceed 600V when performing measurement class IV voltage measurement.

Technical Parameters:

Power supply: 3.7V

Battery type: 3.7V 14500 battery(built-in 3.7V lithium battery)

Input impedance: 10MΩ

Maximum input voltage: 1000V DC or 750V AC RMS

Slew rate: about 3 times/second, analog strip 30 times/second.

Monitor: 1999 counts LCD display. Unit symbols are automatically displayed by function gear.

Overange Indicator: The LCD will display "OL".

Enter polarity indication: "-" sign is automatically displayed.

Maximum allowable voltage between the measuring end and the earth: 1000V DC or 750V AC RMS

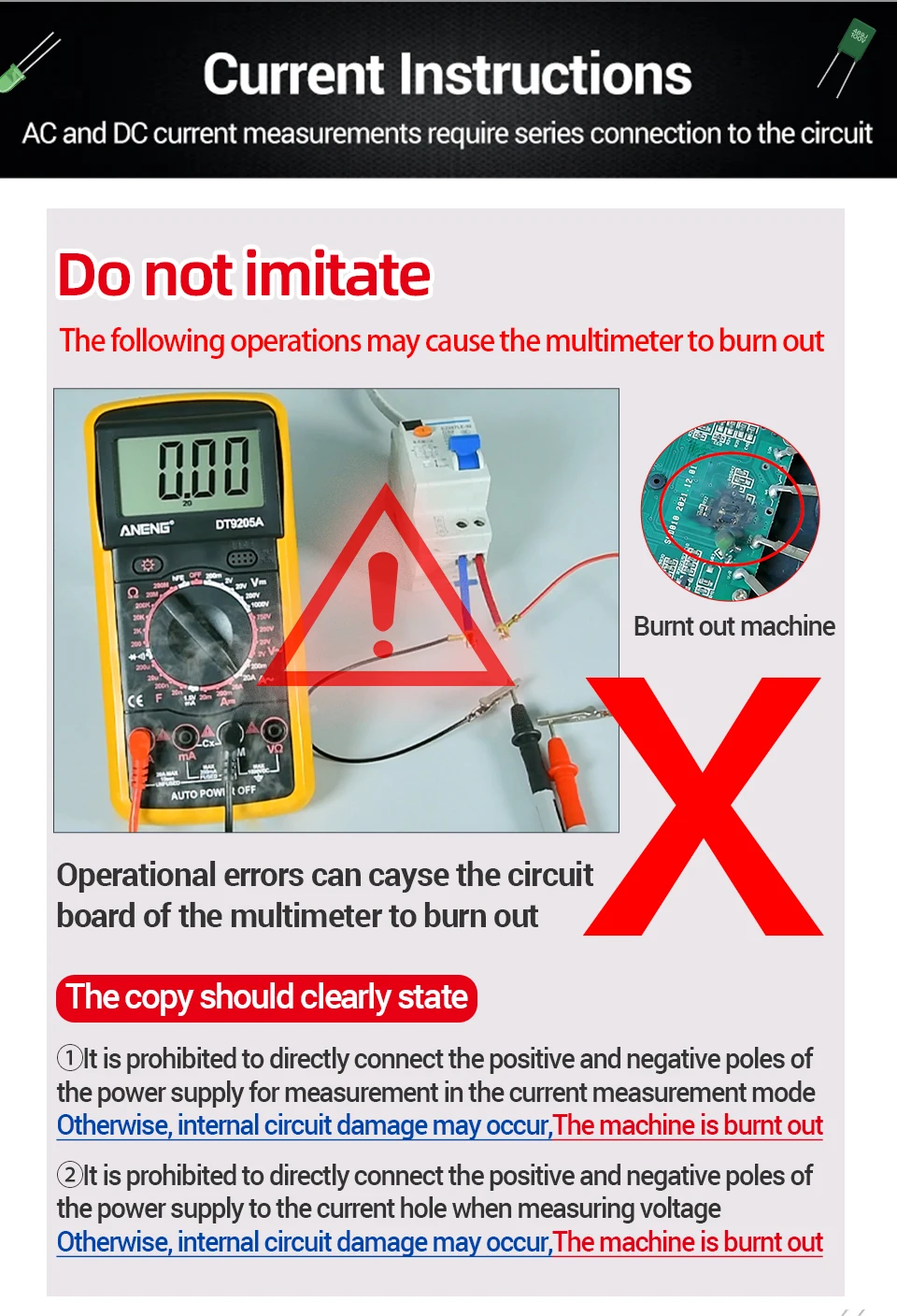

Fuse protection: mA file: fuse FF 200mA/250V.

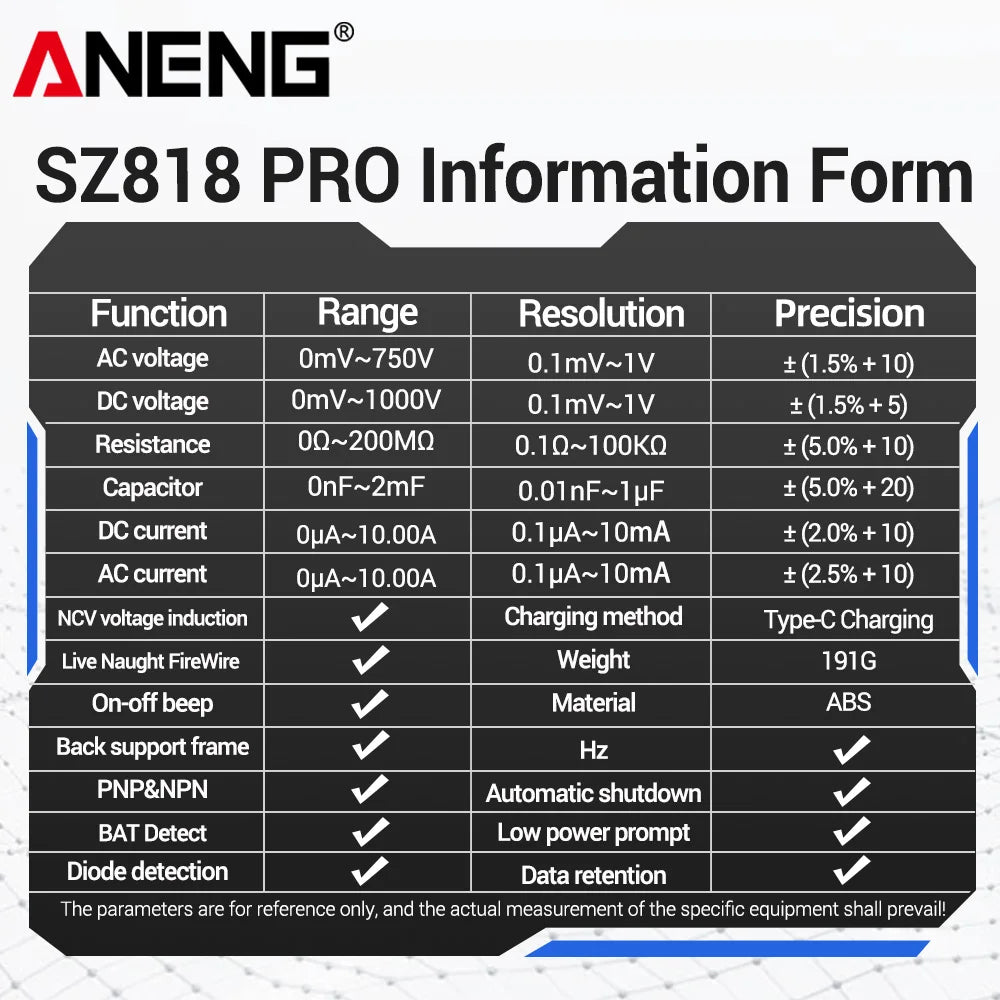

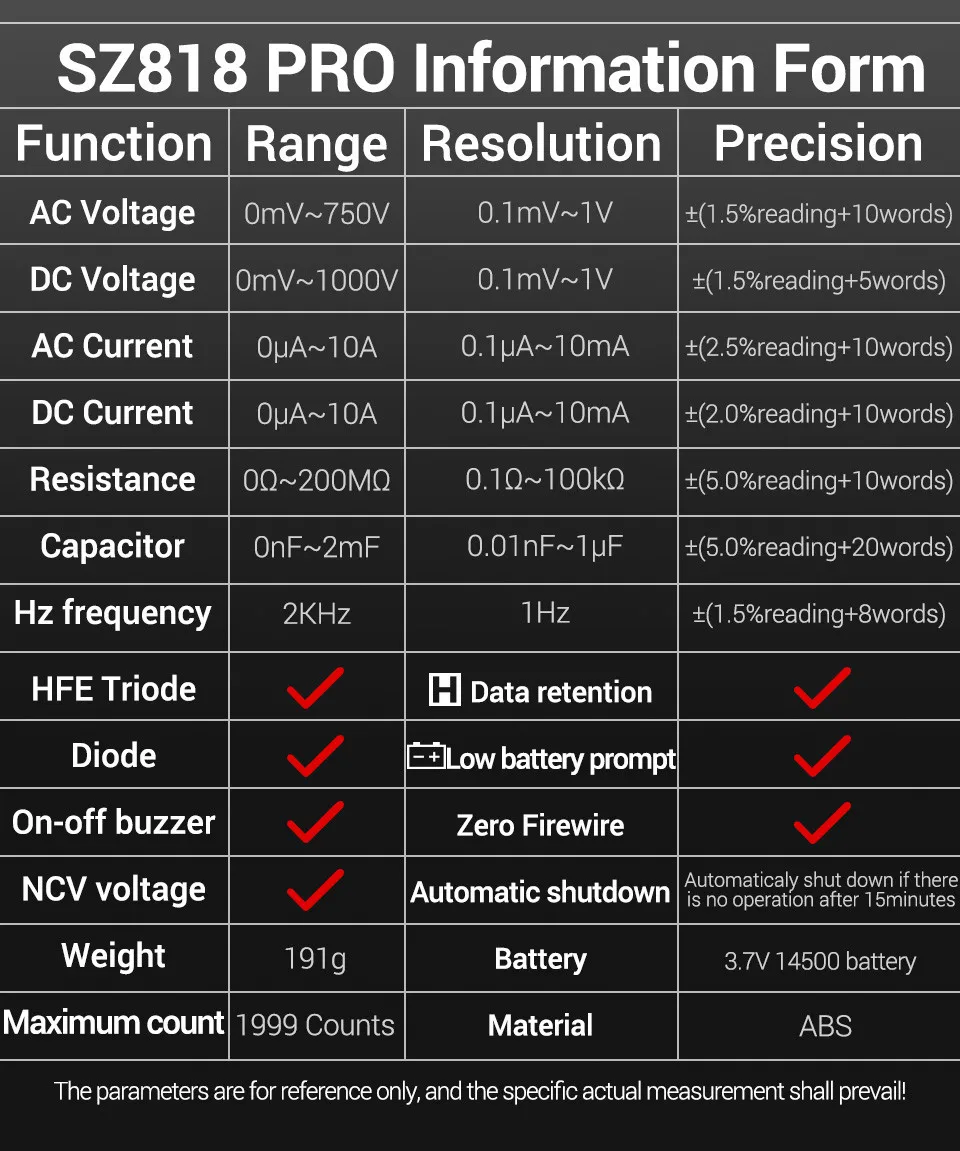

Specifications:

SZ818 PRO

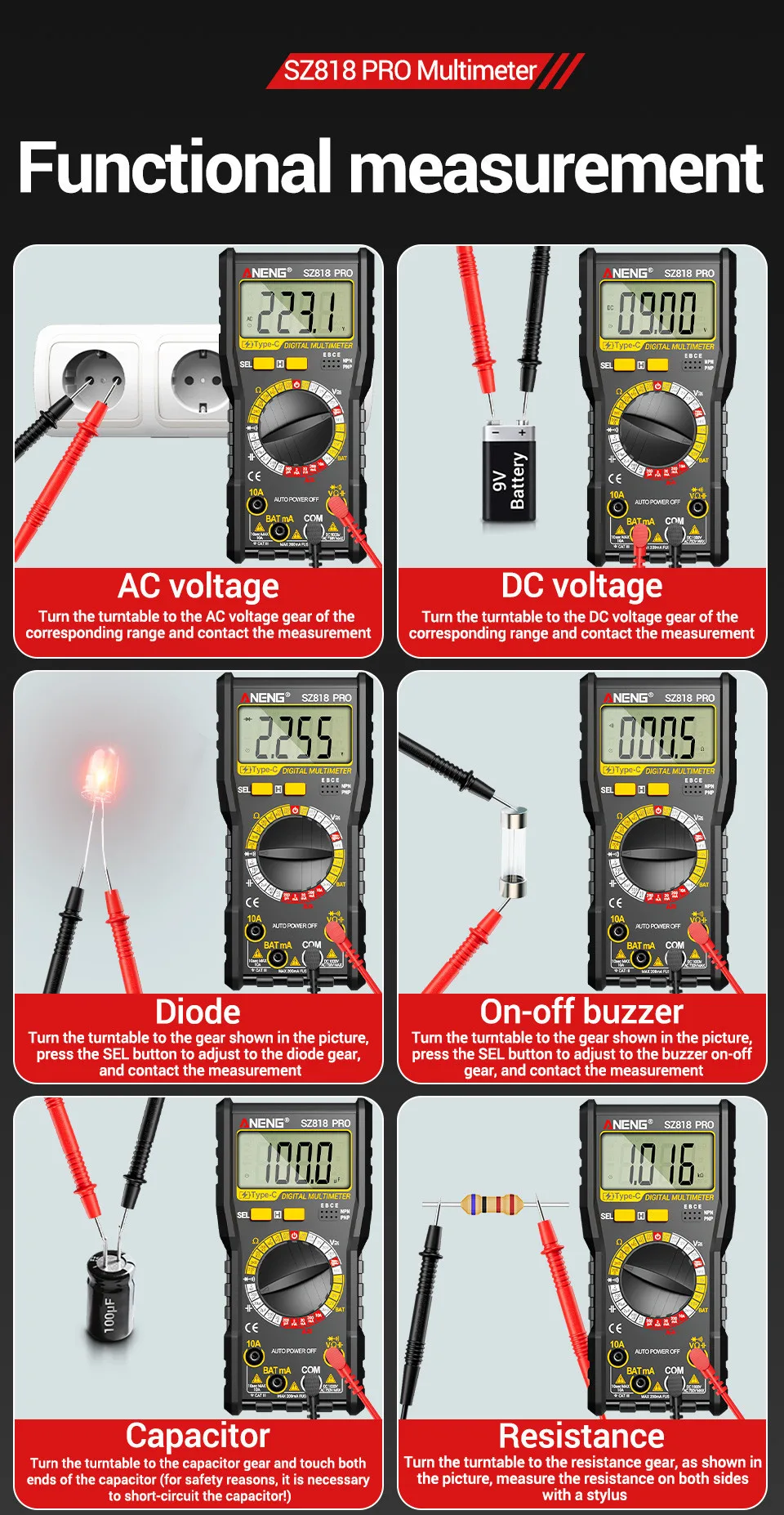

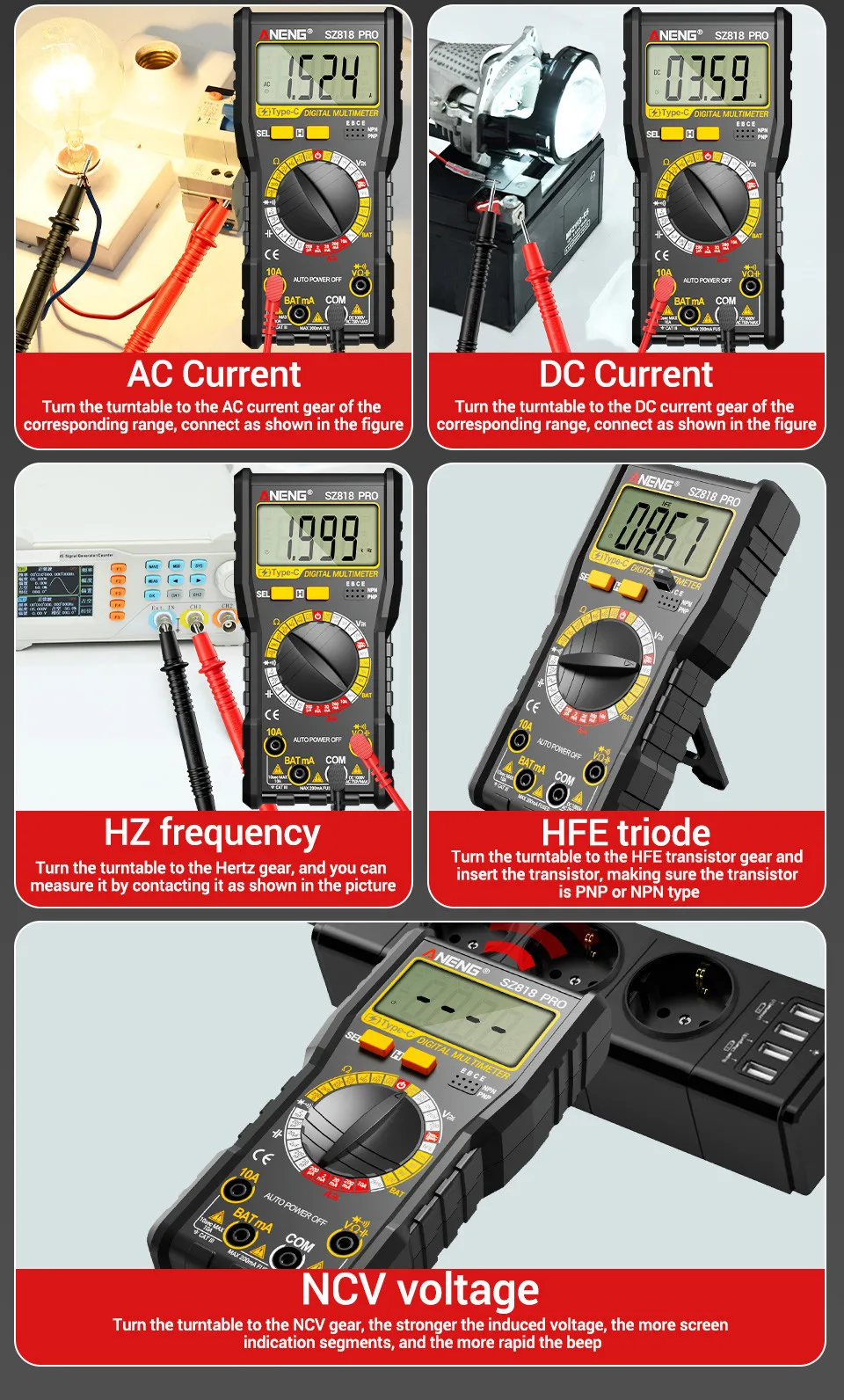

Function	Range	Resolution	Precision
DC voltage	0mV～1000V	0.1mV～1V	±(1.5%+5)

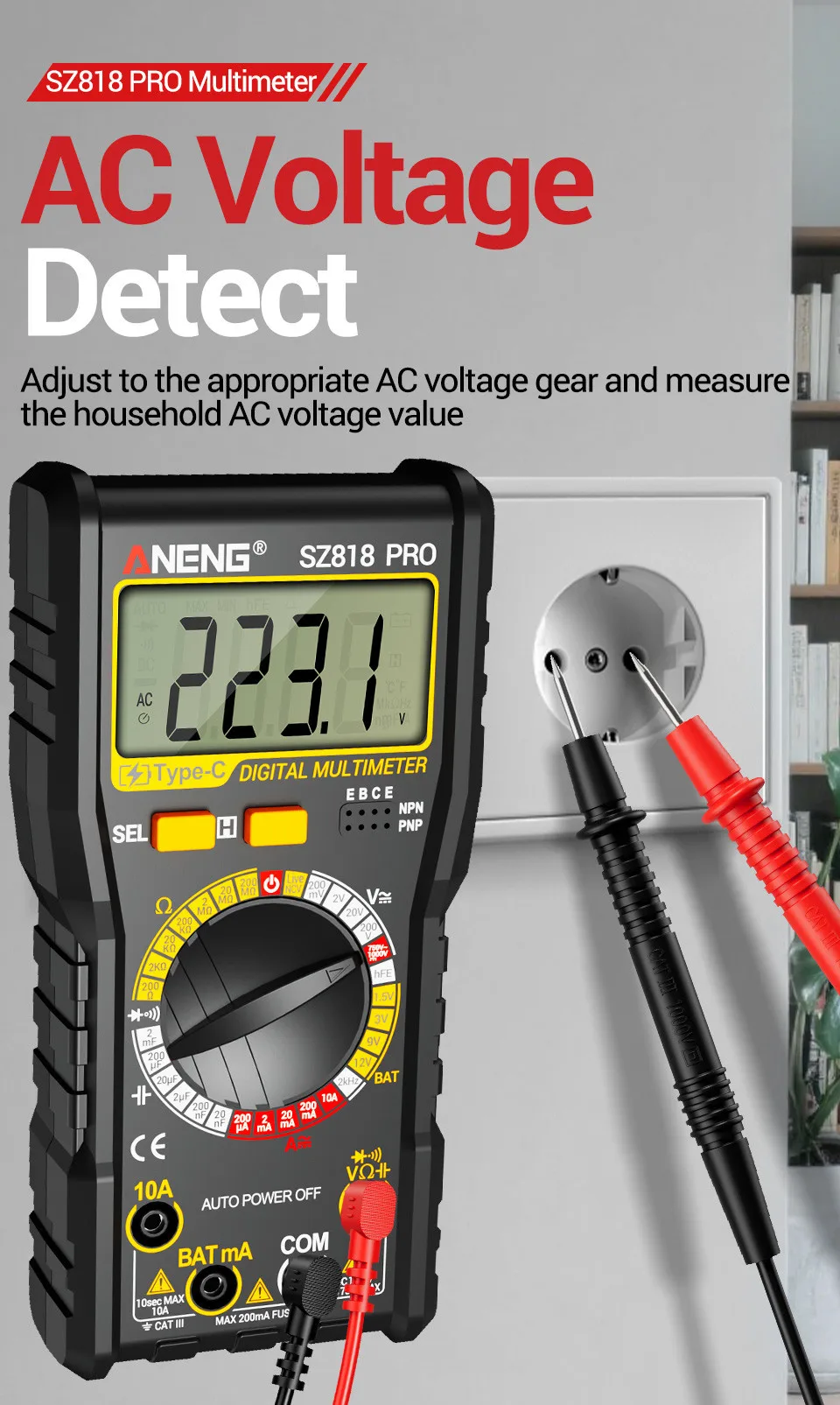

AC voltage	0mV～750V	0.1mV～1V	±(1.5%+10)
DC current	0μA～10.00A	0.1μA～10mA	±(2.0%+10)
AC current	0μA～10.00A	0.1μA～10mA	±(2.5%+10)

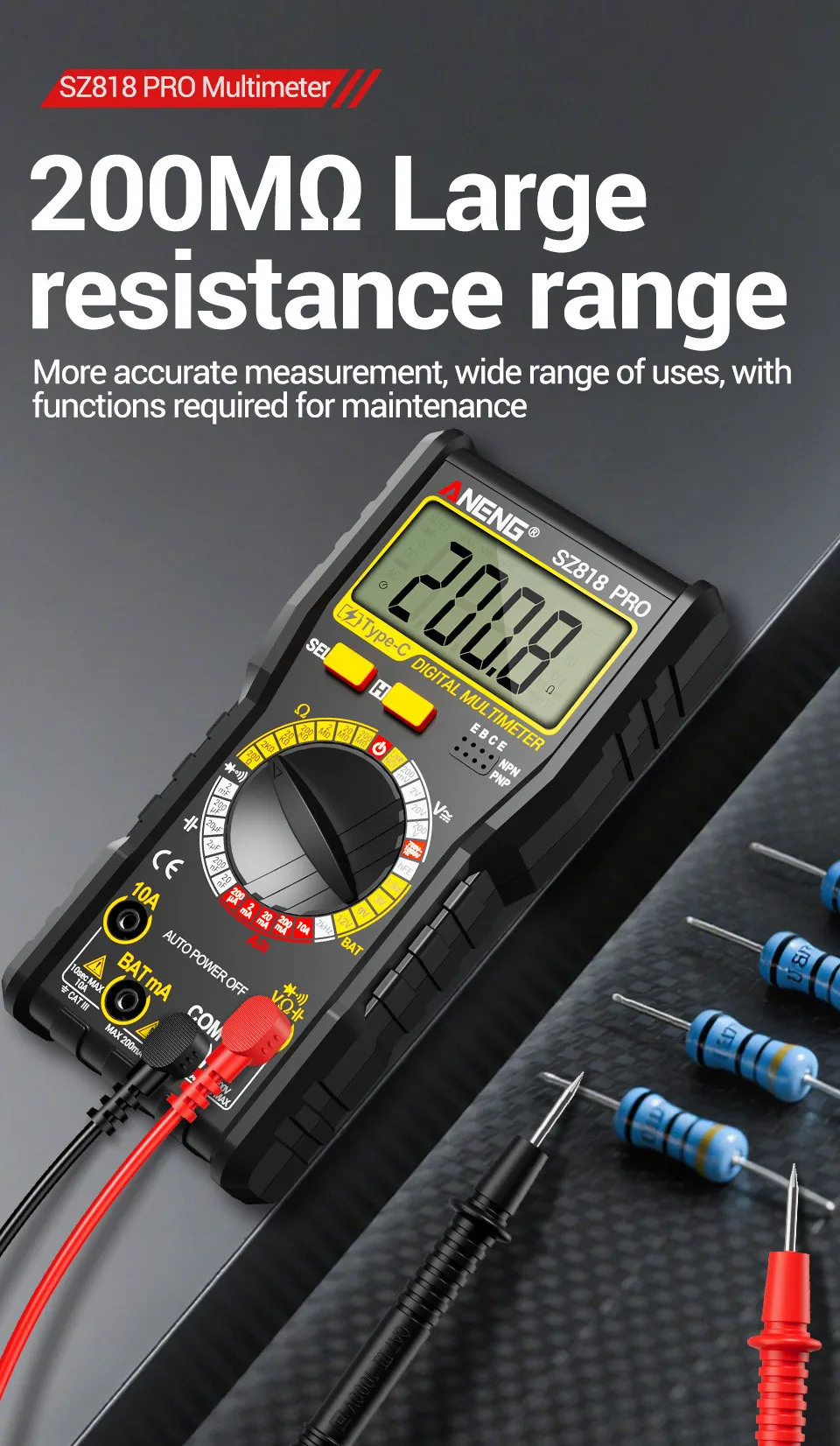

Resistance	0Ω～200MΩ	0.1Ω～100kΩ	±(5.0%+10)
Capacitor	0nF～2mF	0.01nF～1μF	±(5.0%+20)
Hz hertz	2kHz	1Hz	±(1.5%+8)

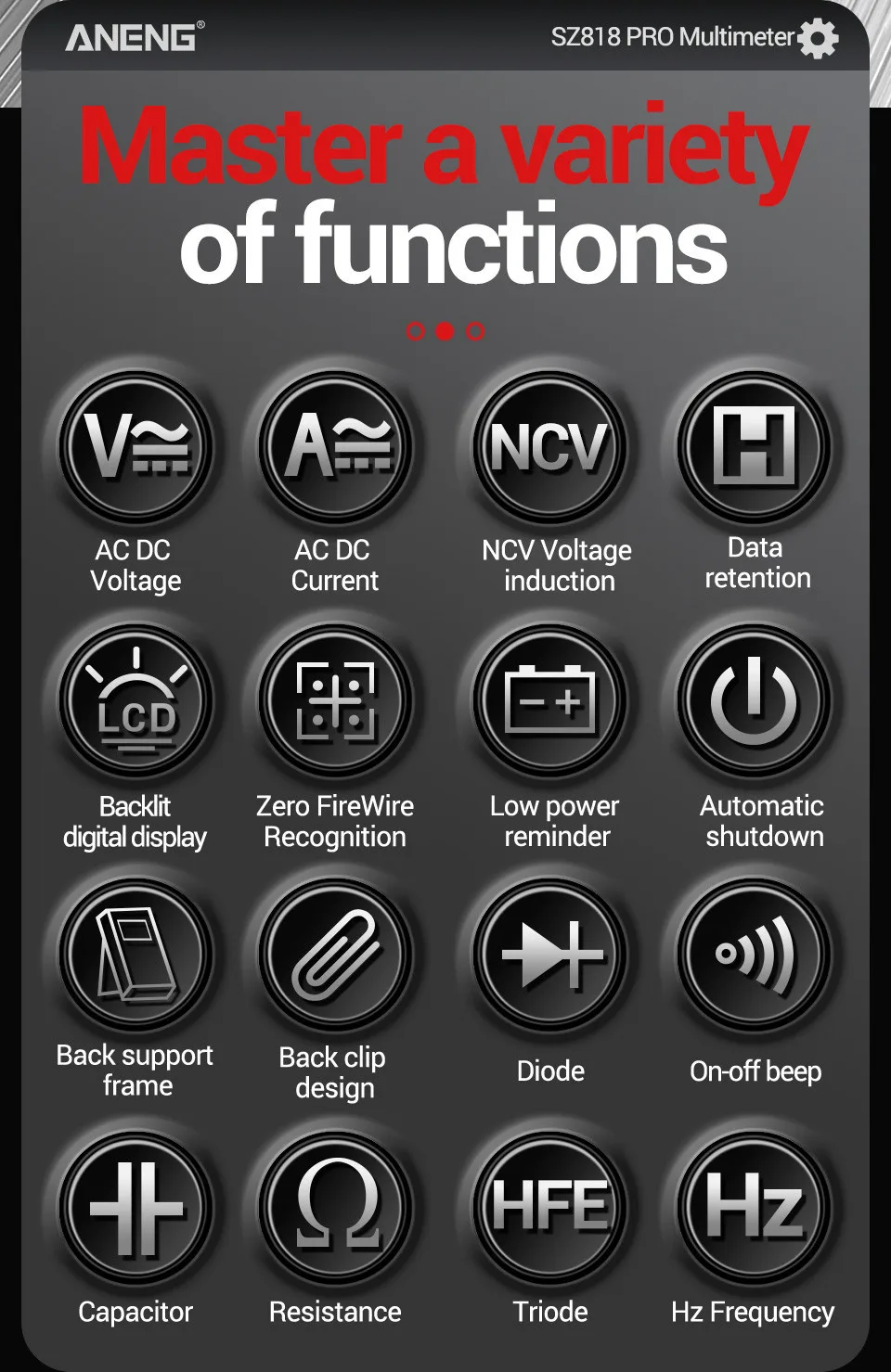

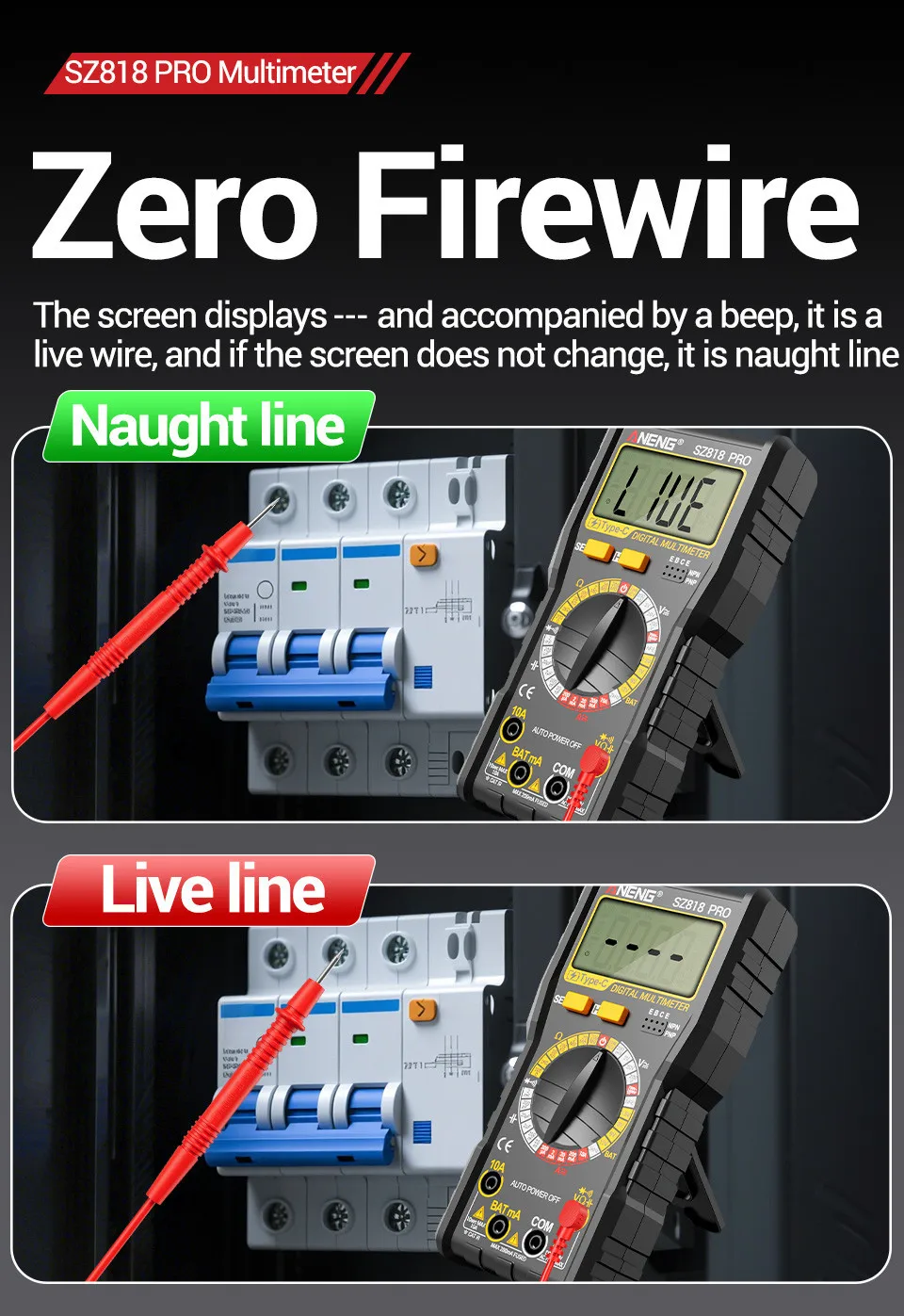

Live	√	Type-C charging	√
NCV	√	Back clip design	√
On-off beep	√	BAT battery detection	1.5V/3V/9V/12V
Diode	√	Battery type	3.7V 14500 battery
hFE triode	√	Auto power off	After 15 minutes without operation

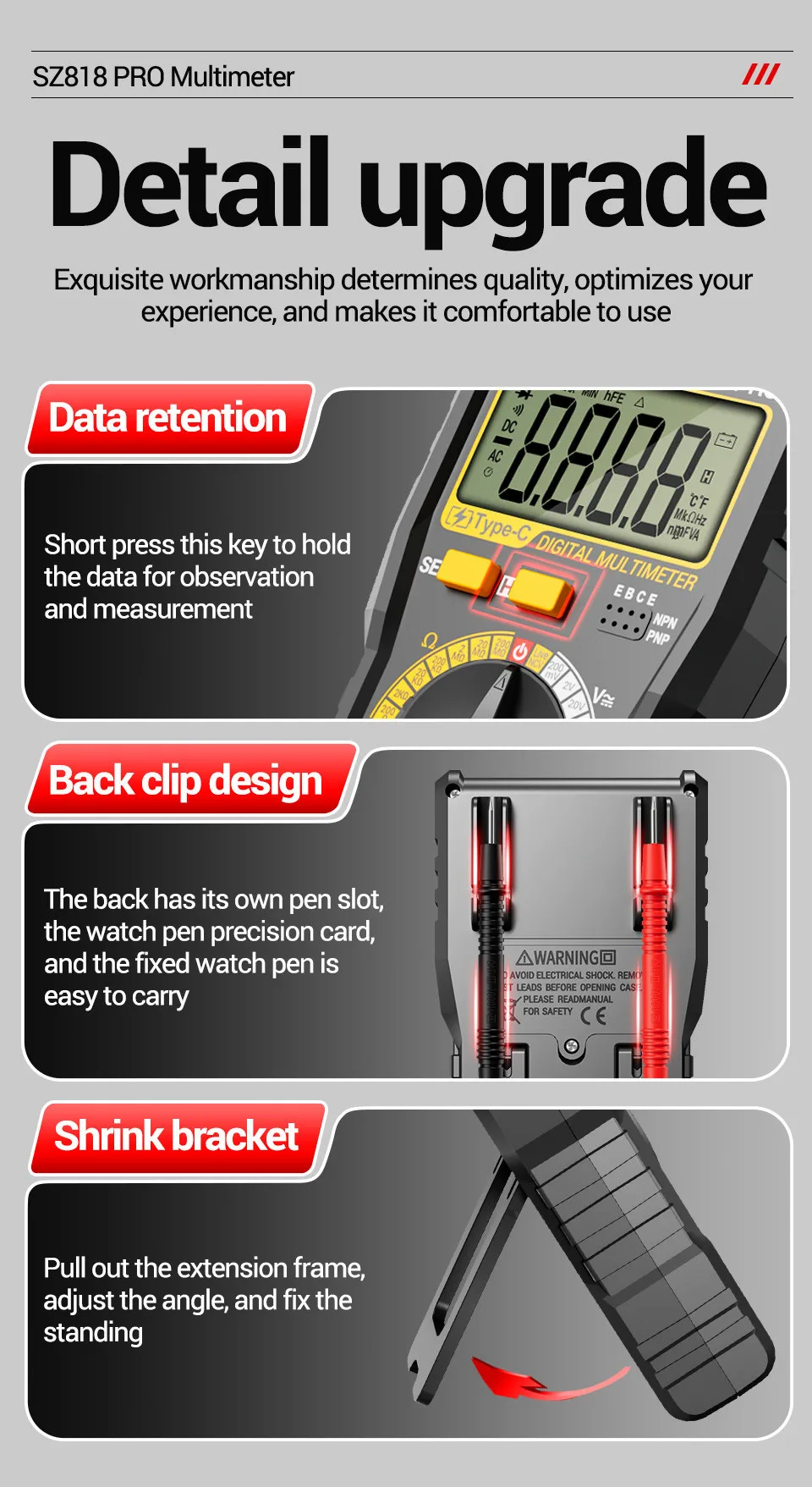

Data retention	√	Maximum count	1999 count
Low power prompt	√	Material	ABS

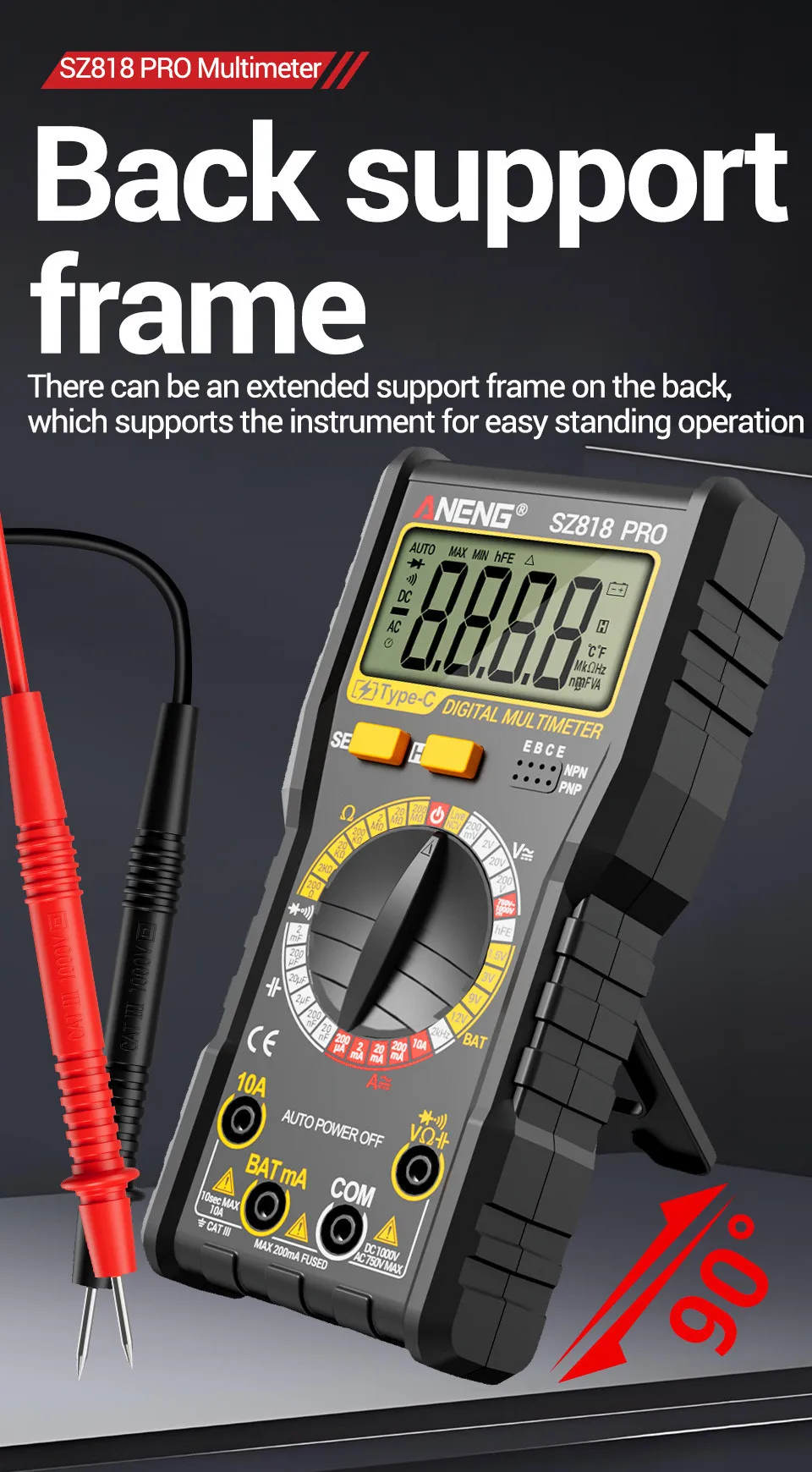

Back brace	√	Weight	191g
