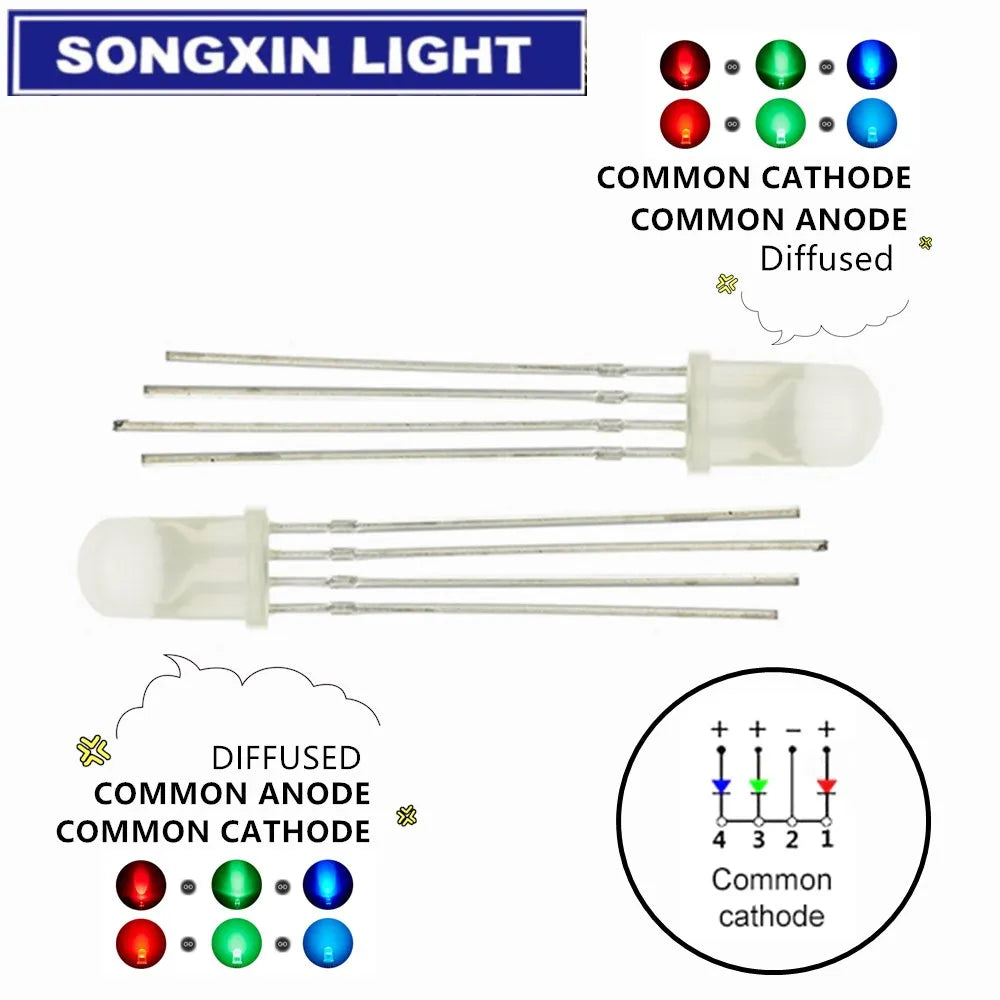

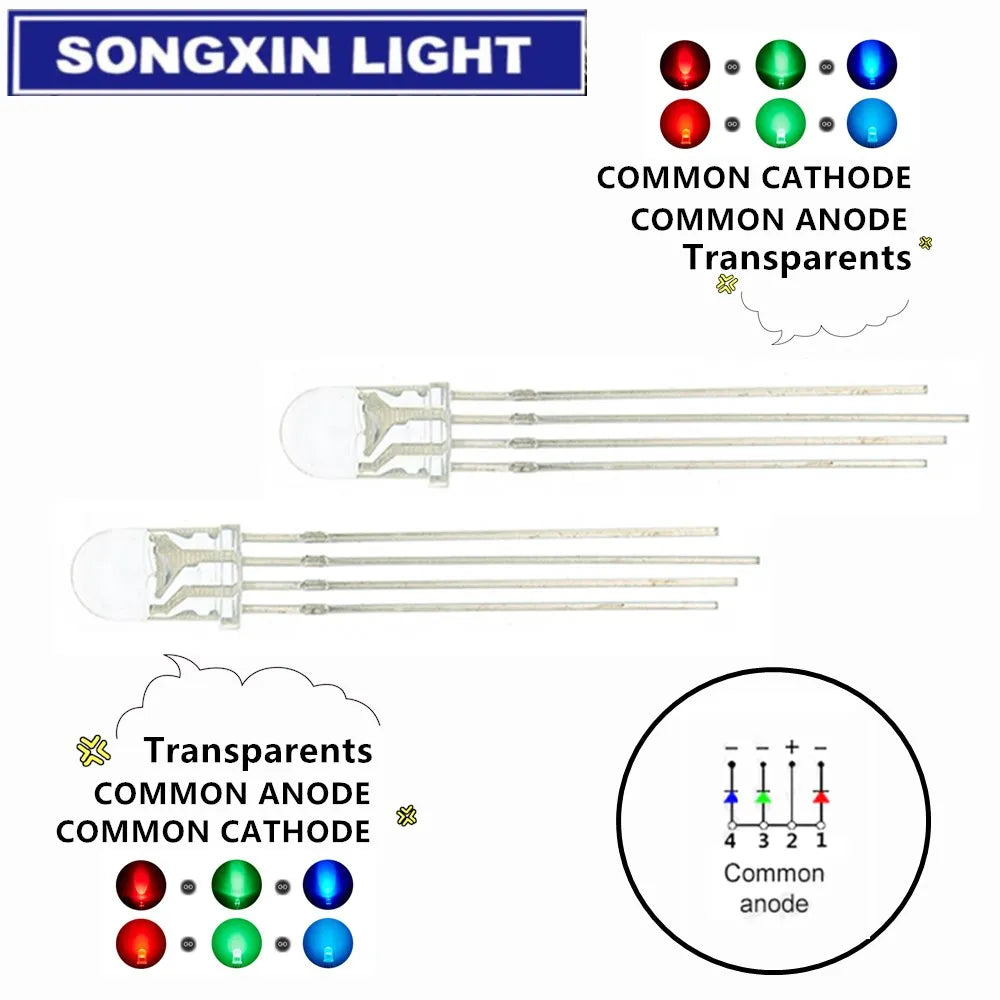

SONGXIN 100pcs 5mm RGB LED Common Cathode / Common Anode Tri-Color Emitting Diodes f5 RGB Diffused / Transparent Highlight

KSh2,444

~~KSh2,618~~ KSh2,444

Sale Sold out

Shipping calculated at checkout.

Color Transparents Anode Diffused Anode Difused Cathode Transparents Cathode

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

Brand Name: XIASONGXIN LIGHT

Choice: yes

Condition: New

Hign-concerned Chemical: None

Max. Forward Current: Transparents Diffused

Max. Forward Voltage: red green blue

Max. Reverse Current: Round

Max. Reverse Voltage: Common Anode Cathode

Model Number: 5mm rgb led

Origin: Mainland China

Package Type: Through Hole

Type: LED

Voltage: 3V

is_customized: Yes

Notice: The new tracking number for China Post Ordinary Small Packet Plus can be traced only befor it arrive the airport of your country,please choose China Post Air Mail if you want a full tracking info.

Tracking info of China Post Ordinary Small Packet Plus can be check here : www.17track.net/en

Warm Tipping :If you need the Common Cathode,please send message to me,if not,I will send the Common Anode

5MM led LAMP

Color:Red/Green/Blue

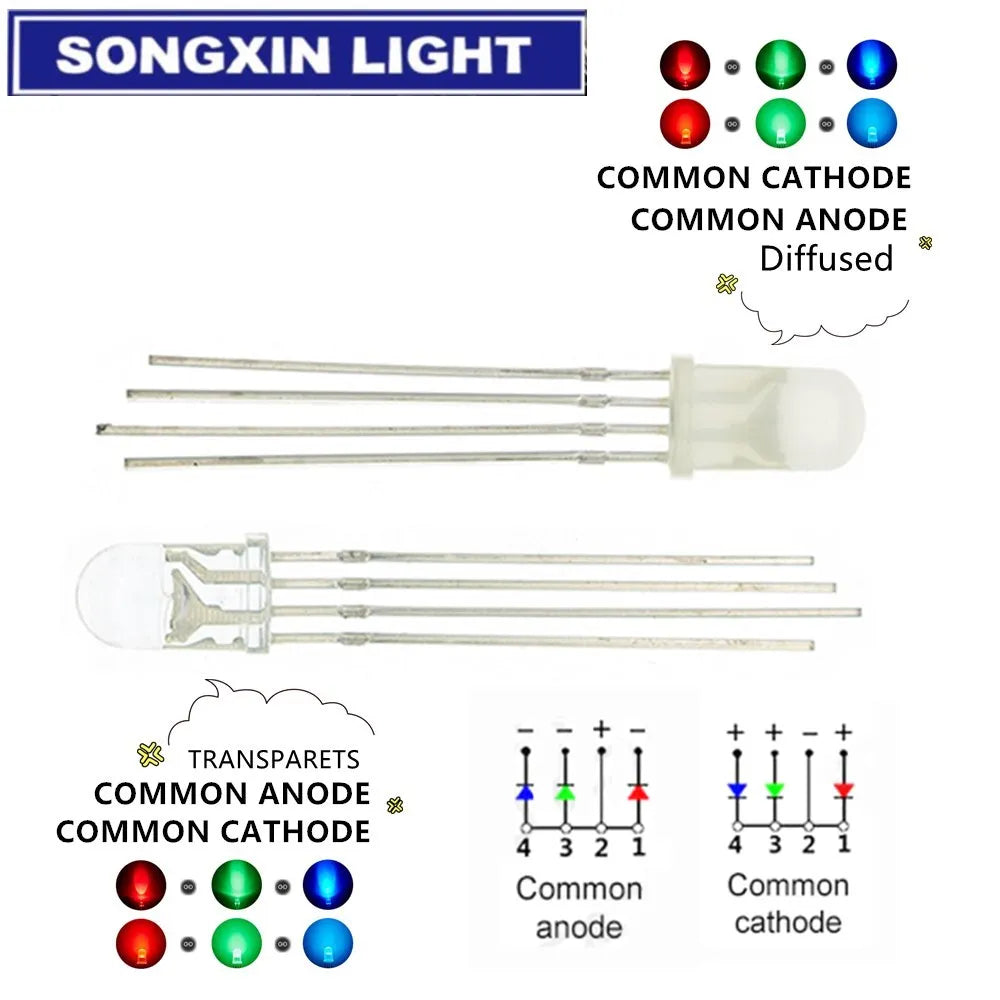

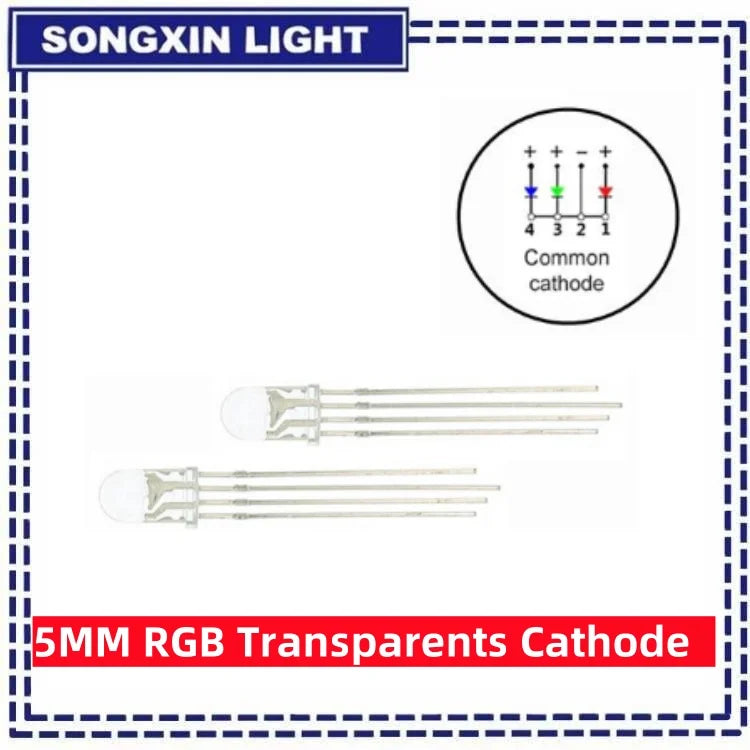

Common Cathode/

Common Anode

Full Colorful

Hue:620-625/520-525/470-475nm

Ref:2.0-2.2/3.0-3.2/3.2-3.4v

Qty:100pcs

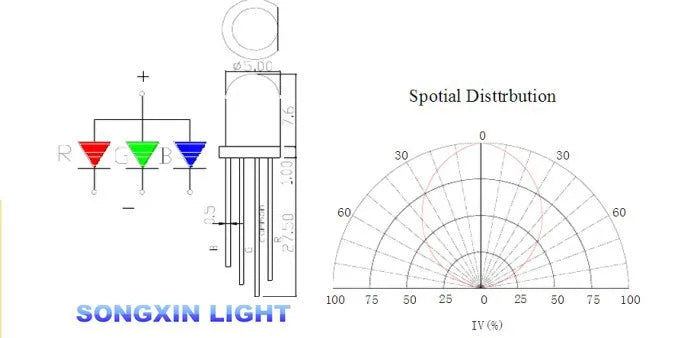

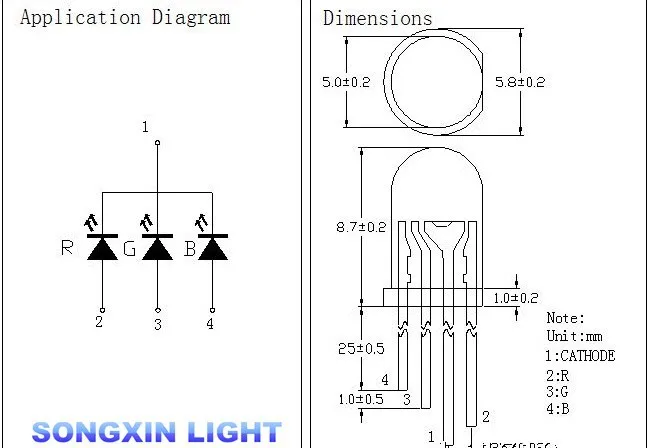

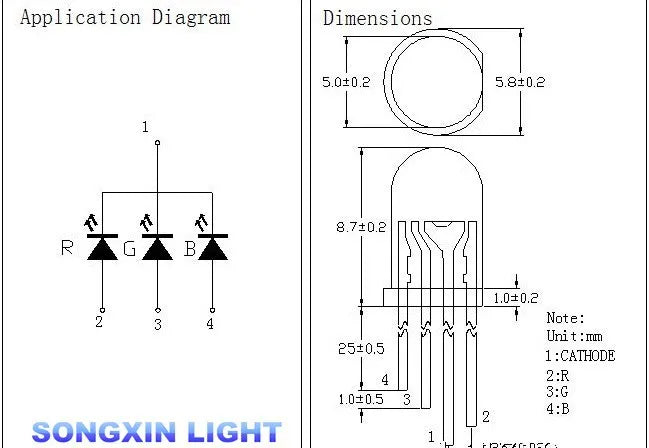

Product name: Lamp LED 5MM RGB 4-pin
Part Number: F51BW9RGB-C
Driver voltage:
R:1.8-2.2V/G:3.0-3.4V/B:3.0-3.4V
Color temperature:
R:620-630NM/G:515-525NM/B:460-470NM
Luminous ntensity:
Range of application:Arts and crafts, billboards, signal indication
Matters needing attention:Iron (up to 40W) tip temperature less than 300 degrees Celsius ; welding time less than 3 seconds; welding position at least from colloidal 2MM

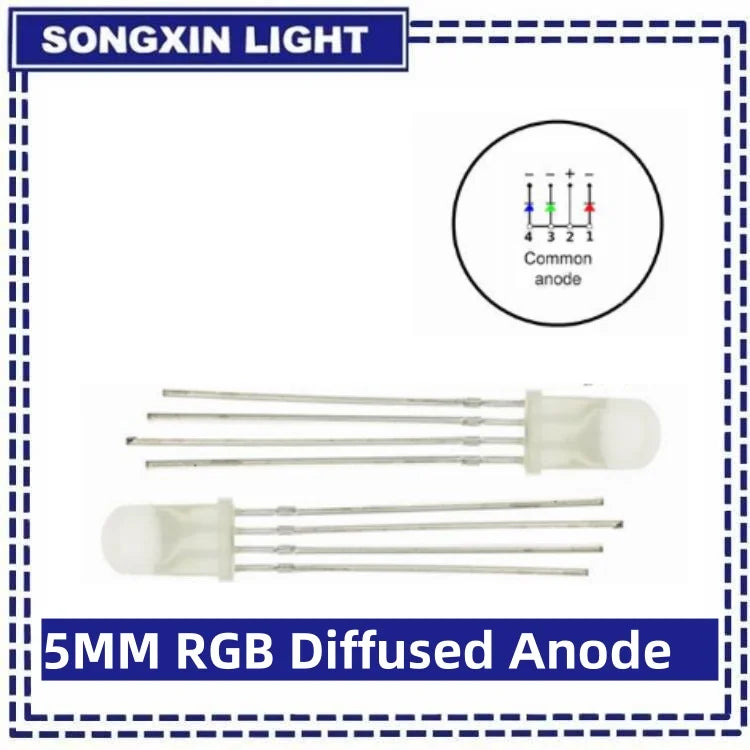

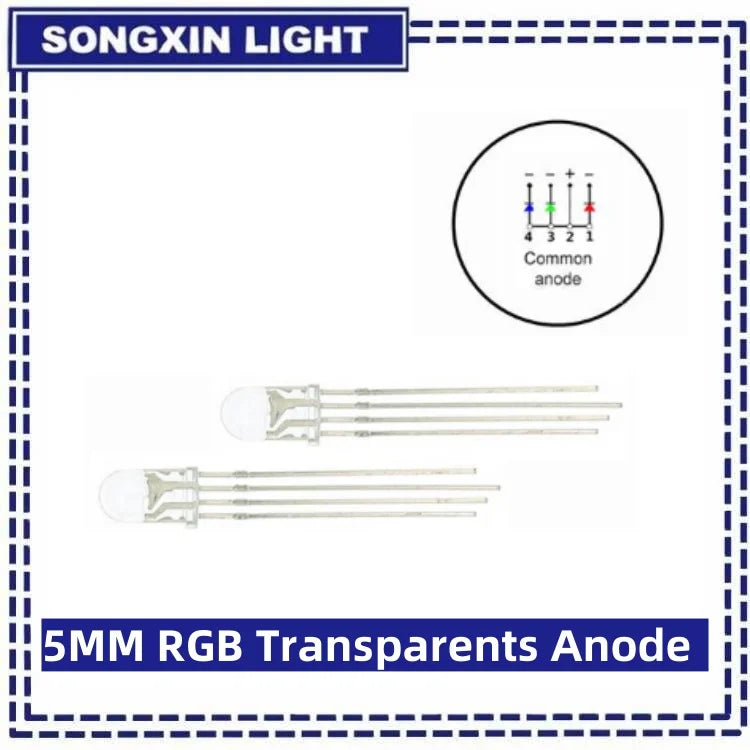

picture -1 is COMMON ANODE
