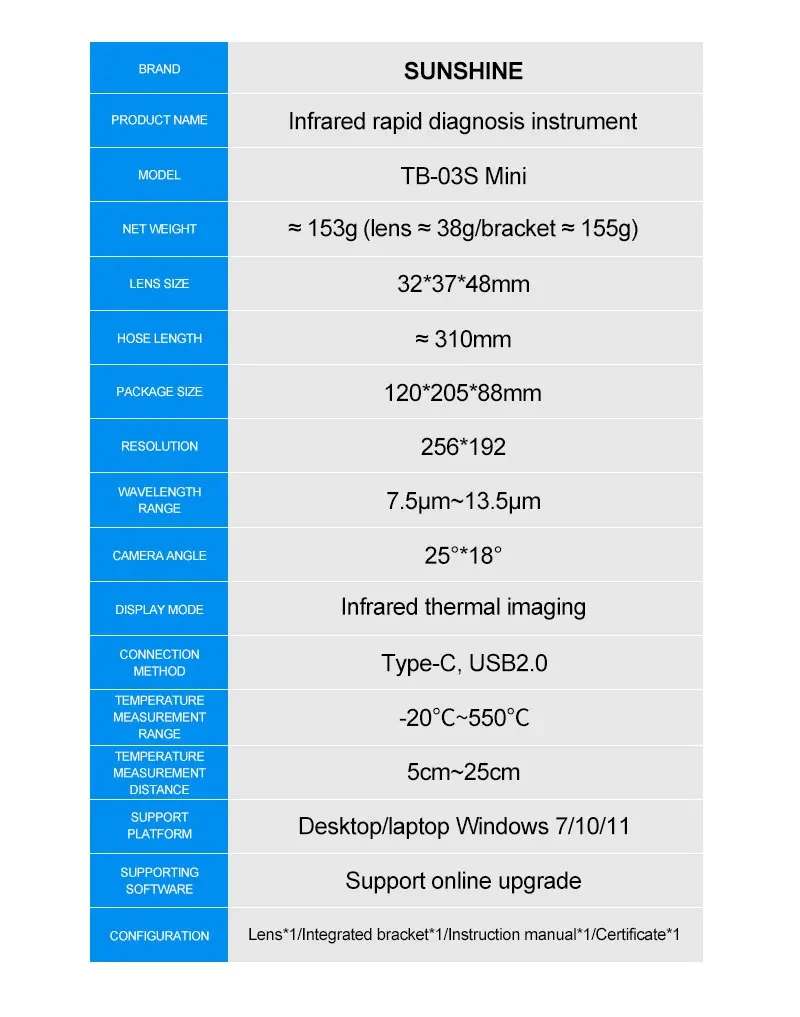

SPECIFICATIONS

Brand: SUNSHINE

Brand Name: SUNSHINE

Camera angle: 25°*18°

Choice: yes

Configuration: Lens*1/Integrated bracket*1/Instruction manual*1/Certificate*1

Connection method: Type-C,USB2.0

DIY Supplies: ELECTRICAL

Display mode: Infrared thermal imaging

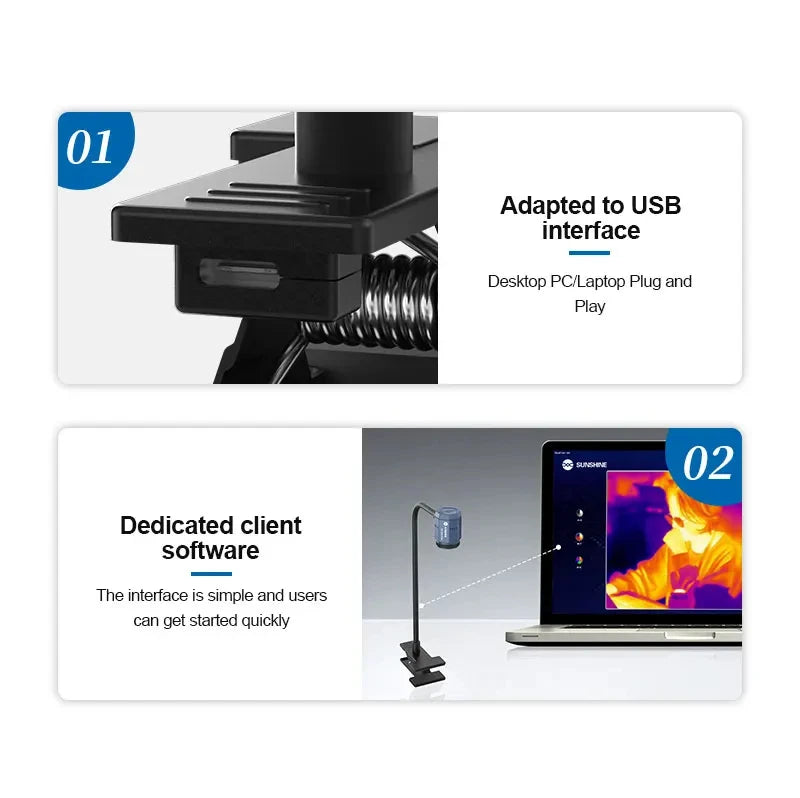

Feature 1: Adapted to USB interface

Feature 10: DIY adjustment

Feature 11: One machine for multiple purposes

Feature 12: Compact size

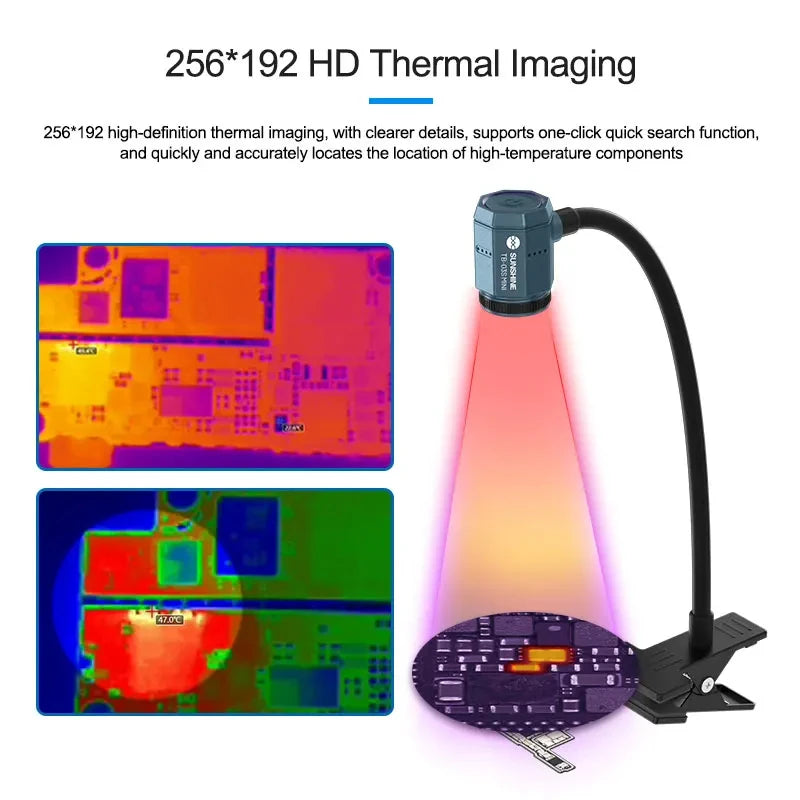

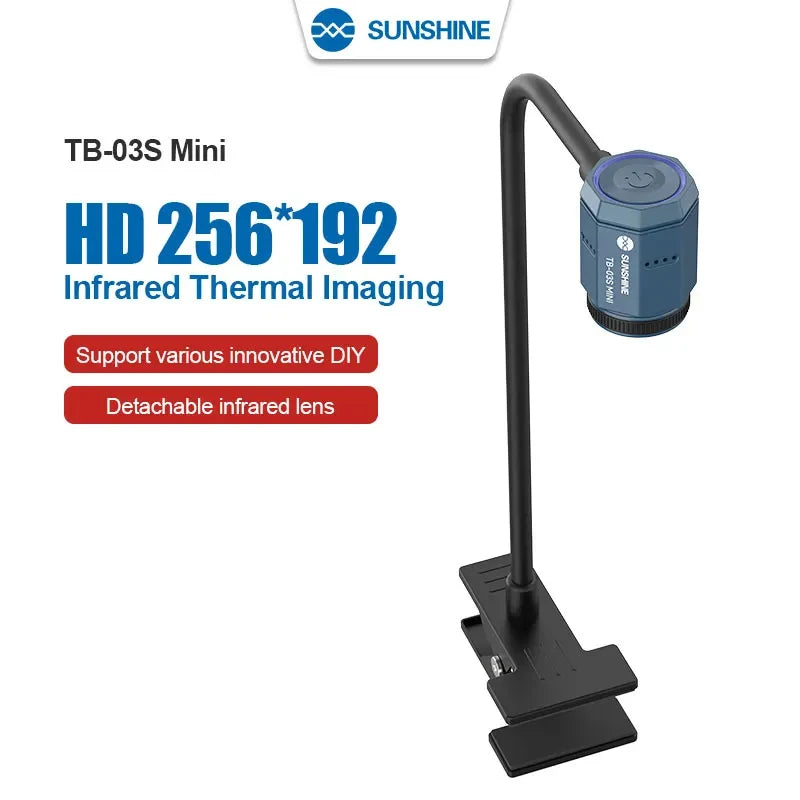

Feature 13: 256*192 HD Thermal Imaging

Feature 14: 256*192 high-definition thermal imaging,with clearer details,supports one-click quick search function,and quickly and accurately locates the location of high-temperature components

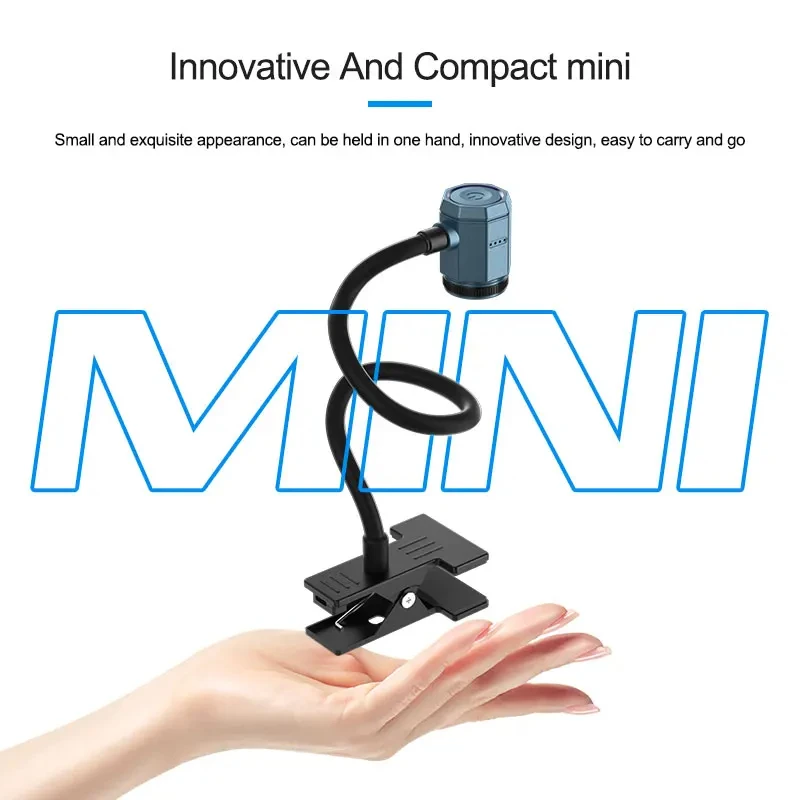

Feature 15: Innovative And Compact mini

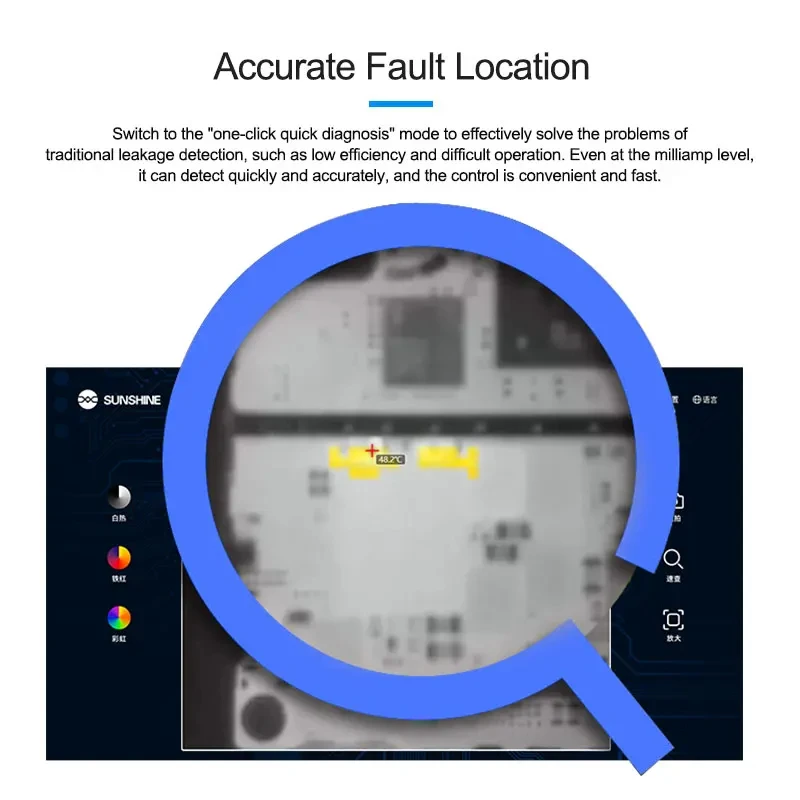

Feature 16: Accurate Fault Location

Feature 17: Switch to the "one-click quick diagnosis" mode to effectively solve the problems of traditional leakage detection,such as low efficiency and difficult operation.Enen at the milliamp level,it can detect quickly and accurately,and the control is convenient and fast

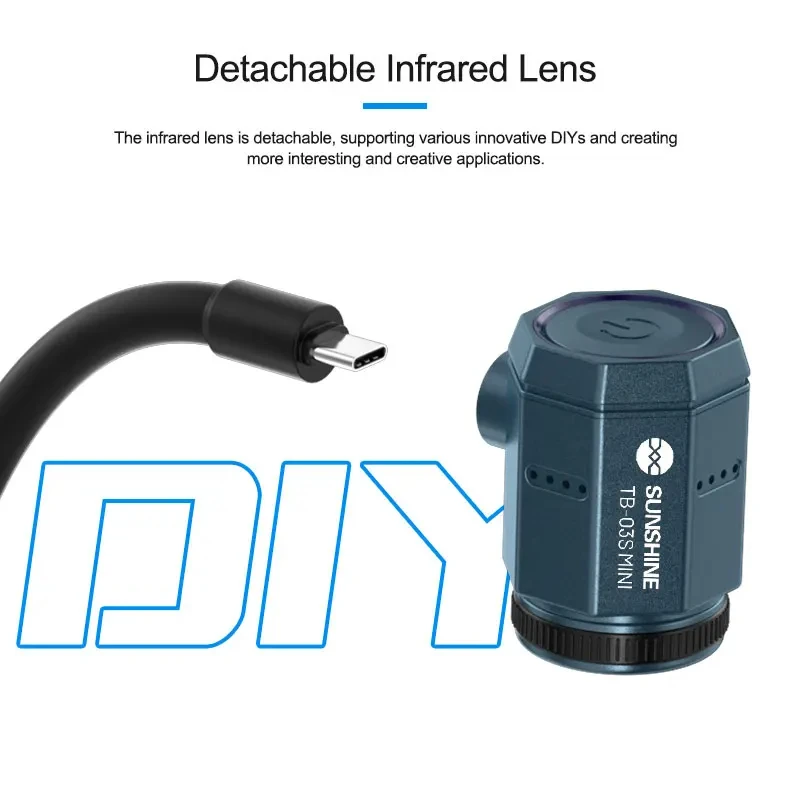

Feature 18: Detachable Infrared Lens

Feature 19: The infrared lens is detachable,supporting various innovative DIYs and creating more interesting and creative applications

Feature 2: Desktop PC/Laptop Plug and play

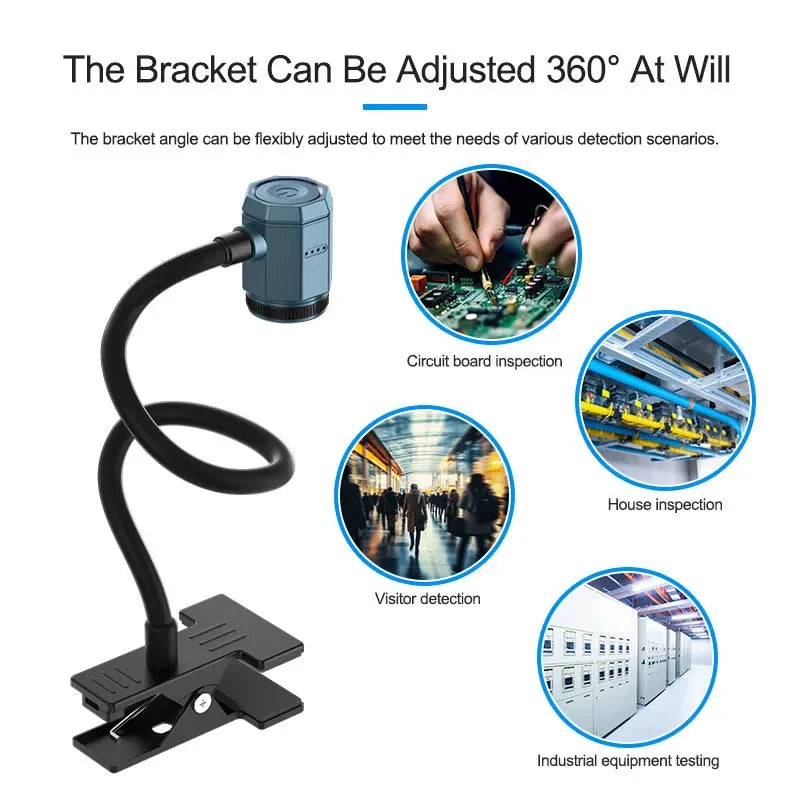

Feature 20: The Bracket Can Be Adjusted 360° At Will

Feature 21: The bracket angle can be flexibly adjusted to meet the needs of varous detection scenarios

Feature 3: Dedicated client software

Feature 4: The interface is simple and users can get started quickly

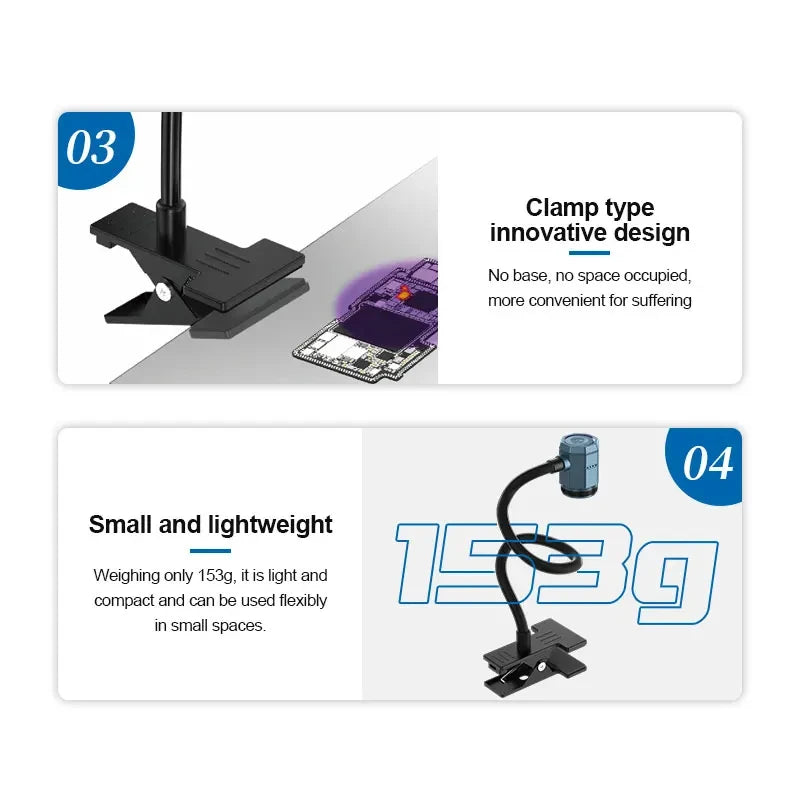

Feature 5: Clamp type innovative design

Feature 6: No base,no space occupided,more convenient for suffering

Feature 7: Small and lightweight

Feature 8: Weighing only 153g,it is light and compact and can be used flexibly in small spaces

Feature 9: HD thermal imaging

Function: It is used in many scenarios such as circuit board inspection,house inspection,industrial equipment inspection,visitor monitoring,etc.It is the first choice for cost-effective infrared maintenance inspection

Hign-concerned Chemical: None

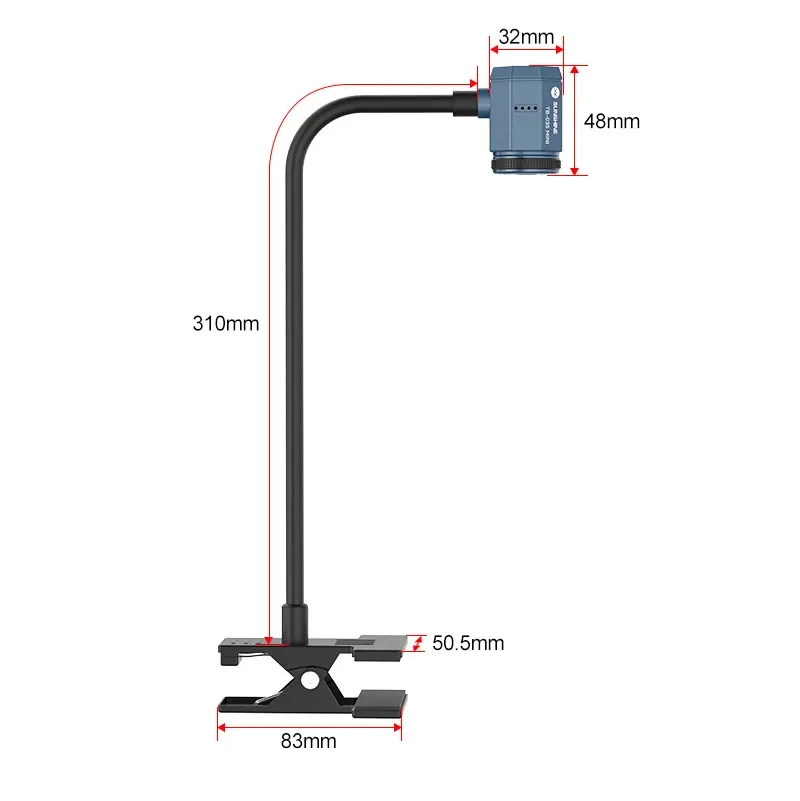

Host length: 310mm

Lens size: 32*37*48mm

Model Number: TB-03S Mini

Net weight: 153(lens=38g/bracket=155g)

Origin: Mainland China

Packag size: 120*205*88mm

Product name: Infrared rapid diagnosis instrument

Resolution: 256*192

Support platform: Desktop/laptop Windows 7/10/11

Supporting software: Support online upgrade

Temperature measurement distance: 5cm~25cm

Temperature measurement range: -20°C~550°C

Type: Combination

Wavelength range: 7.5um~13.5um

is_customized: No

SUNSHINE TB-03S Mini HD Infrared Thermal Imager for Motherboard PCB BGA Repair Fault Location Detection Thermal Imager Tool

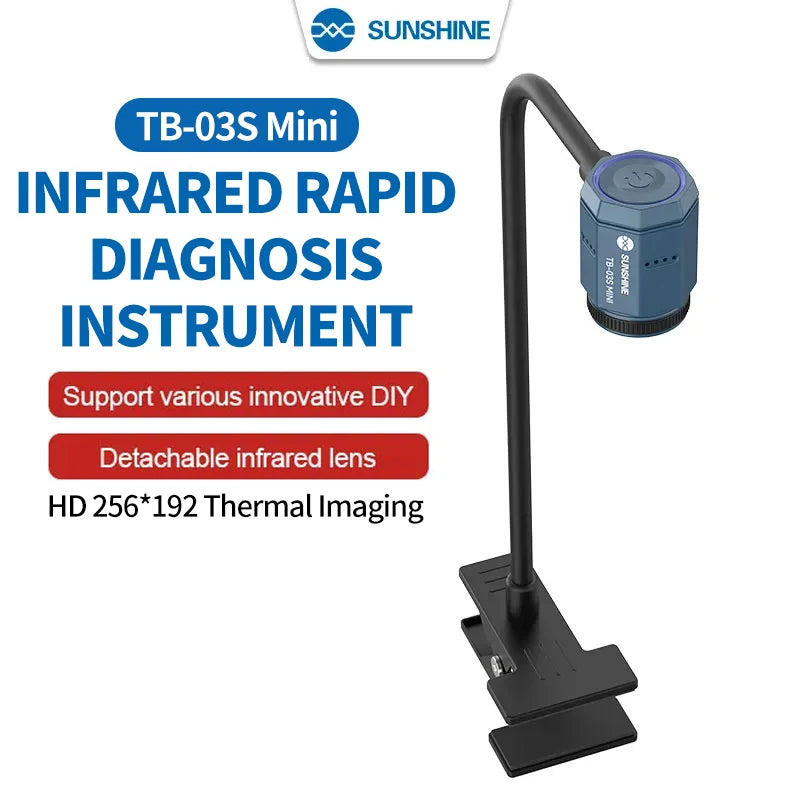

SUNSHINE TB-03S MINI infrared rapid diagnosis instrument

.The clamp-type infrared thermal imaging equipment is compact and easy to use. It has an extremely optimized image algorithm and can quickly locate faulty components such as PCB short circuit and leakage.

.It is used in many scenarios such as circuit board inspection, house inspection, industrial equipment inspection, visitor monitoring, etc. It is the first choice for cost-effective infrared maintenance inspection.
