›  Chip on board COB LED technology

›  13W, 1100Lux @ 1 meter, dimmerable

›  70W equivalent output

›  Single shadow, glareless

›  60° wide beam angle, equally spread

›  Cool touch

›  5000K color temperature

›  5600K and 3200K filter

›  Color rendering index: 85

›  6-17V wide input voltage

›  Interchangeable DV mount and battery

›  Glass Fiber strong and durable housing

›  Screw and cold shoe mountChip-on-board LED
Brighter and Non-glaring

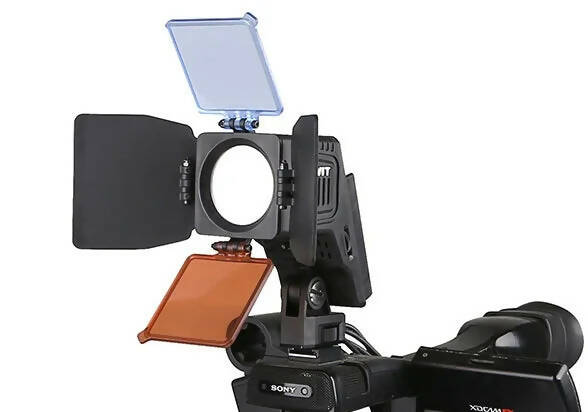

The S-2070 on-camera LED light adopts the new generation Chip-on-board LED, which integrates the LEDs into a chip with high brightness output but in smaller size, and the most remarkable, it offers a equally spread, soft, glareless light, similar to the traditional Halogen bulb light.13W Light Output, 70W Equivalent
1100Lux @1 meter distance and 1 meter scale

S-2070 requires only 13W power consumption but can output bright light equivalents to an 70W halogen bulb. The illuminance is 1100 Lux at 1 meter distance and 1 meter scale.60° Wider Beam Angle
Equally spread lights, no visible beam edge

The traditional LED lights use lens to converge and get a higher brightness, but dropped down quickly around, which will generate a visible lighting border in the image. In comparison, the COB LED generates a wider beam angle, equally spread from the center to edge, and suitable for HD shooting.

Glareless light, Single Shadow
The traditional LED array always generates several highlight pots on retina and people will feel glaring, even can’t recover sight until a few seconds. In comparison, the SWIT COB LED has only one bulb in appearance, and output a non-glaring, single shadow light, suitable for close interview shooting.

3200K/5000K/5600K Color Temperature
The S-2070 LED has 5000K color temperature and also equipped with a 5600K (Daylight) and a 3200K (Tungsten) color temperature filter. You can switch the color temperature easily.6-17V Wide Voltage Power Supply
The S-2070 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV batteries.
The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2070 and get power from D-tap power output sockets, such as batteries, battery plates, or camera handle. You can also select SWIT pole-tap to pole-tap DC cable (S-7108) to get power from pole-tap DC adaptors.
By installing a particular DV battery plate, you can directly mount a 7.2V DV battery onto the rear of the S-2070 light.

Interchangeable DV plates
You can power the S-2070 by most popular DV batteries, via the easy interchangeable DV battery plates. We supply the following DV plates for optional:

S-7004F:
SONY NP-F970/770
S-7004U
: SONY BP-U60/U30
S-7004D
: Panasonic CGA-D54/D28, VW-VBD58, AG-VBR59
S-7004B
: Panasonic VW-VBG6
S-7004J
: JVC BN-V428U
S-7004V
: JVC BN-VF823
S-7004I
: SSL-JVC50
S-7004C
: Canon BP-945/970G
S-7004E
: Canon LP-E6

Dimmer control
S-2070 has a dimmer controller to adjust the light output from 10%-100%. The color temperature will not change during the dimmer controlling.

Easy Installation
Both cold-shoe and screw

S-2070 offers a dual purpose installation base, that can be fixed to camera via both cold shoe and 1/4” screw head.
