SPECIFICATIONS

Air Volume: 94.2

Bearing: Fluid Bearing

Blade Quantity: 9

Brand Name: TEUCER

Choice: yes

Fan Life: 100000 hrs

Fan Size: 140mm

Fan Speed: 600 - 1500

Hign-concerned Chemical: None

Lines: 1 Lines

Model Number: AF-14025

Noise: 30dBA

Origin: Mainland China

Package: Yes

Power Interface: 4PIN

Used For: case,Radiator

Voltage: 12V

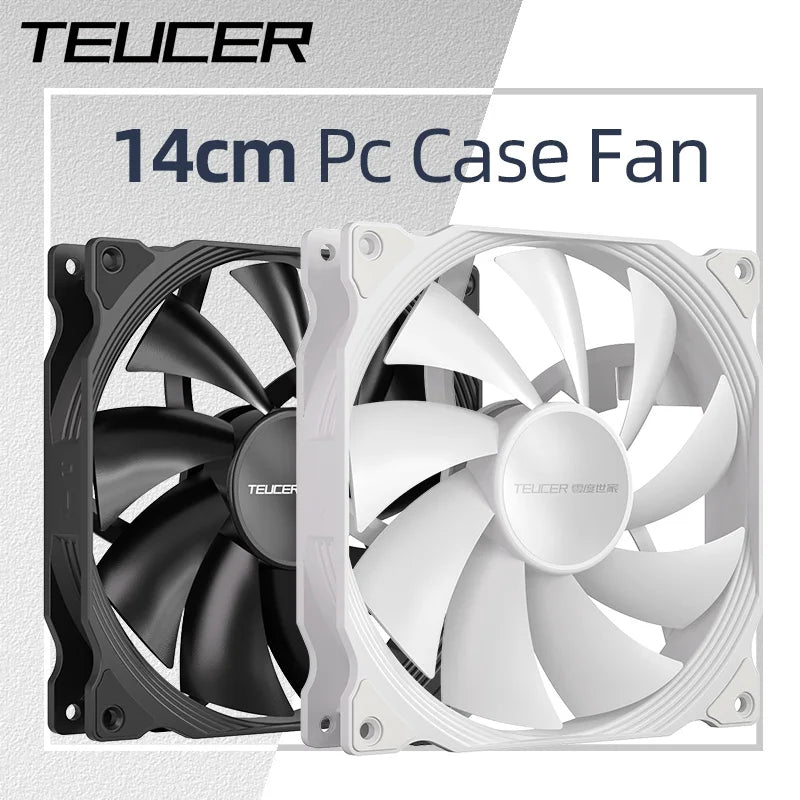

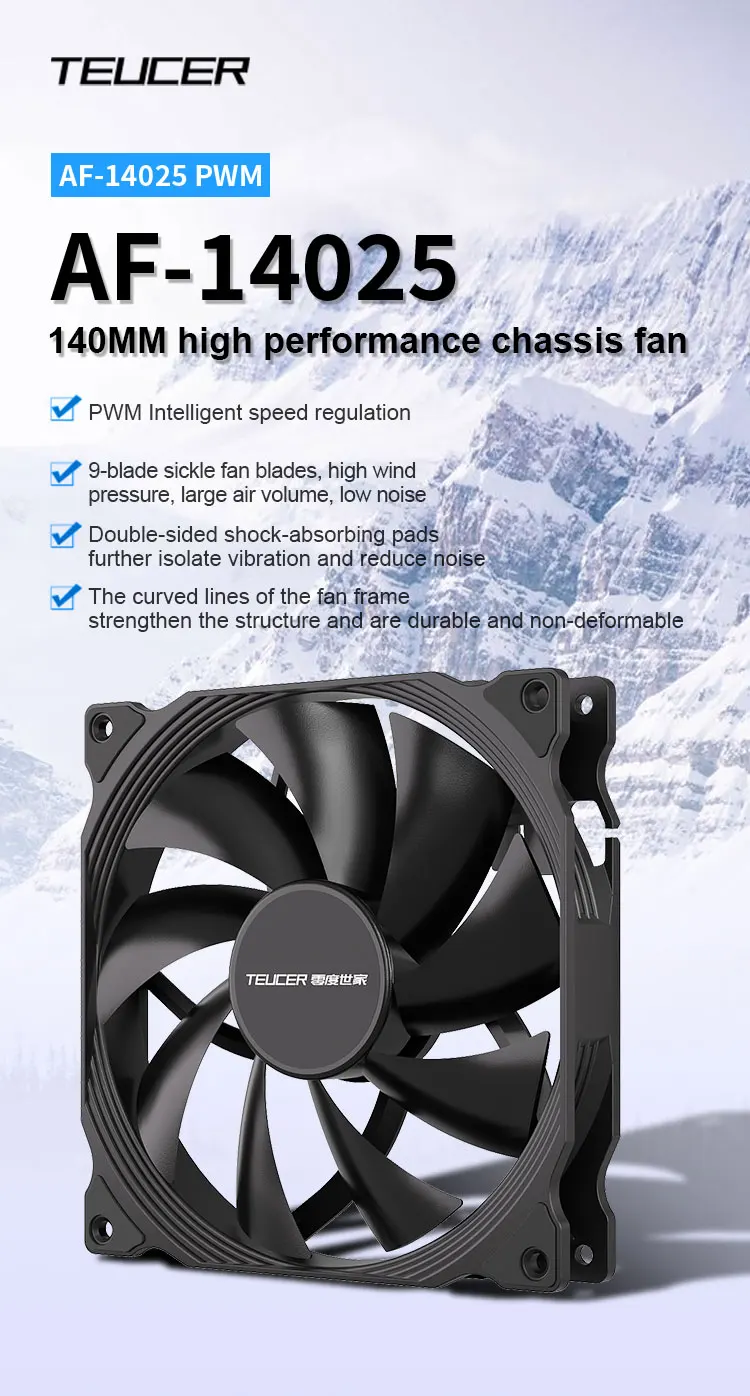

Teucer AF-14025 140MM high performance chassis fan

●PWM intelligent speed regulation

●9-blade sickle fan blades, high wind pressure, large air volume, low noise

●Double-sided shock-absorbing pads further isolate vibration and reduce noise

●The curved lines of the fan frame strengthen the structure and are durable and non-deformable.

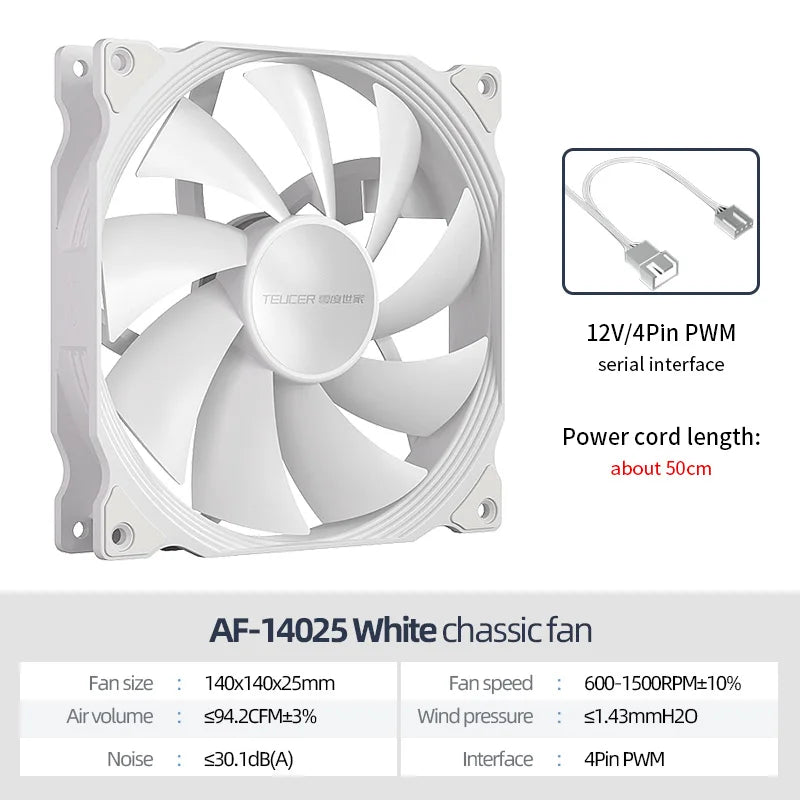

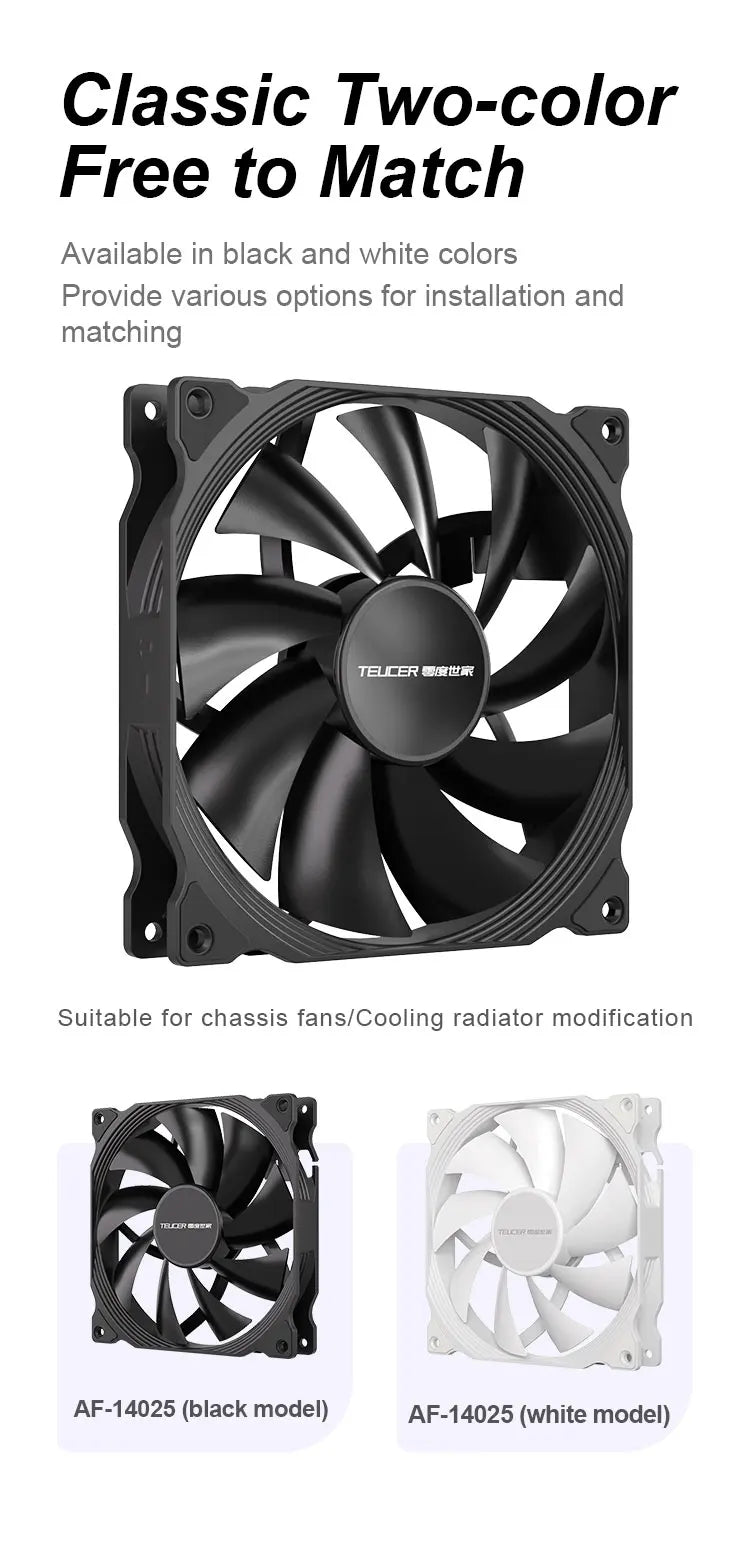

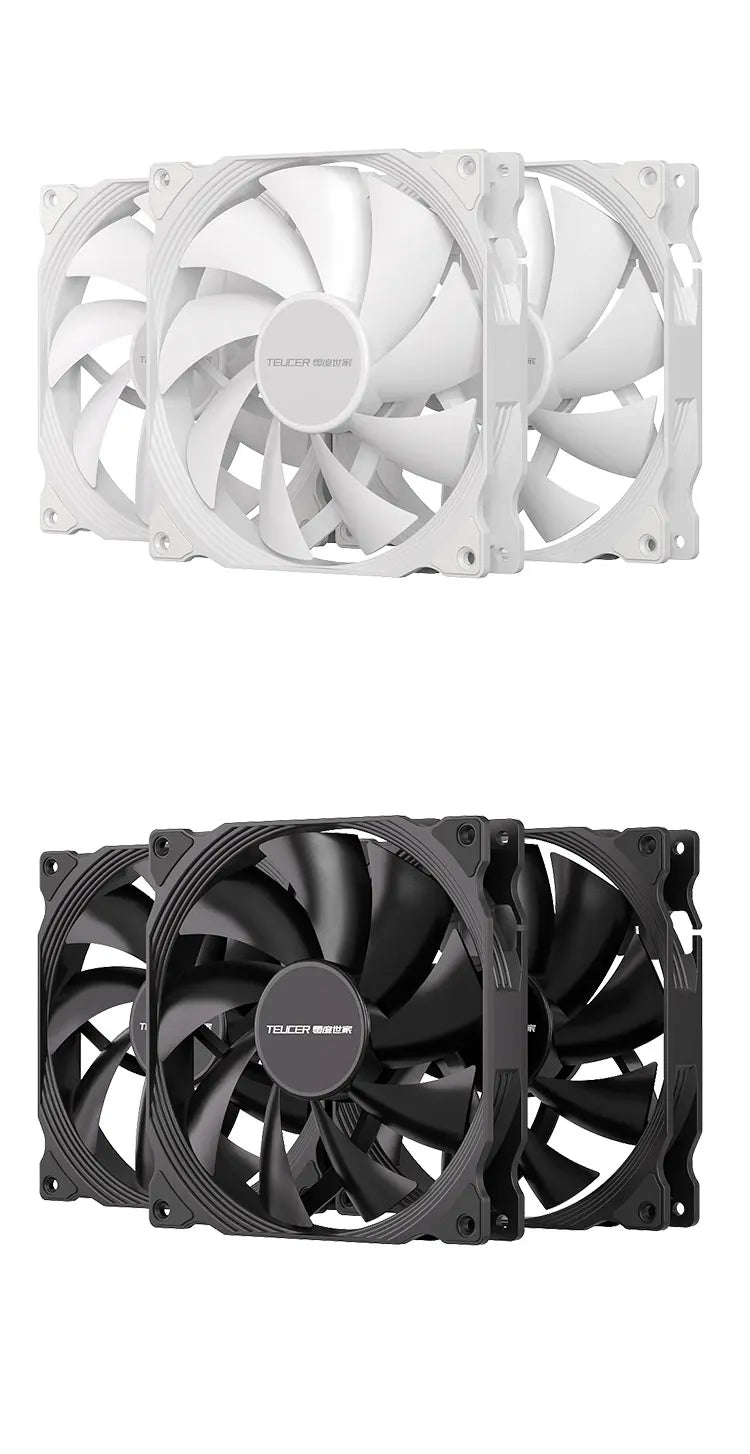

Classic two-color, free to match

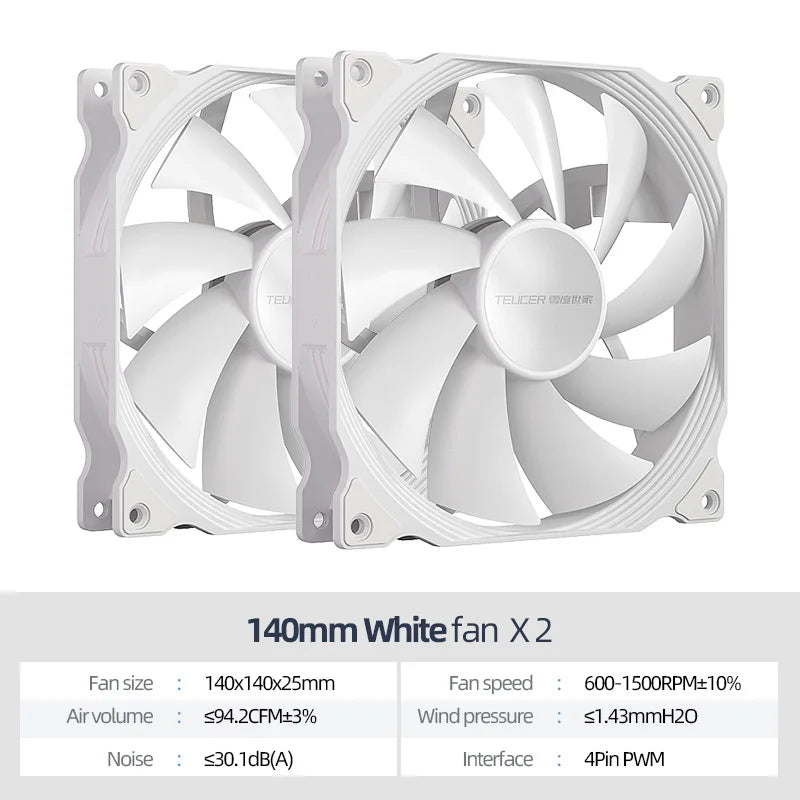

Available in black and white colors, providing various options for installation and matching

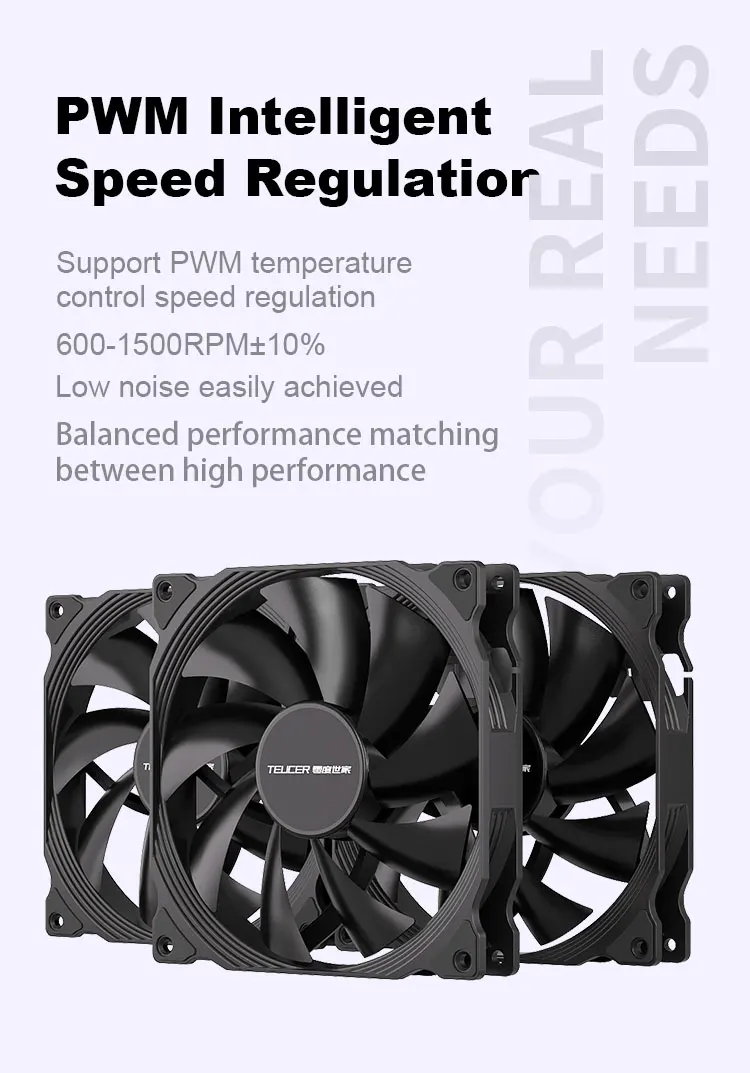

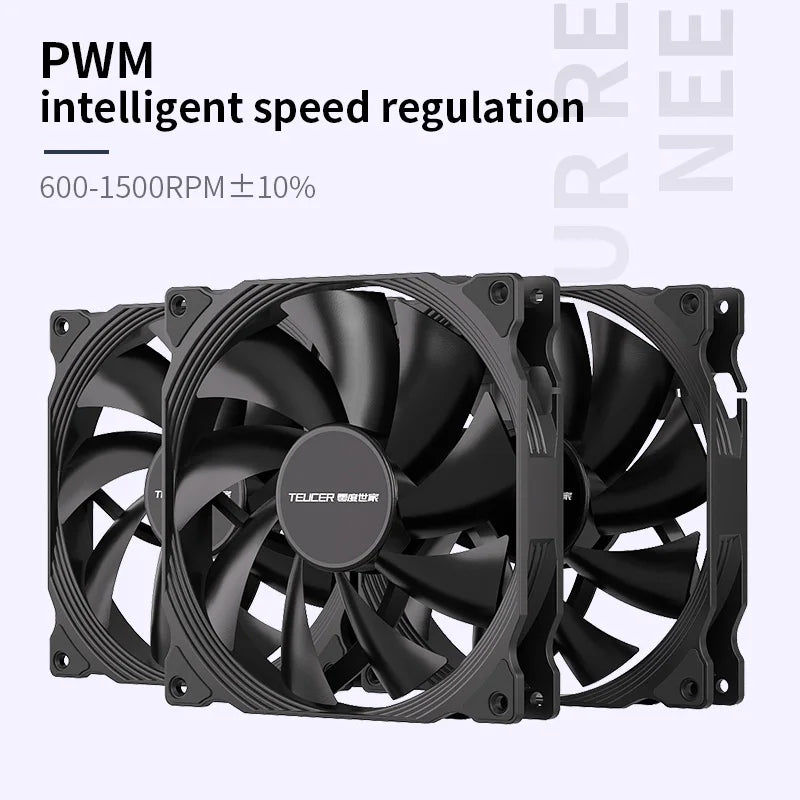

PWM intelligent speed regulation

Support PWM temperature control speed regulation

600-1500RPM±10%

Easily achieve balanced performance matching between low noise and high performance

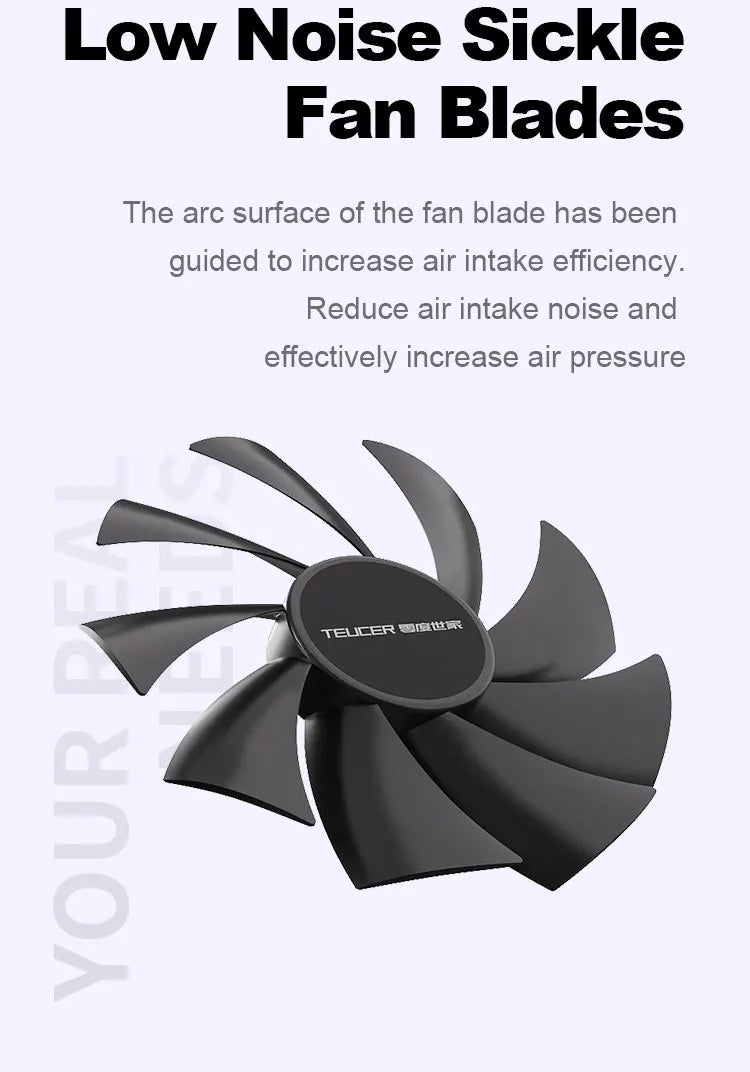

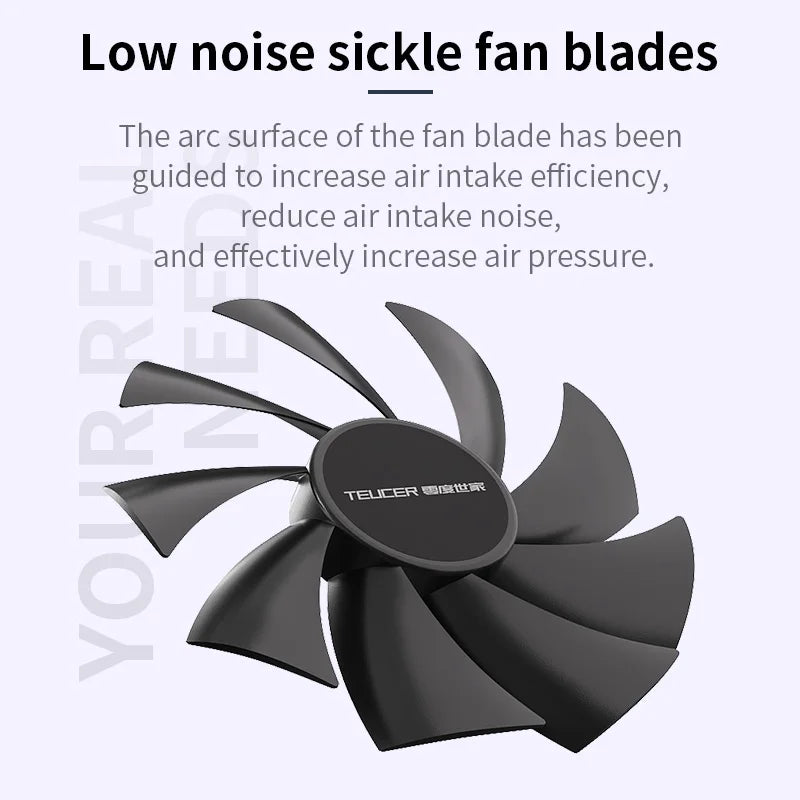

Low noise sickle fan blades

The arc surface of the fan blade has been guided to increase air intake efficiency, reduce air intake noise, and effectively increase air pressure.

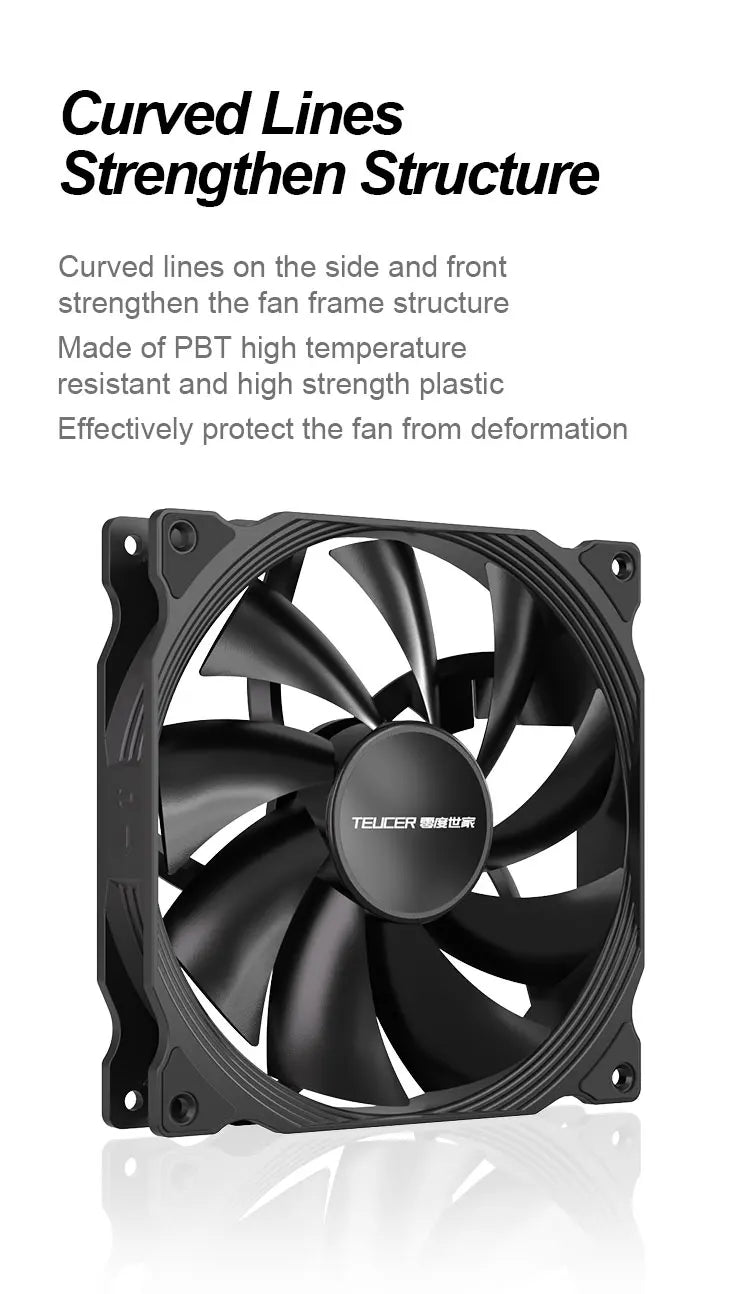

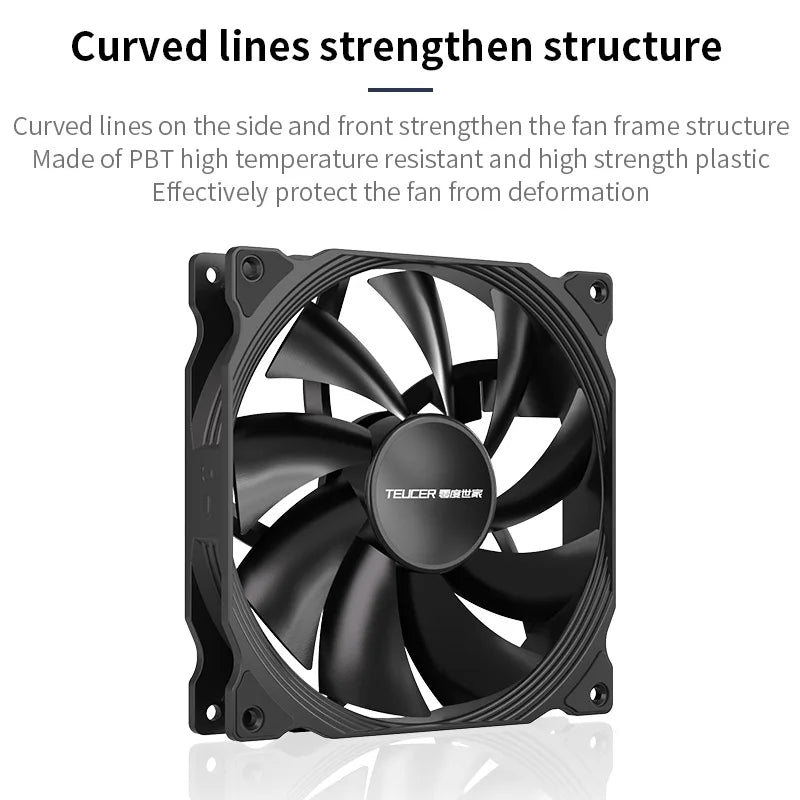

Curved lines strengthen structure

The curved lines on the side and front strengthen the fan frame structure and use PBT high-temperature-resistant and high-strength plastic to effectively protect the fan from deformation.

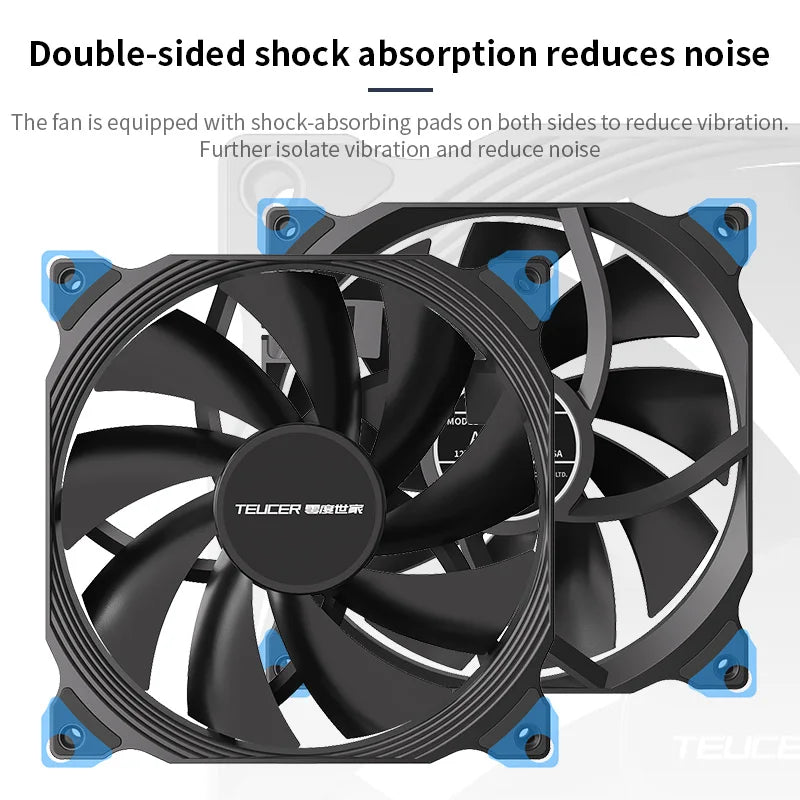

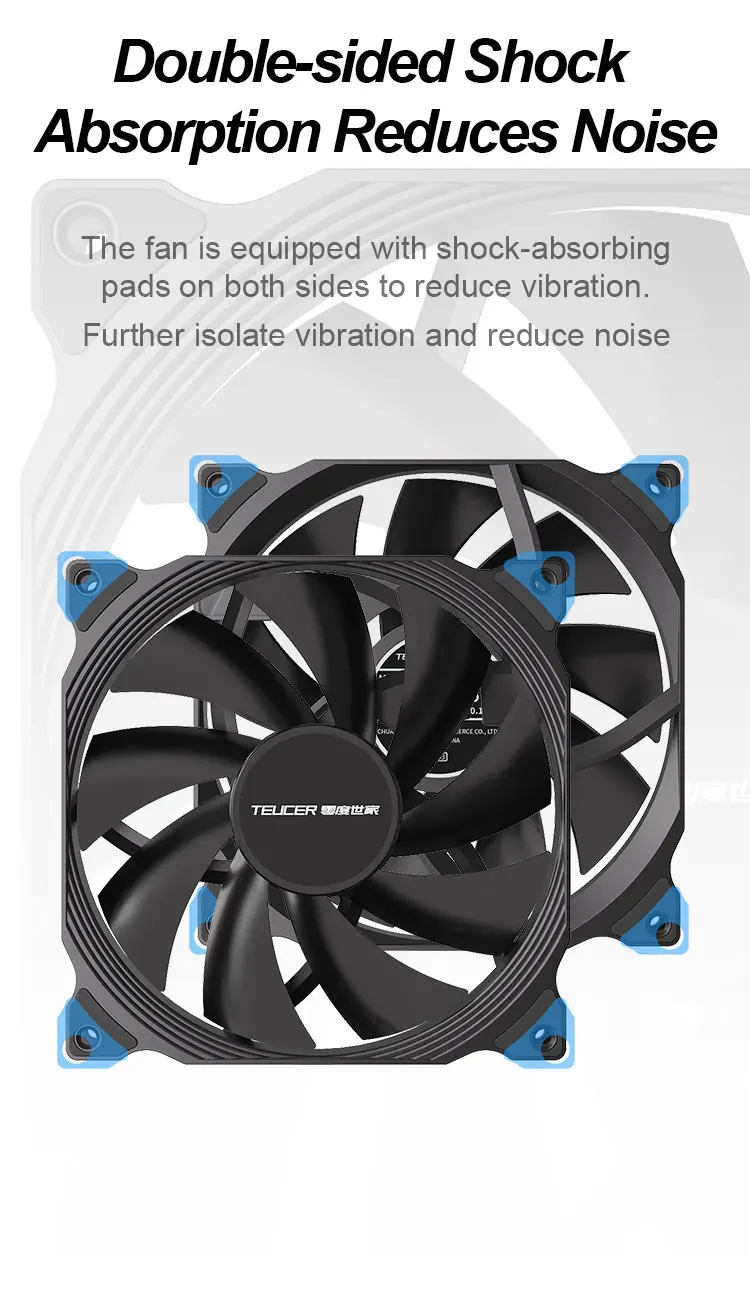

Double-sided shock absorption reduces noise

The fan is equipped with shock-absorbing pads on both sides to reduce vibration.

Further isolate vibration and reduce noise

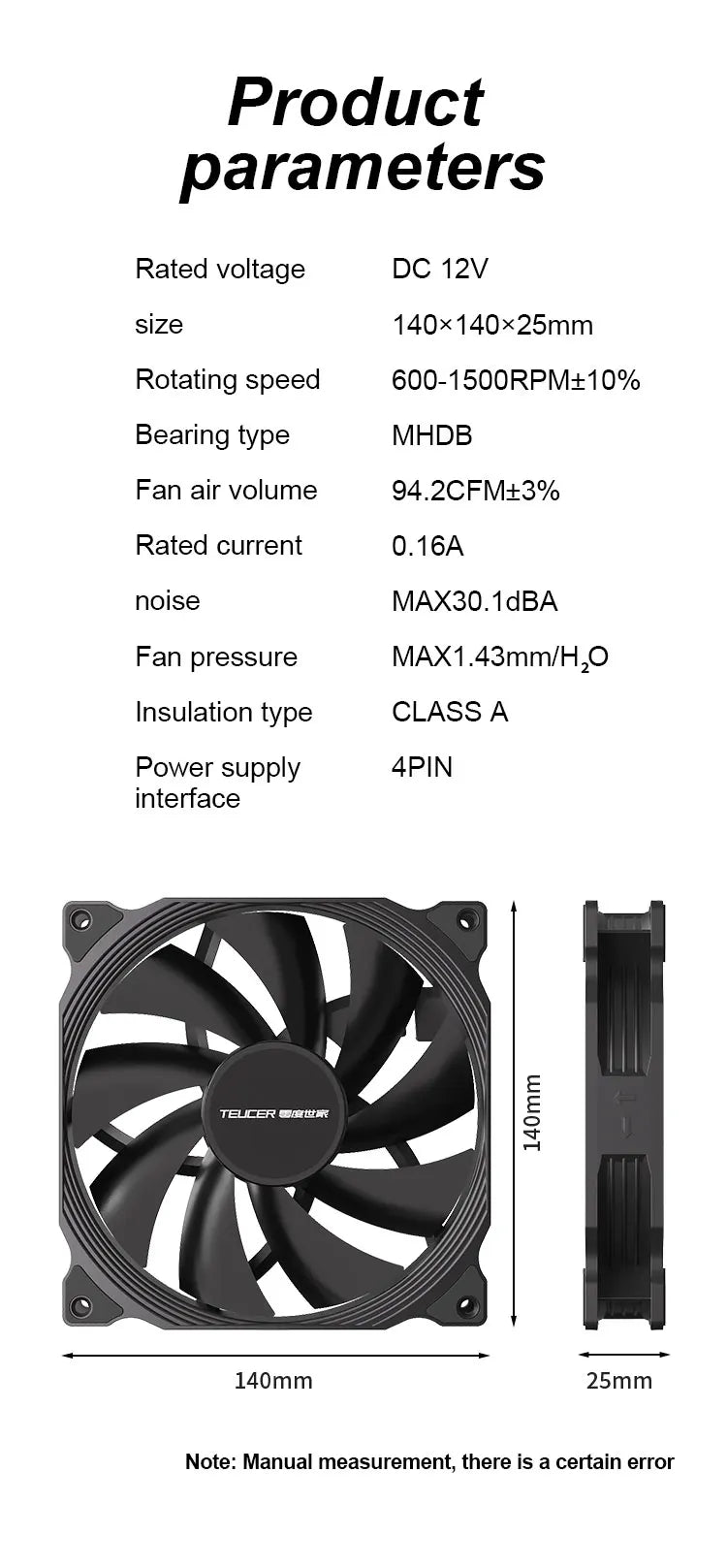

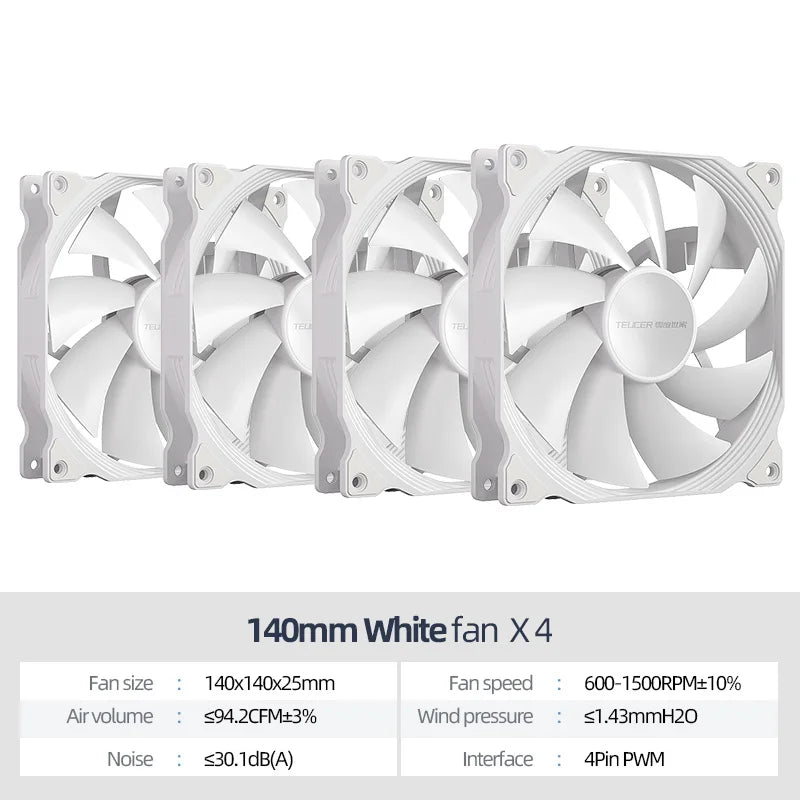

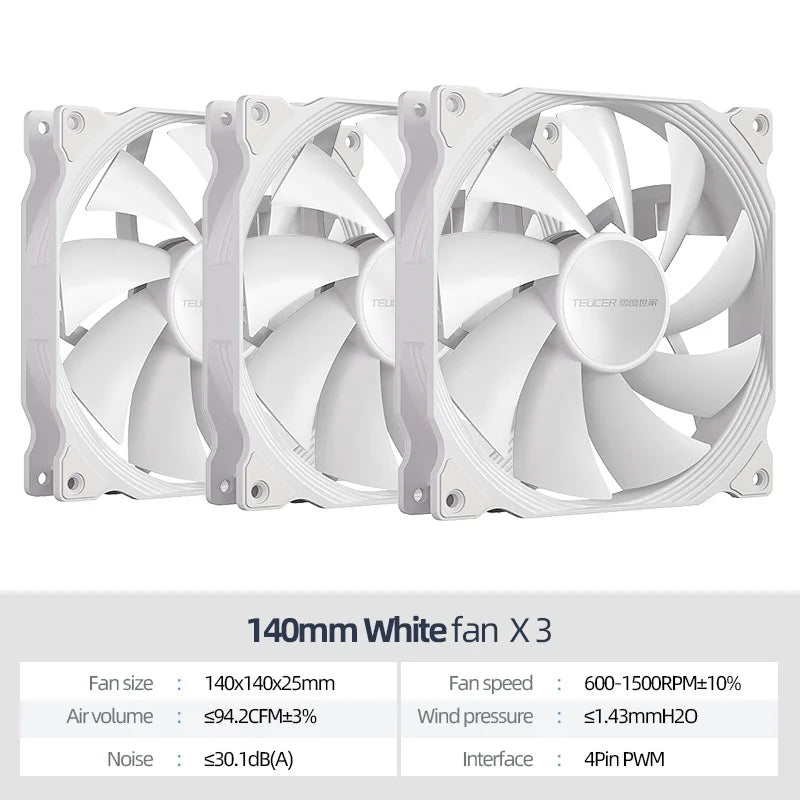

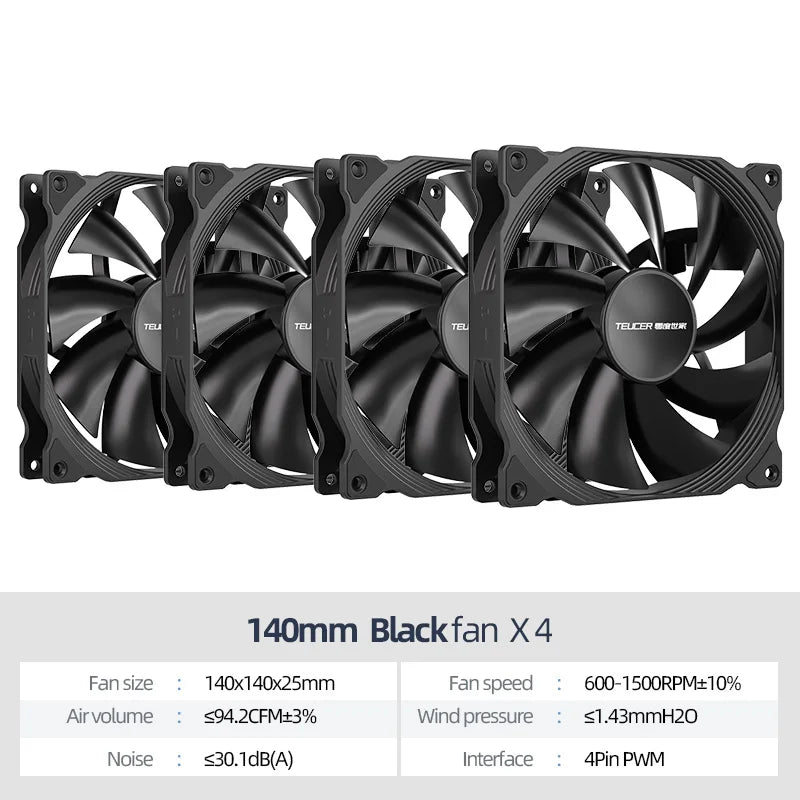

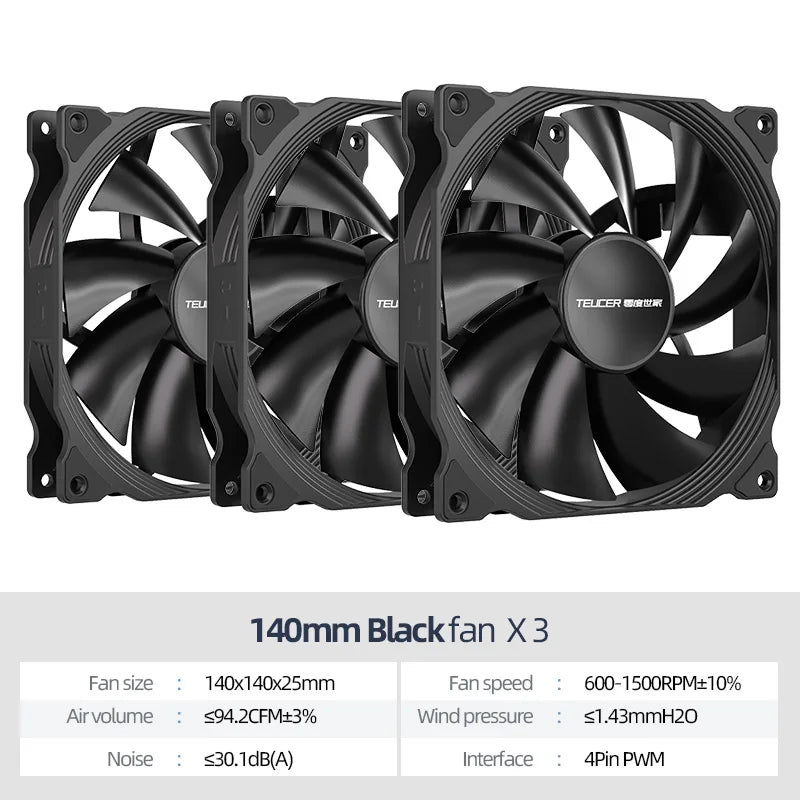

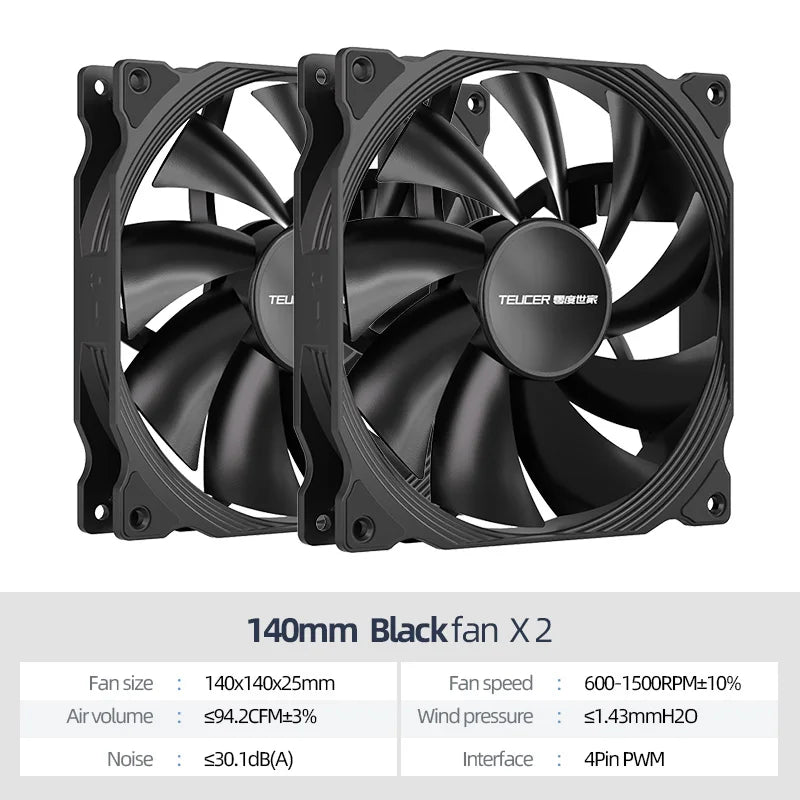

Product parameters

Rated voltage: DC 12V

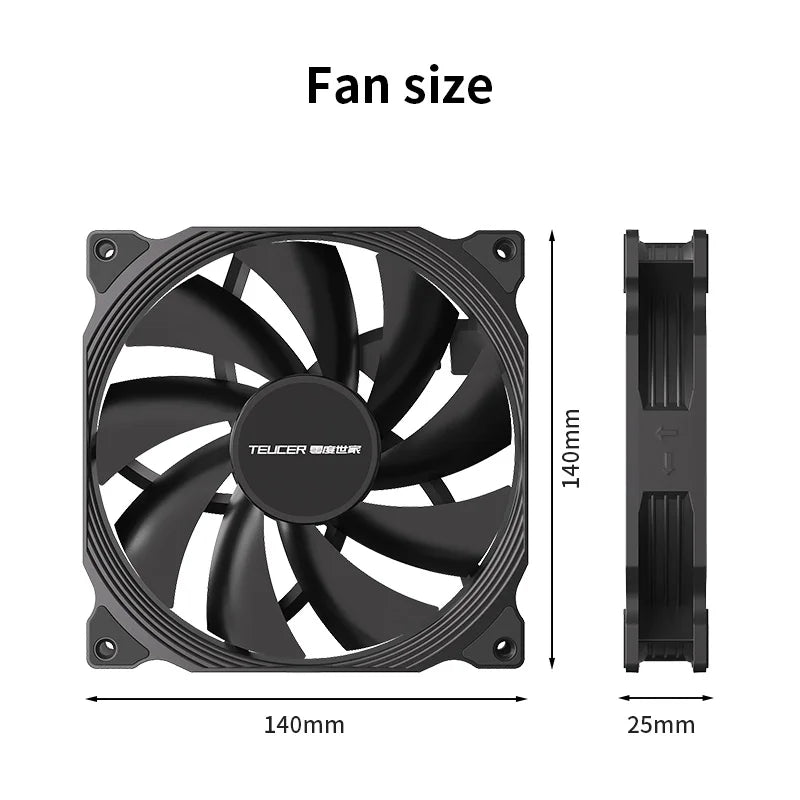

Size: 140×140×25mm

Speed: 600-1500RPM±10%

Bearing type: MHDB

Fan air volume: 94.2CFM±3%

Rated current: 0.16A

Noise: MAX30.1dBA

Fan air pressure: MAX1.43mm/H2O

Insulation type: CLASS A

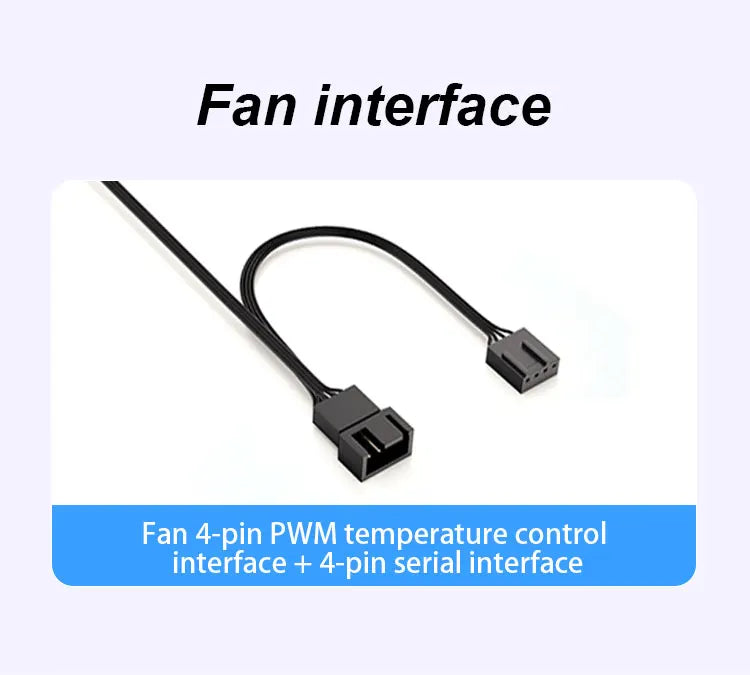

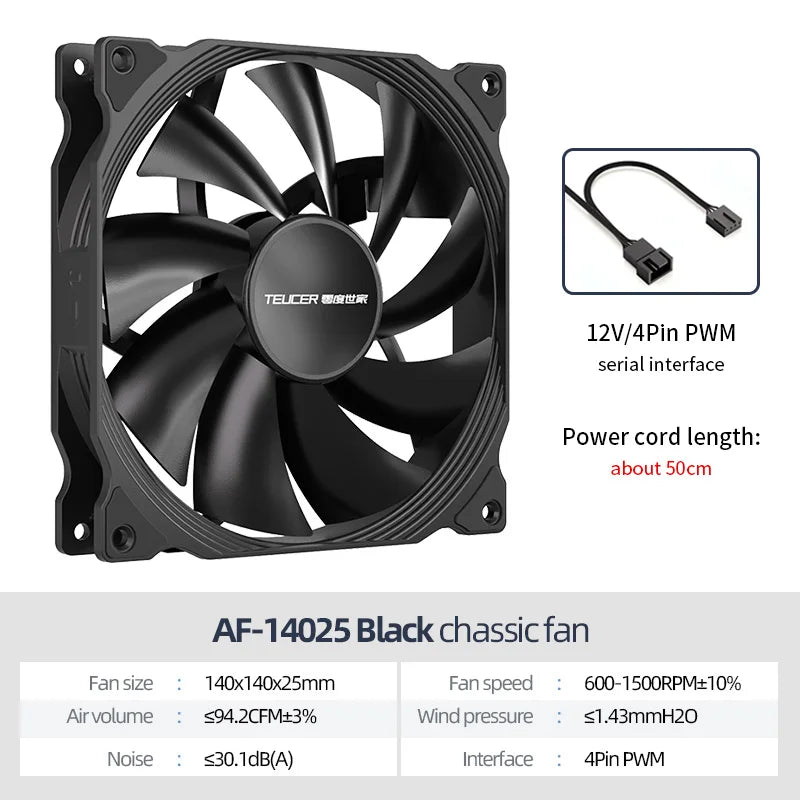

Power supply interface: 12V/4PIN PWM

Note: Manual measurement, there is a certain error
