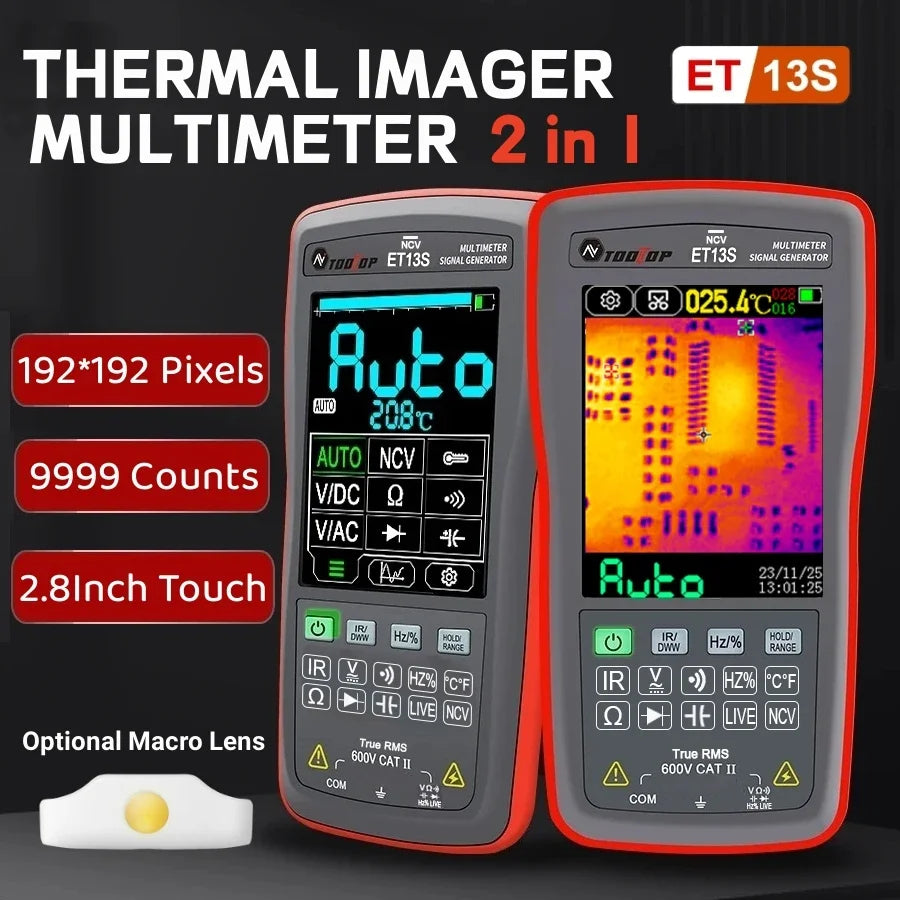

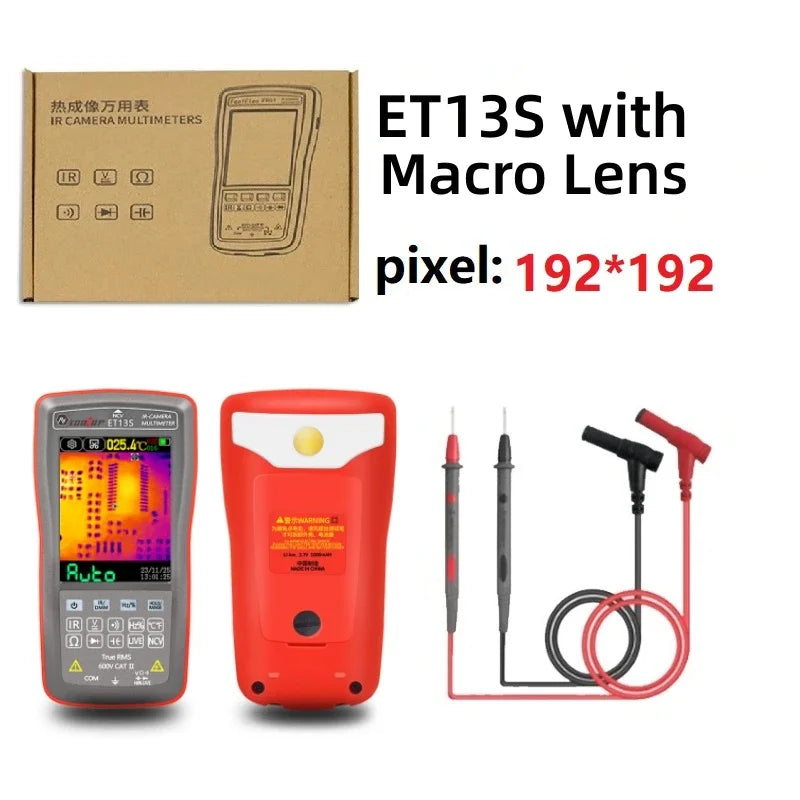

TOOLTOP ET13S Thermal Camera 192*192 Optional Macro Lens Thermal Camera Multimeter 9999 Counts Voltage Duty Cycle Diode Ohm Test

KSh33,586

~~KSh0~~ KSh33,586

Sale Sold out

Shipping calculated at checkout.

Color ET13S and Macro Lens

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

Brand Name: TOOLTOP

Choice: yes

Hign-concerned Chemical: None

Origin: Mainland China

Style: Handheld

Warning: Light touch does not work!!!

This product uses a resistive touchscreen. It requires pressure to generate touch feedback. Please apply some pressure when using the touchscreen, and it is recommended to use your fingernail for touch operations.

PC Software Download: http://doctuchuang.eirbio.cn/fr01/IR-DMM%28D%29.zip

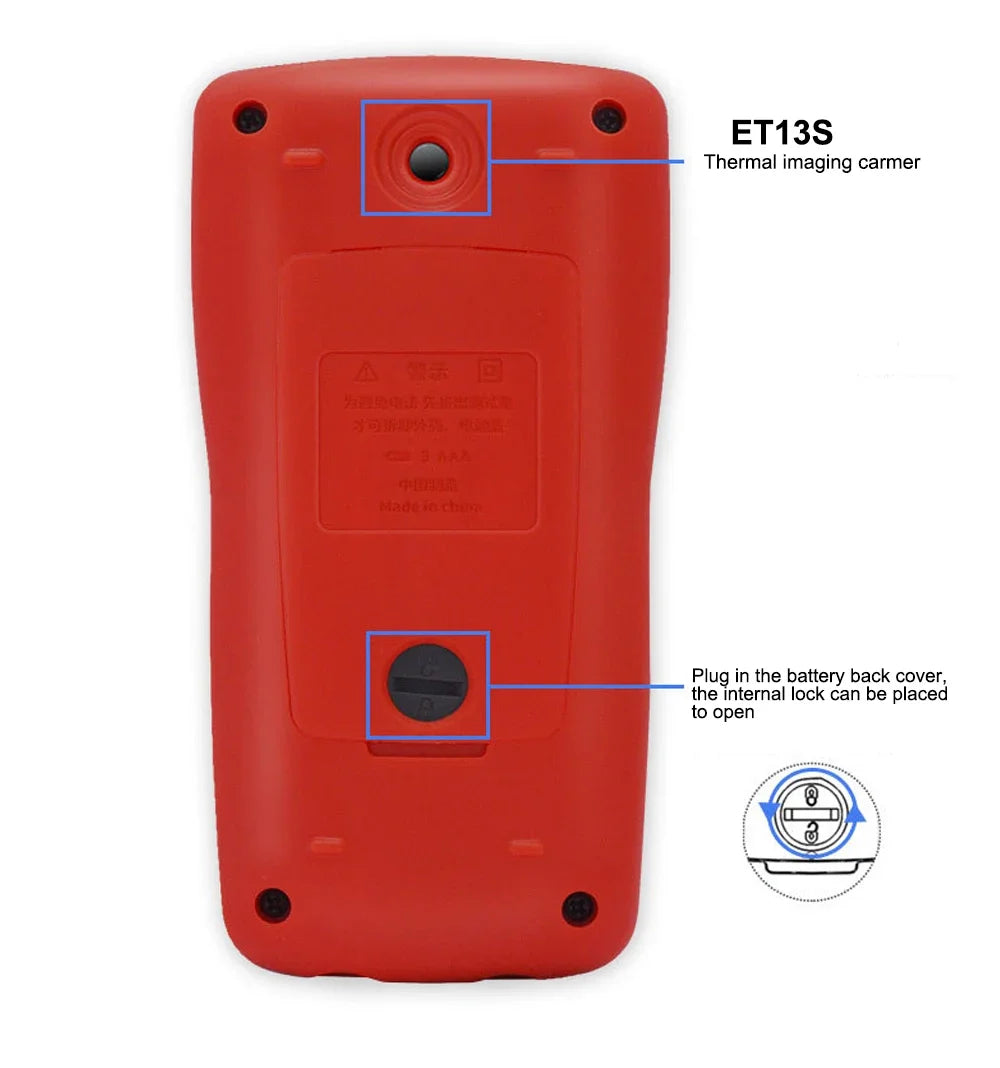

In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-2seconds. This is a normal phenomenon, so please don't worry.

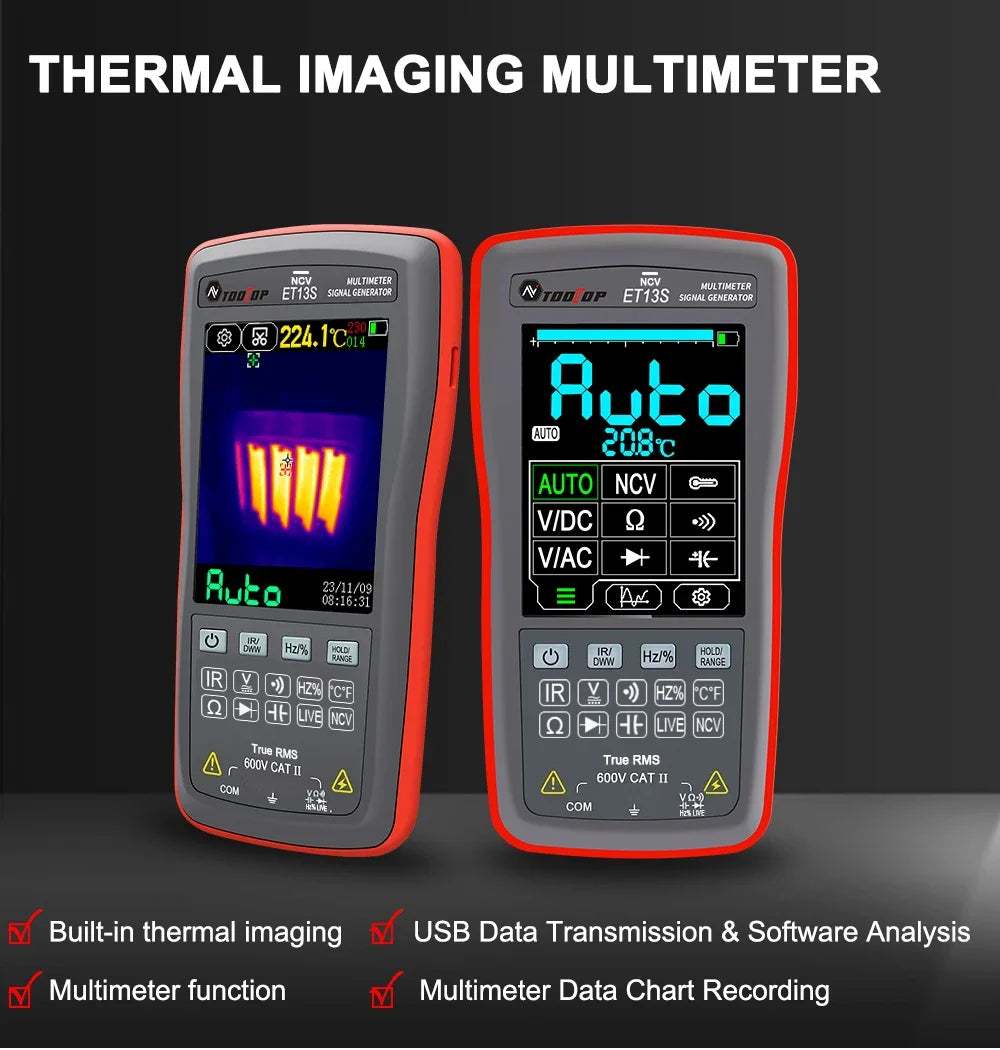

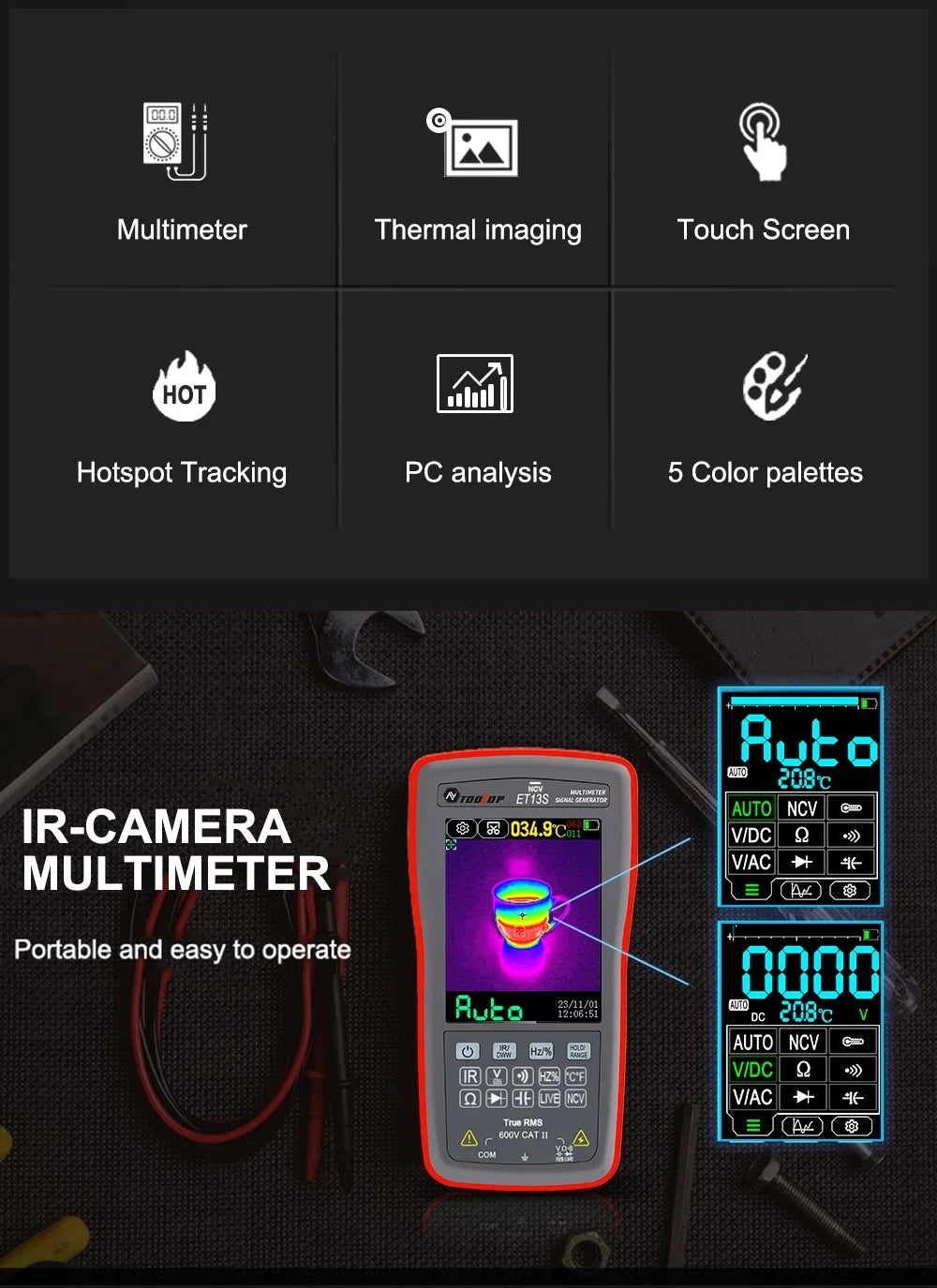

Features:

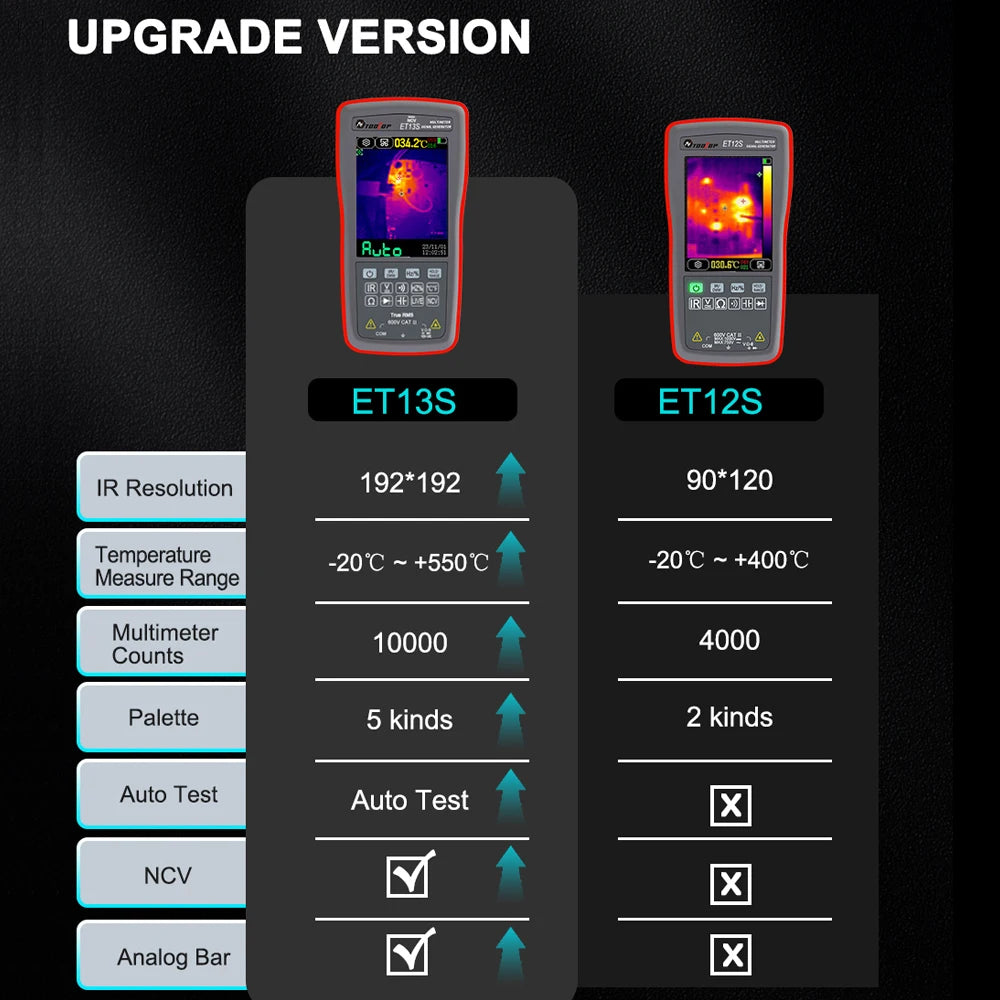

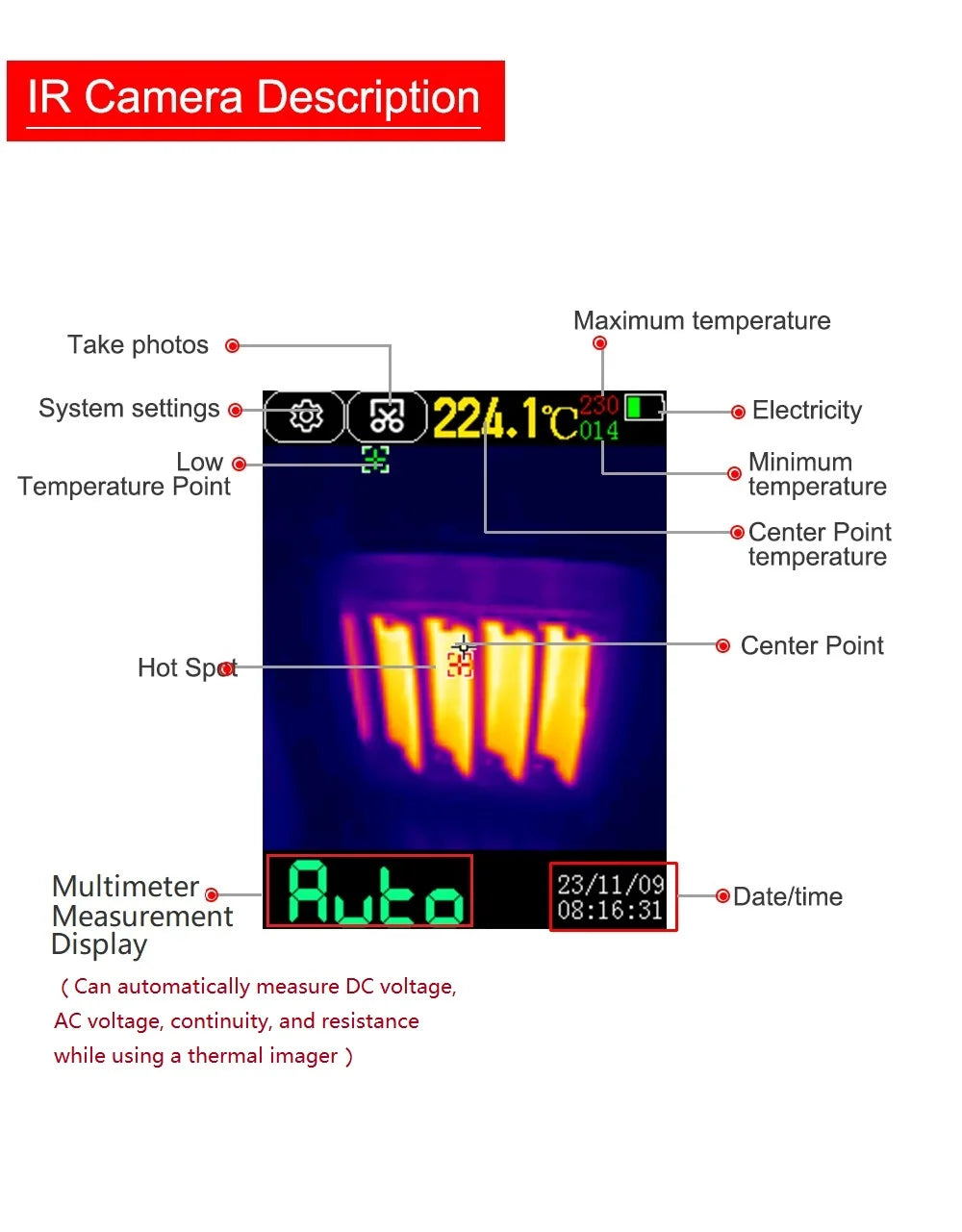

【High Resolution image】: Upgraded thermal imaging sensor with thermal imaging pixels of 192 * 192px and image capture frequency of 20Hz, providing clearer and more detailed thermal images.

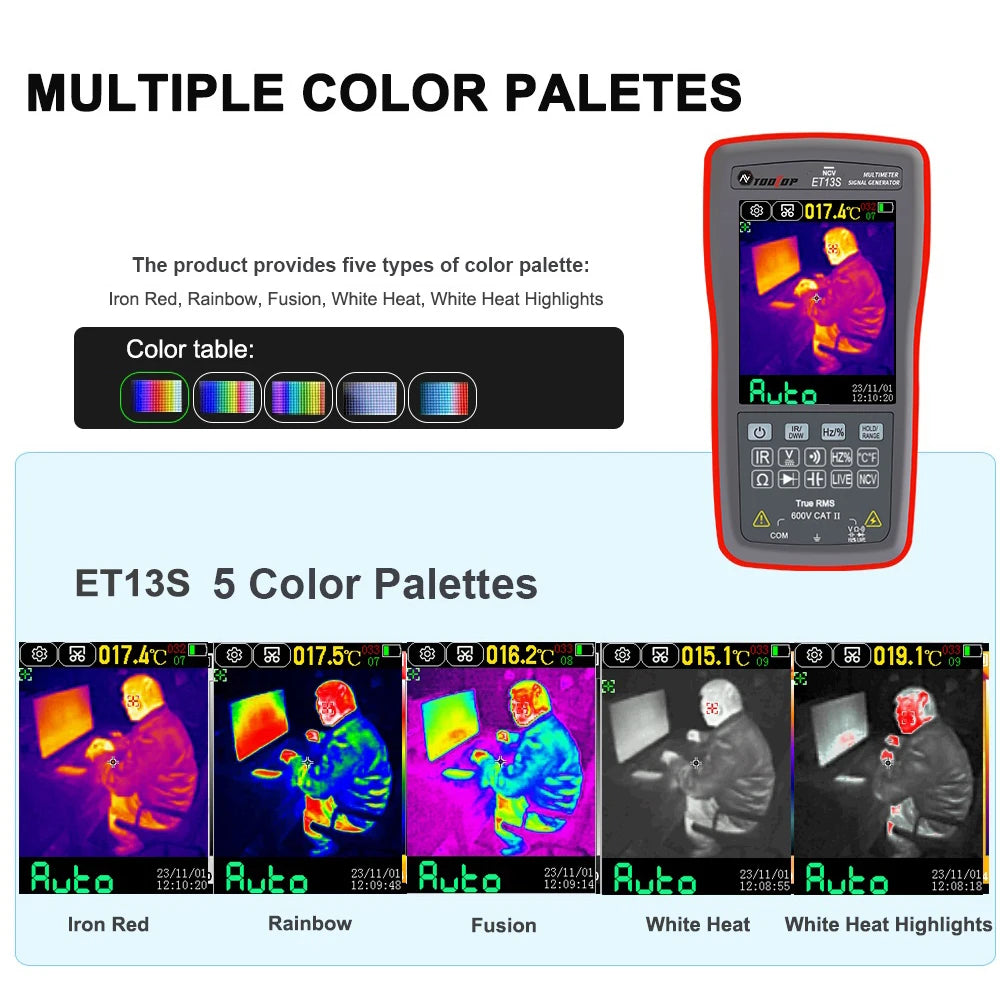

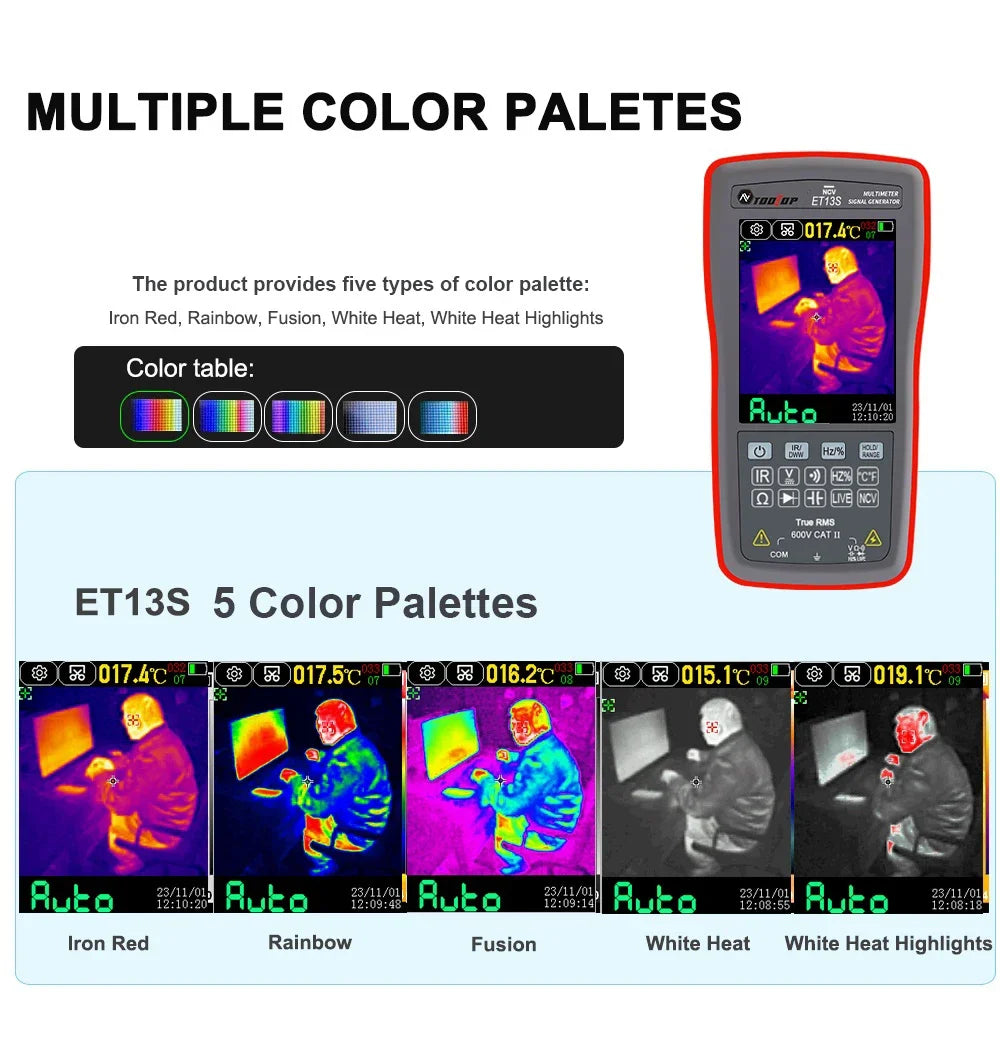

【Multiple color palettes】: Supports 5 types of color palettes, providing multiple imaging effects, allowing you to choose the most suitable display effect according to your actual needs.

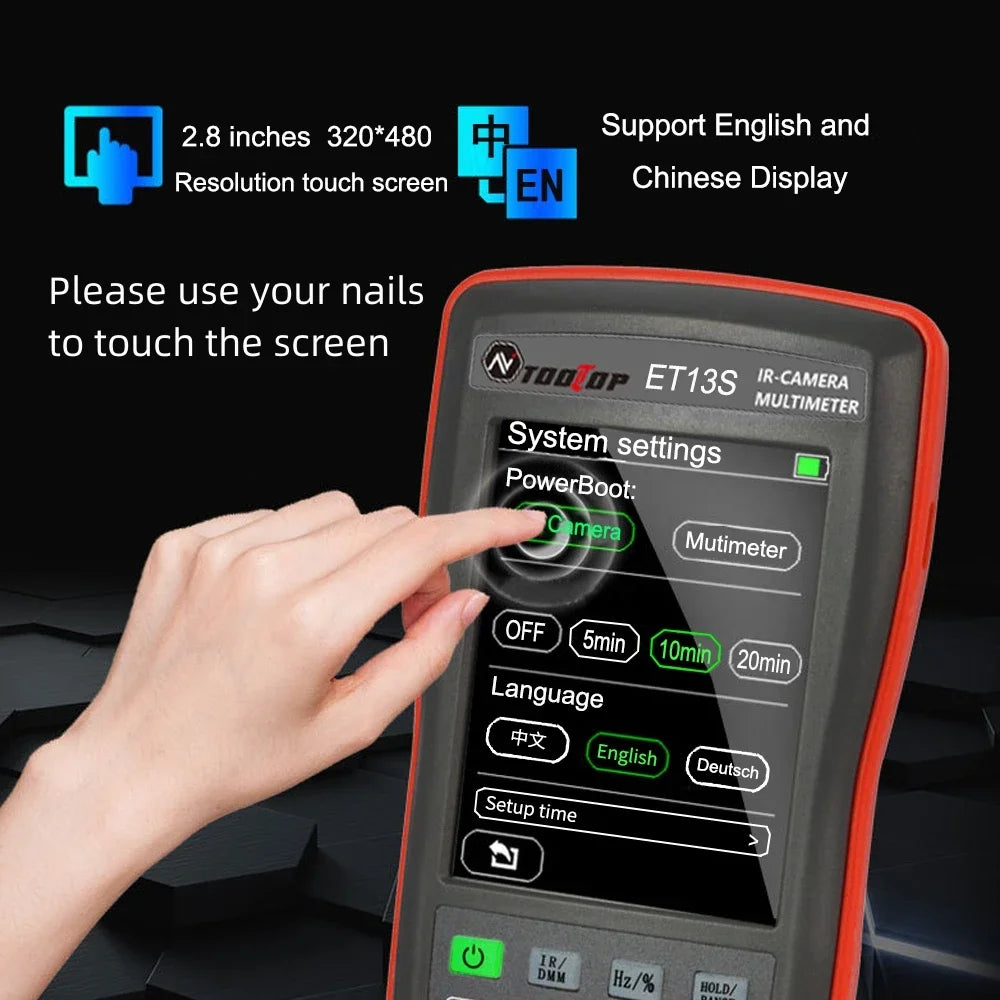

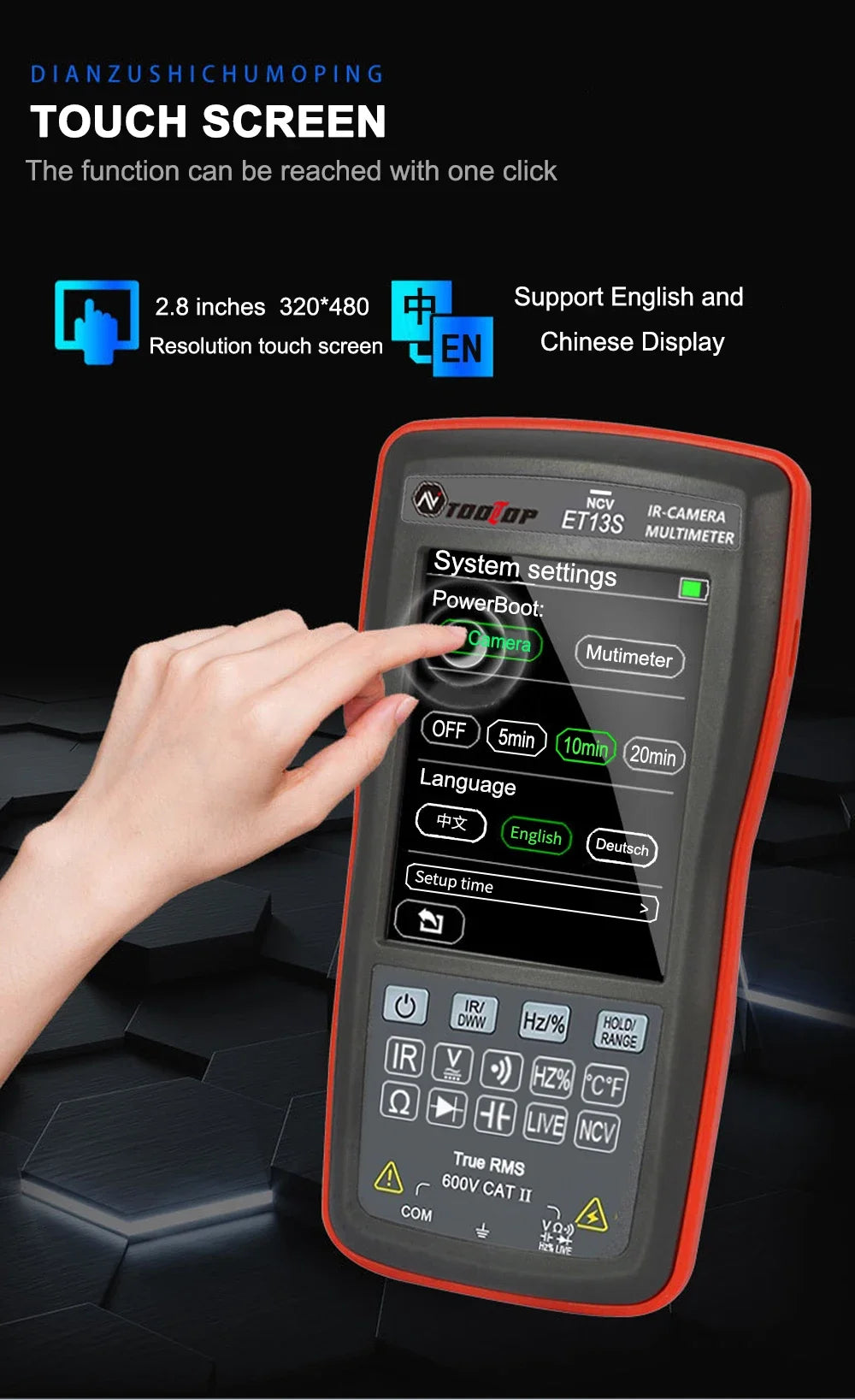

【Touch screen】: The device adopts a 2.8-inch resistive LCD touch screen with a resolution of 320 × 480, more convenient to operate (please use nail touch screen)

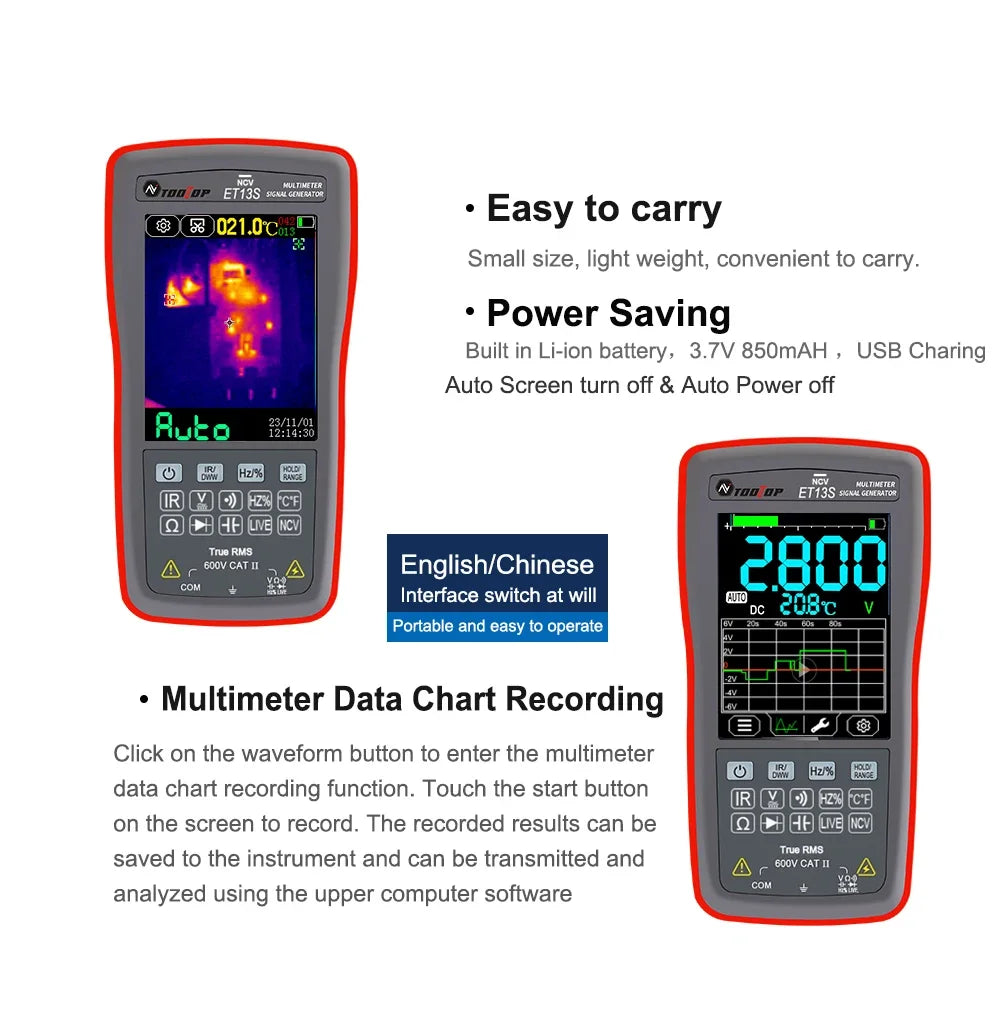

【Multimeter data chart recording function】: Real time recording and saving of multimeter measurement data through charts, making it convenient for you to analyze and save data.

【Data transmission & PC software analysis 】:Under USB mode, it is possible to transfer locally saved thermal imaging images and the multimeter mensurement result recording by data chart .And displayed on the computer through PC software.

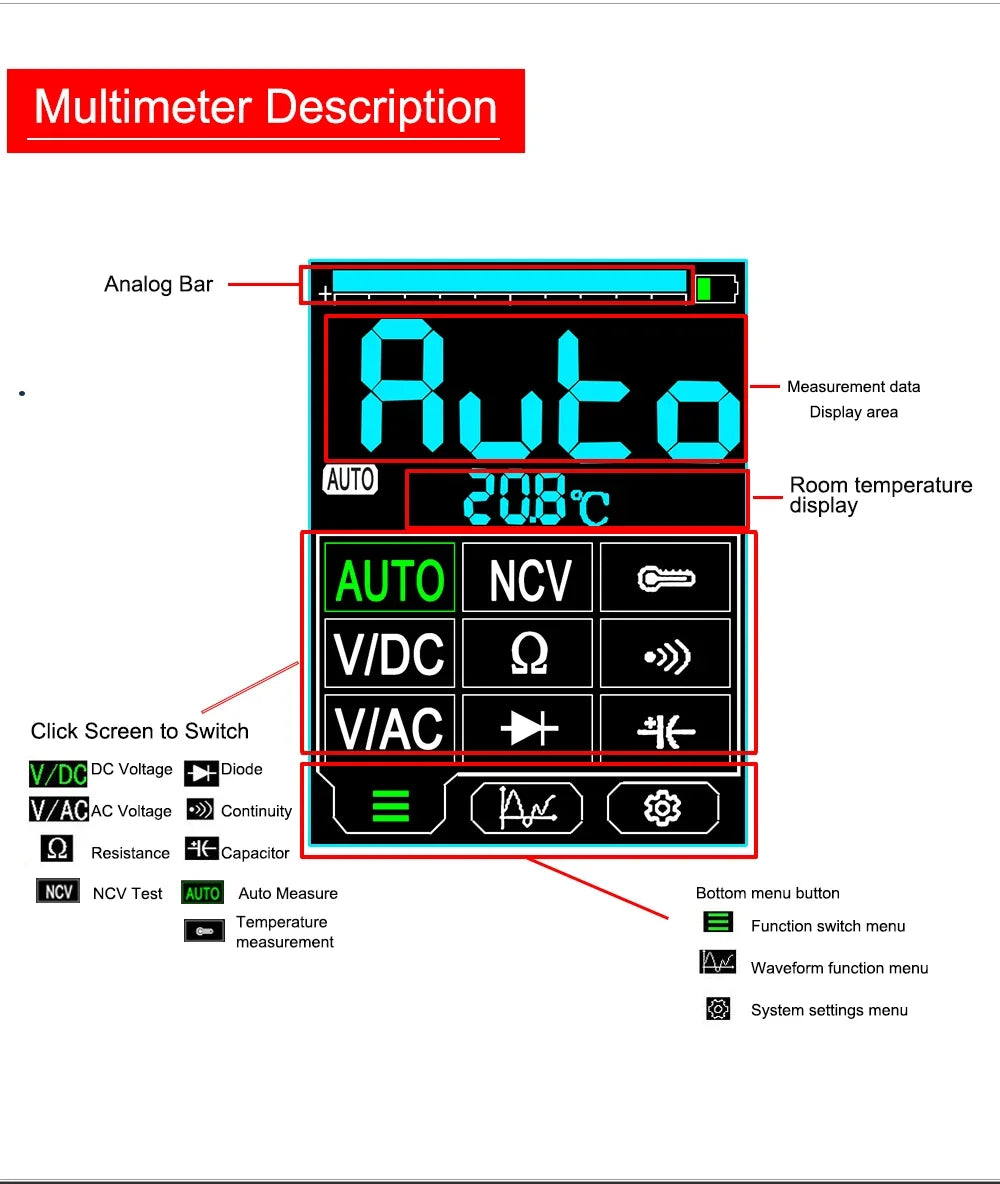

【Multifunctional Multimeter】: The integrated multimeter has a high-precision 9999 count display. It can measure DC voltage up to 1000V and AC voltage up to 750V, and also includes functions such as measuring resistance, capacitance, diode, and duty cycle test.

【Battery management】: built-in lithium battery (supporting USB charging), with automatic screen turn off and automatic power off functions.

【Widely applications】: can be used for circuit board inspection and maintenance, power supply maintenance, electronic equipment maintenance, Home appliance overhaul, is an ideal choice for electronics and maintenance technicians

Specifications:

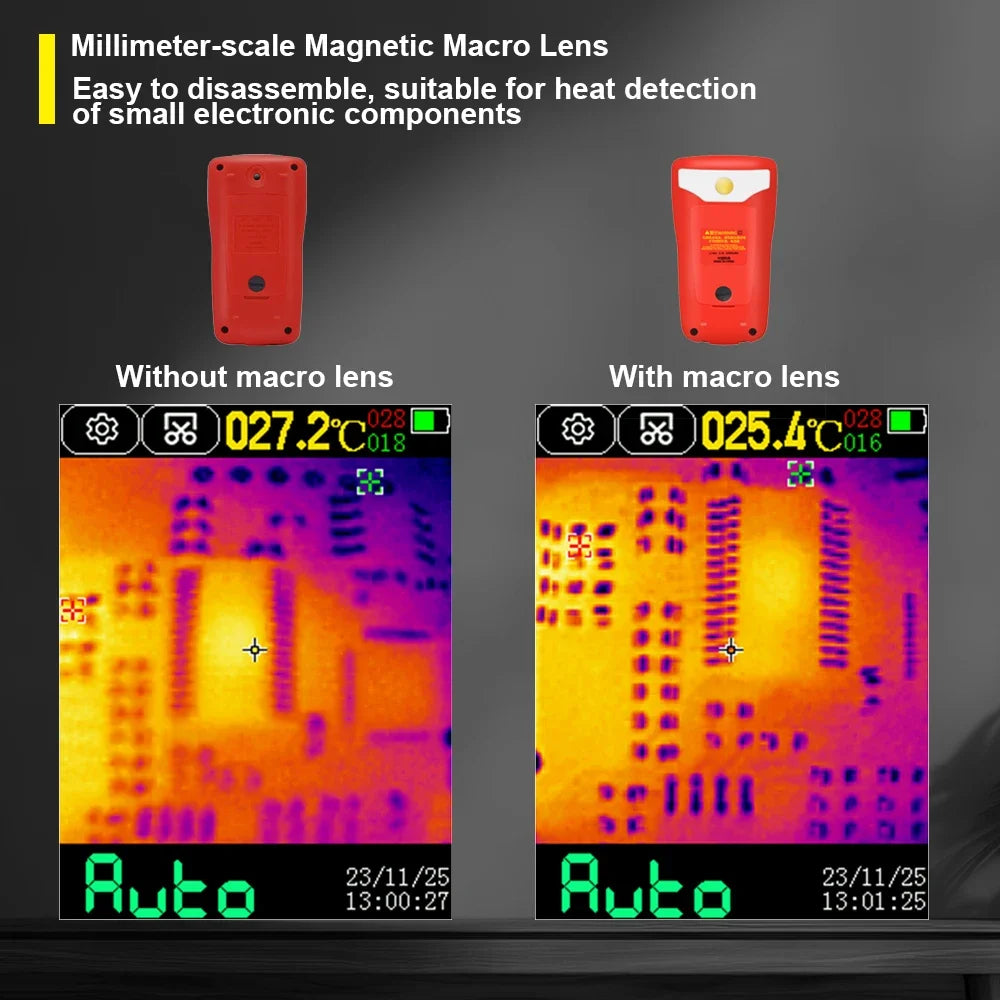

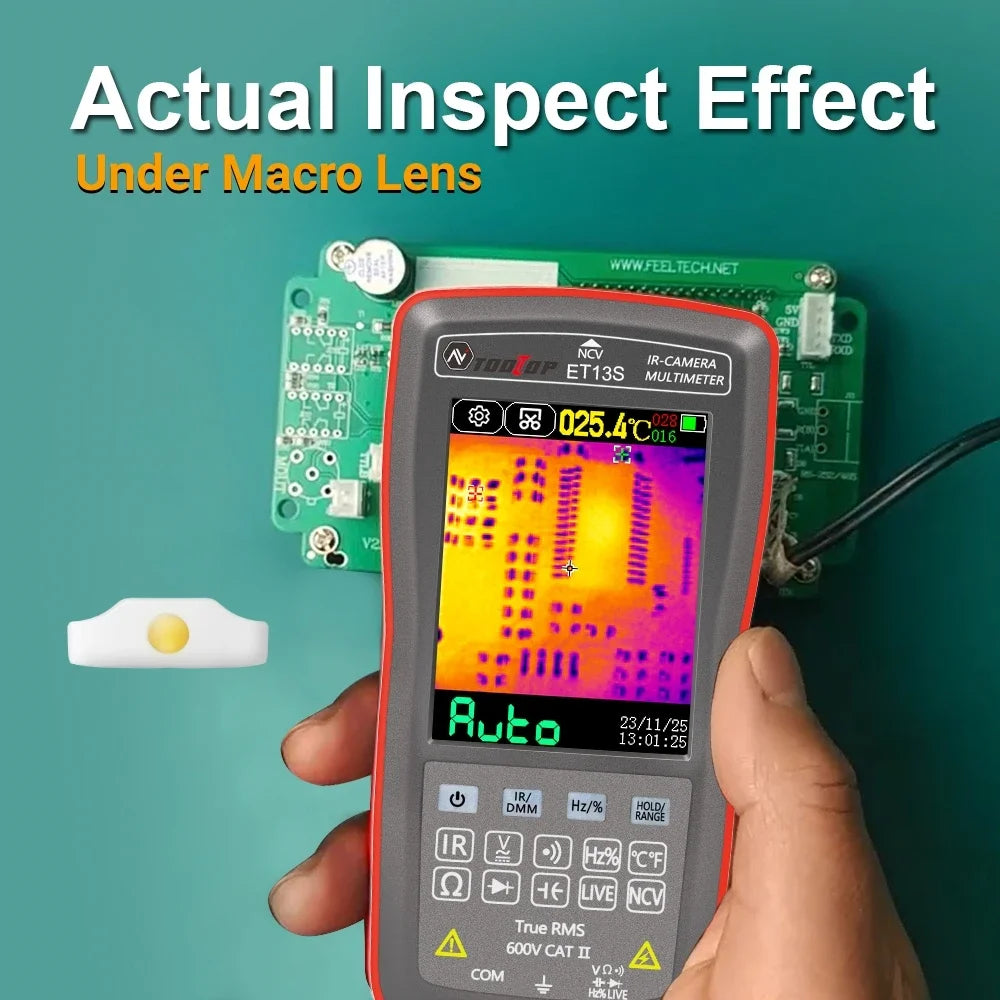

Working Distance for Macro Lens: about 2-3cm

Can detect the heating status of electronic components in mm size

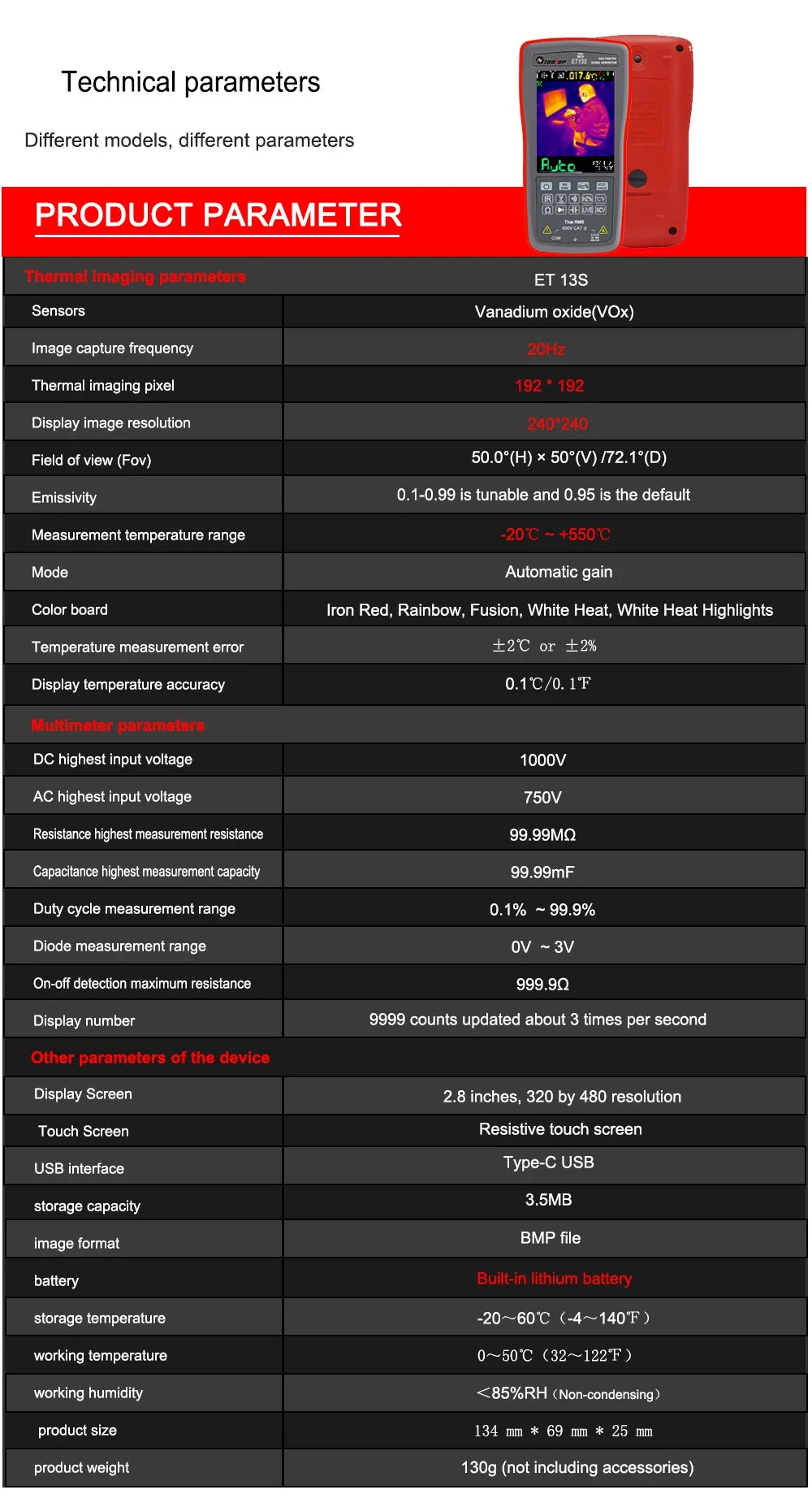

Thermal Imaging parameters

Model: ET13S

Sensor: Vanadium oxide(VOx)

Image capture frequency: 20Hz

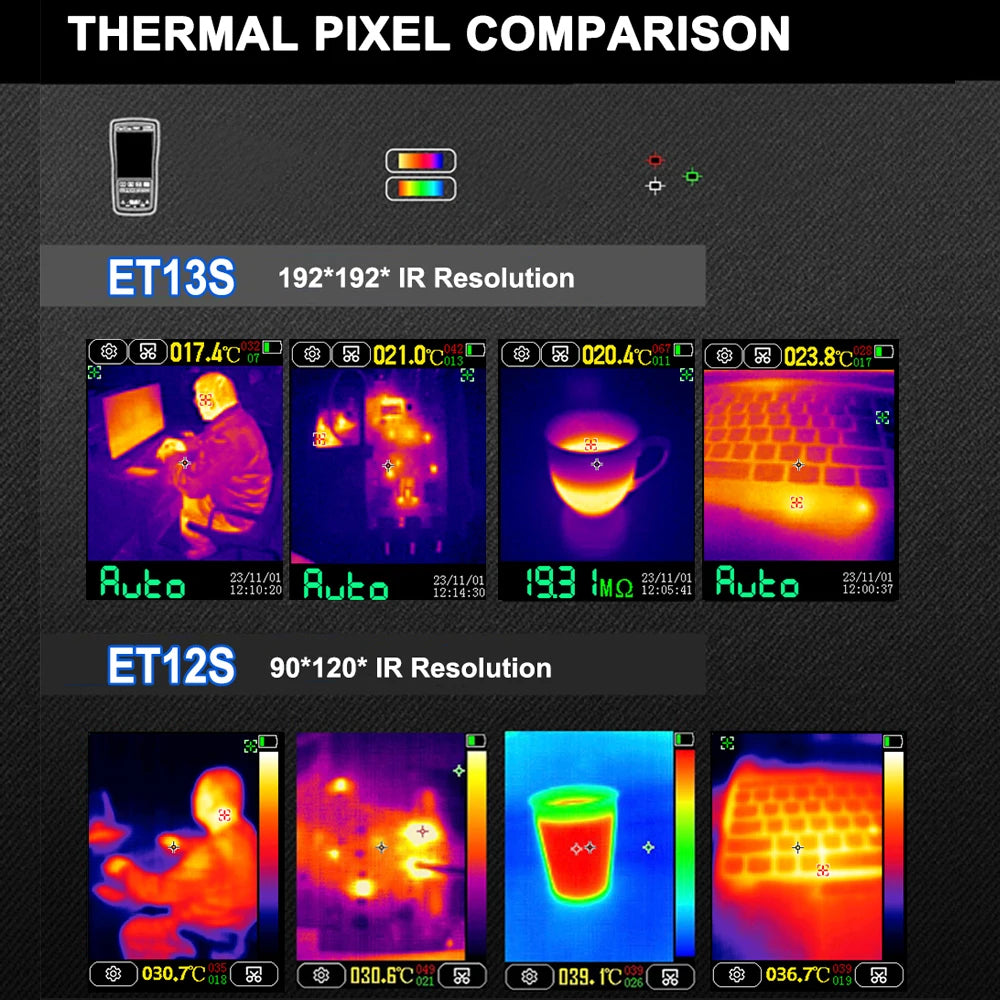

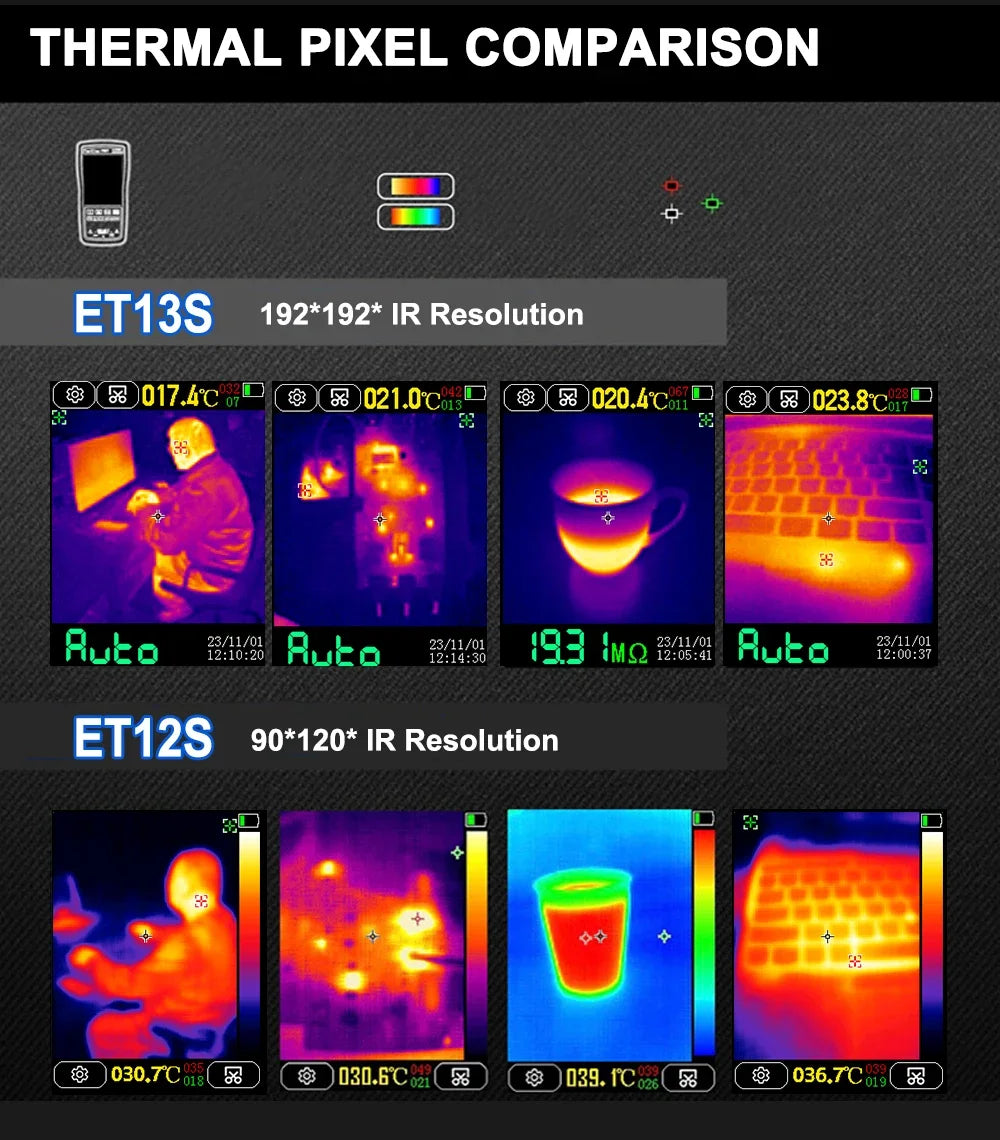

Thermal imaging pixel:192*192

Display image resolution:240*240

Field of view (Fov): 50.0(H) × 50(V)/72.1(D)

Emissivity: 0.1-0.99 is adjustable and 0.95 is the default

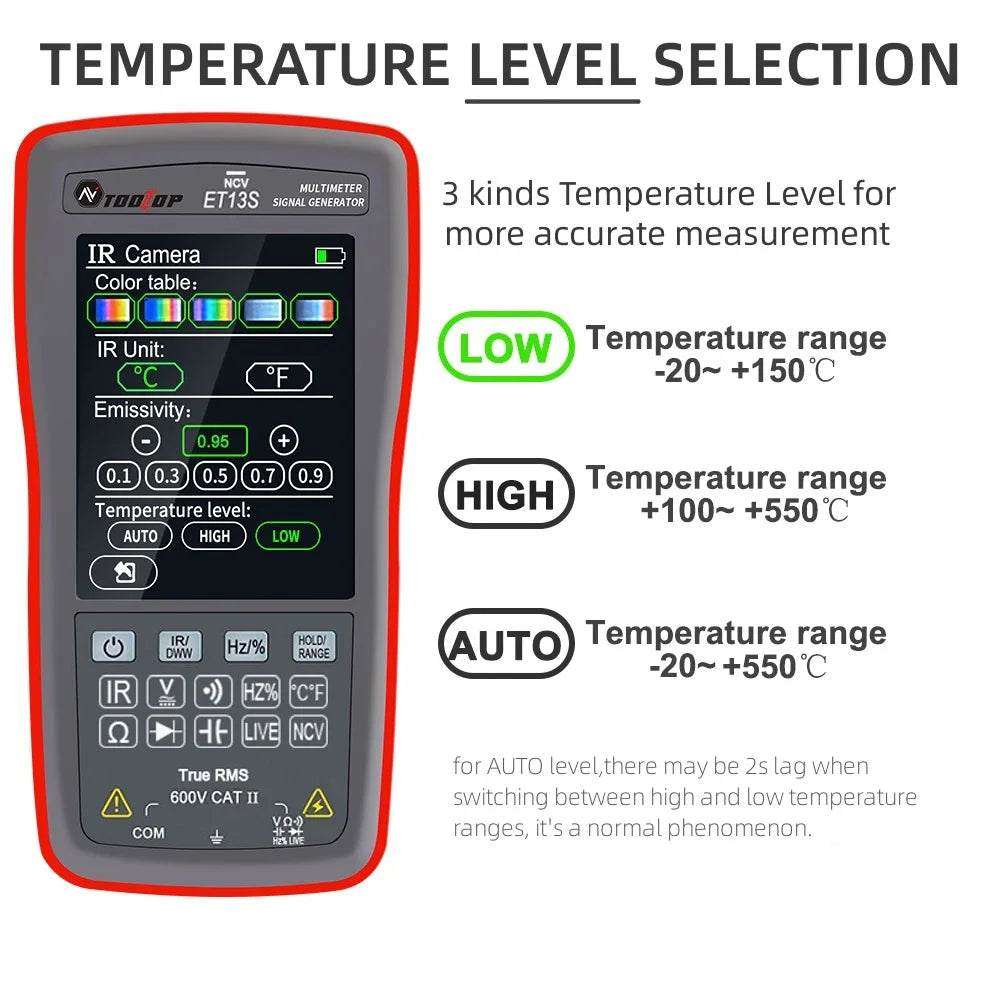

Measurement temperature range: -20℃ ~+550℃
