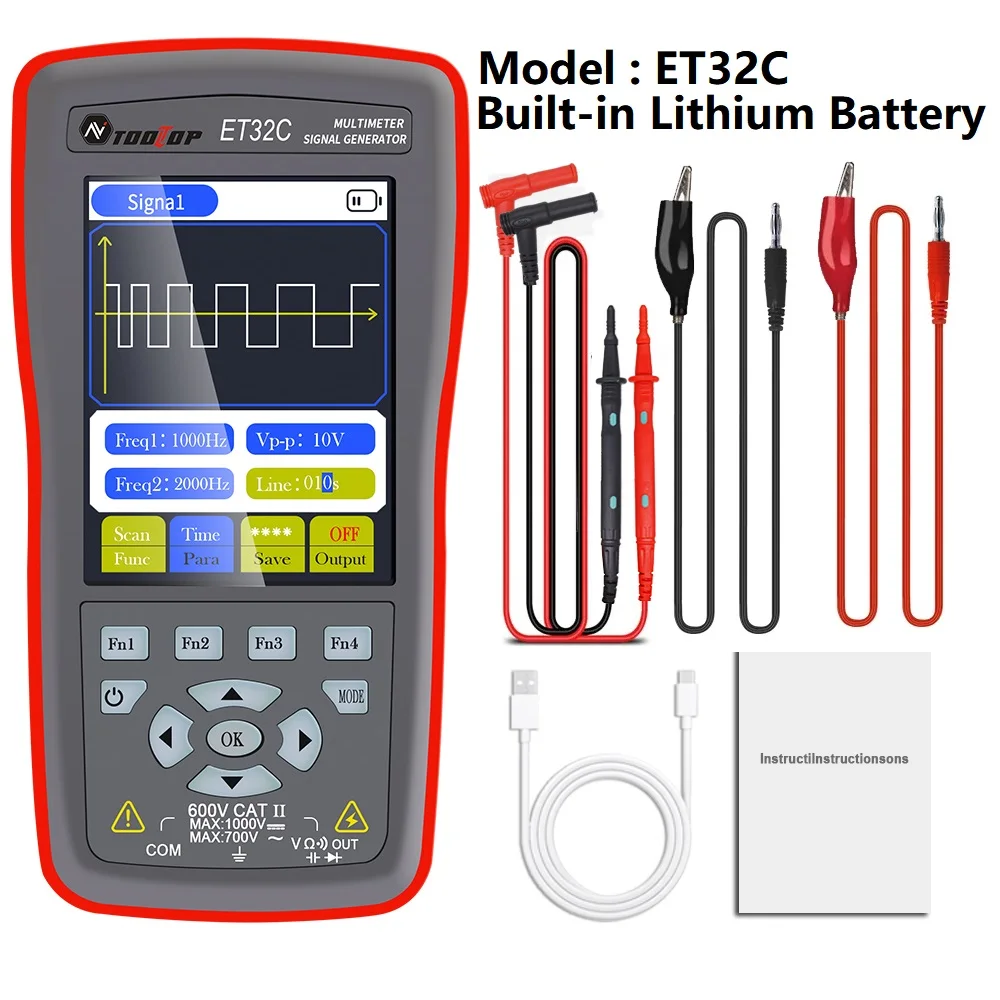

Model:

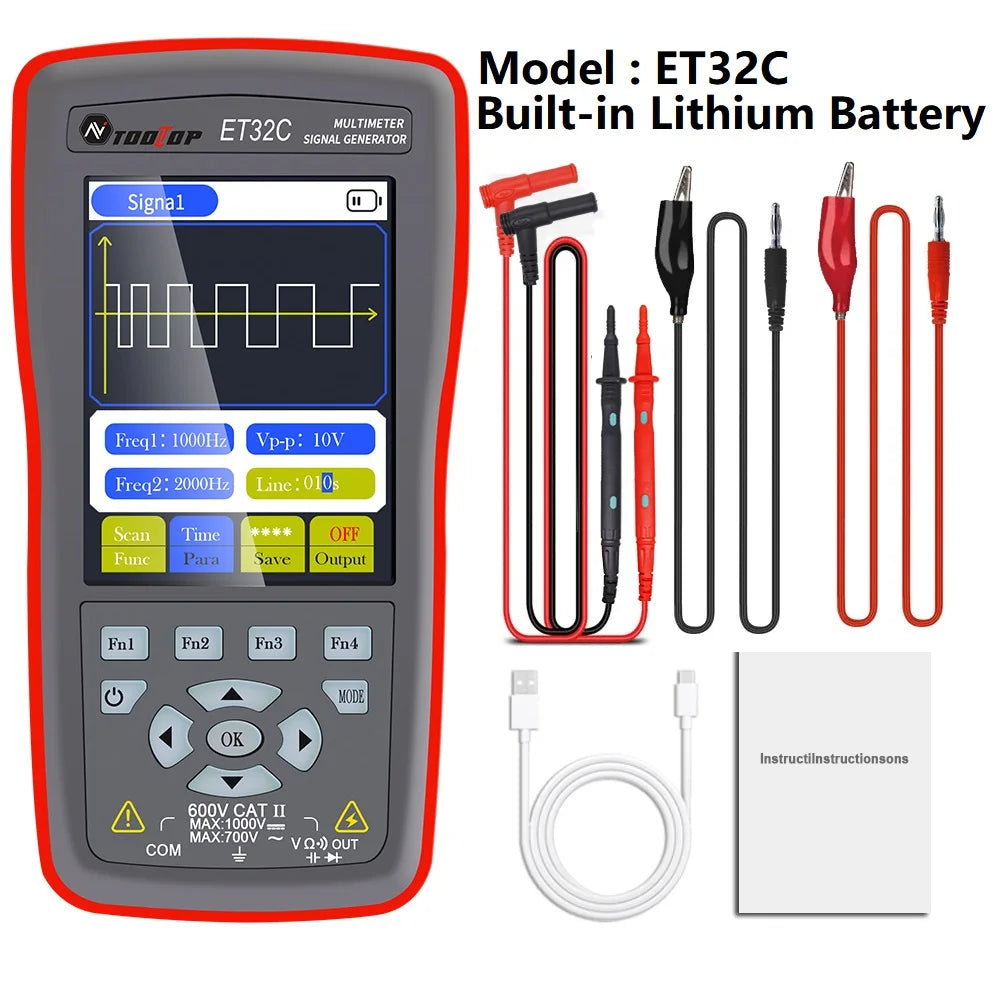

ET32C built-in lithium battery

Feature:

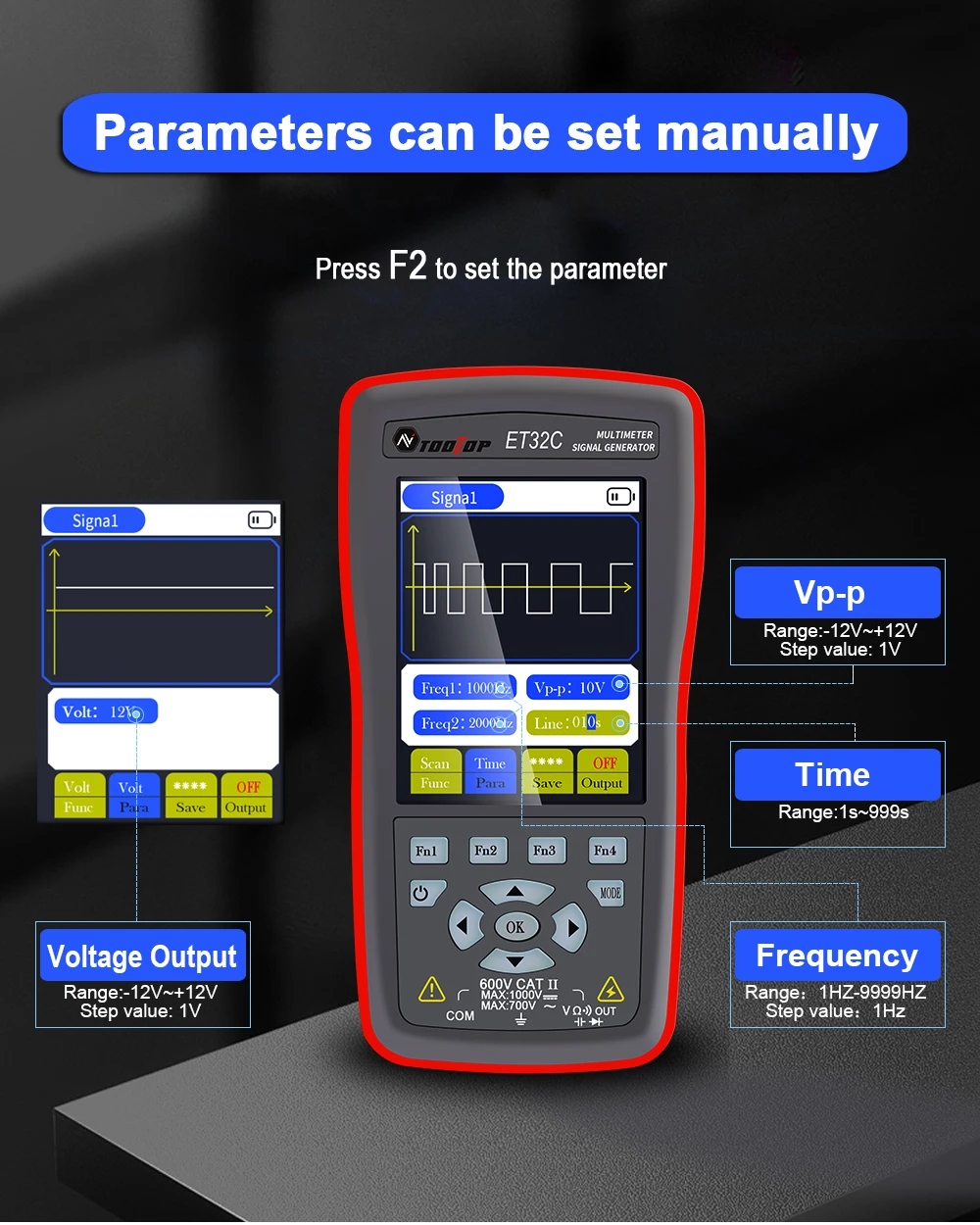

1. Signal parameters are adjustable: the signal generator output frequency is adjustable from 1HZ to 9999HZ; the output amplitude is adjustable from -12v to +12v.

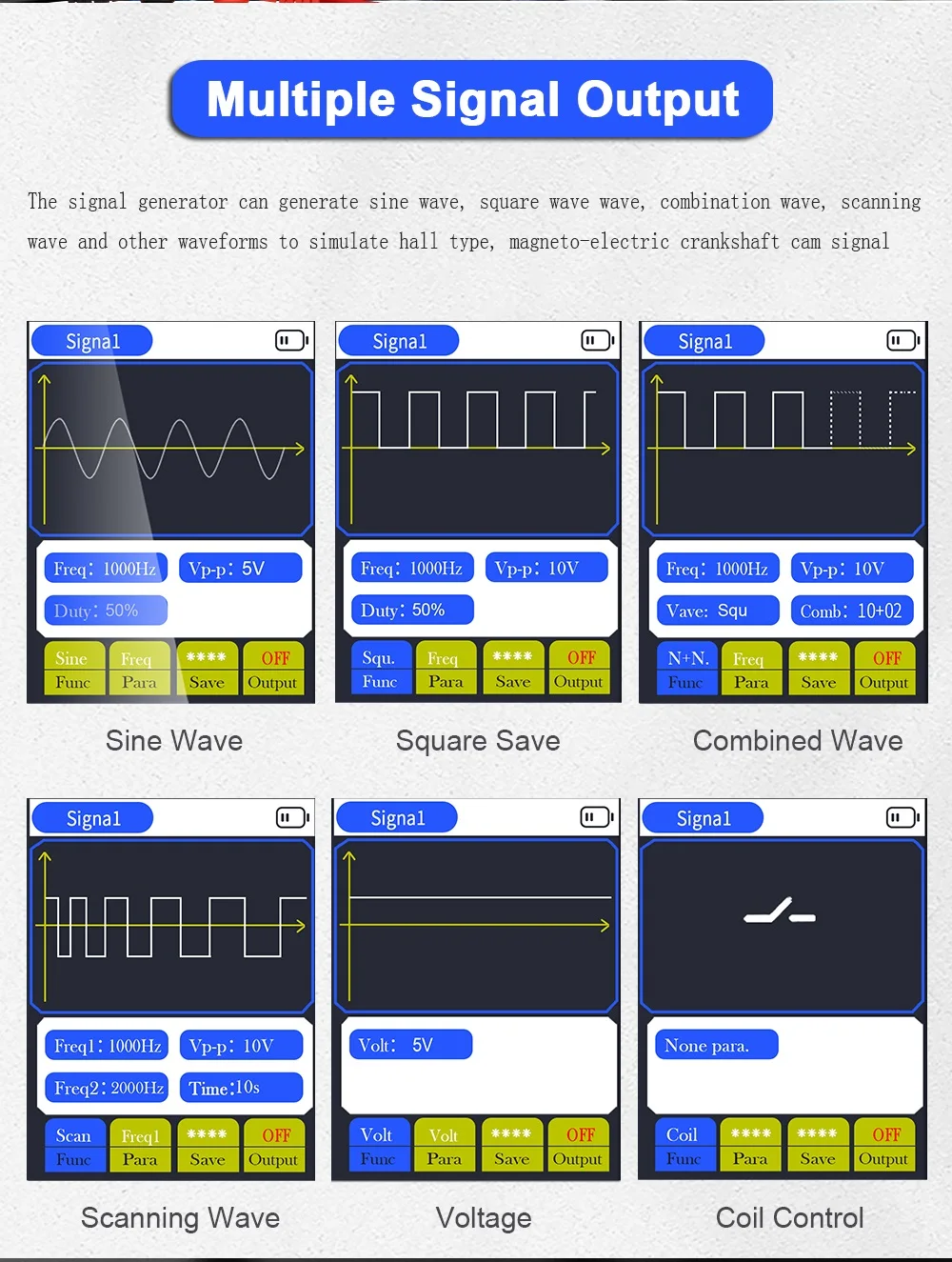

2. ariety of signal outputs: can output square waves, sine waves, combined waves (square wave N+N, sine wave N+N), scanning waves, and DC waves.

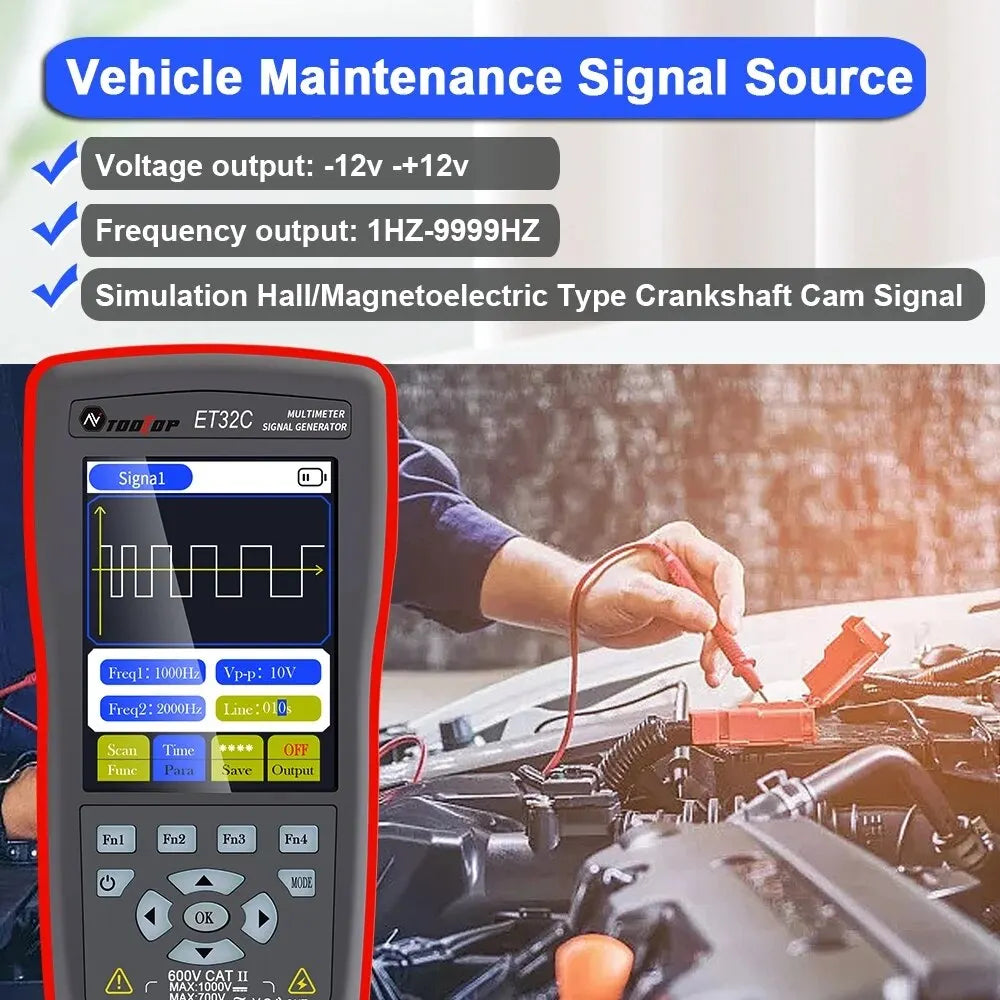

3．Automotive signal simulator: can simulate Hall-type and magneto-electric crankshaft signals and cam signals. Supports gasoline and diesel vehicle crankshaft and cam signal simulation.

4. Supports magnetoelectric signal scanning or Hall signal scanning.

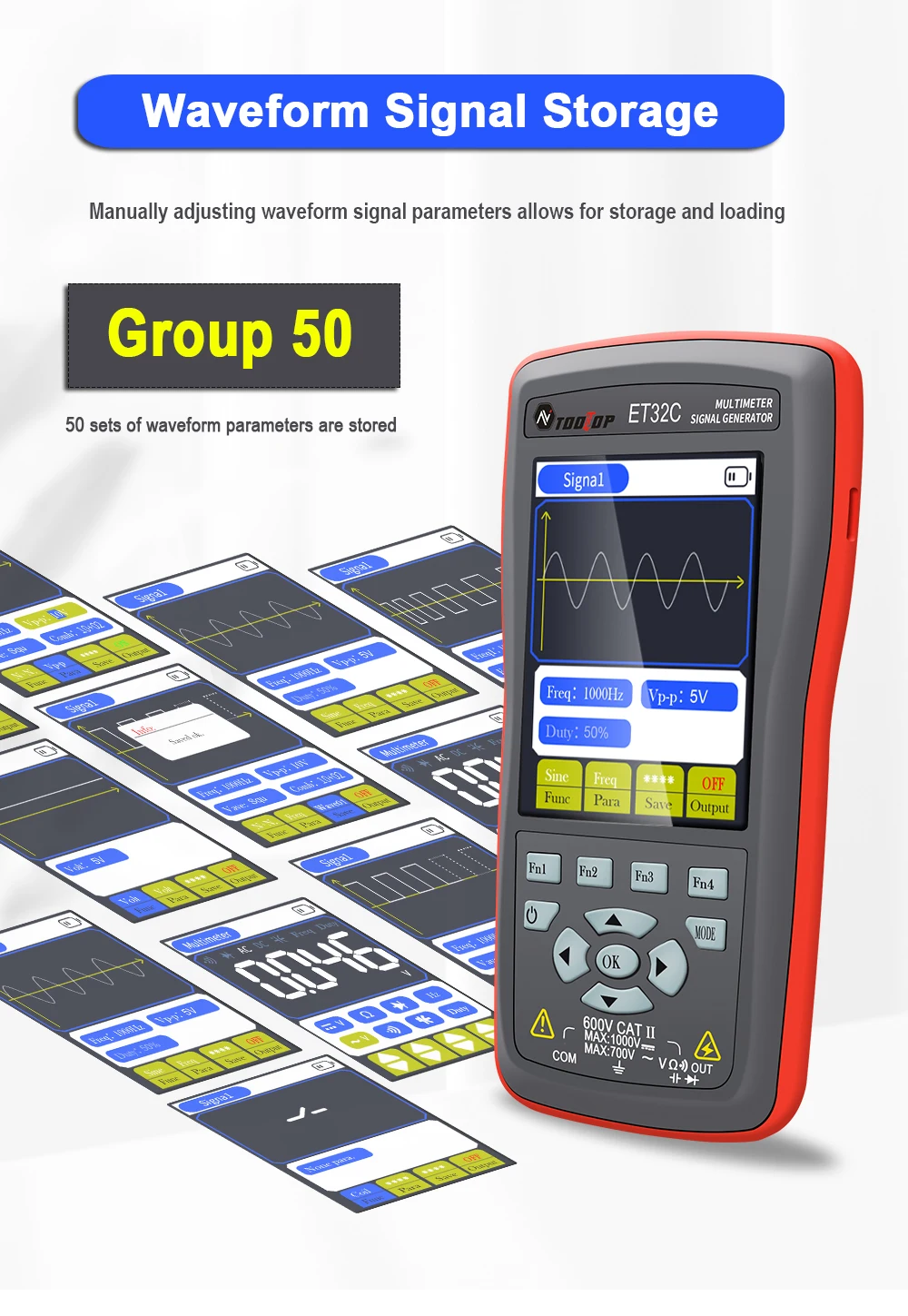

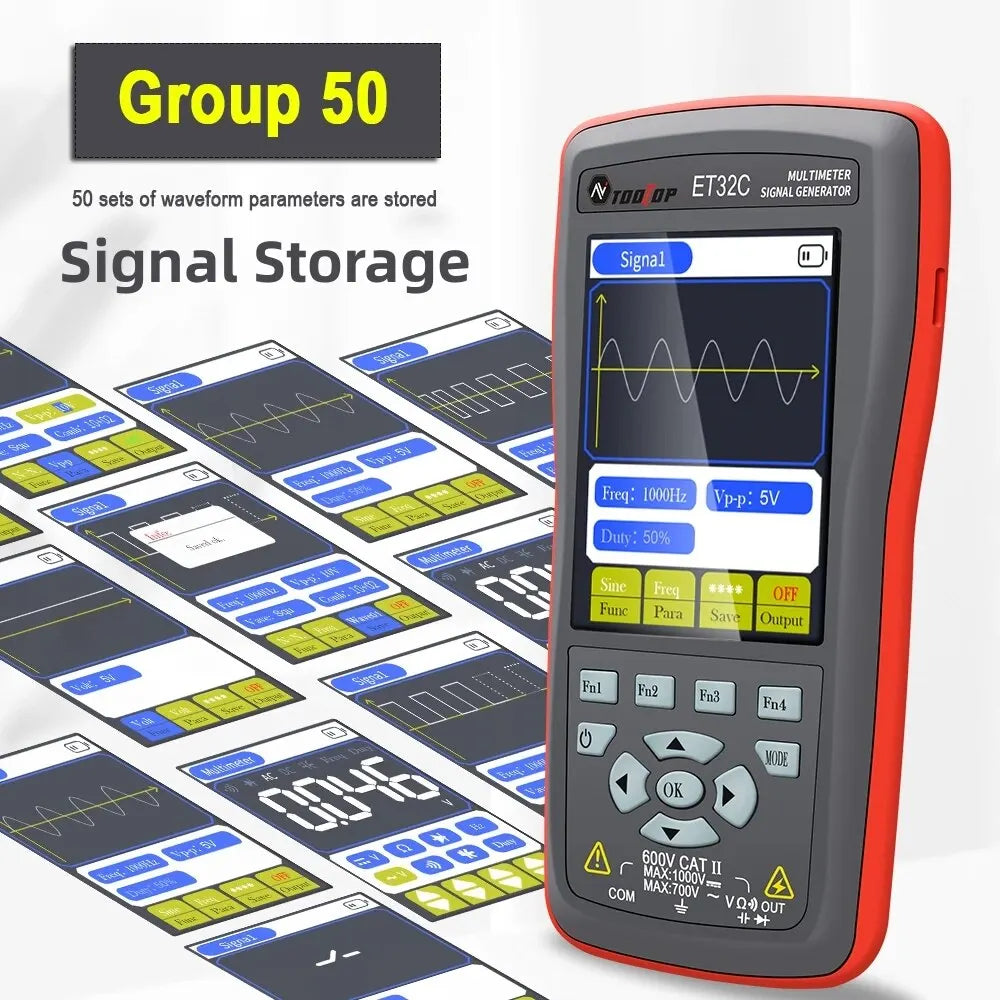

5. Signal storage: The instrument supports 50 groups of signal waveform storage, and can store waveforms in designated locations.

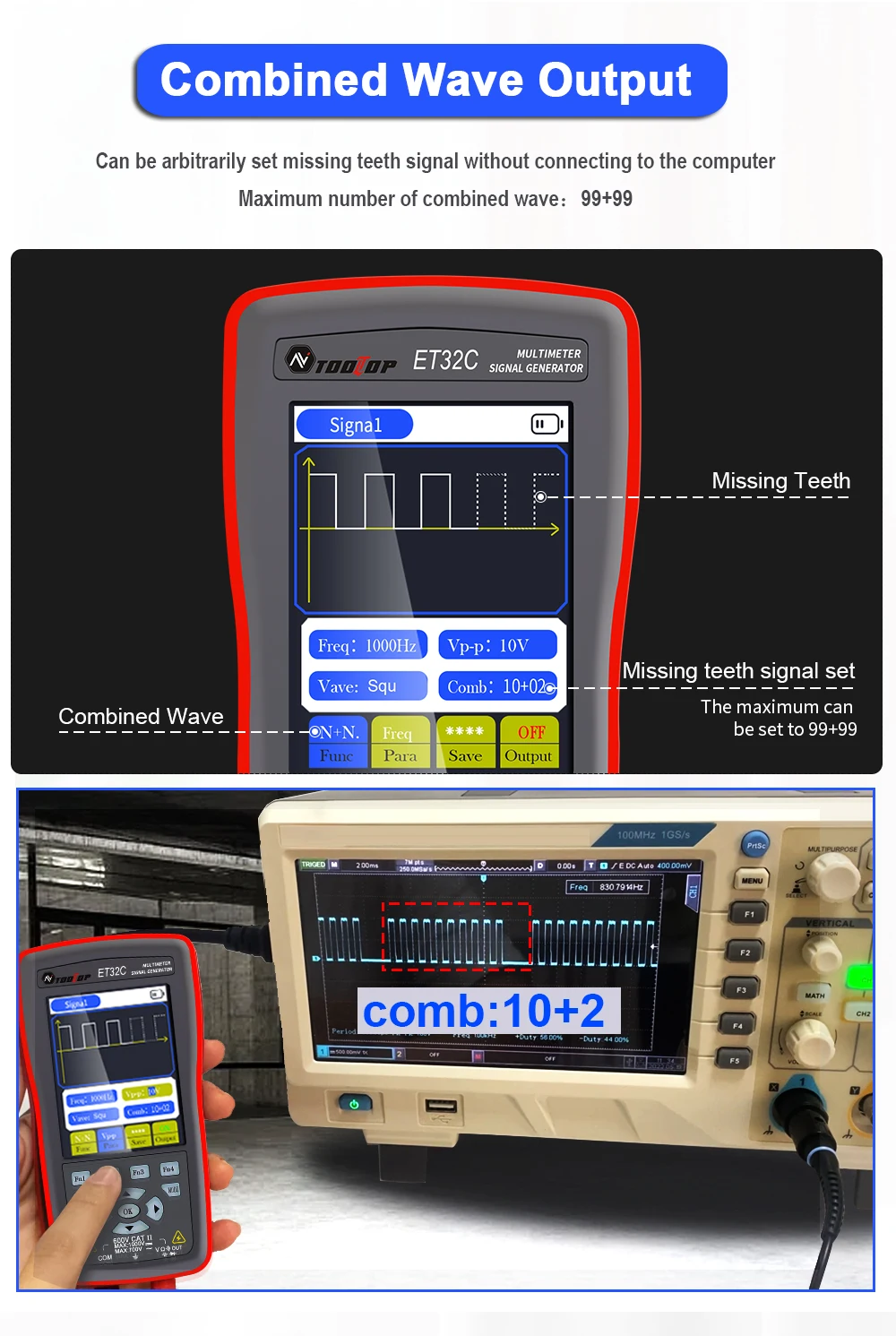

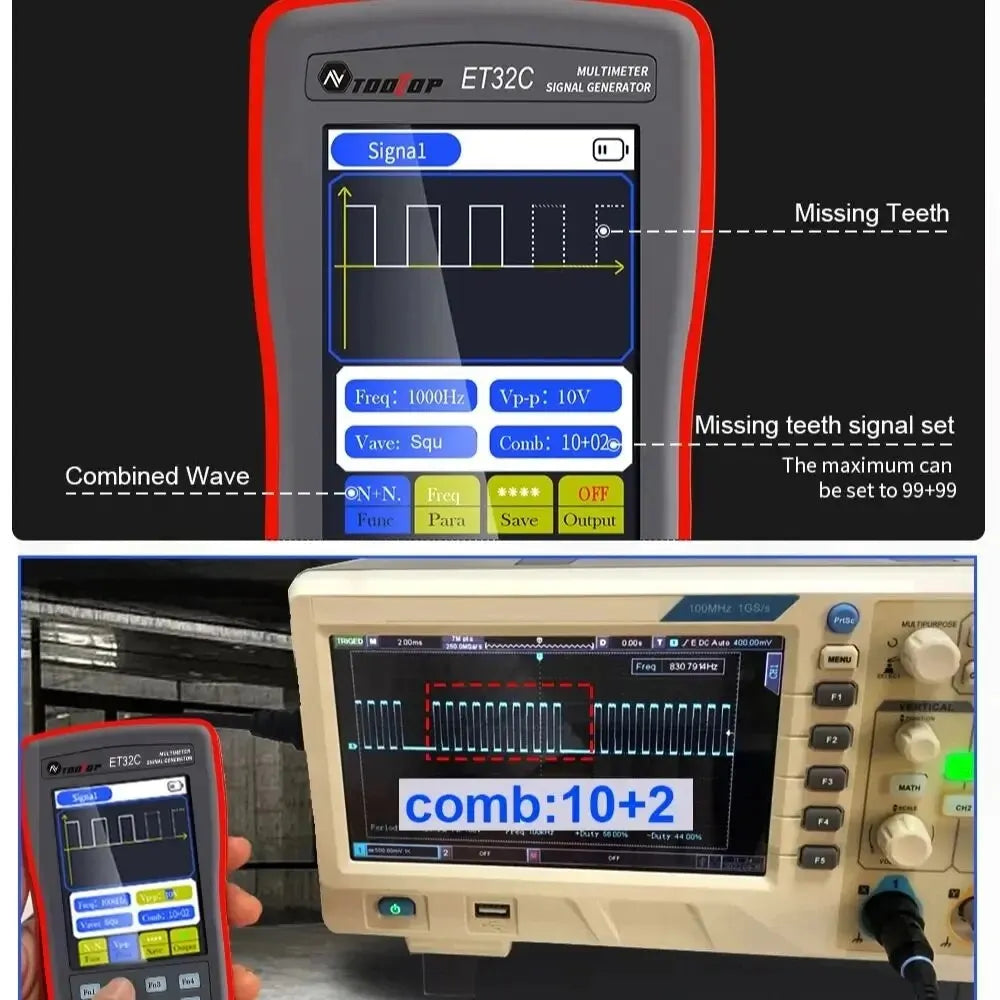

6. Combined wave signal: The missing tooth signal can be set arbitrarily (for example, combined wave 58+2, 10+1) without connecting to a computer.

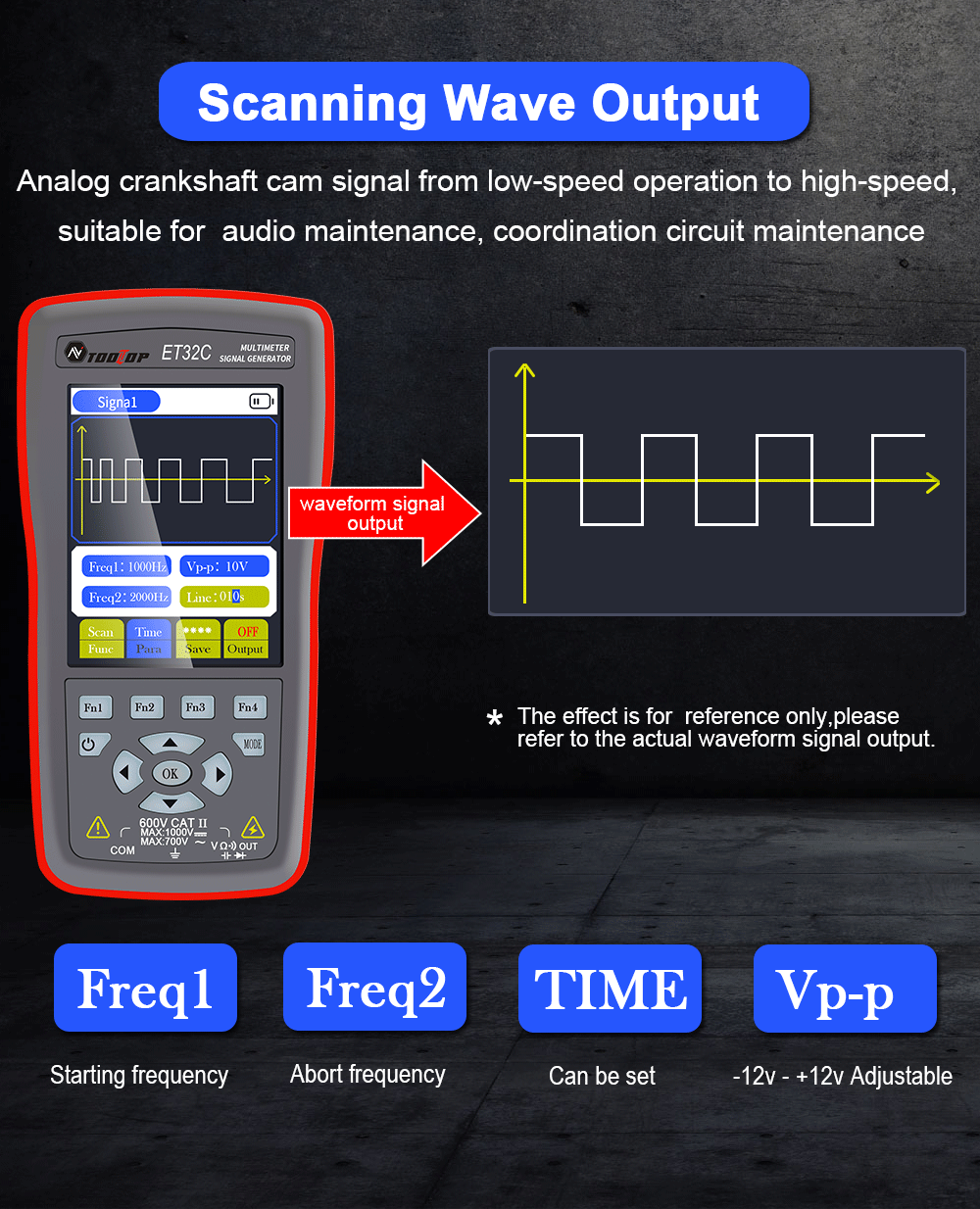

7. Scanning wave signal: Scanning wave can be output to simulate the process of crankshaft cam signal running from low speed to high speed.

8. Analog voltage output: -12v-+12v adjustable, step value 1V.

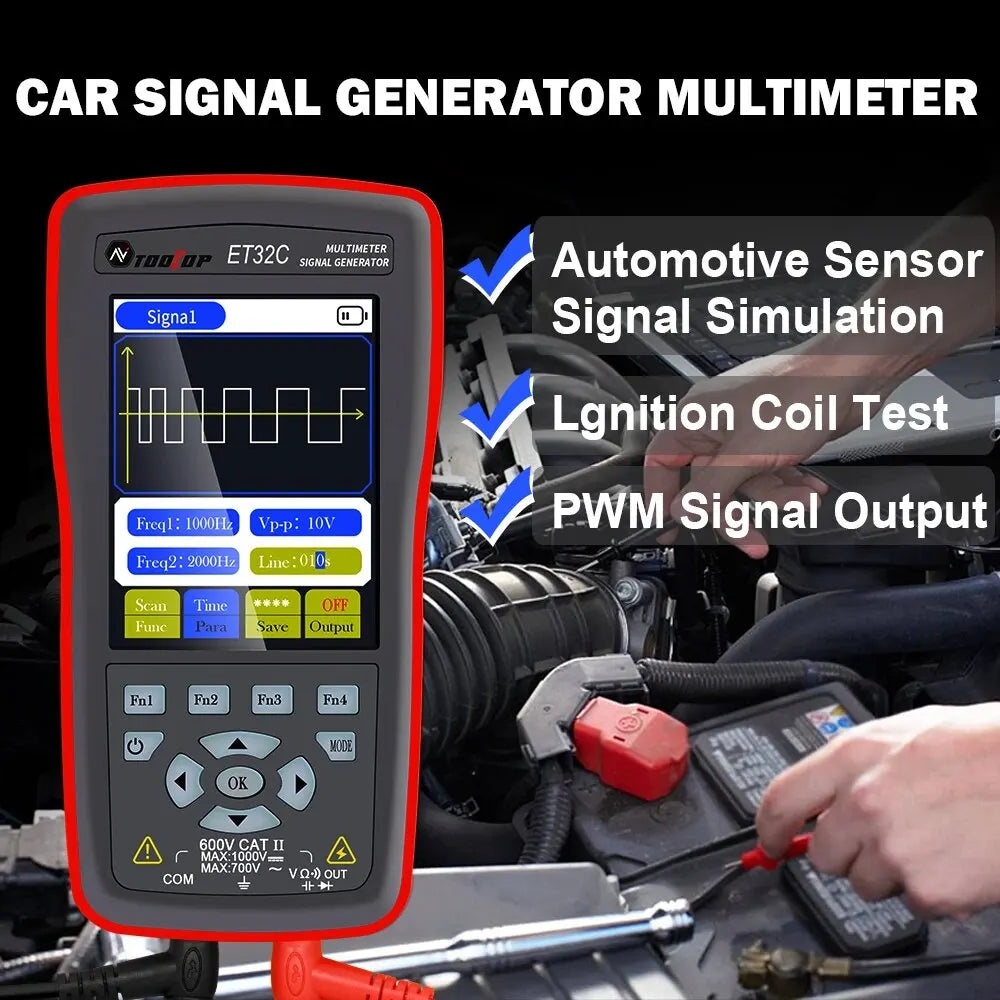

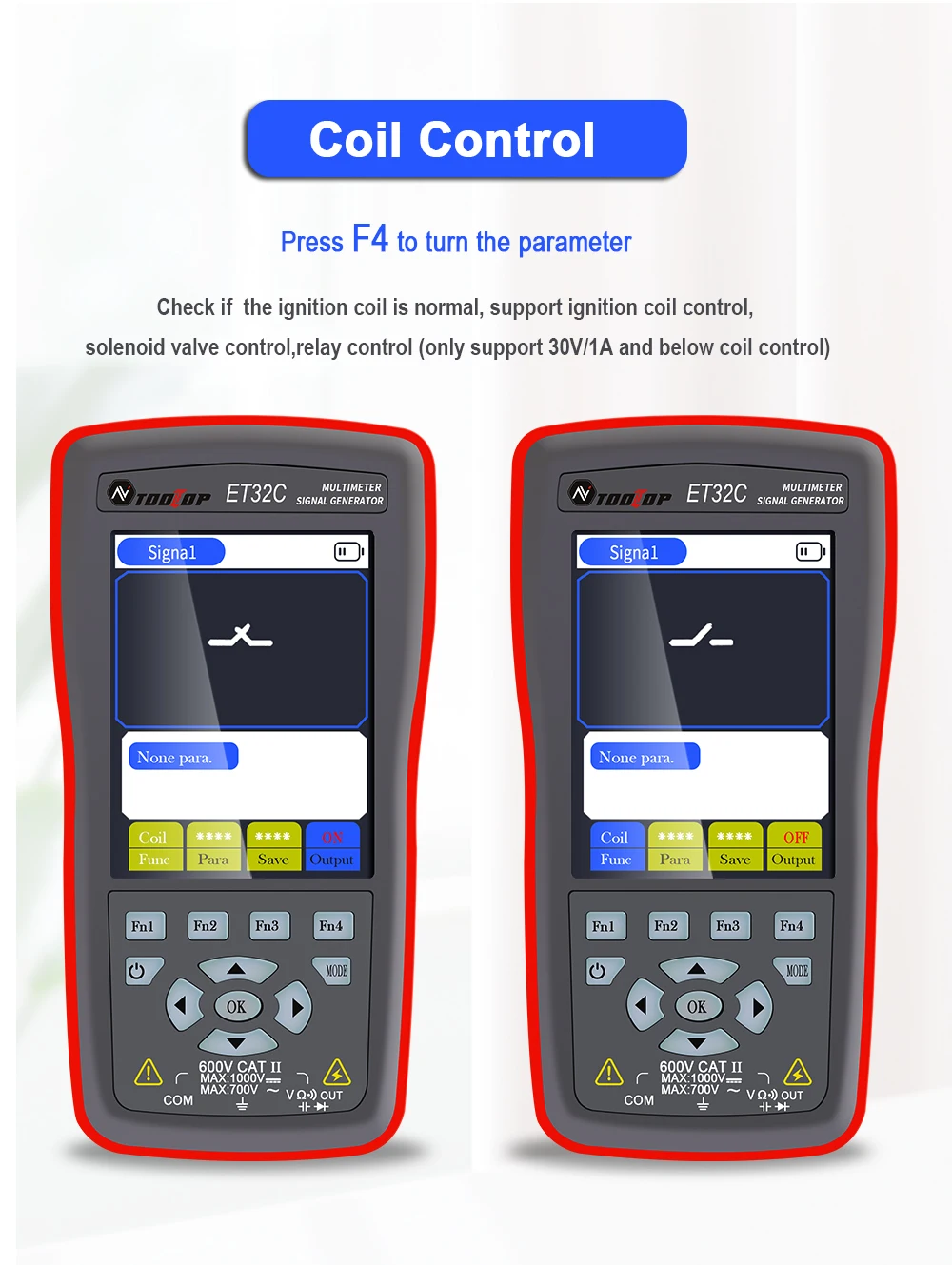

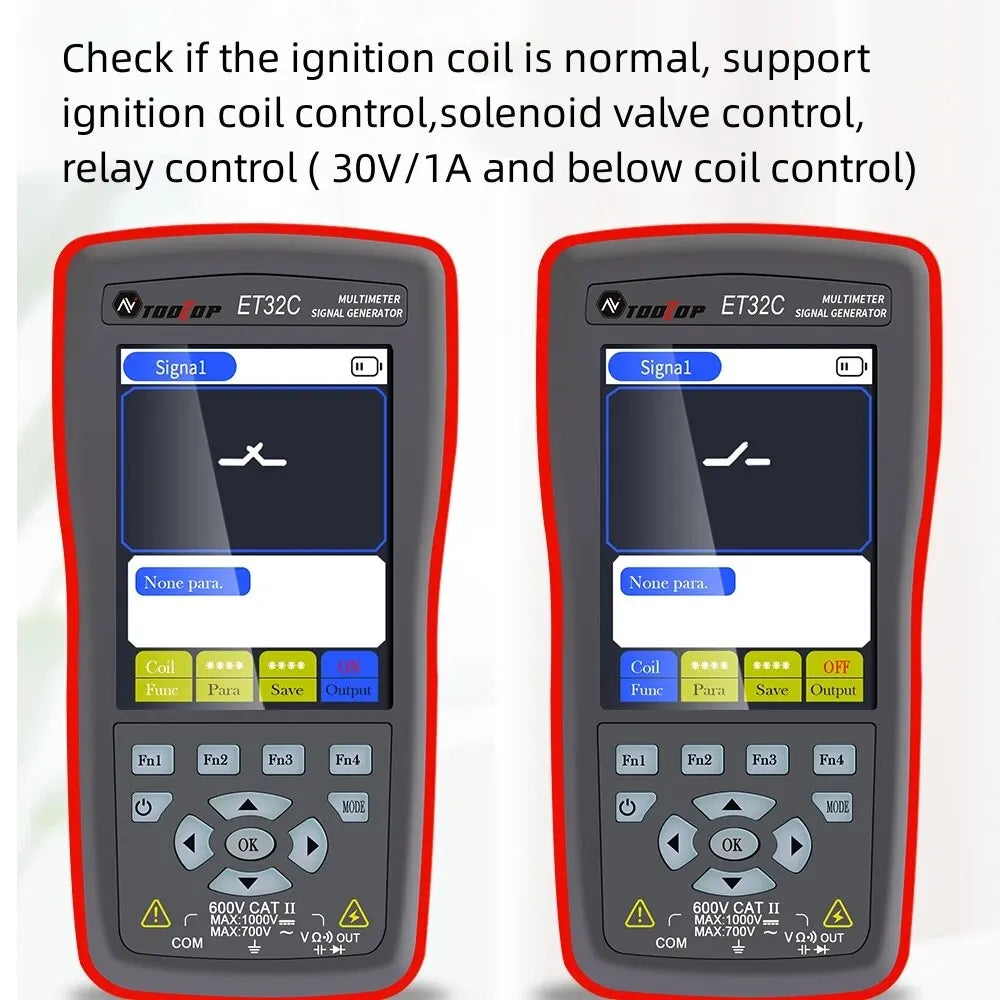

9. Coil control: supports ignition coil control, solenoid valve control, and relay control (only supports coil control of 30V/1A and below).

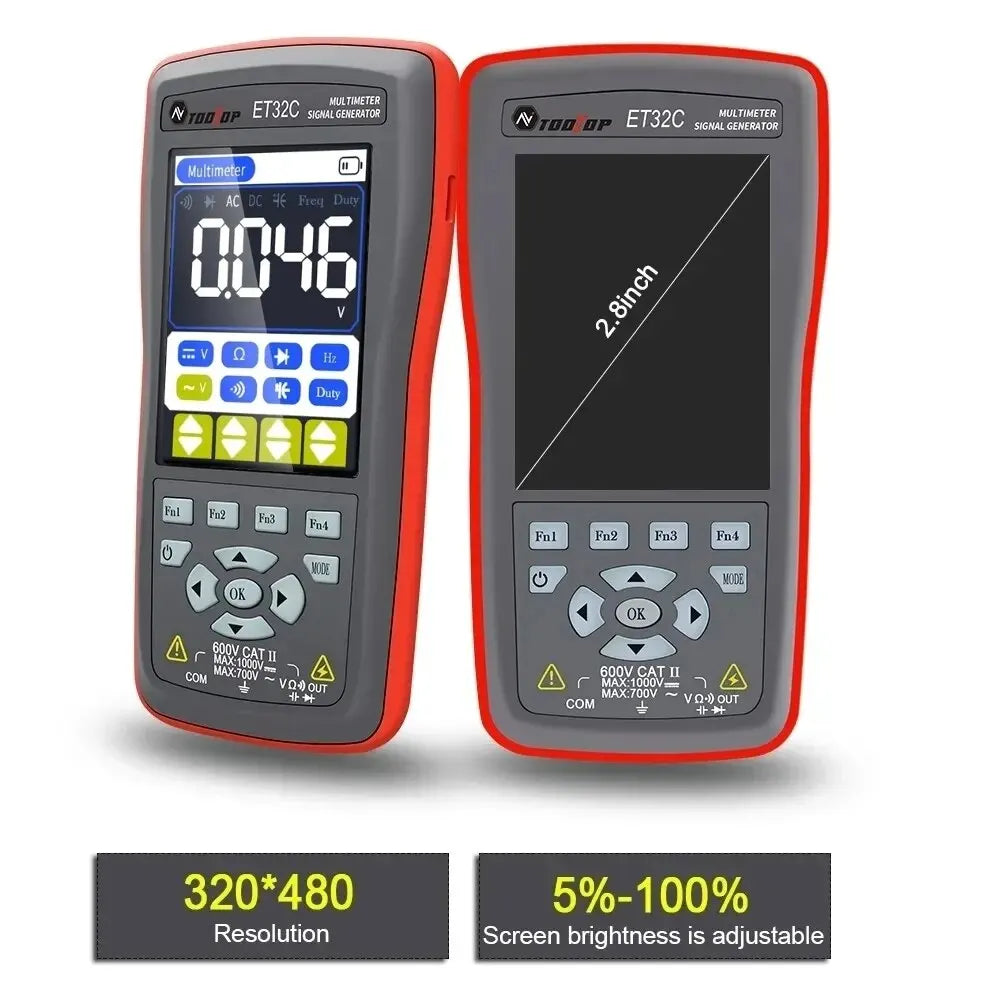

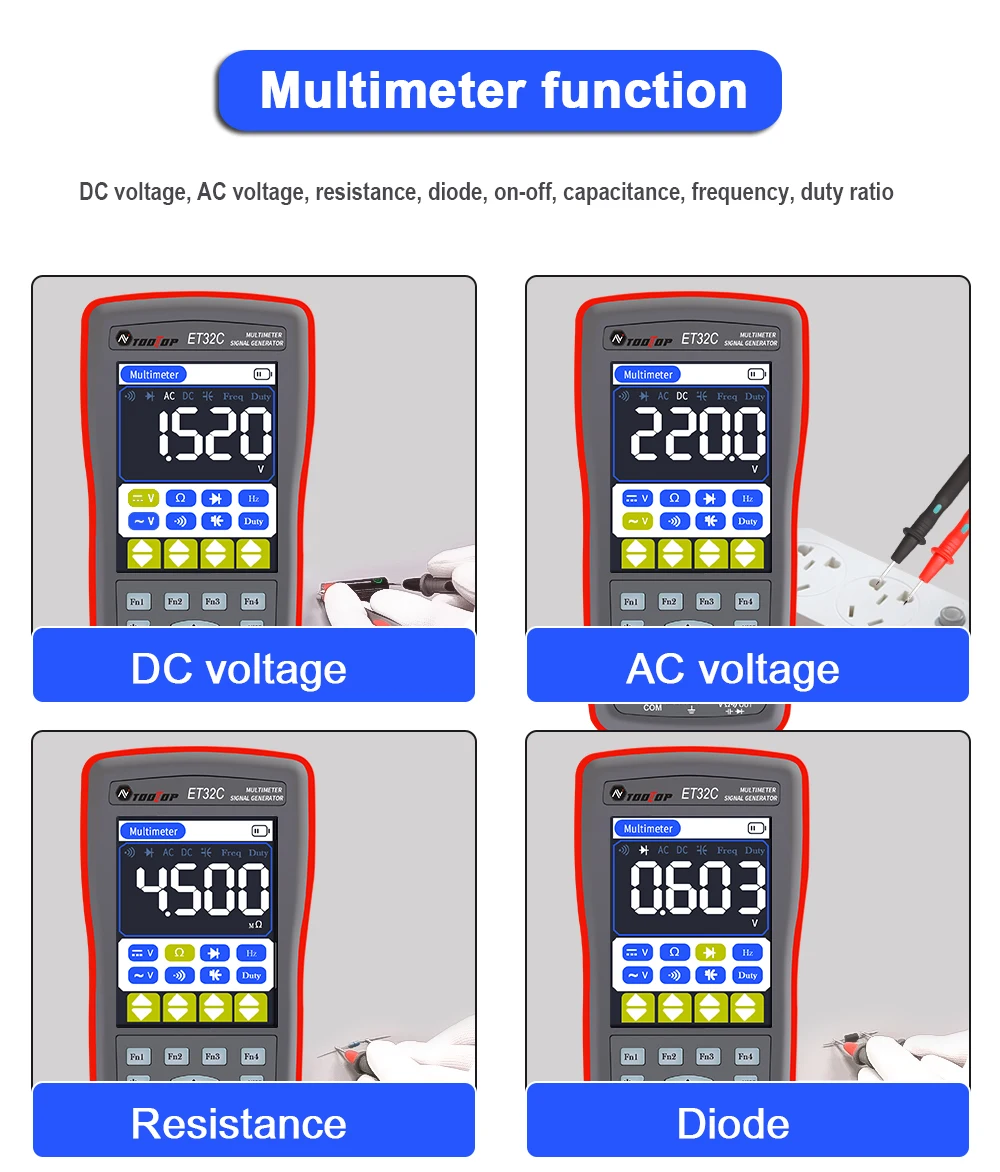

10． Multimeter: Measures DC voltage, AC voltage, resistance, diode, continuity, capacitance, frequency and duty cycle. Quantity function.

11. The internal power supply of the device is isolated to prevent electric shock.

Specification:

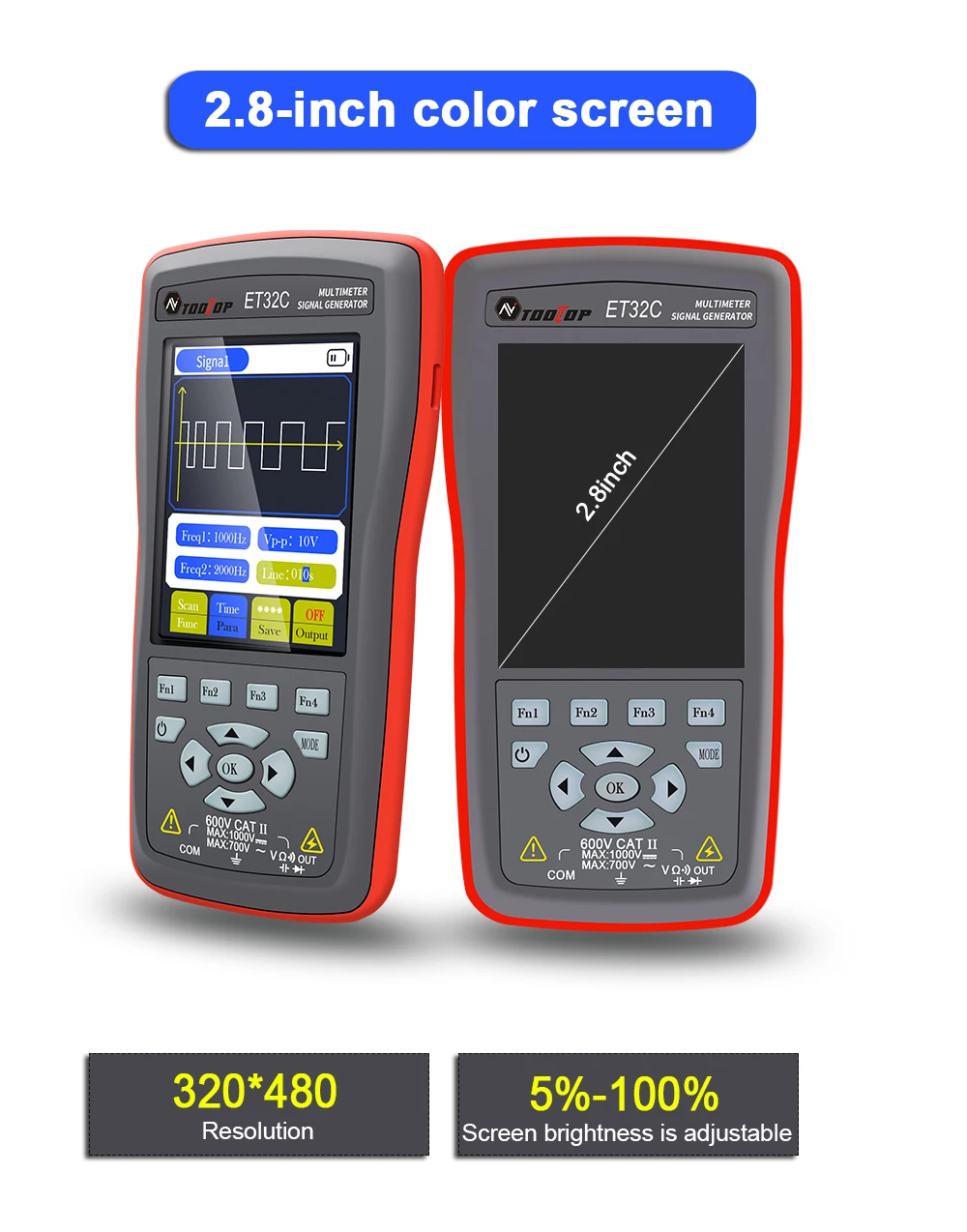

Display: 2.8 inches 320*480 resolution

Touch screen: not supported

USB interface: Type-C USB

Built-in 4.2V lithium battery

Storage temperature: -20~60℃ (-4~140°F)

Operating temperature: 0-50℃ (32-122°F)

Operating humidity: <85% RH (non-condensing)

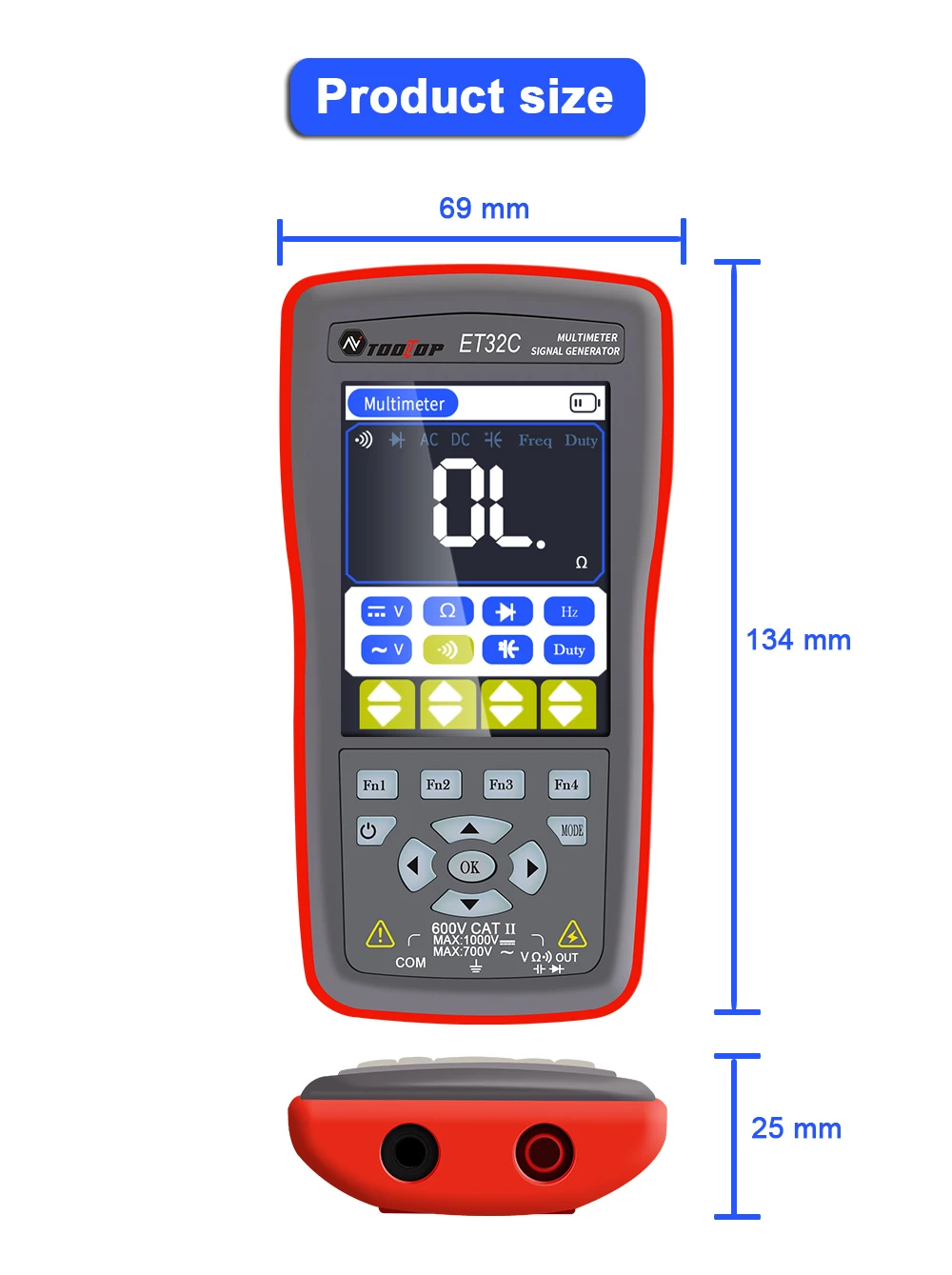

Product size: (length x width x height) 134 mm * 69 mm * 25 mm

Product weight: 125g (excluding accessories)

Signal generator parameters

Sine wave/square wave frequency range: 1Hz~9999Hz

Sine wave/square wave frequency step: 1Hz

Sine wave/square wave peak range: -12V~+12V

Sine wave/square wave peak step: 1V

Scanning wave scanning time range: 1s~999s

Maximum number of combination wave combinations: 99+99

Output voltage range: -12V~+12V

Output voltage step: 1V

Coil control power: below 30V/1A

Waveform storage: 50 sets

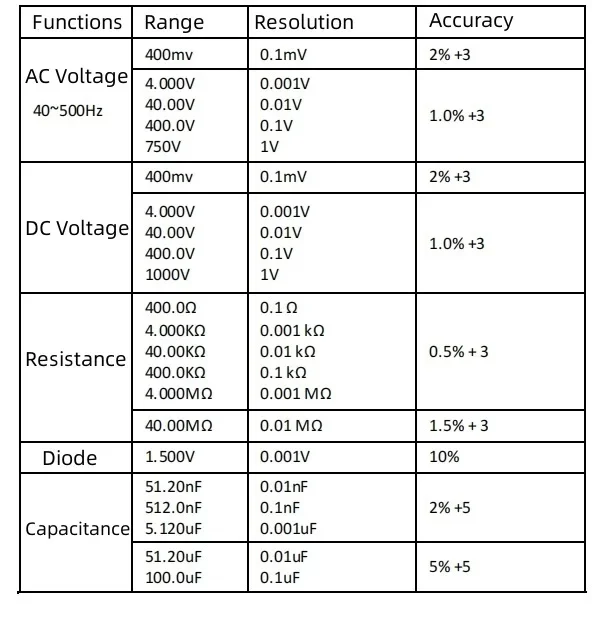

Multimeter parameters

Maximum DC input voltage: 1000V

Maximum AC input voltage: 750V

Maximum measurement resistance: 40M Ω

Maximum measured capacitance value of capacitor: 100uF

Maximum frequency measurement: 50KHz

Duty cycle measurement range: 0.1%~99.9%

Diode measurement range: 0V~1.5V

Maximum resistance value for on/off detection: 30 Ω

Display: 4000 counts

Updates: 3 times per second
