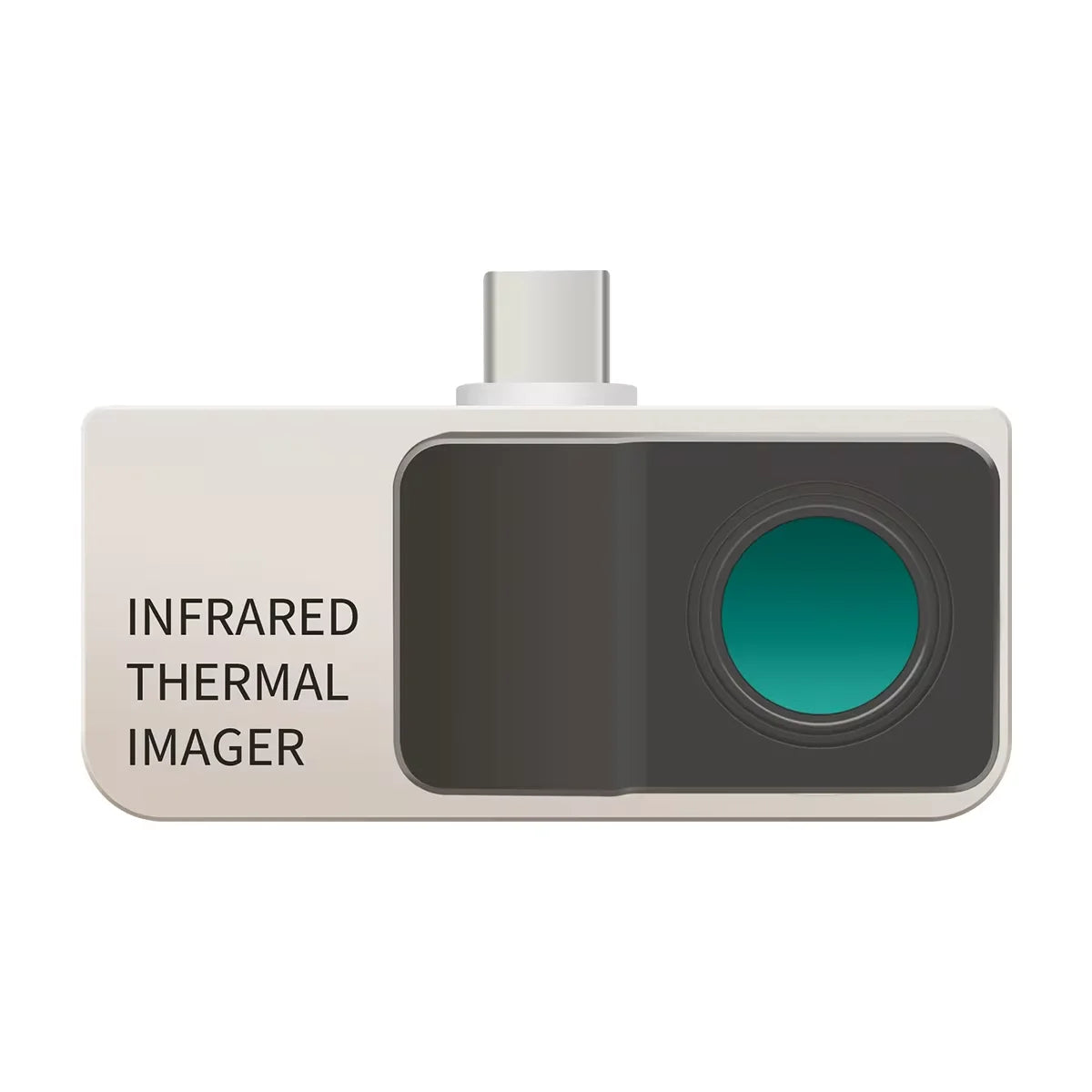

TOOLTOP T256 Thermal Camera 256*192 Type-c Infrared Camera 25Hz High Refresh Rate Thermal Imager for Industrial Heating Repair

KSh32,801

~~KSh34,372~~ KSh32,801

Sale Sold out

Shipping calculated at checkout.

Color T256

block: block, product: product, product_form_id: product_form_id, section_id: section.id, show_pickup_availability: true -%}

SPECIFICATIONS

Brand Name: TOOLTOP

Choice: yes

FOV: 56°x42°

Frame rate: 25Hz

Hign-concerned Chemical: None

Infrared Resolution: 256 x 192

NETD: <50mk@25℃

Origin: Mainland China

Power Type: None

Style: Embedded

Temperature measurement range: -15℃~600℃

Wavelength: 8-14um

Note:

In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-3 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry

Feature:

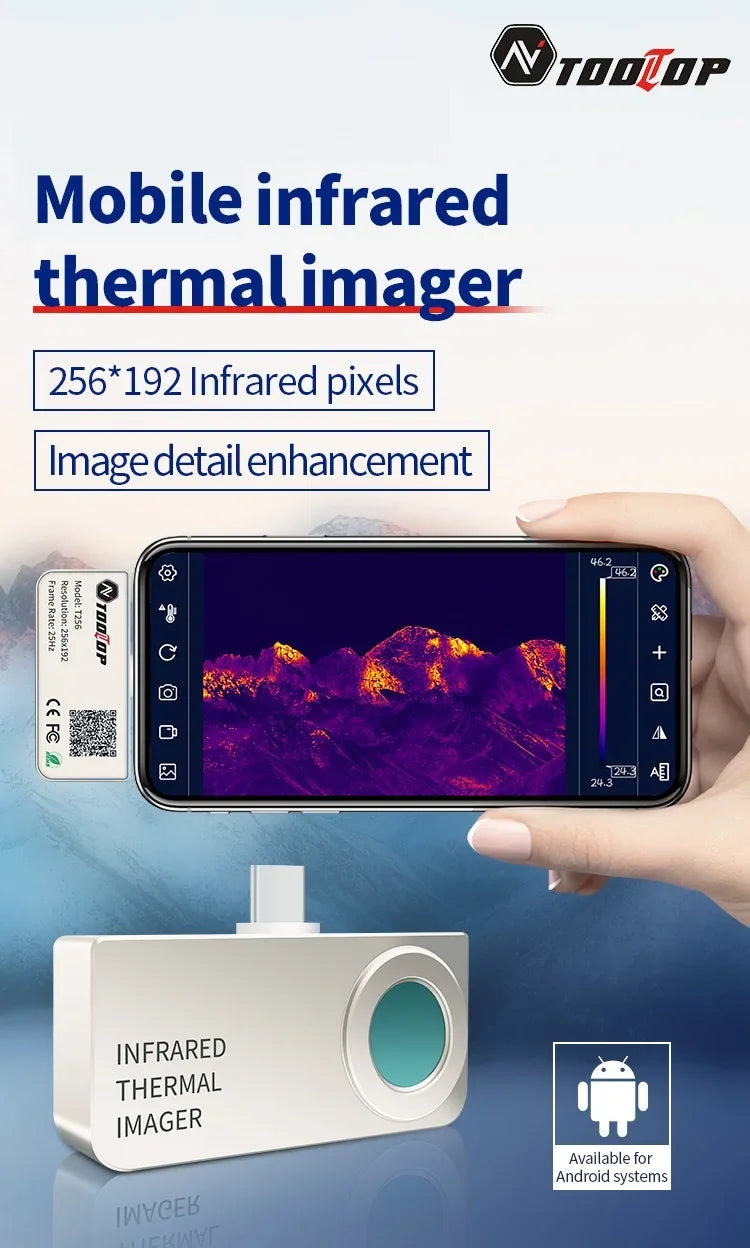

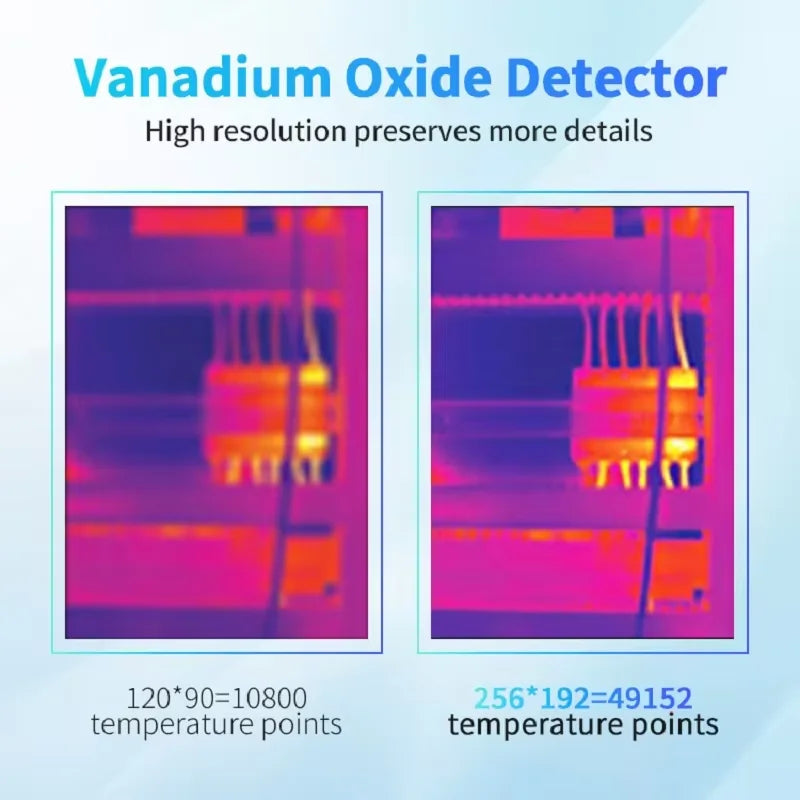

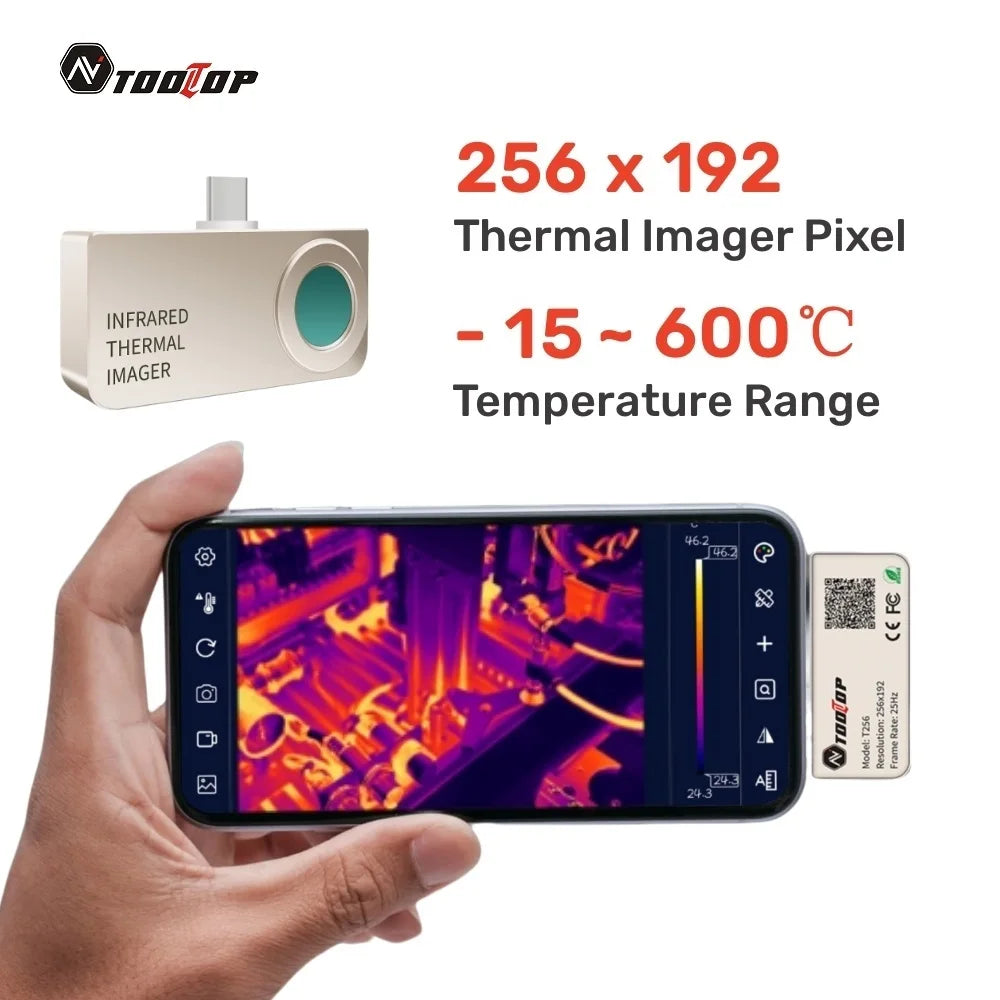

[ 256*192 IR Resolution ] has high-quality optical lens and high-resolution detector, with excellent imaging effect

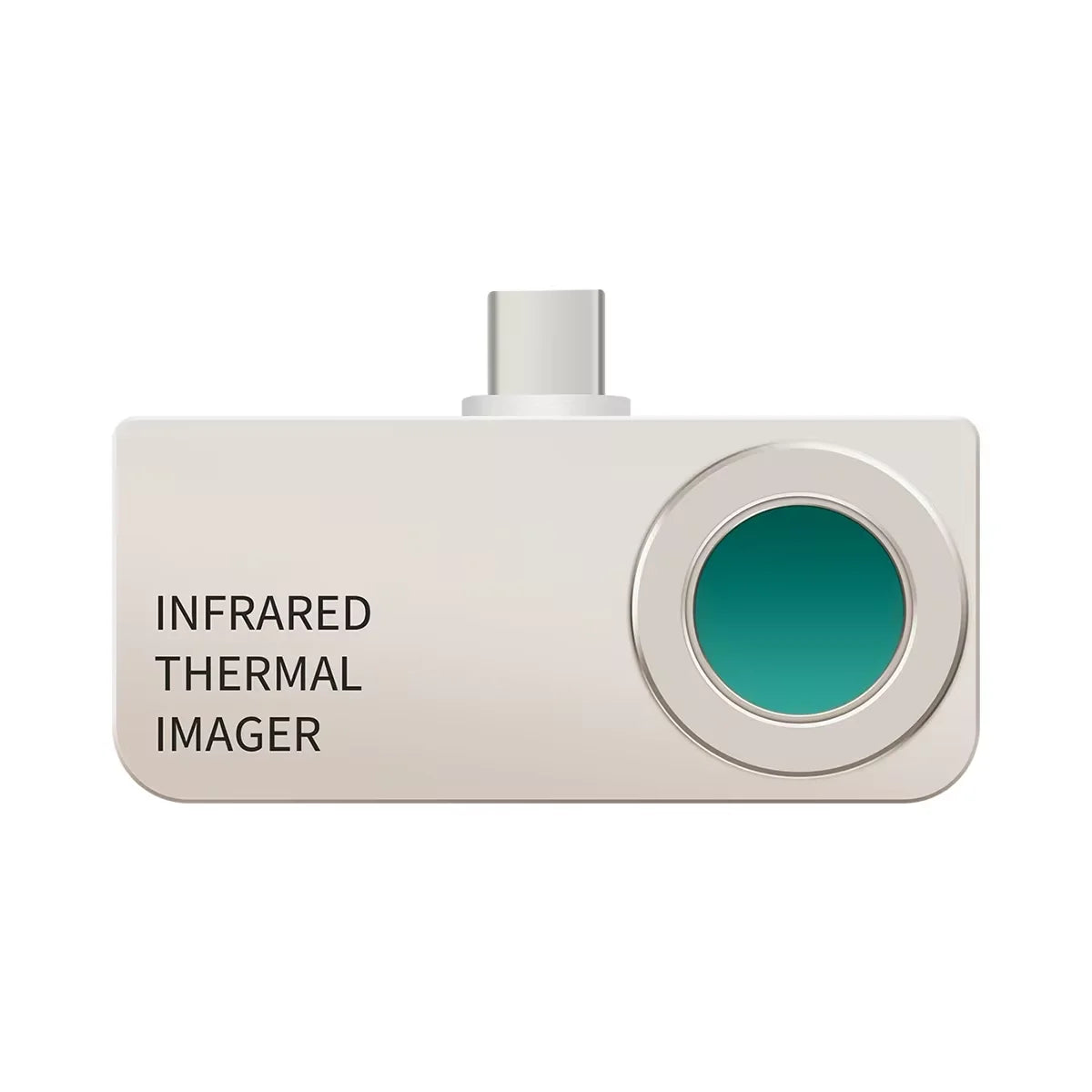

[ lightweight and portable ] only 22g,small size and plug to play, aluminum alloy shell, which is firm and durable.

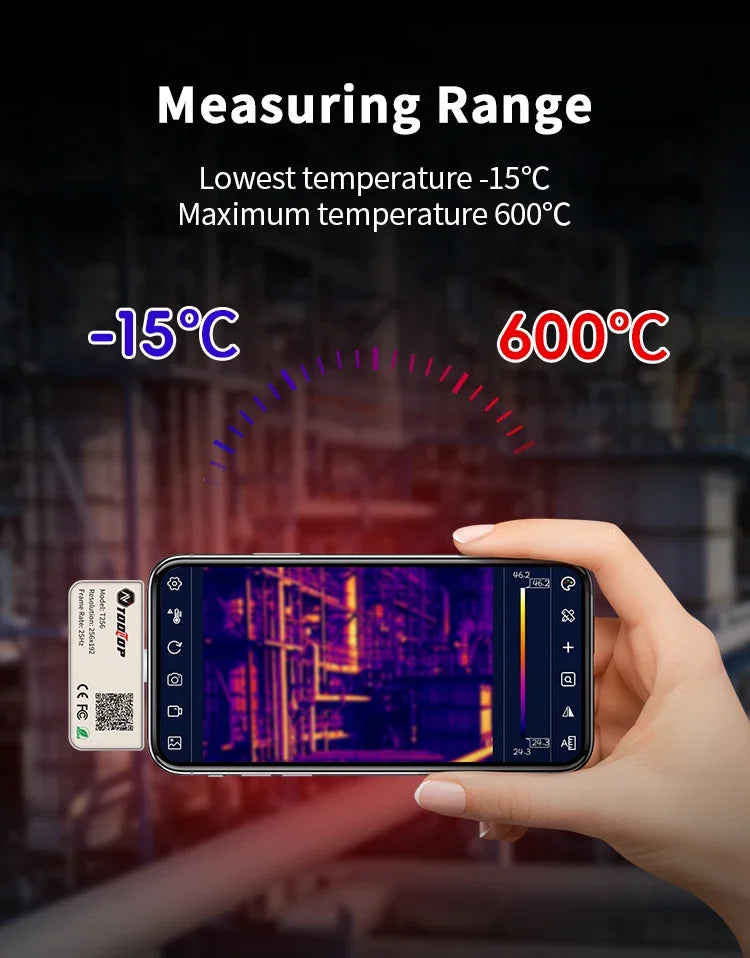

[ -15℃ - 600℃ ] It has a wide temperature measurement range: -15℃ - 600℃

[ Temperature alarm & tacking ] supports high temperature alarm and customized alarm threshold, high and low temperature tracking

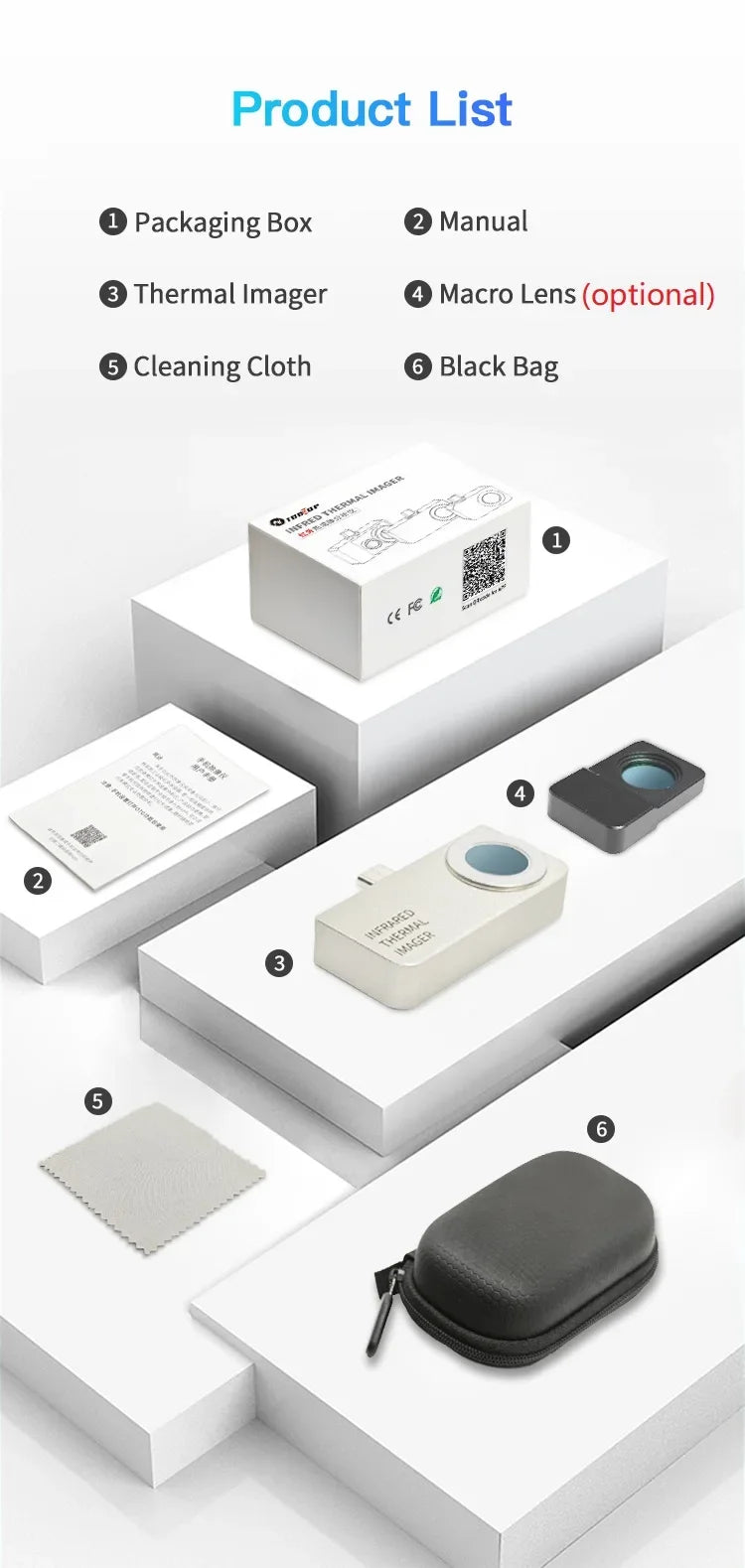

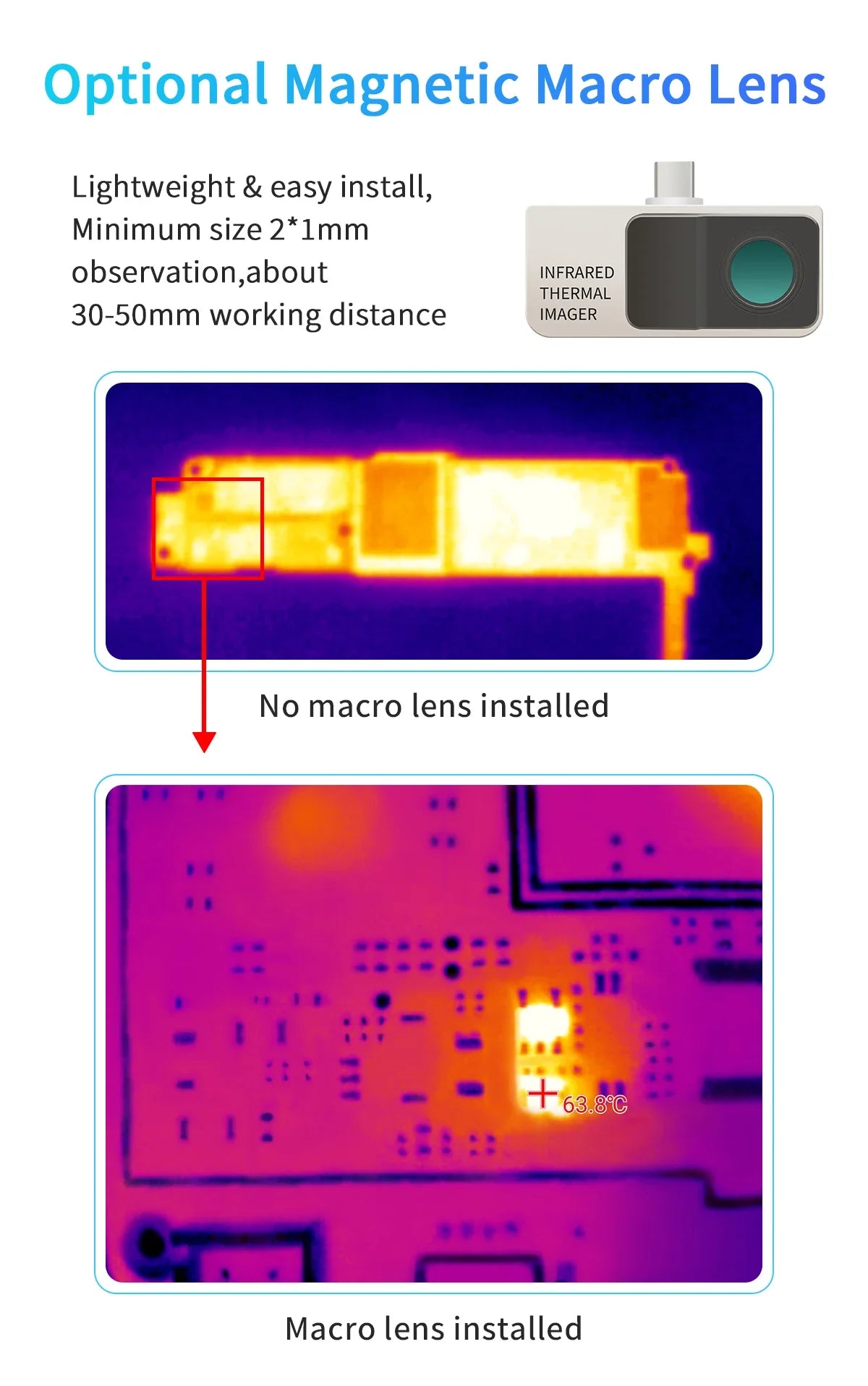

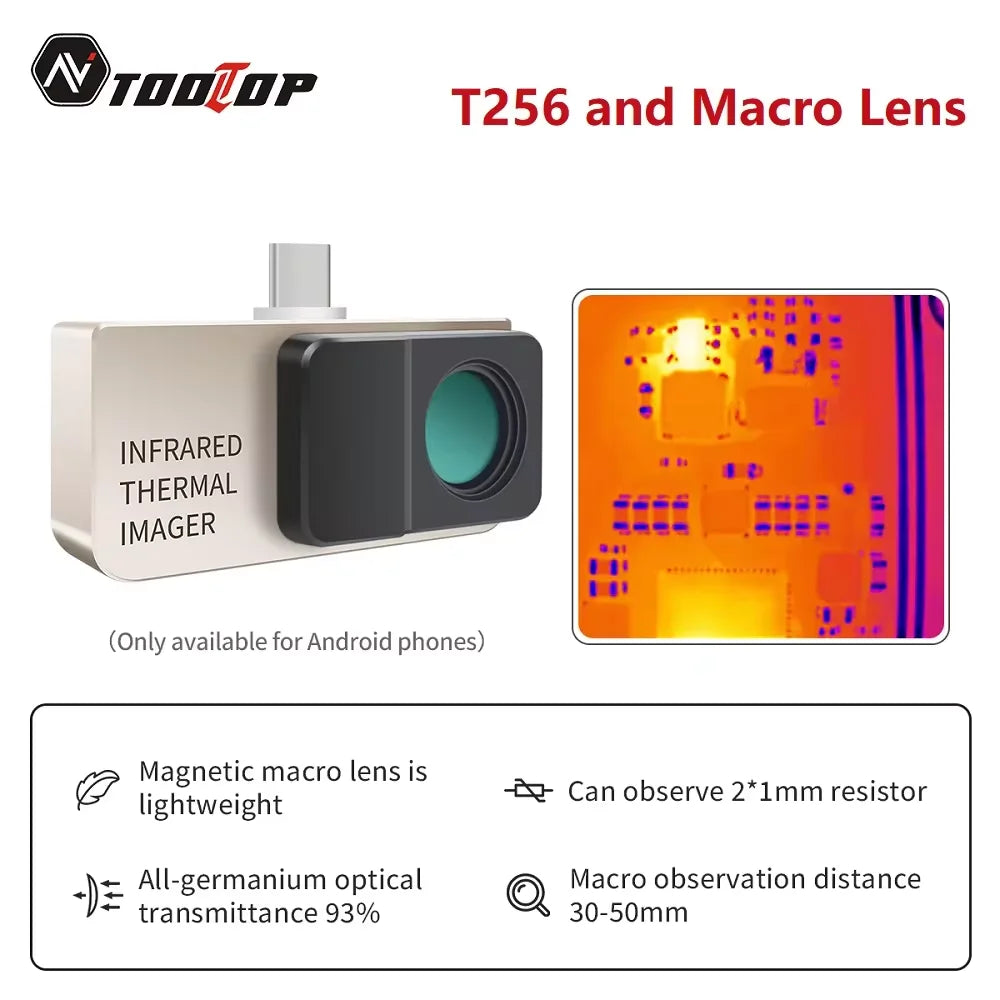

[ Optional magnetic macro lens ]all germanium optical transmittance 93%,minimum observable component size of 2 * 1mm

[ Detail enhancement ] adjusts the sharpness and contrast of the image to make the field of view clearer and more delicate

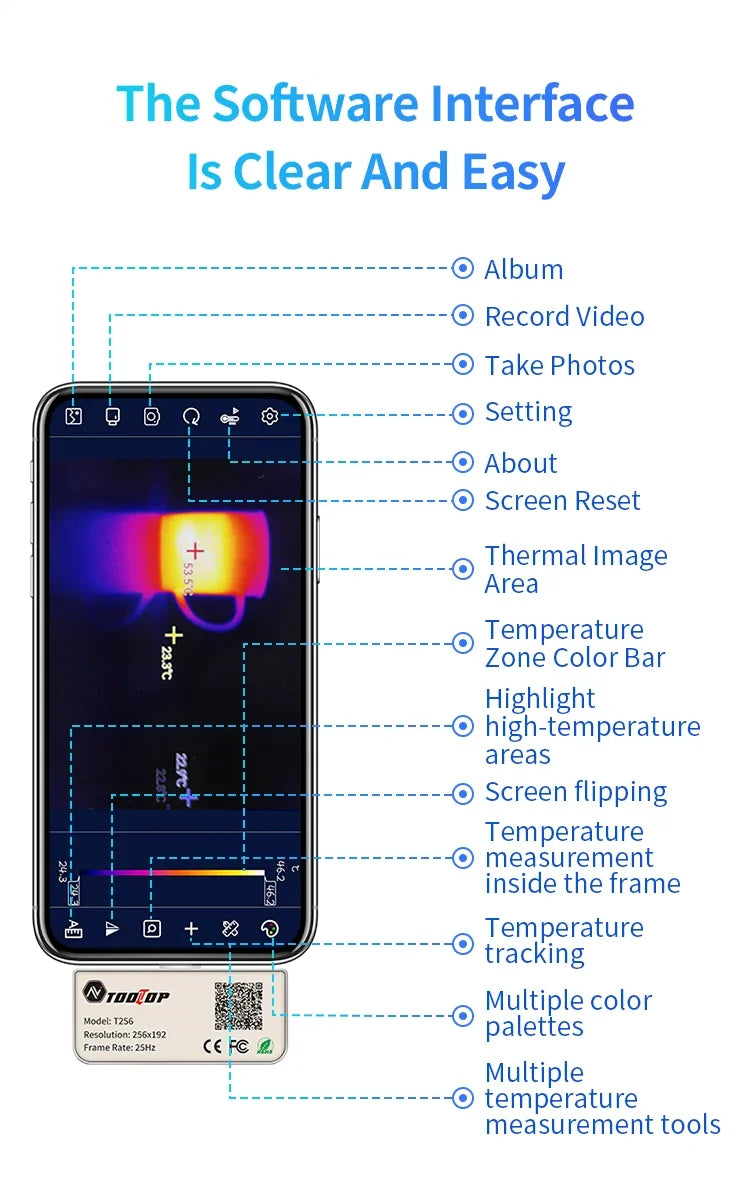

[ Uer-defined Measurement ] can customize temperature range screen display, high temperature area display has rich usage scenarios, and supports adding points, lines, and rectangular boxes for regional temperature measurement

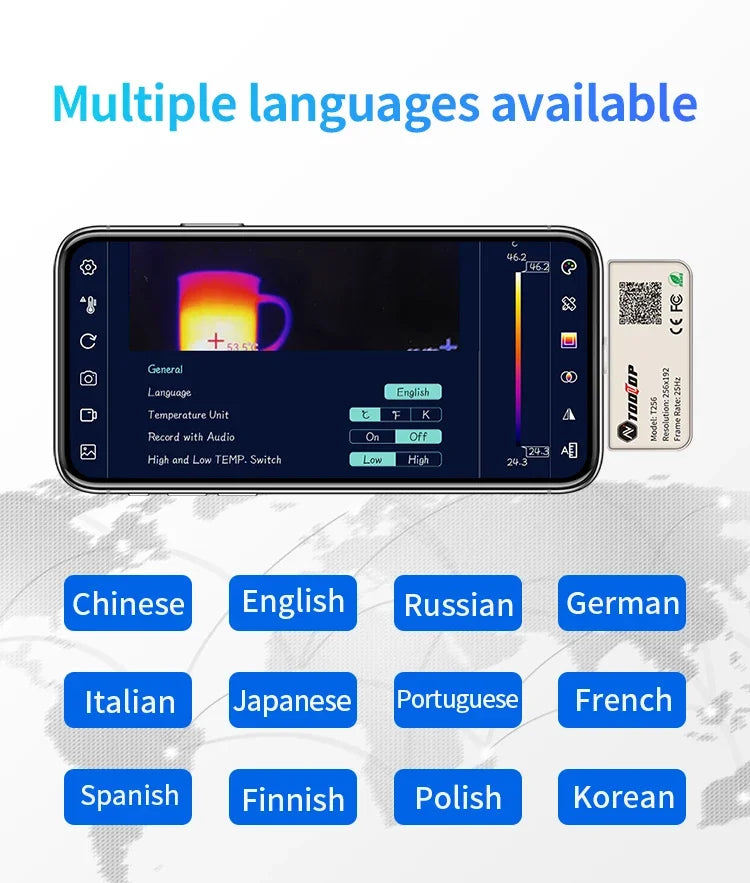

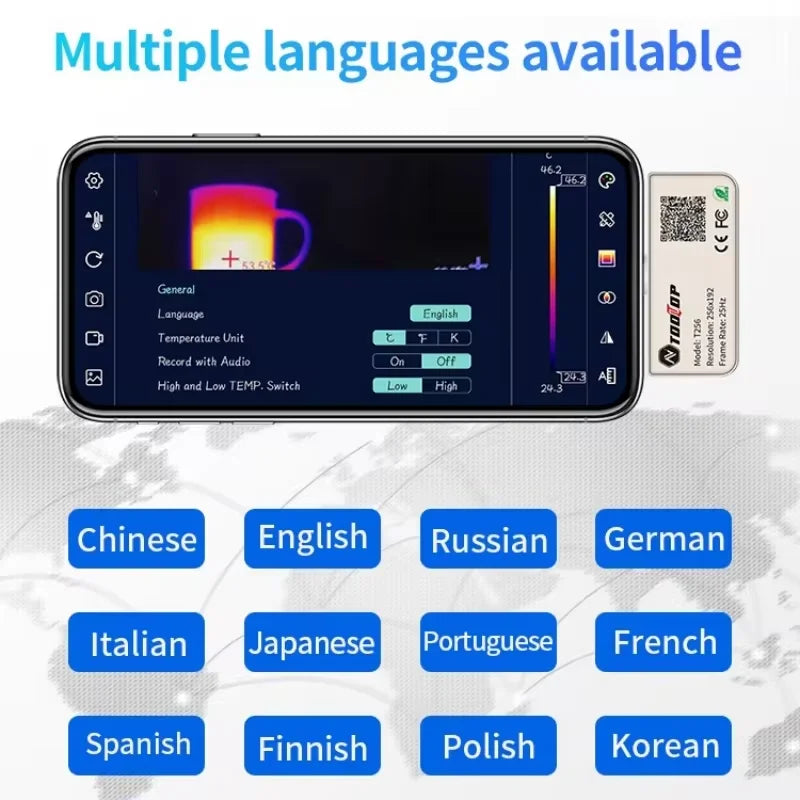

[Android Type-c ] compatible with Android system APP to perform professional thermal imaging analysis anytime and anywhere

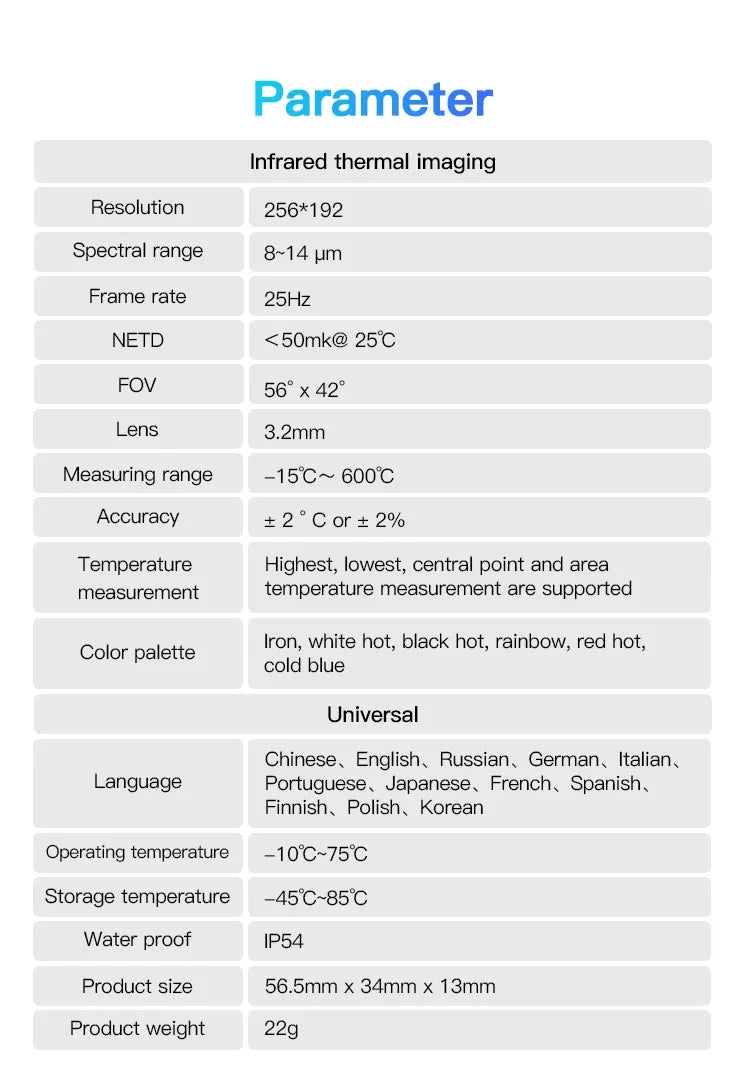

Specification:

Model：T256

Resolution:256 x 192

Wavelength:8-14um

Frame rate:25Hz

NETD:<50mk@25℃

FOV :56°x42°

Lens:3.2mm

Temperature measurement range:-15℃~600℃

Temperature measurement accuracy: ±2℃ or 2%

Temperature measurement: Highest, lowest, central point and area temperature measurement are supported
