Tuya Smart Switch 4 Channel Relay Module USB 5V DC 12V 24V AC 85-250V Home Automation Interruptor Wifi Smart Life Receiver Alexa
Tuya Smart Switch 4 Channel Relay Module USB 5V DC 12V 24V AC 85-250V Home Automation Interruptor Wifi Smart Life Receiver Alexa
SPECIFICATIONS

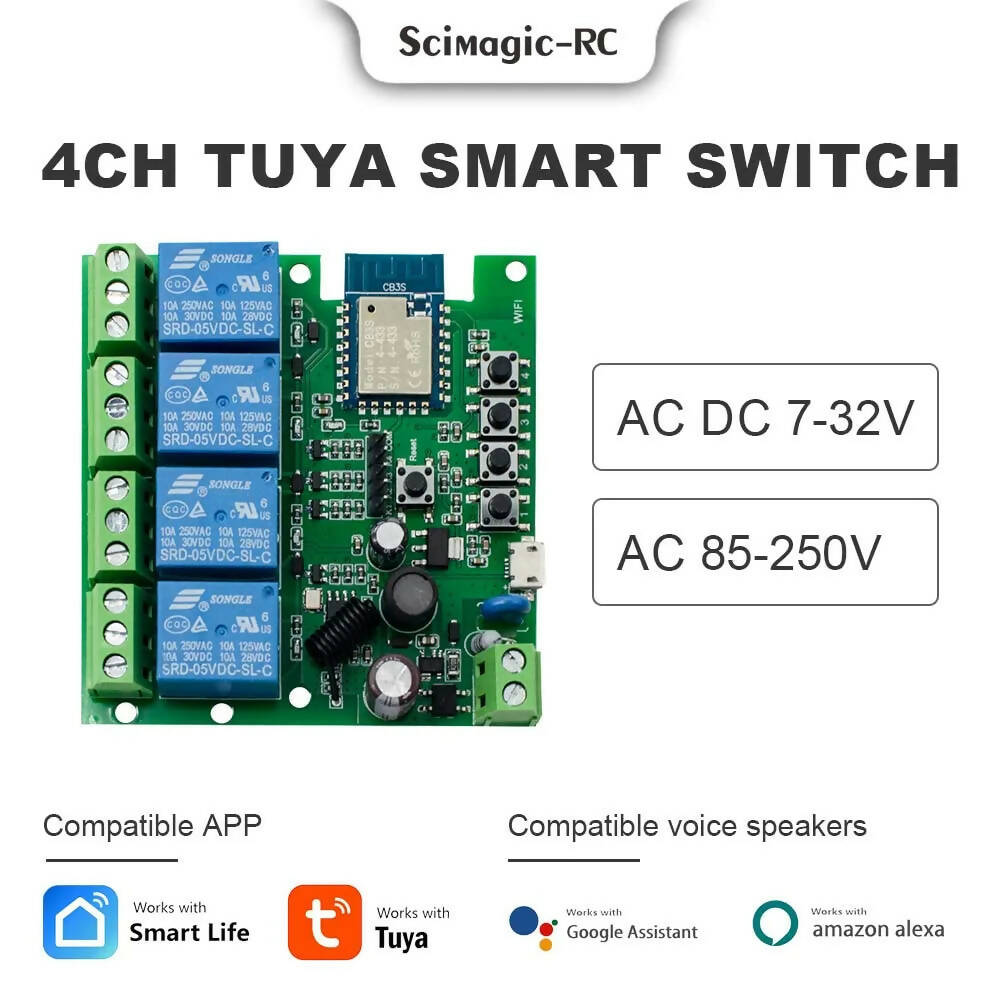

Name: 4CH Wifi RF Switch Relay module
Input voltage: USB 5V,AC 85-250V AC DC 7-32V
APP: Tuya Smart life
Voice Control: Google Assistant, Amazon Alexa
Wireless Protocol: WiFi 2.4GHz(NOT support 5GHz)
Max input current: 10A
Function feature: App Remote Control / RF Control / Voice Control
Time Type: Timer
Support phone system: andriod, iOS
Working mode: inching /self-locking /Interlocking
RF Battery: 12V 23A NOT INCLUDE
Name 1: smart home remote
Name 2: smart wifi relay
Name 3: google home module
Name 4: smart relay
Name 5: switch wifi relay
Name 6: smart relay wifi
Name 7: wifi switch control
Name 8: remote control relays
Name 9: tuya wifi switch
Name 10: wireless relay module
Name 11: wifi smart switch
Name 12: Tuya 220V switch
Brand Name: Scimagic-RC
Compatibility: All Compatible
Model Number: Tuya wifi switch Module
Camera Equipped: No
State of Assembly: Ready-to-Go
Communication method: WI-FI
Origin: Mainland China
Certification: CE
Choice: yes
semi_Choice: yes

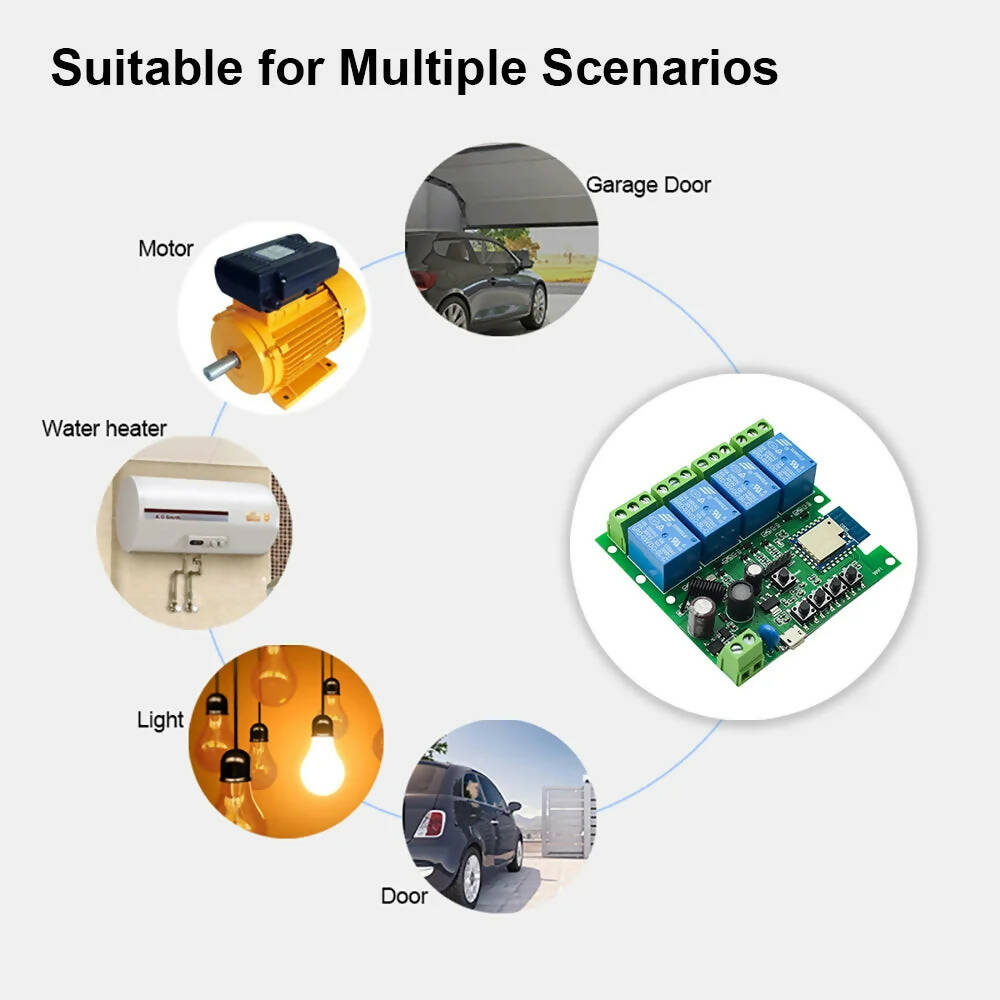

Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps.PC and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse
What can I use it for?

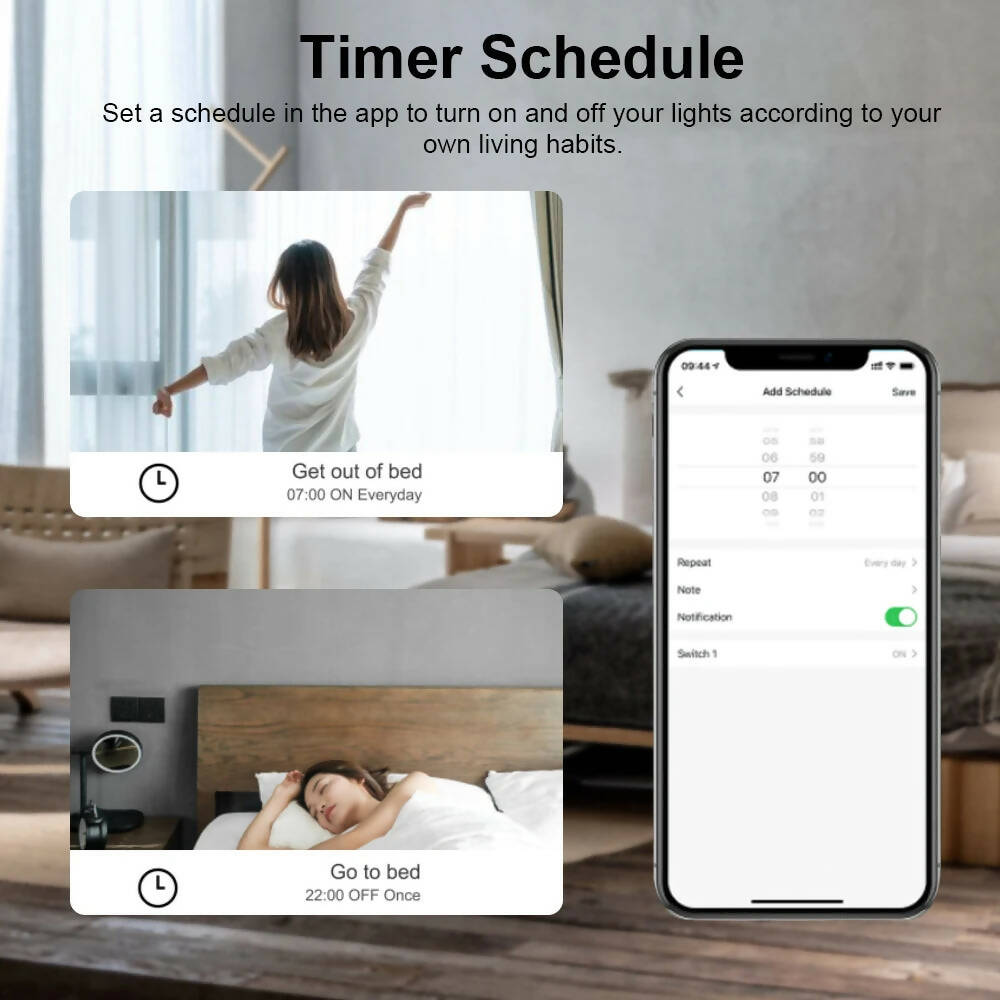

*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off
*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY

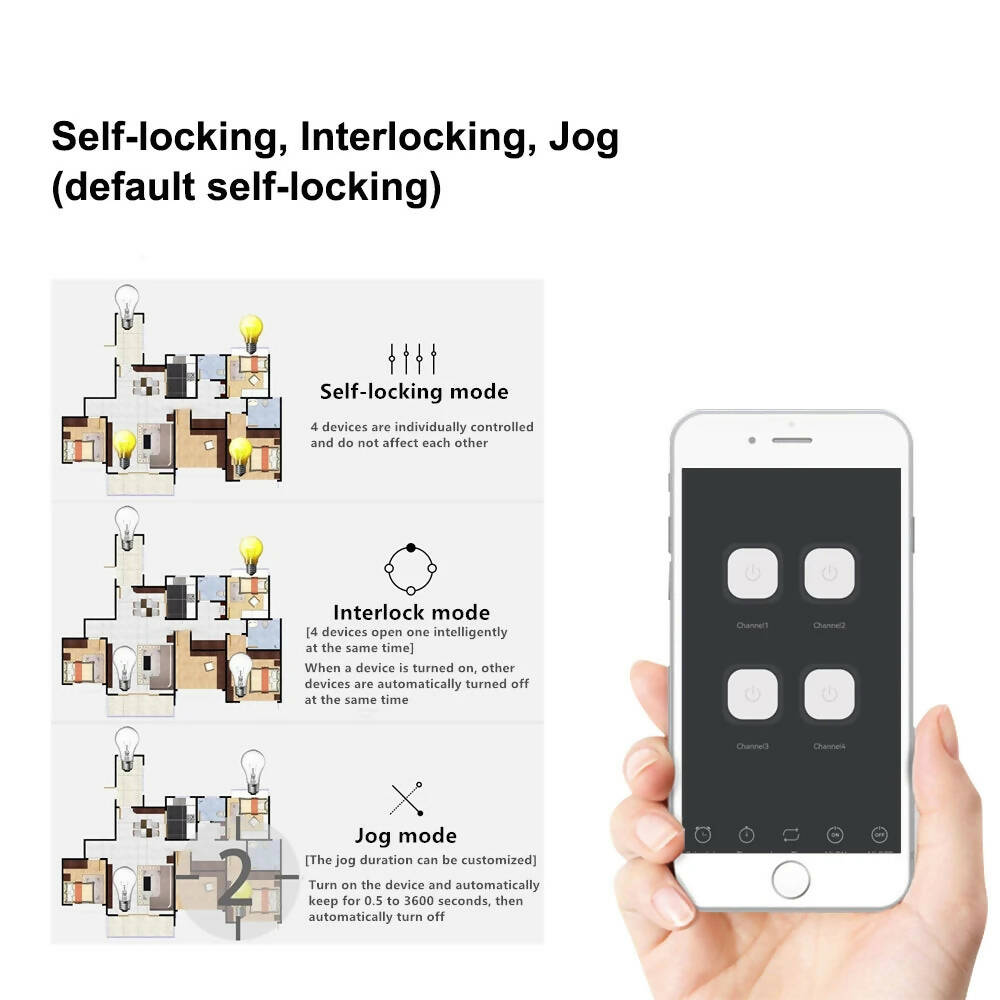

3 Working Modes
1.Self-locking : each channel could be switched on/off seperately.You can turn on/turn off all channel at the same time.
2.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
3.Inching mode : Switch on one channel,the channel will be automatically closed after 0.5seconds .Other channel is same as the channel.
If you need to change the mode,you need to press the mode button
Features:

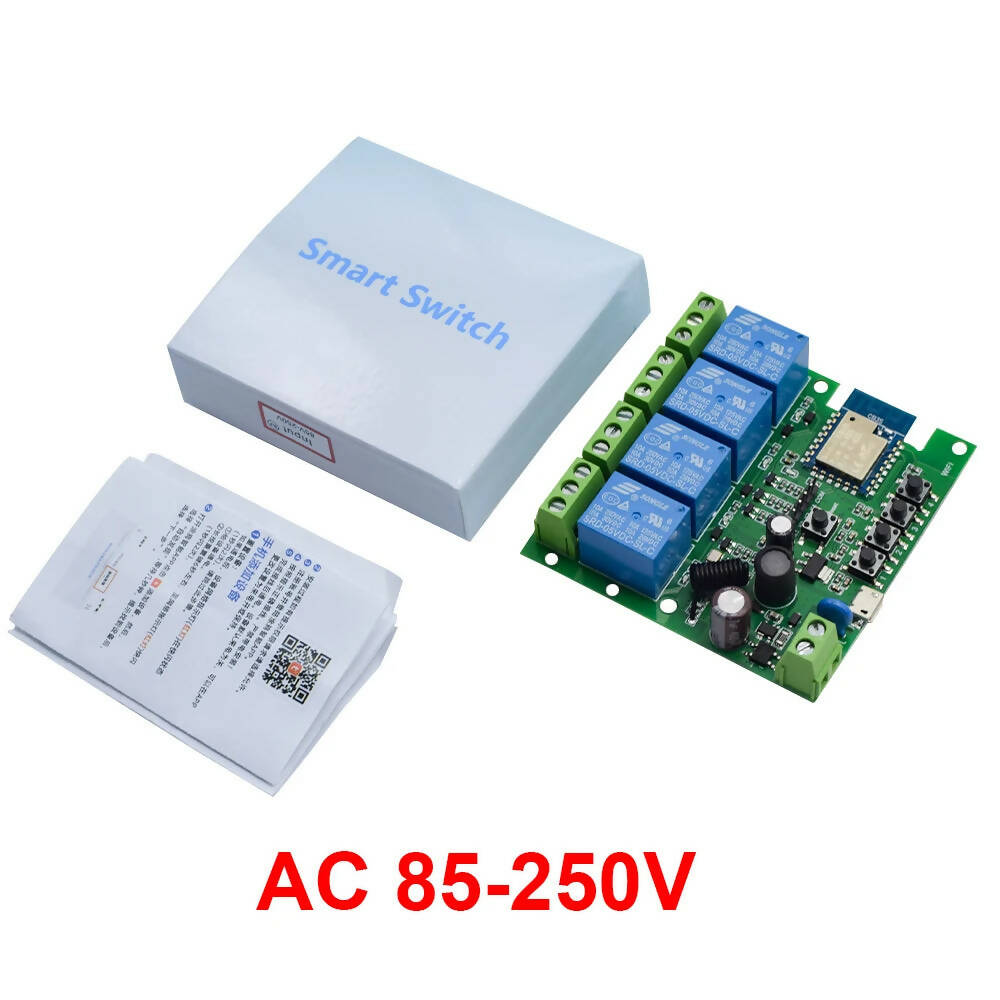

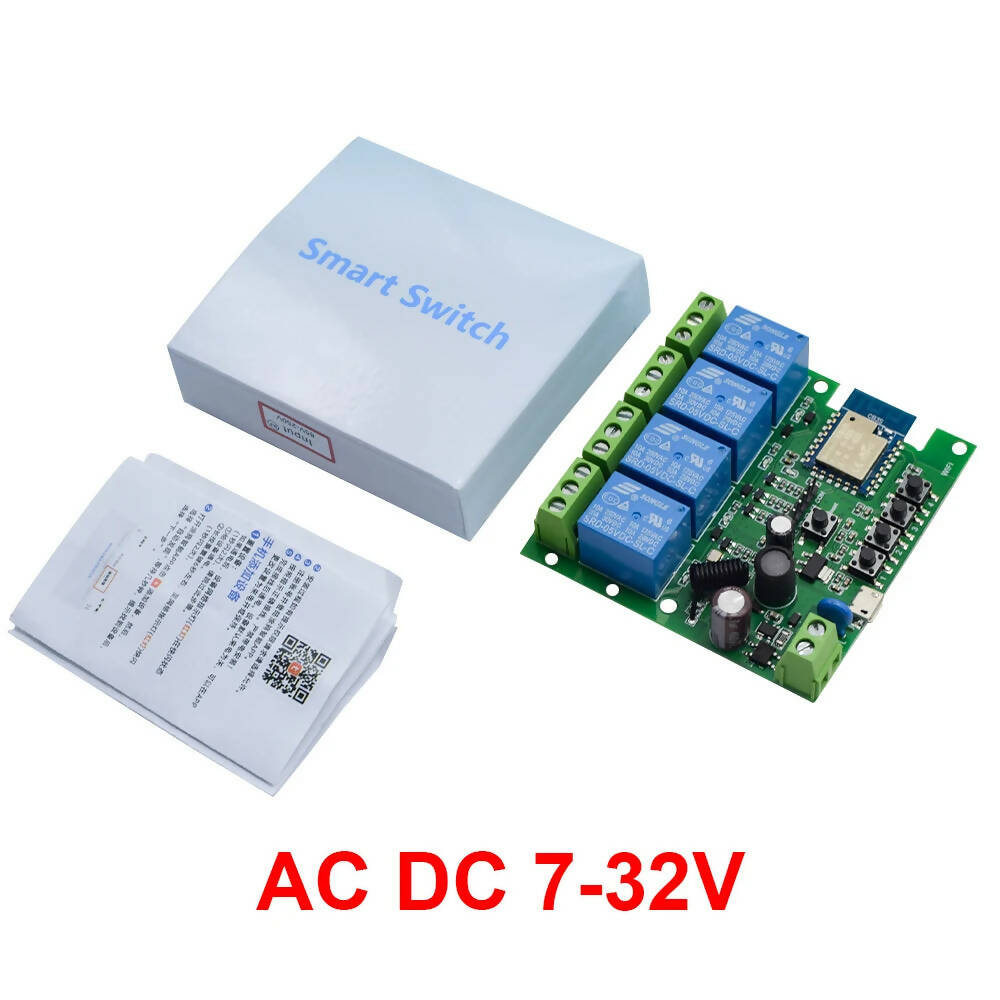

Input voltage : DC5V AC 85-250V AC DC 7-32V Micro USB 5V input.
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
Description:
NC NO COM Output:Passive Output(Dry contact)
Working frequency: 50-60Hz
Working temperature: -20-70℃
Wifi standards/ protocol :IEEE 802.11b/g/n, WIFI 2.4Ghz
Noted :
Your have the correct wif password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 0.5s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).
Include
Smart Switch
English manual
RF (Choose to buy)

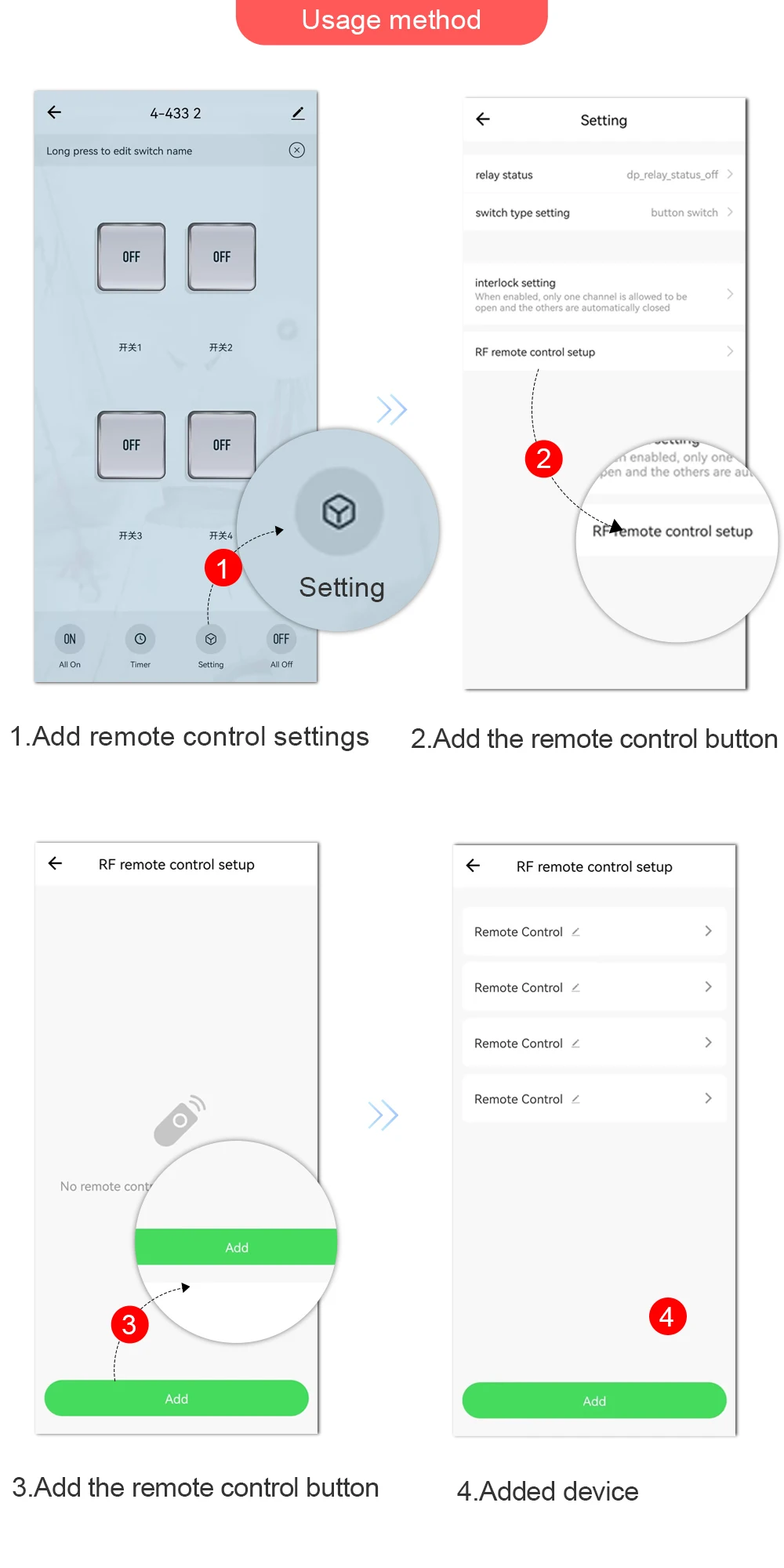

Adding Our Remote Control

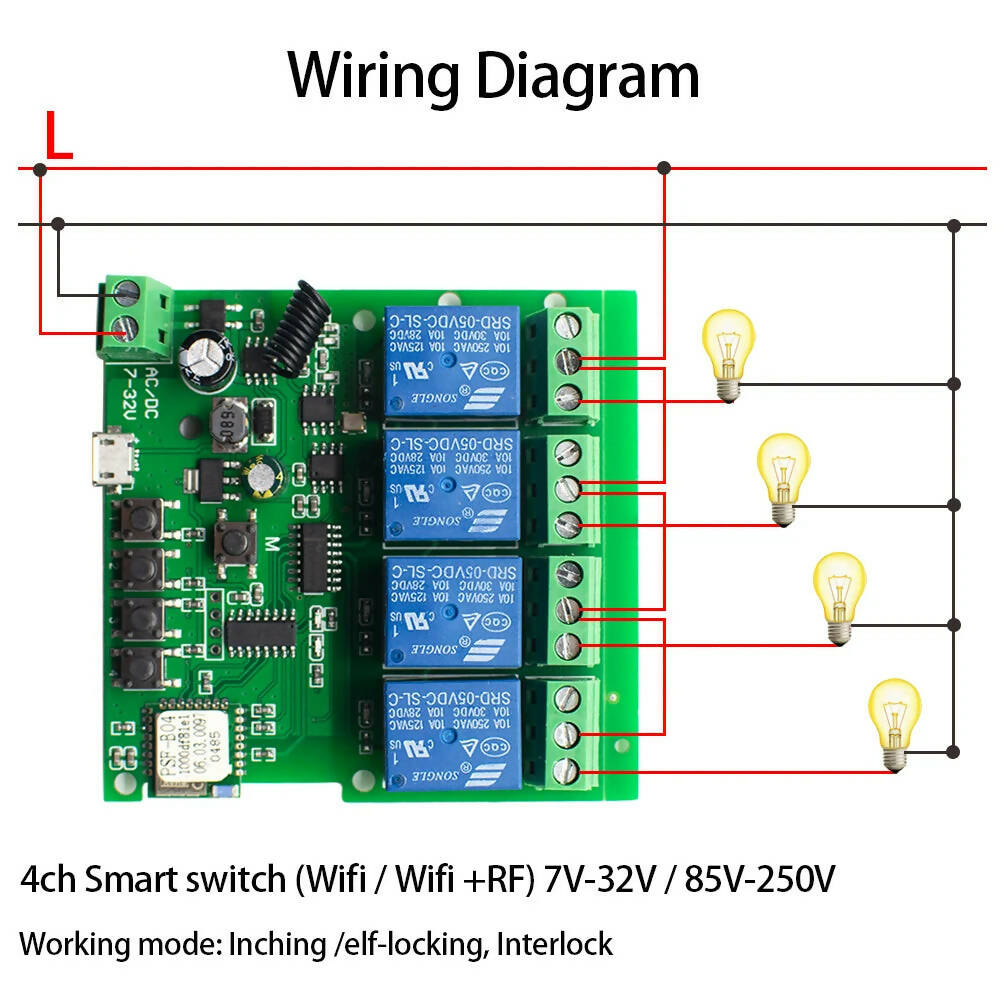

Wiring Diagram
Note: Only 1 Motor can run each time
