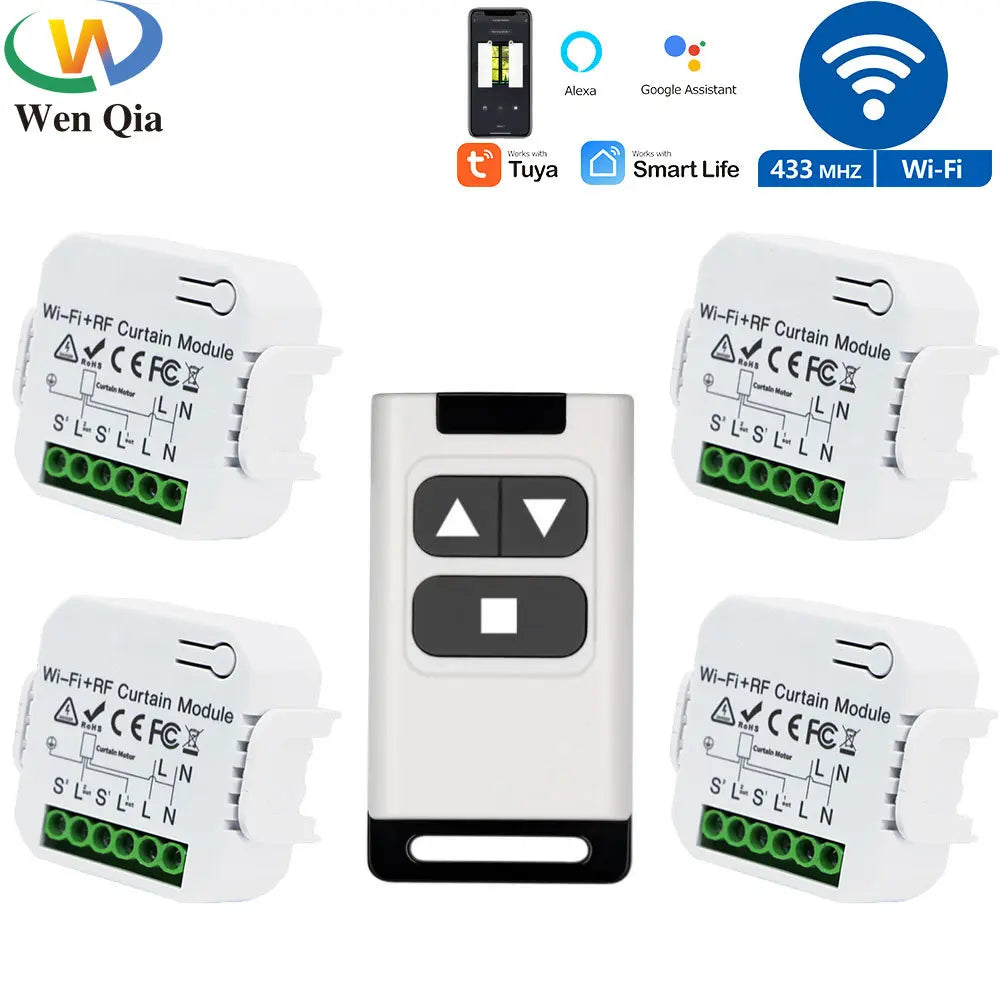

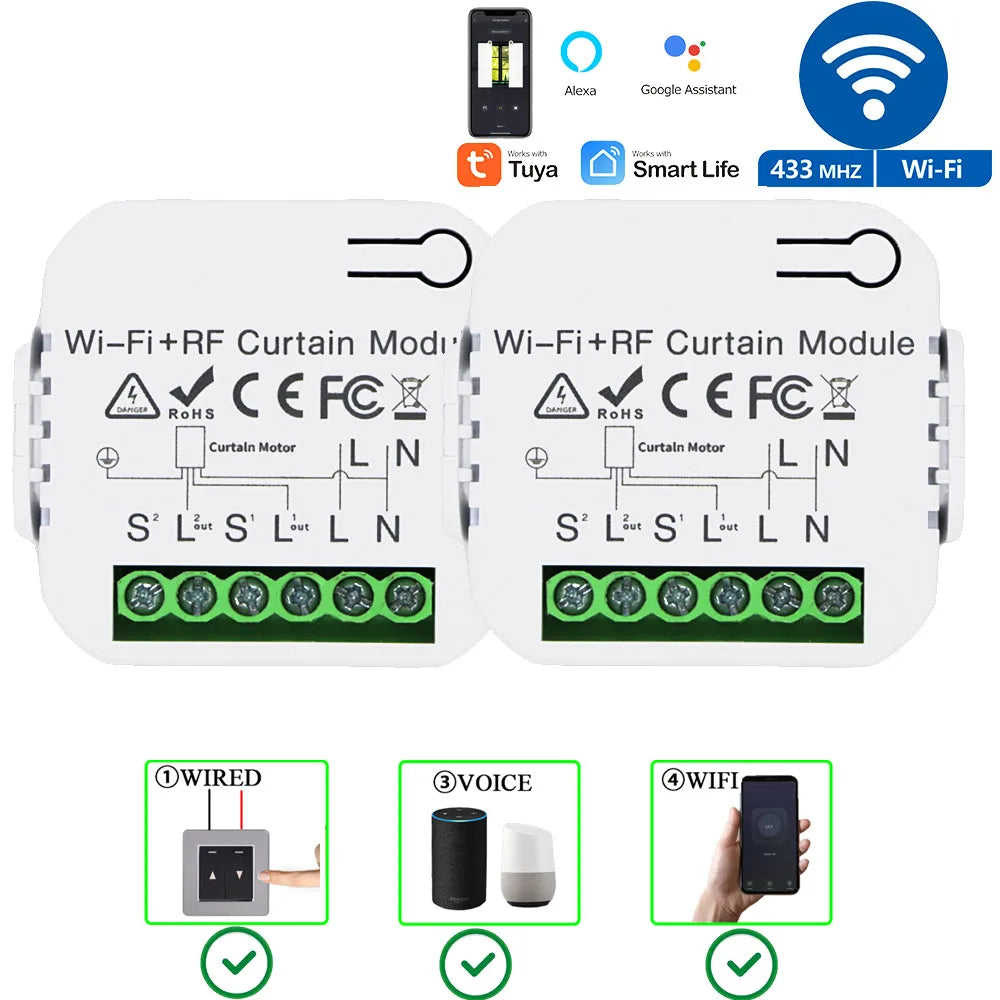

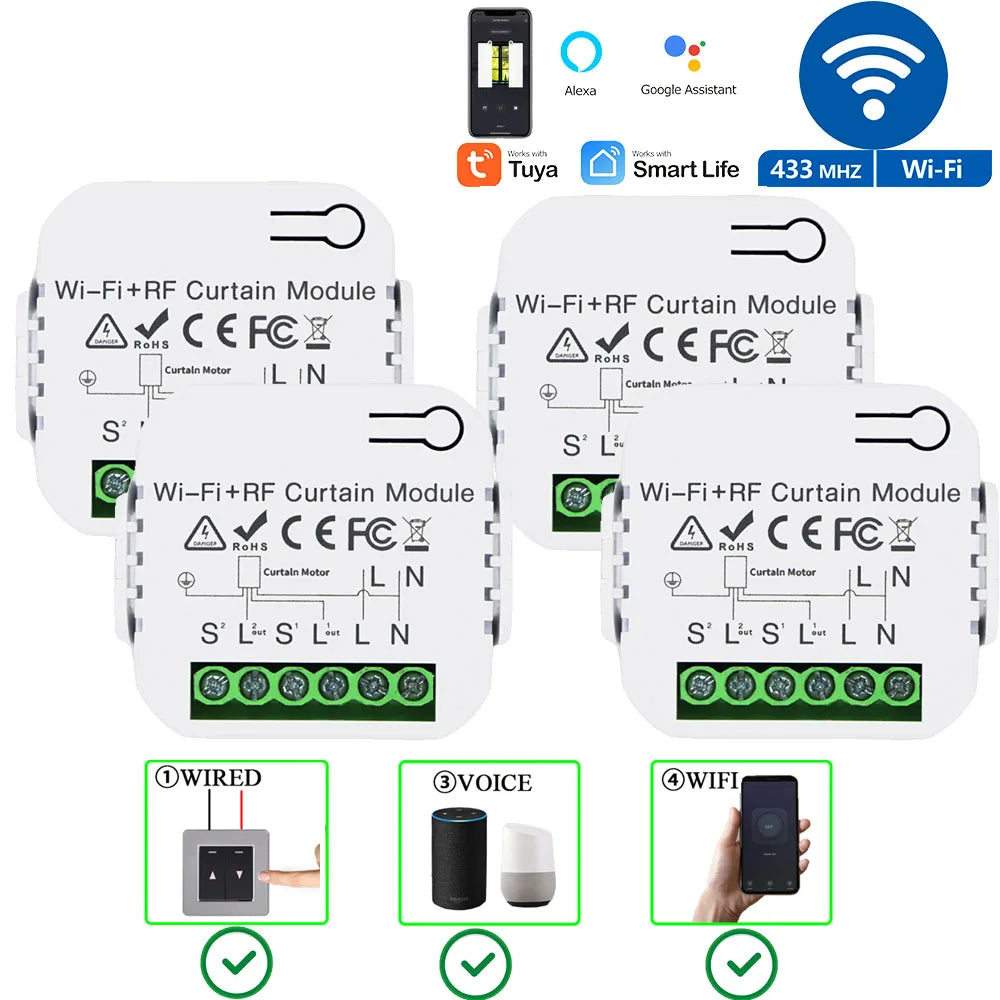

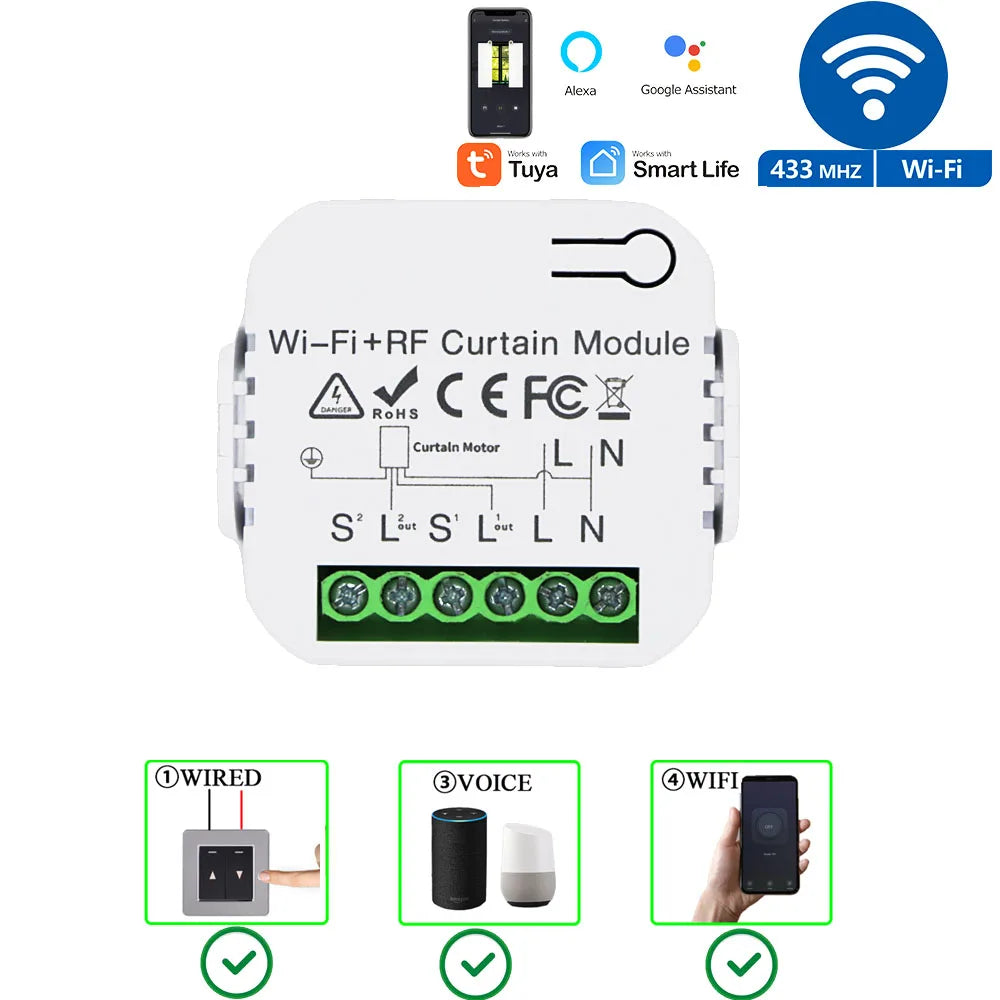

Tuya WiFi RF Smart Curtain Switch Smart Life Wireless Roller Shutter Remote Controller 110V 220V Timing Module,for Google/Alexa
Tuya WiFi RF Smart Curtain Switch Smart Life Wireless Roller Shutter Remote Controller 110V 220V Timing Module,for Google/Alexa
Couldn't load pickup availability
SPECIFICATIONS
Battery Included: Yes
Brand Name: WenQia
Certification: CE
Control method: WiFi+RF+Manual+Voice
Hign-concerned Chemical: None
Model Number: WQCurtain
Origin: Mainland China
RF range: Up to 50 m (in open space)
Receiver size: 40*40*22 mm
Remote battery: 1pcs 27A12V(Include)
Remote button: 3
Remote size: 68*38 mm
Rf frequency: 433MHz
Voltage: 110-240V
Wattage: 2000W
WiFi standard: 2.4GHz IEEE 802.11 b/g/n
Work with: Alexa/Google
is_customized: Yes
1.On your first using, please control your curtain up and down completely(100%) to let switch and APP remember your curtain longness.So you can open or close your curtain in 30% position(for example)
2.The smart curtain switchis wifi+rf and the remote is rf only. There are many options in this link, please select what you want according to the picture
3.The module and remote are a set product. We do not suggest buyer use other brand RF remote to control our smart curtain switch
4.Smart curtain switch module needs both L and N line
Why choose us

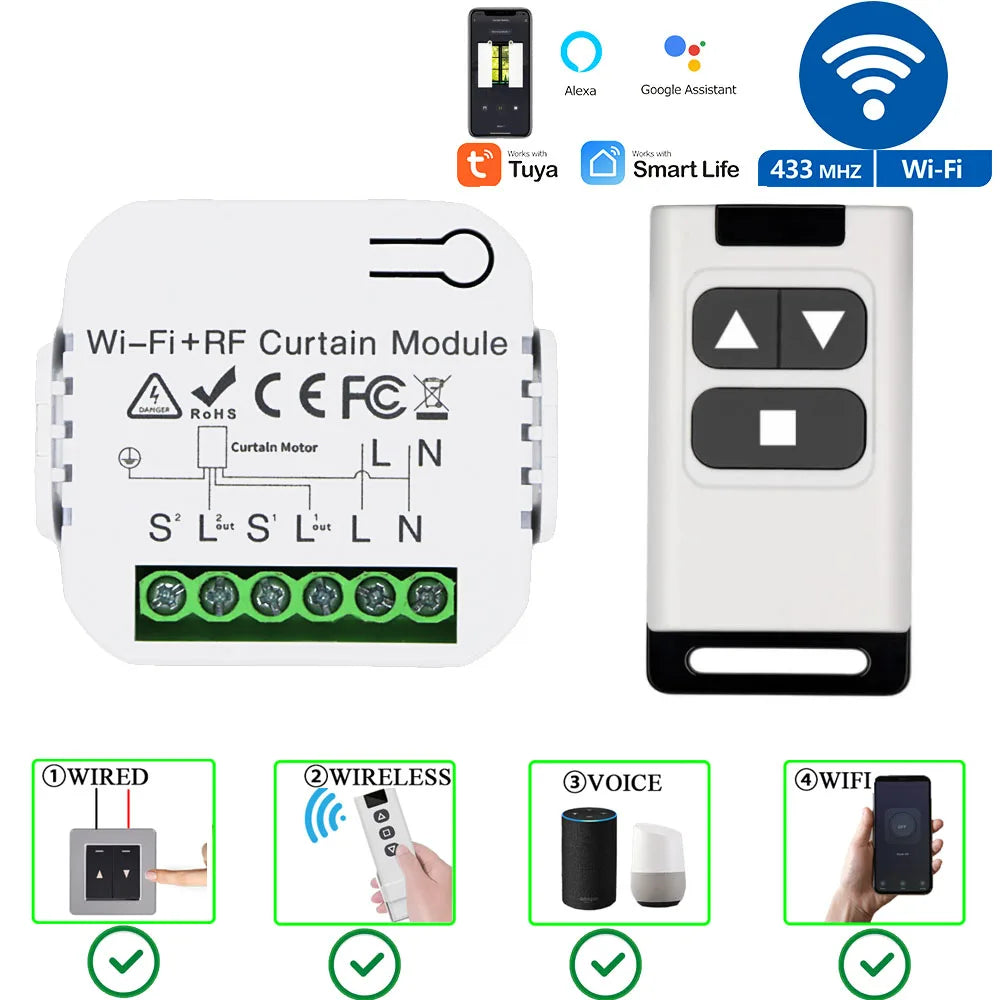

1. Four contorl method: WiFi+RF+Voice+Wired Wall Switch
2. Mini size: Can hide into wall switch junction box
3. Position can be customized: You can open the curtain in 30% position(for example)

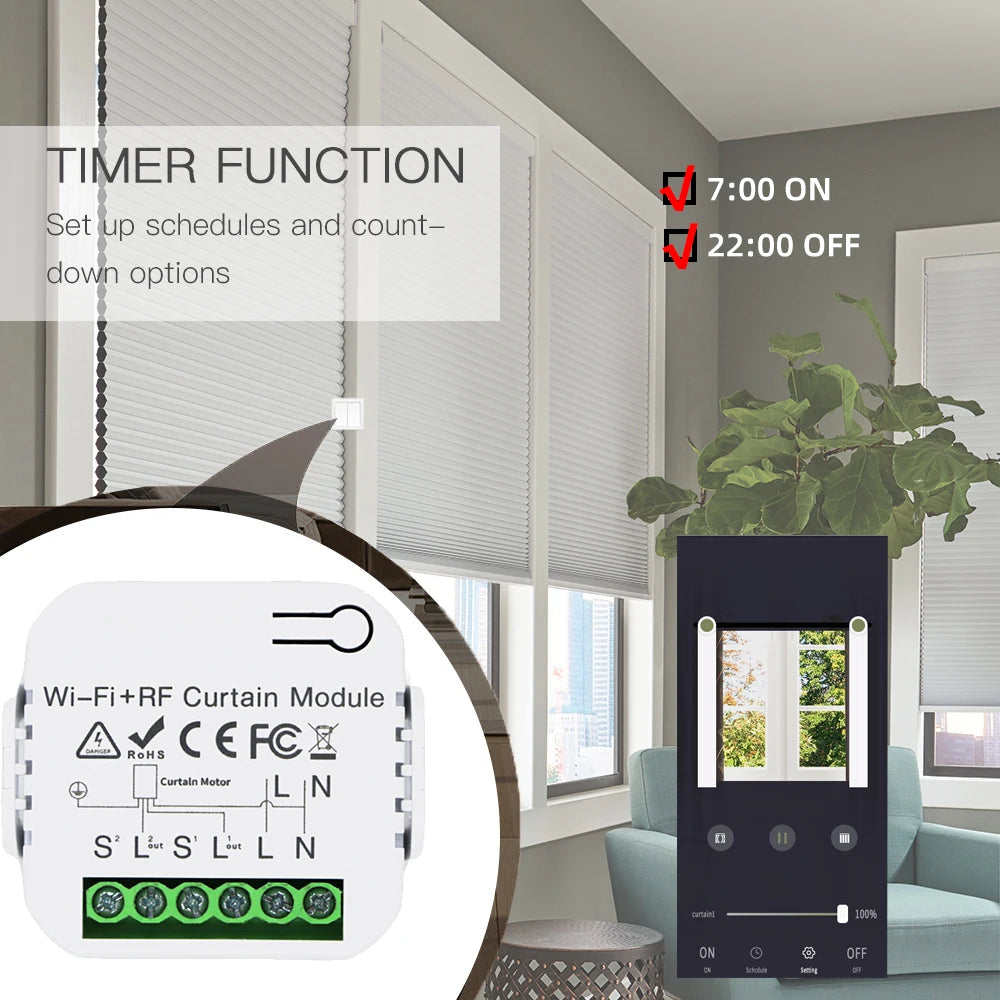

4. Timing module: set up schedule or plan to turn on off automatically
5. Stable RF signal: Up to 50m in open space
6. Group control and multi control: Share smart switch with your family numbers

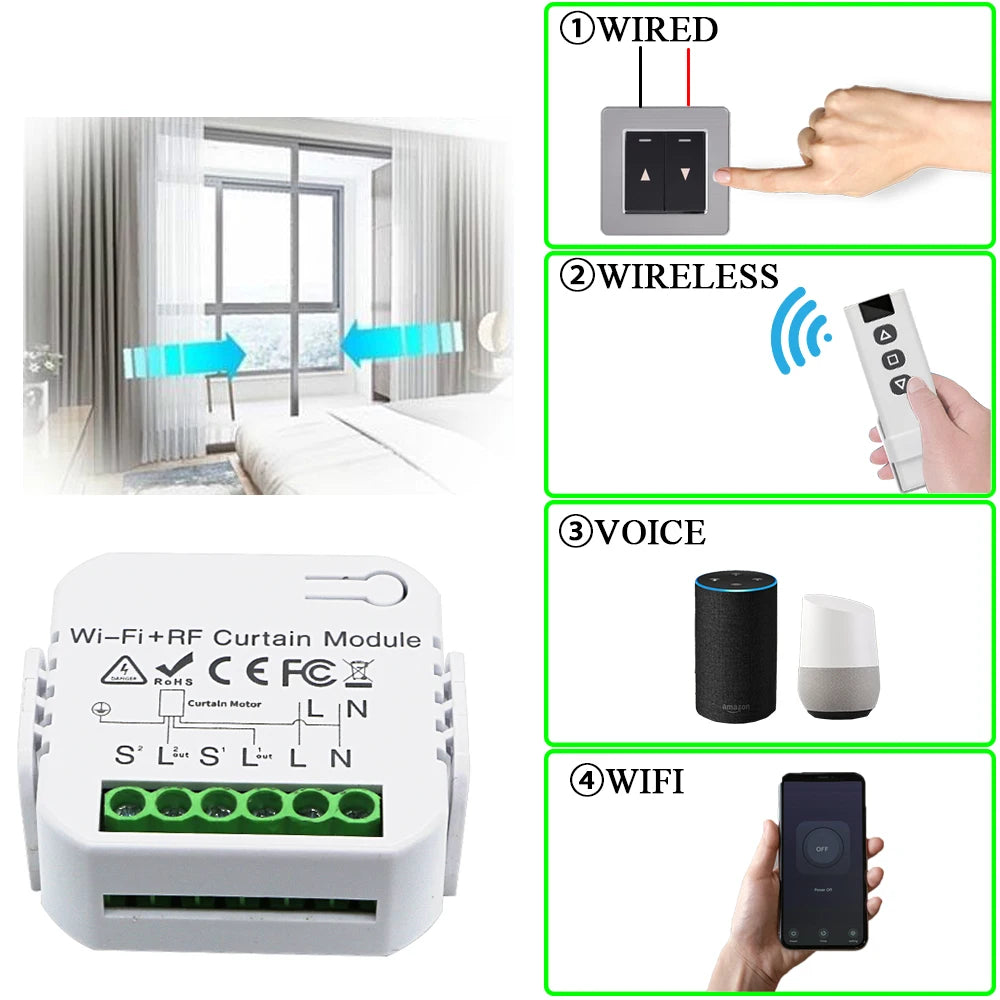

Four contorl method

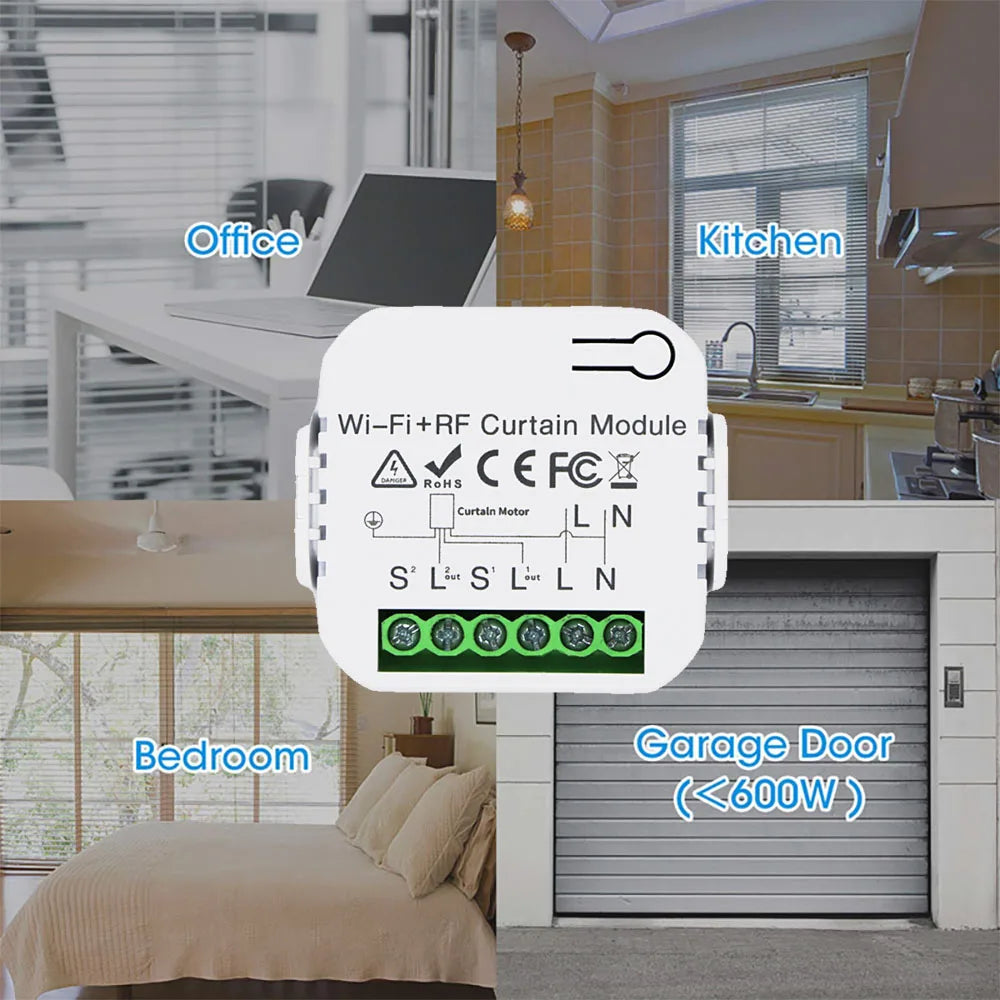

Product Application Area
Products can be used to control curtains,motors,roller shutters,blinds.
Products can used indoor, home ,office,market, factory,etc
Fmaily share, multi control
For wifi cotnrol: you can share this device to your home family numbers to achieve multi control
For rf control: one module can be controlled by almost 5 pcs remotes.You need to pair them one by one

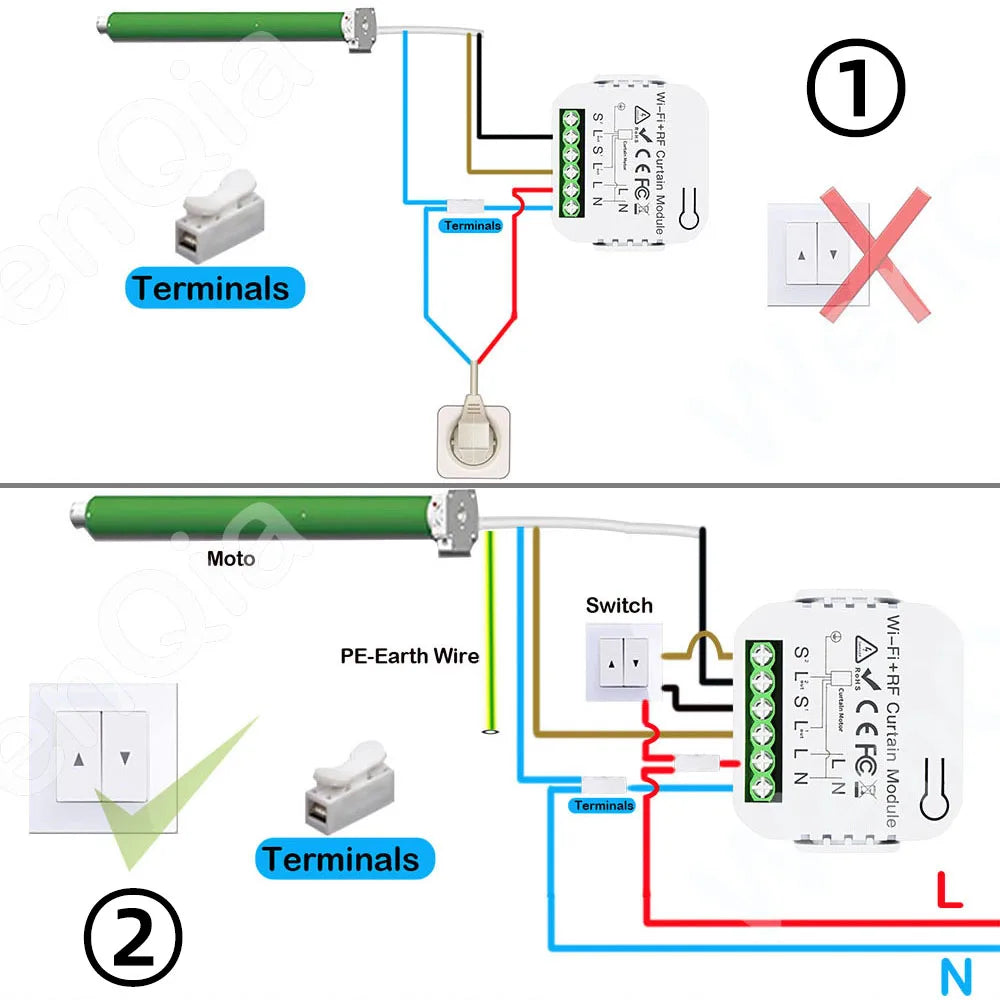

There are two connection ways depends on if you have a traditional wall switch or not.Please take a look on this picture

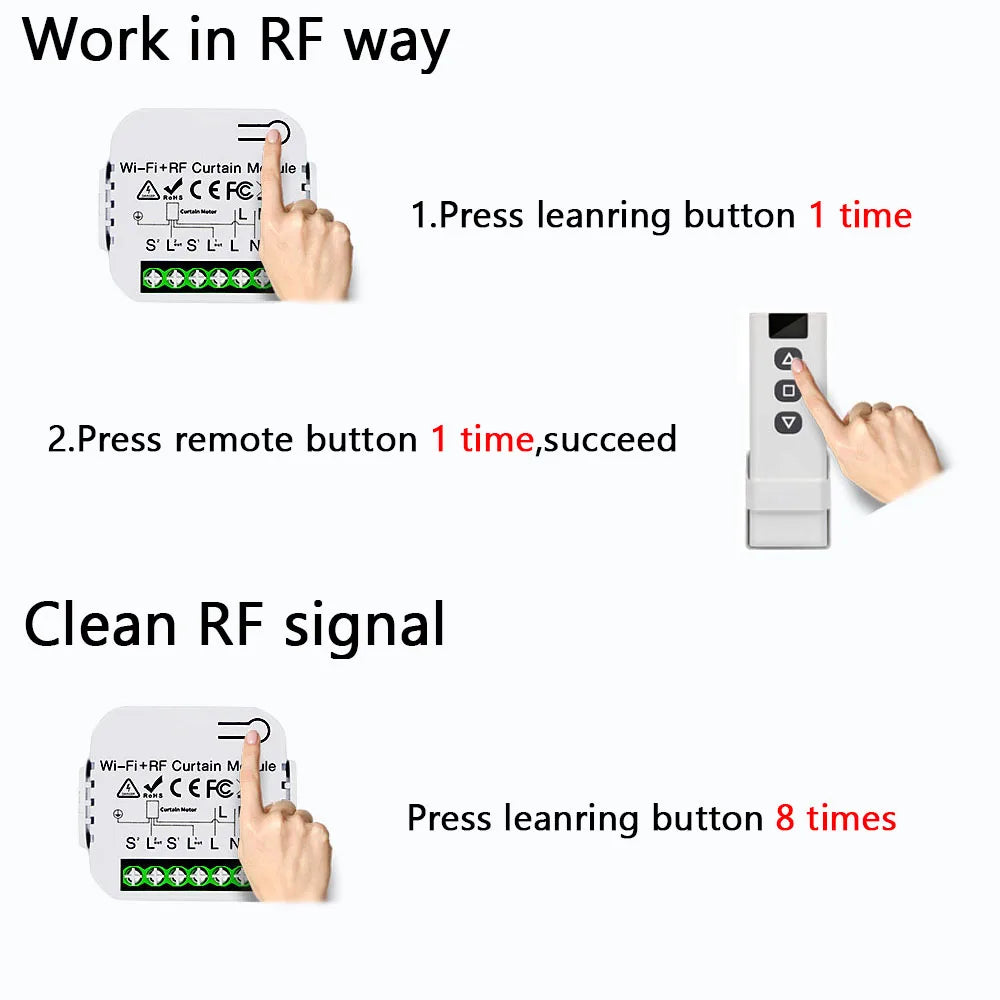

2.Work in RF way
1:Press and hold the learning button until the Led light flashes once;
2:Press UP remote button 1 time,Succeed.
How to clean RF data
Press learning button 8 times,wait for a moment,succeed

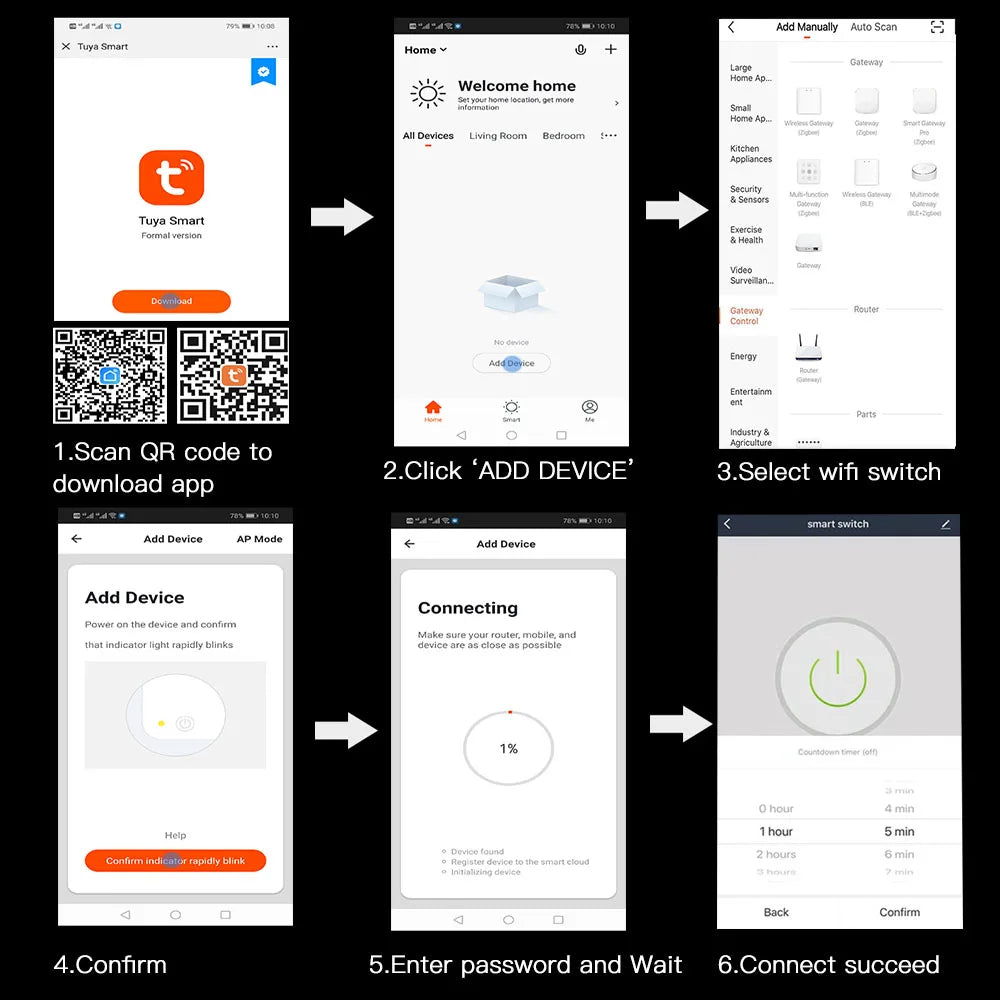

3.Work in WiFi
1: Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2: Press the button on switch until the indicator light flash. You can also hear a voice too.
3: Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.
4.Work in voice control
1. Modify device name so your Amazon Alexa can easily recognize the name. For Example: Living Room Lamp, Bedroom Light.
2. Use Alexa App or Computer to set up your Amazon Alexa.
3. Select 'Skills' and search for 'Smart Life' on Menu. Enable Skill and type in your login info to link the account
4. Ask Alexa to discover devices. Then you can control your devices by voice.
Product parameter
Input Voltage: AC 100V~240V
Size:45*45*20 mm
RF Frequency: 433MHz
WIFI: IEEE 802.11 b/g/n
Max current: 16Amp
Receiving Sensitivity: >97dbm
Color: White (Outside Shell)

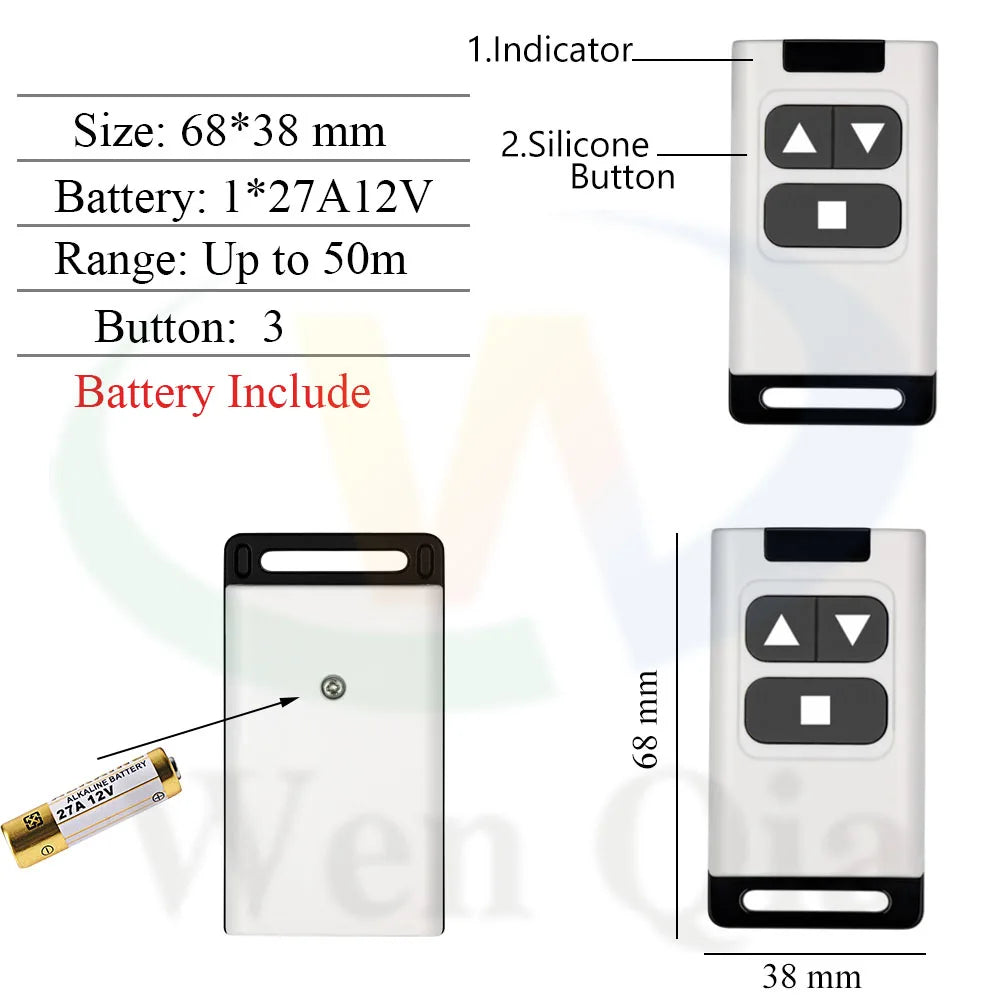

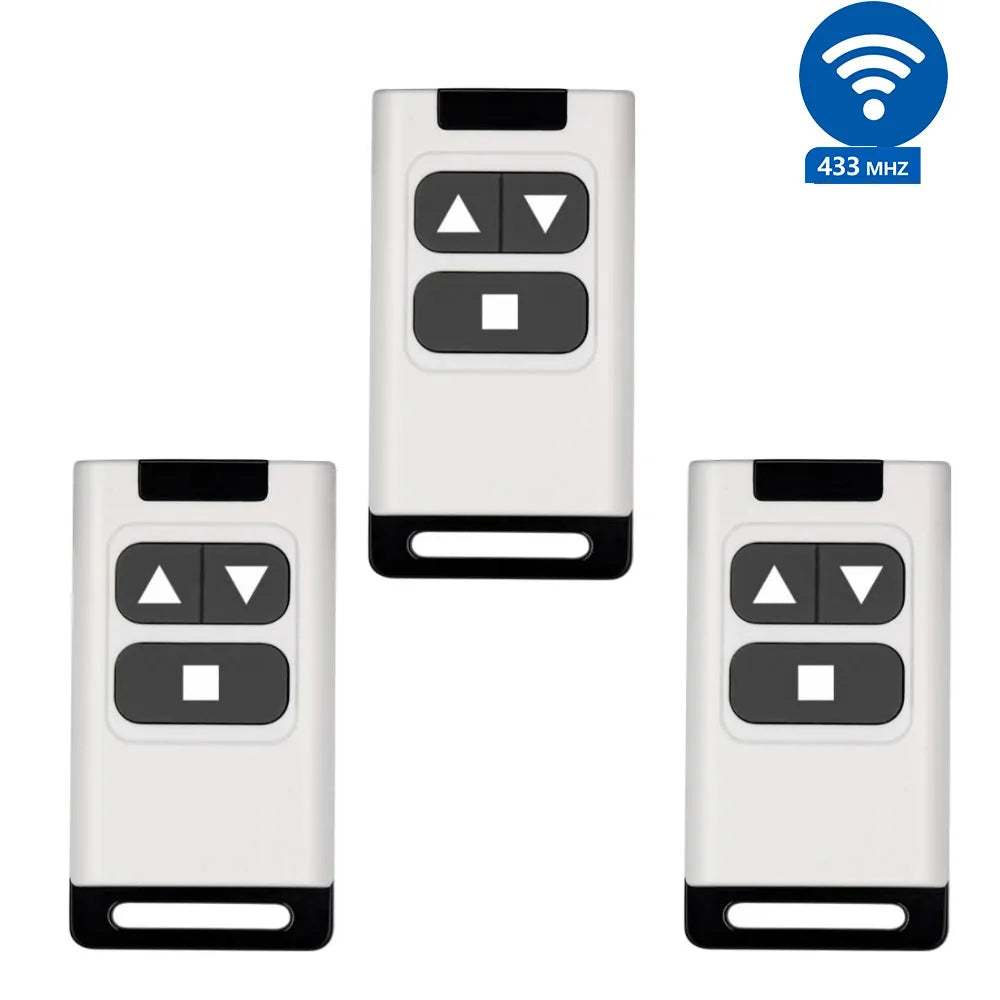

Remote
Size:68*38mm
Support encoding : 1527 Leaning code
Remote distance : up to 70 meters (theoretical distance)
Battery : 27A 12V(Battery include )
Screw: Include
Base: Include
About shipping
We usually ship the product out within 24 hours after you paid the order.If you want a fast shipping method,like dhl,fedex,ups,please let me know.
Questions and Answers
1.Can one module be controlled by multi remotes
Yes.Of course.One receiver can be controlled by almost 5 pcs remotes
2.Can i use my own remote to control this module? The frequency are same
Sorry,sir.The remote and module are custom.Please donot use them individually.Also, they cannot work with other brand products
3.Do you have a whole sales price?
Yes,please contact with us.We will give you the best price.
