SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Choice: yes

Description:

Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.

Only the black button version has metering function, while the blue button version does not have metering function！

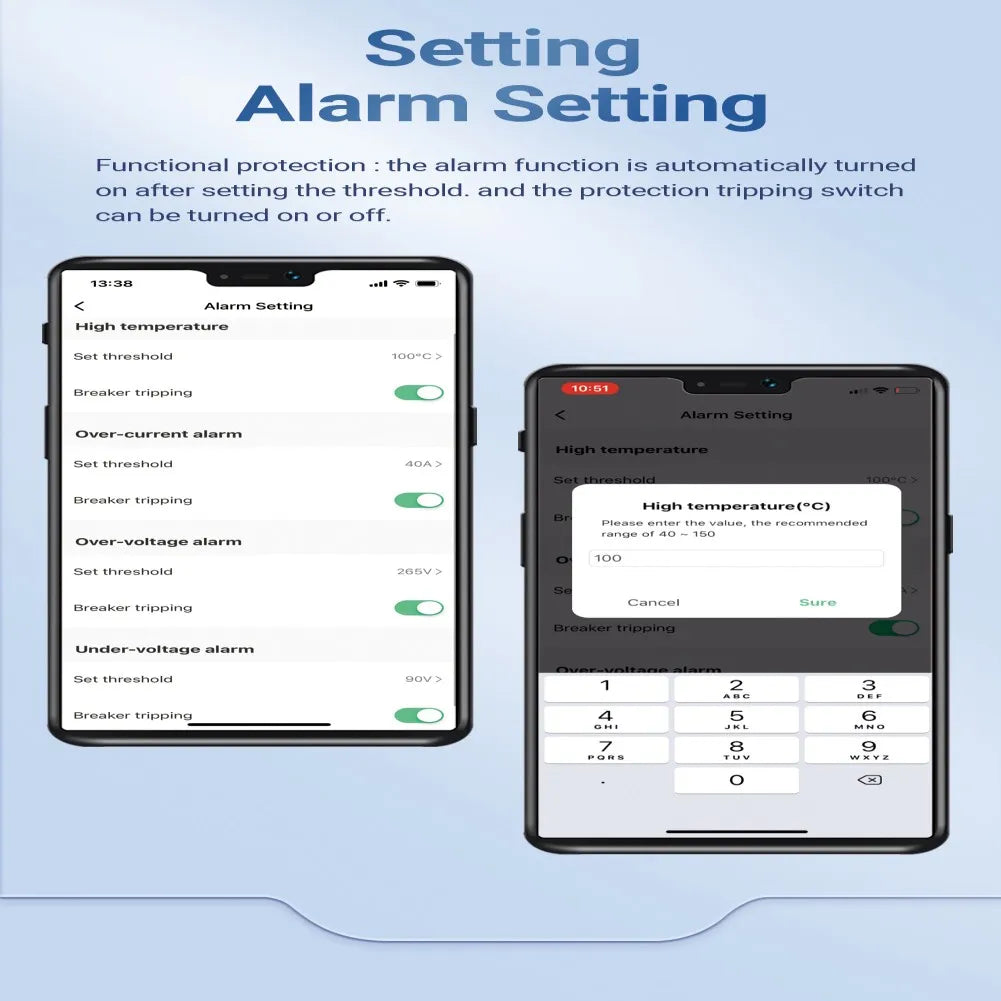

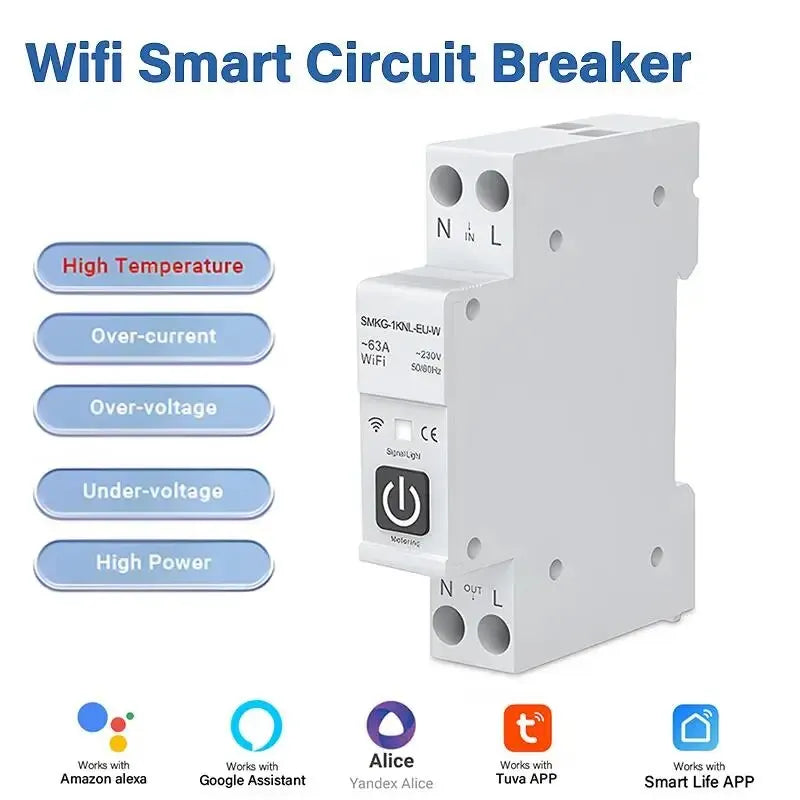

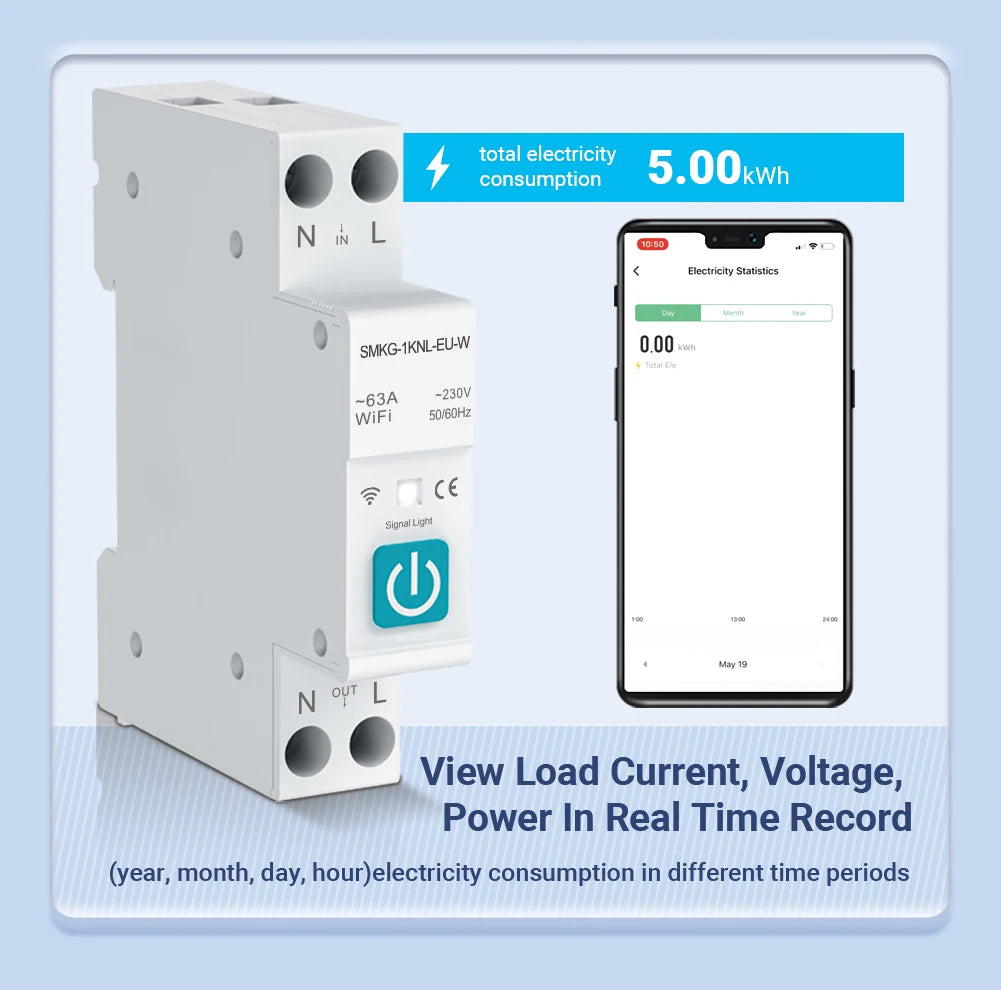

Featured functions with metering version (black button version): power metering, 1-63A adjustable, alarm&protection settings: temperature (40-150 ℃), overcurrent (1-63A), overvoltage (220-265V), undervoltage (76-240V), usage logs (switch logs, alarm logs, setting logs)

Features without metering version (blue button version): Alarm&Protection: Temperature (factory default of 80 ℃, cannot be set), usage log (switch log, setting log)

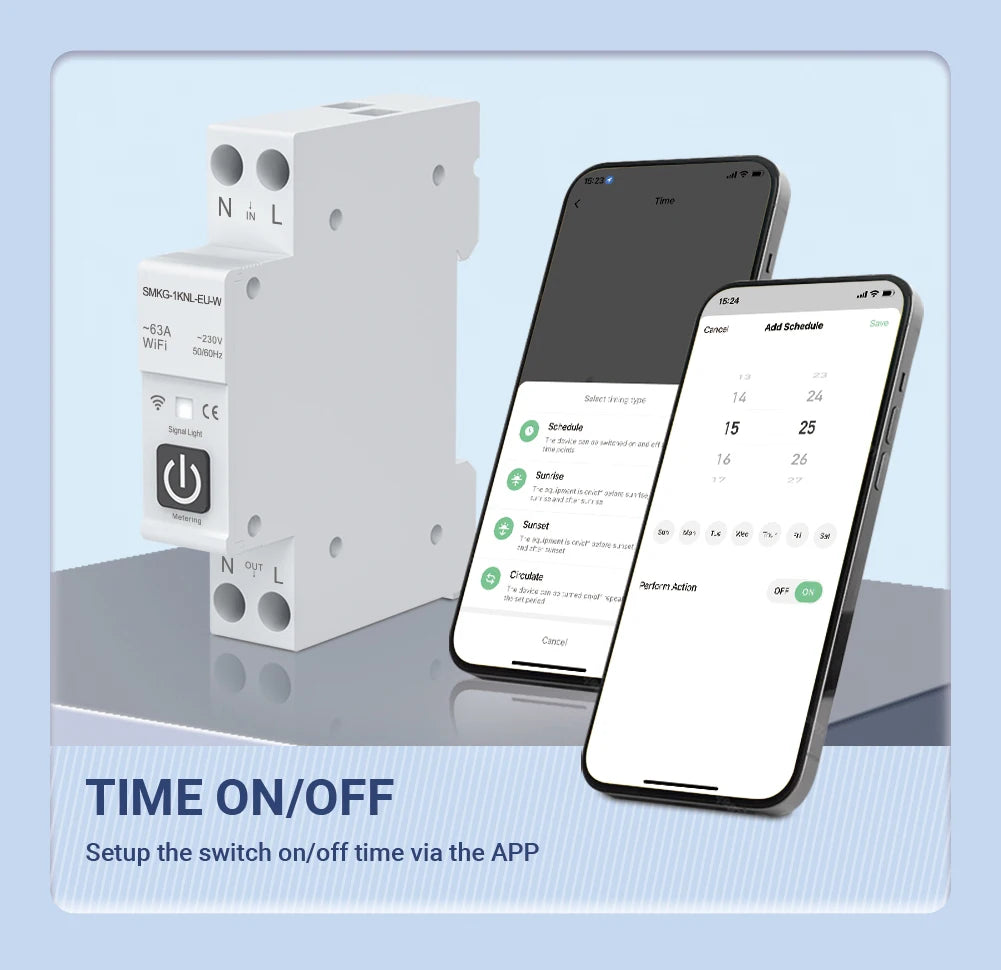

Basic functions: APP remote control, voice control, status feedback, timing, countdown, power outage memory, home sharing, group function

Specifications:

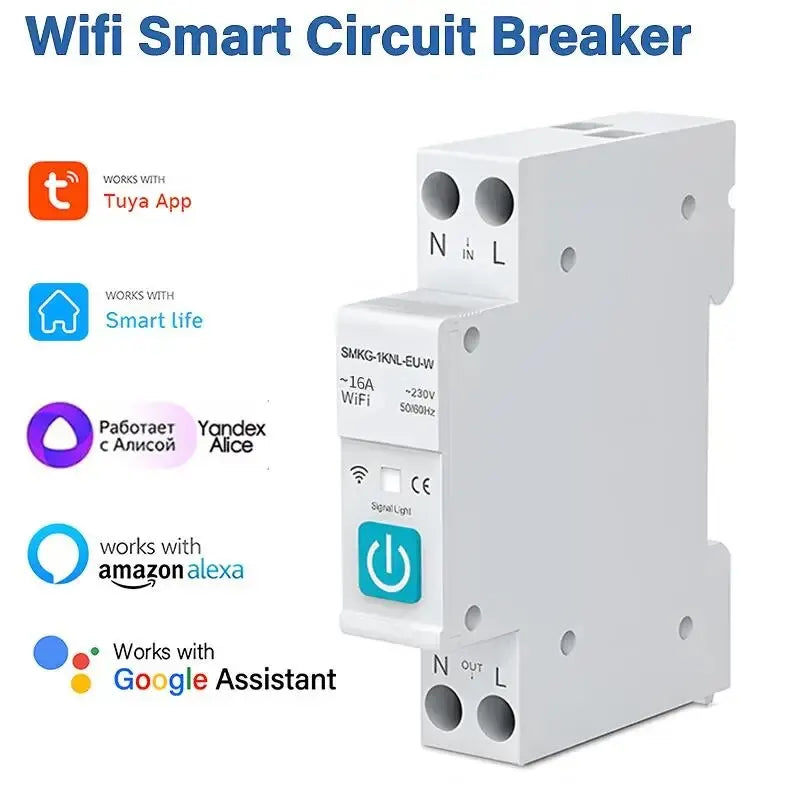

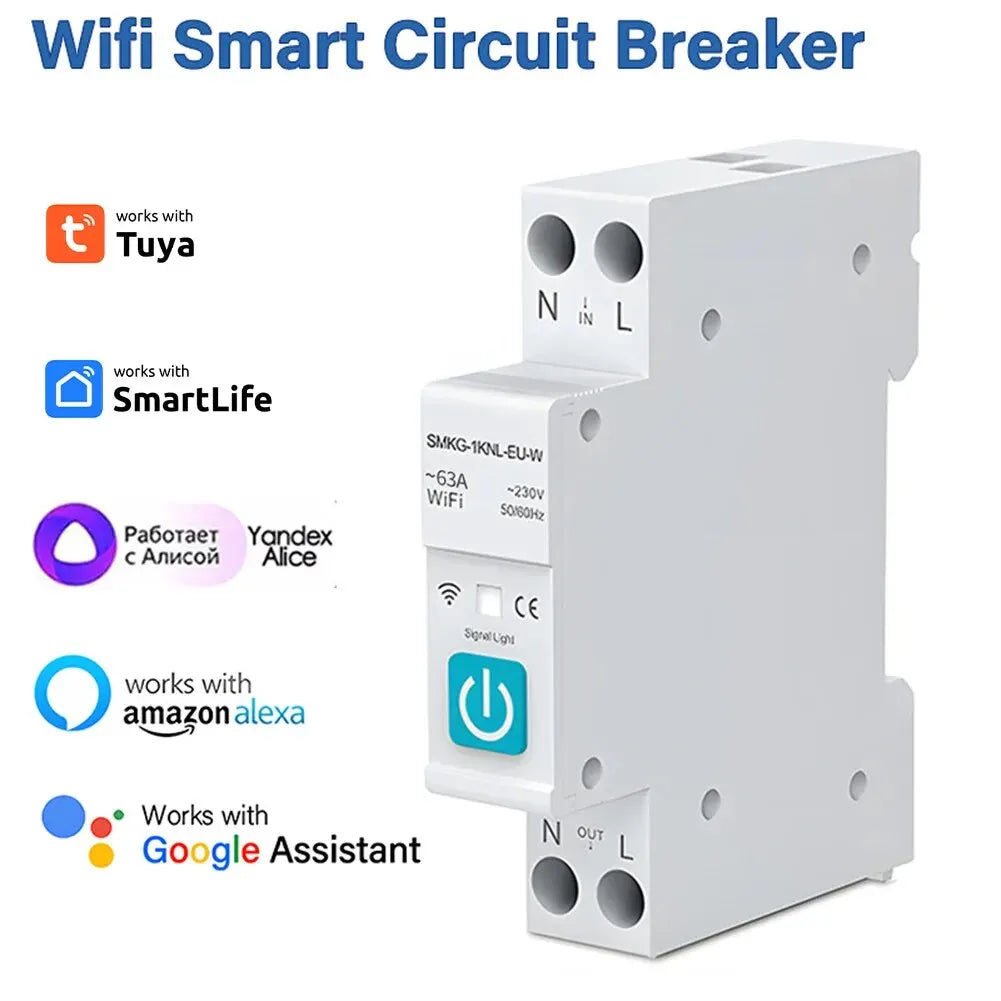

Type: ZN443384

Working voltage: 100-240V AC

Rated current: 10A/16A/25A/32A/40A/50A/63A/1-63A adjustable (optional)

Number of protection poles: 1P+N (N pole continuously open)

Control method: manual/remote APP

Communication protocol: WIFI

Wireless standard: Wi Fi IEEE802.11 b/g/n 2.4GHz

Security mechanism: WPA PSK/WPA2 PSK

APP platform: "smart life" APP, "tuya smart" APP

Support voice speakers: Amazon Alexa, Google Home, Yandex Alice, Tmall Genie, Xiaodu, etc

Package Included:

Intelligent circuit breaker * 1, instruction manual * 1

Notes:

Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.

Only the black button version has metering function, while the blue button version does not have metering function！
