SPECIFICATIONS

Brand Name: OLESED

Frames Per Second: 30

Origin: Mainland China

Chipset Manufacturer: Generalplus

Assembly Mode: Portable Recorder

APP Compatibility: Viidure

View angle: 170

Number Of Lenses: 3

Screen Ratio: 16:9

Interface: AV-In

Interface: USB2.0

Interface: Micro SD/TF

NightShot Function: YES

Power Source: Battery

Video Code: MJPG

Original Package: YES

Loop-Cycle Recording Feature: YES

Audio Recorded: YES

Camera Resolution: 1920x1080

Special Features: digital zoom

Special Features: motion detection

Special Features: sd/mmc card

Special Features: Anti Surge Voltage Impact

Special Features: Anti Fog

Special Features: Anti Vibration

Special Features: Real Time Surveillance

Special Features: Automatic White Balance

Special Features: Wide Dynamic Range

Special Features: wifi function

Special Features: Parking Monitor

Special Features: 3D DNR

Built-in Screen: YES

Video Format: AVI

Touch Screen: no

Item Type: Car DVR

GPS logger: none

Battery: built-in

Maximum Video Frame Rate: 30

Memory Card Required Reding Speed: Class 10

OSD Language: Arabic

OSD Language: Chinese (Simplified)

OSD Language: English

OSD Language: FRENCH

OSD Language: german

OSD Language: Italian

OSD Language: KOREAN

OSD Language: Portuguese

OSD Language: Russian

OSD Language: Spanish

Pixels: 1200Mega

Rear Camera: YES

Display: IPS

Max External Memory: 128G

Choice: yes

About Formatting The Memory Card:

When installing a memory card for the first time, be sure to format the memory card on the DVR. After formatting, the DVR can correctly match the memory card.

Formatting Steps:

 After installing the memory card, Long press the "M" key to enter the DVR menu, find the format option, and click to format the memory card (Important: Formatting the memory card on the computer is an incorrect operation. Please be sure to format the memory card on the DVR's menu option.)

About WIFI Connection:

Before connecting to the DVR on the phone, it is necessary to install the WIFI connection app "Viidure APP" in advance.You can search for "Viidure" installation in the Apple App Store or Google App Market.

Steps:
(1) In standby mode, long press the "M" key to enter the DVR menu and enter the WIFl setting menu;
(2)In the wifi menu of the DVR, check to obtain the wifi SSID name and password;

(3)Open the "Viidure" APP on your phone, enter the configuration mode, turn on the wifi function of the phone, follow the prompts to find the SSID wifi signal of the DVR and enter the password to connect;
(4)After successful configuration, you can connect and operate the DVR through the "Viidure" APP.

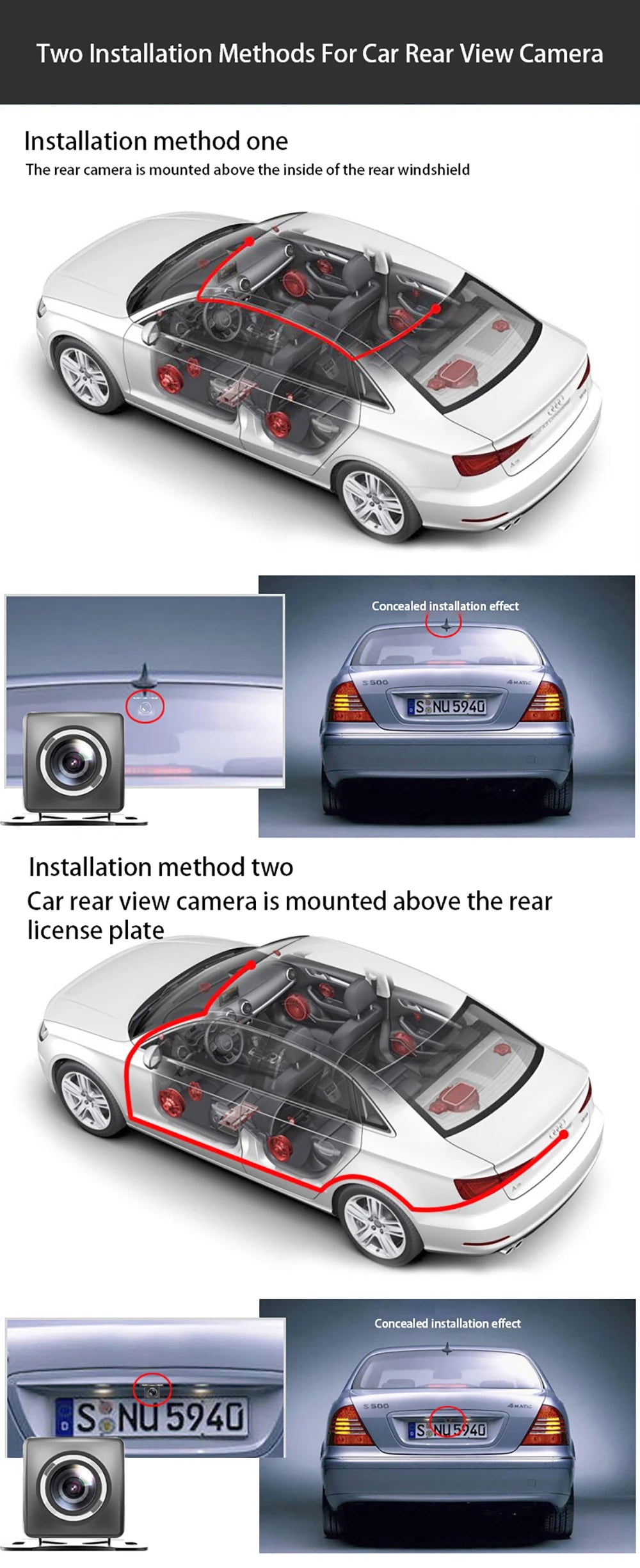

About The Reversing Assist Function:

If the kit you ordered includes a rearview camera and you need to implement the reversing assist function, you need to connect the red signal wire of the rearview camera to the car's reversing light (the light will come on when reversing). If you don't need the reverse assist function, just disconnect the red signal wire and leave it unconnected.

About 24-Hour Parking Monitoring:
If you need the 24 hour parking monitoring function, you can order the corresponding Buck Line accessories to replace the car charger.Through Buck Line, the DVR power can be obtained directly from the car battery or car ACC, so that the DVR can maintain normal recording work even when the car is turned off.(Since different car models have different battery interfaces or ACC interfaces, it is not recommended to install it by yourself. It is recommended to find a professional to install the Buck Line.)

About resetting and restarting:

If the DVR crashes or fails to power on due to improper operation, you can restore its working state using the reset button. There is a small hole on the side of the DVR marked with an "R" icon. Use a tool like a toothpick to press and hold this hole for 3 seconds, and the DVR will return to normal working condition.

WIFI Car DVR 3 Channel HD 1080P WIFI Inside Vehicle Dash Cam Three Way Camera DVRs Recorder Video Registrator Mini Dashcam Camcorder

Product Specifications:
