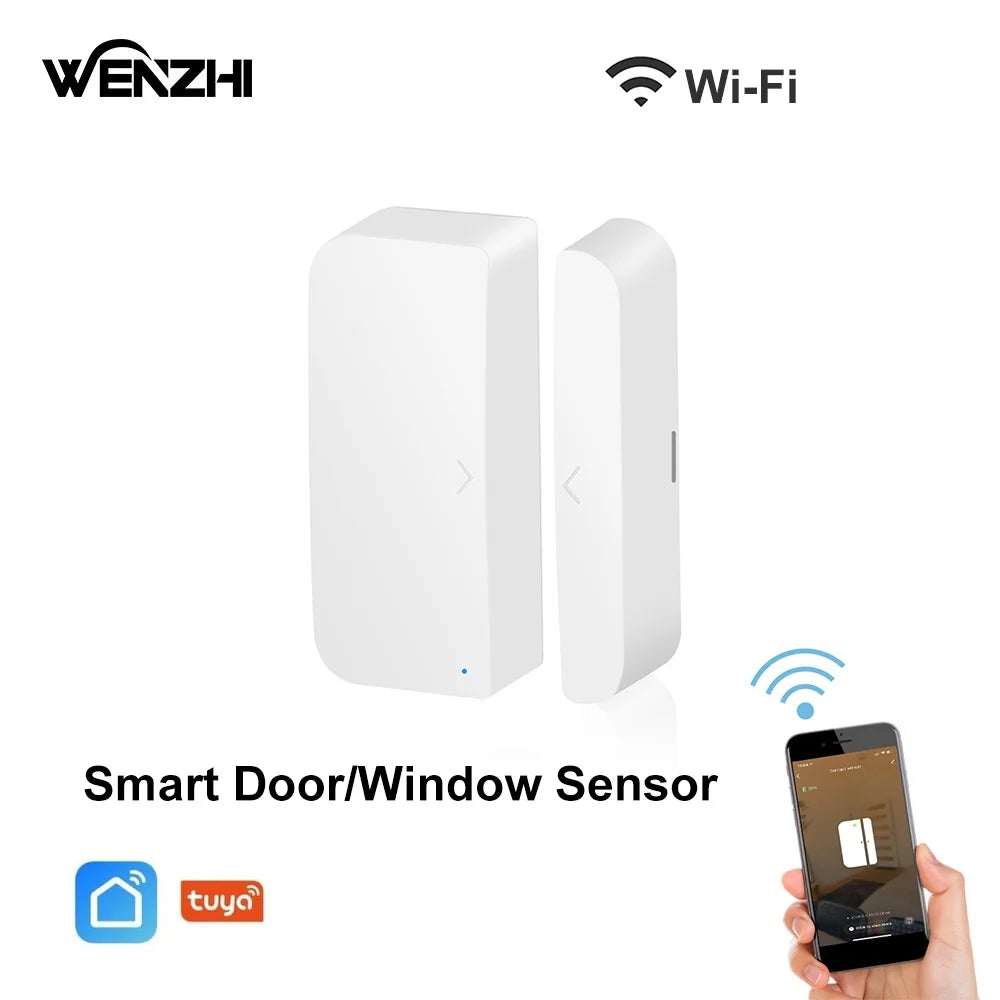

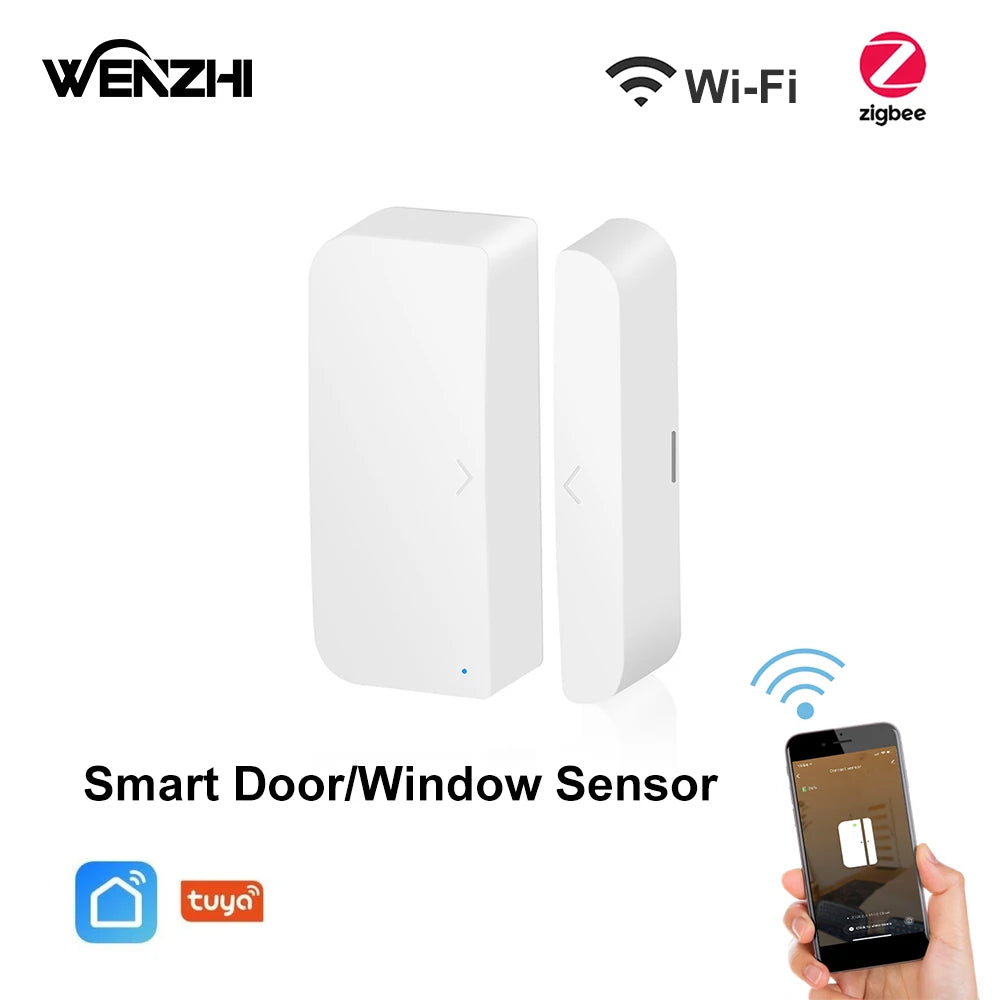

Smart Door/Window Sensor

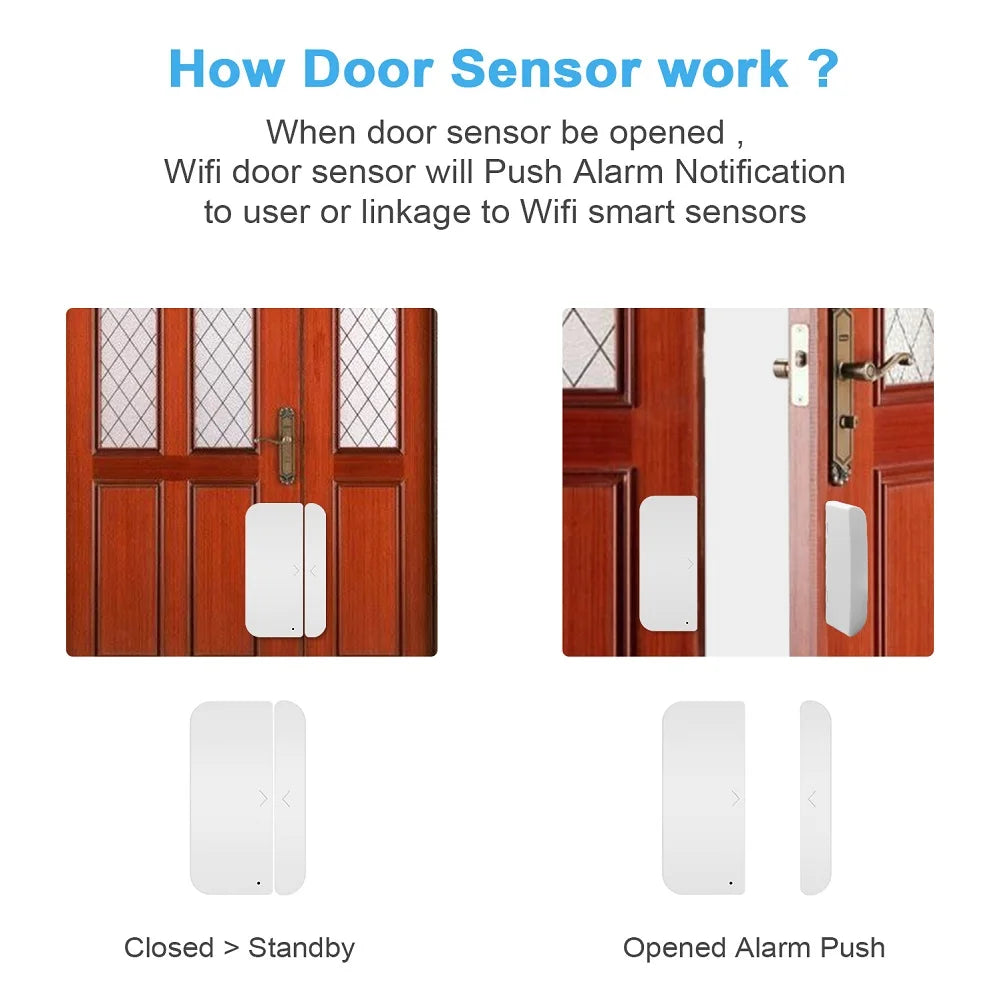

The door and window magnetic sensor detects the opening or closing of doors and windows, and combines with other intelligent devices to realize intelligent application scenarios.

Main features

1.Enjoy Your Smart Life

When you leave home, it will push notification message to you when the door/window opens or closes, so you can discover the intruder in time. Furthermore, you could share the device to your family members and track the history of sensor activities.

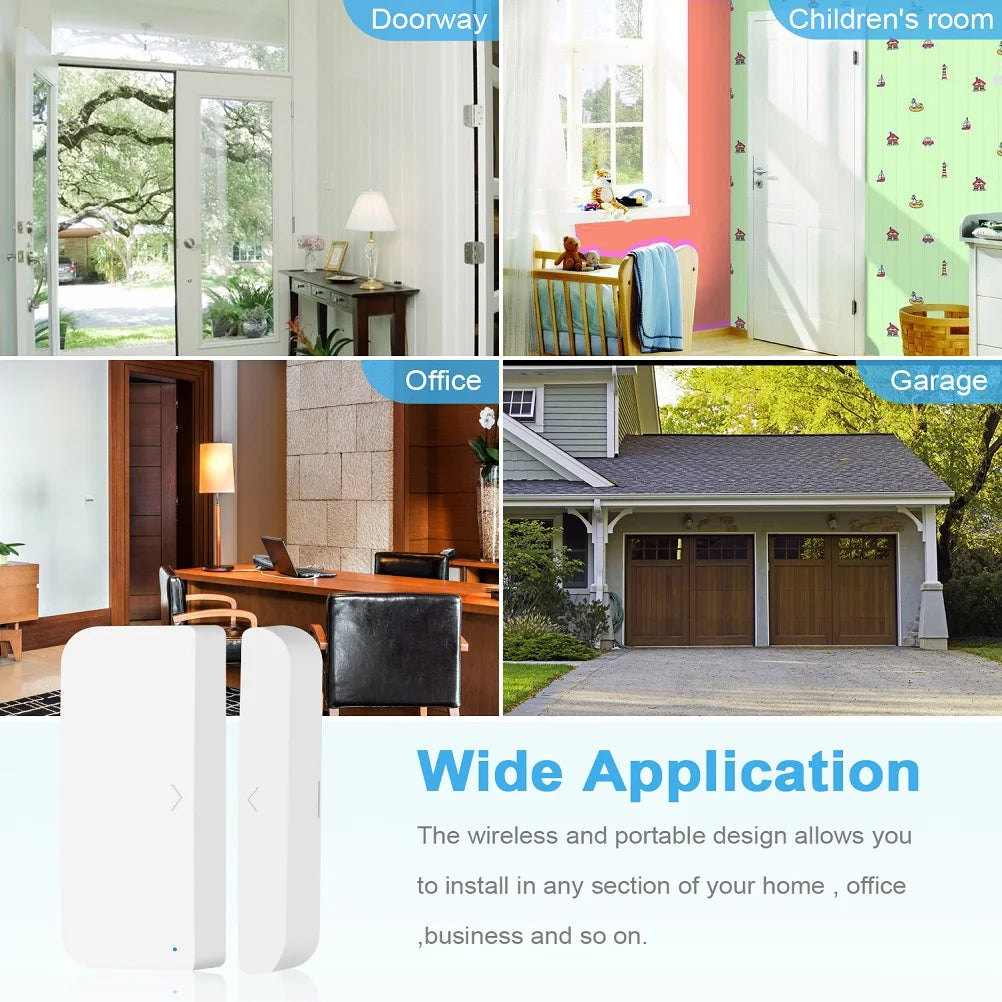

2.You can put it in many places.

Put it on every door in your house and give them a name so you know exactly which door has been opened.
You can also install it in your Windows, drawers, etc

3.ZigBee version

This Zigbee senosr and detector can not work standalone without gateway.

4.Wifi version

Do not need home gateway, you can easily achieve the intelligent control of home appliances, simple operation, easy to use.2.4G Hz protocol is more stable, faster and more convenient

Wifi Version Specifications:

Battery: AAA 1.5V ×2
Standby Current :≤5uA
Protocol: IEEE 802.11b/g/n
Wireless Range: 50m
Operating Temperature: -10℃～ 40℃ (14°F～104°F)
Operating Humidity: 20% ～ 85%
Storage Temperature: -10℃～60℃(14°F ～140°F)
Storage Humidity: 0% ～ 90%
Wireless Type : 2.4GHz

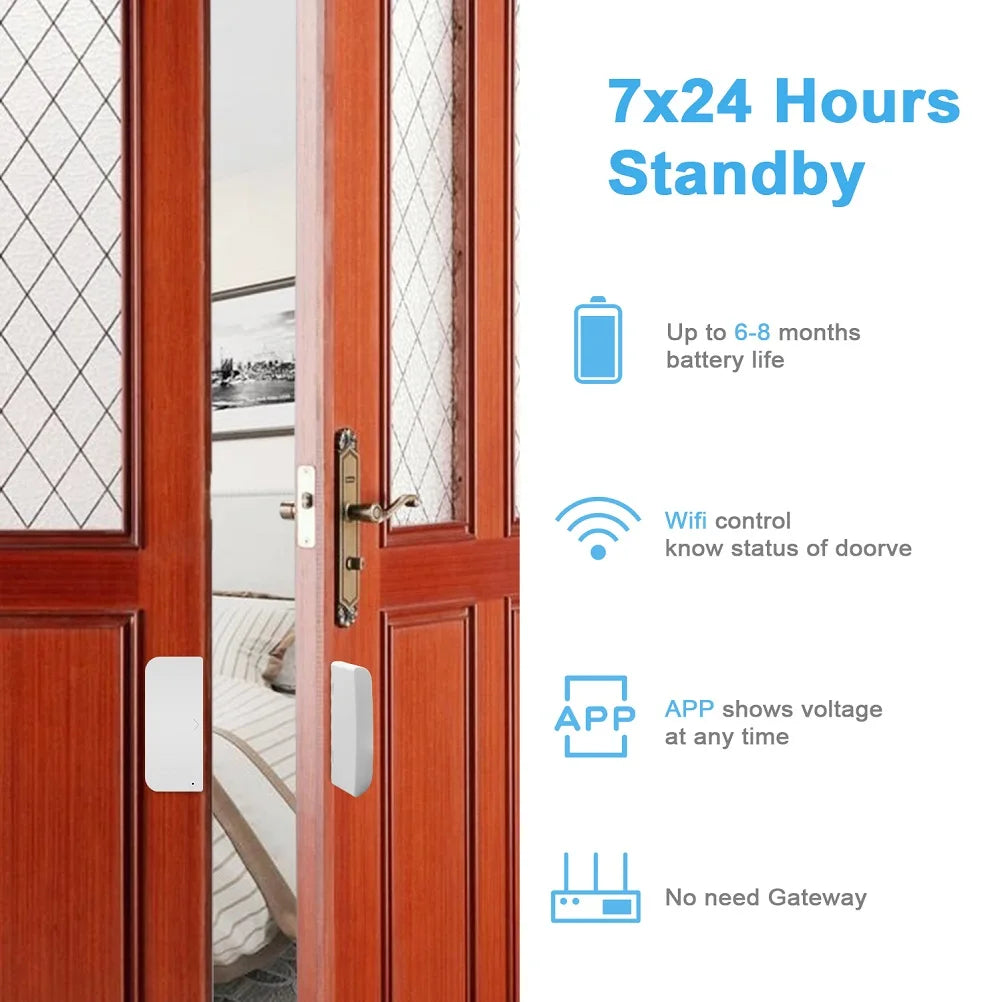

Standby Time: 4~6 months

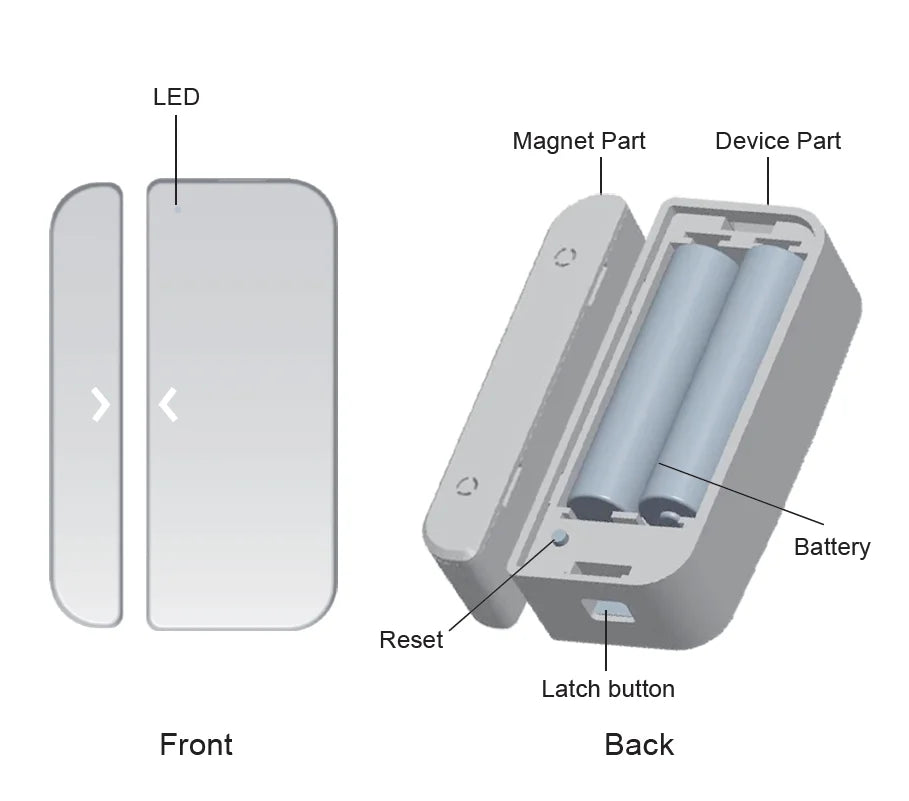

SIze:Magnet Part: 64×10.5×19.5mm(2.52*0.41*0.77inch)/Device Part: 65×27.5×19.5mm(2.56*1.83*0.77inch)

Zigbee Version Specifications:

Networking form: ZigBee3.0 Mesh
Detection: <5mm
Power input:CR2032 button battery（1 years,10 times per day）
working temperature:-10°C~45*C
Product size:50mm*25mm*11mm(1.97inch*0.98inch*0.43inch) & 30mm*15mm*10mm(1.18inch*0.59inch*0.39inch)
