Wireless 433MHz Light Switch RF On/Off Round Button Switch Smart Remote Control 10A Relay Receiver Module LED Lamp DIY Home Auto
Wireless 433MHz Light Switch RF On/Off Round Button Switch Smart Remote Control 10A Relay Receiver Module LED Lamp DIY Home Auto
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Choice: yes
Main Function
1.433MHz RF wireless relay remote control switch.
2.You can remotely turn ON/OFF Light or other machine
3.Stable and reliable performance with high reception sensitivity (> - 97dBm). Radio frequency signal transmission.
4.Strong signal can pass walls, floors, doors,board and so on.

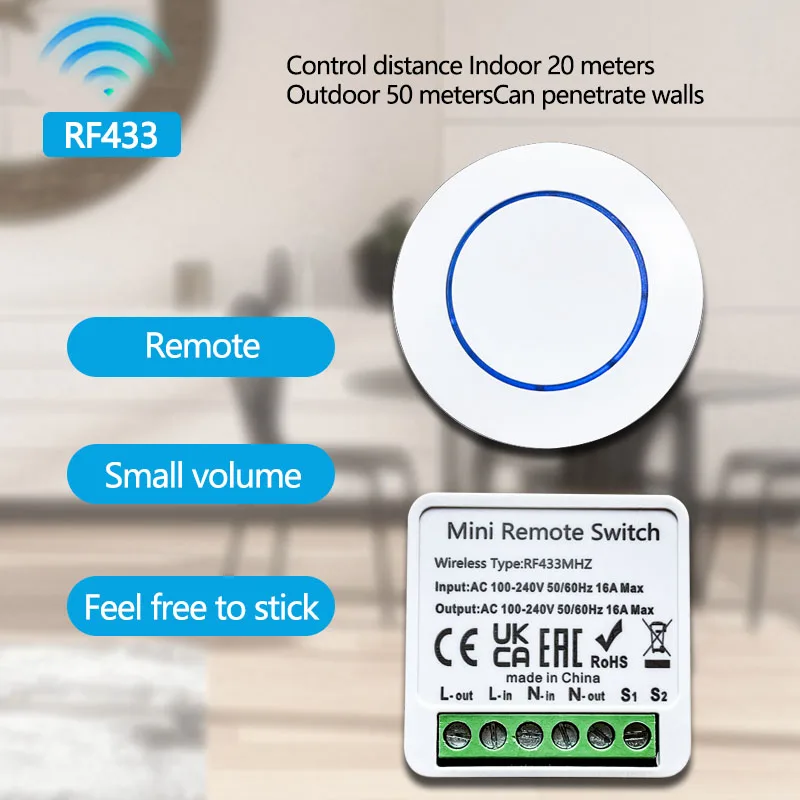

5.It can be controlled within 60 meters distance in open area.
6.This receiver adopts 10A high-quality relay that can be used over 100,000 times. The receiver is suitable for AC 85V~250V voltage, so AC 240V/220V/ 230V/110V voltage can working well.
7.The remote control transmitter can be clicked over 500,000 times.

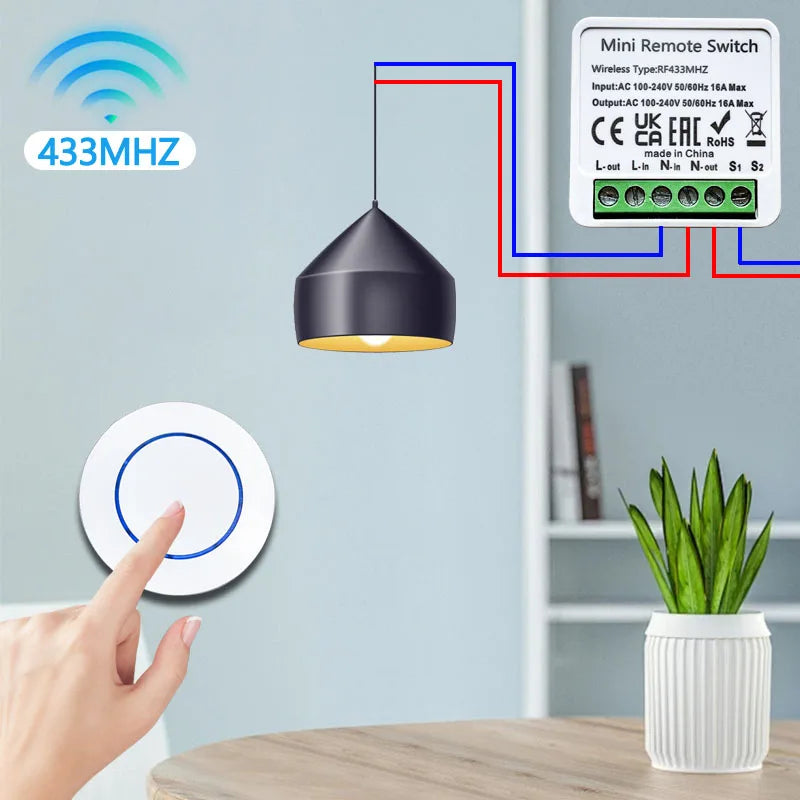

8.The mini size of receiver is 47*42*20 mm. It installs between power supply and device. The receiver is packaged in a box, which is safer to use.
Product parameters
1.Relay Receiver Board Parameter
Working voltage : AC 85V~250V
Quiescent Current : <5MA
Max current : 10A
Max load: 2200W
RF frequency : 433MHz
Receiver size : 47*42*23mm
Working temperature : -30~+80 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 20 pieces
Support encoding : 1527 Learning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode

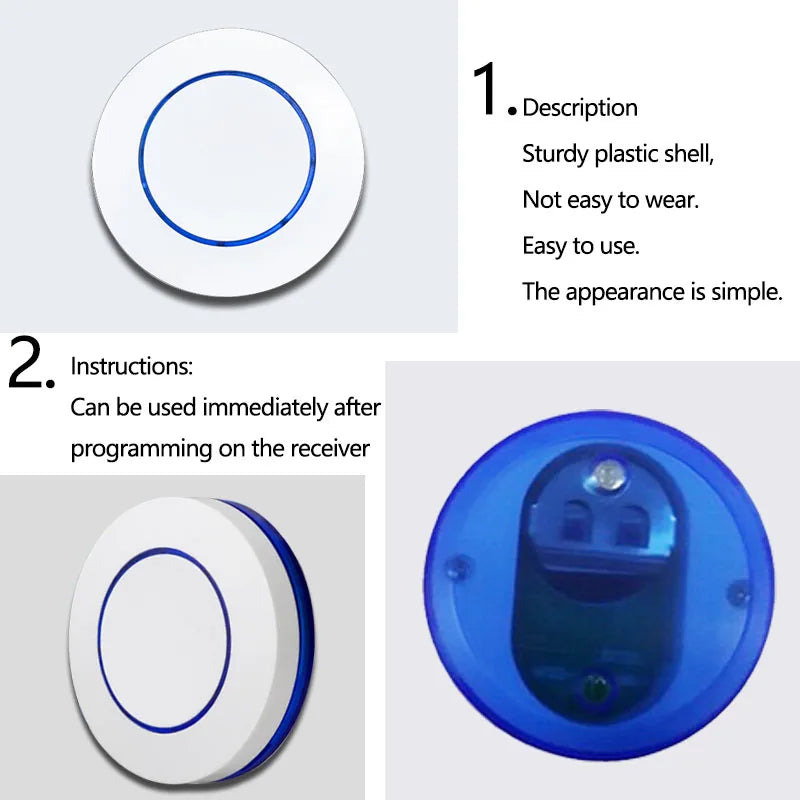

2.Wall panel transmitter parameters

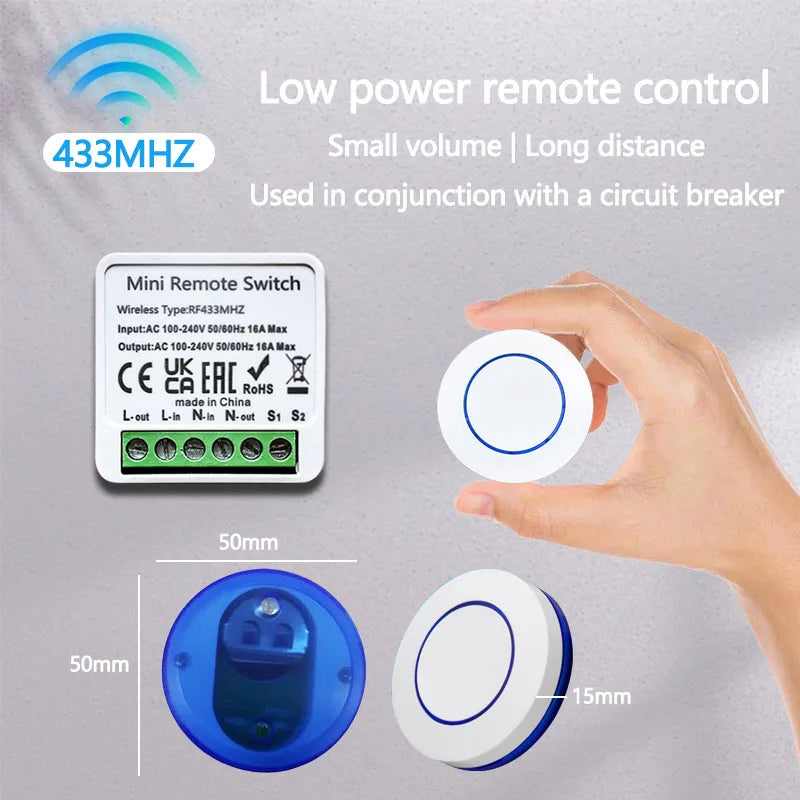

Size: 50*50*13mm
Battery: CR2016( not include)
Receiving Range: Up to 60 meters(theoretical distance)
Code: 1527 leanring
Material: PVC
