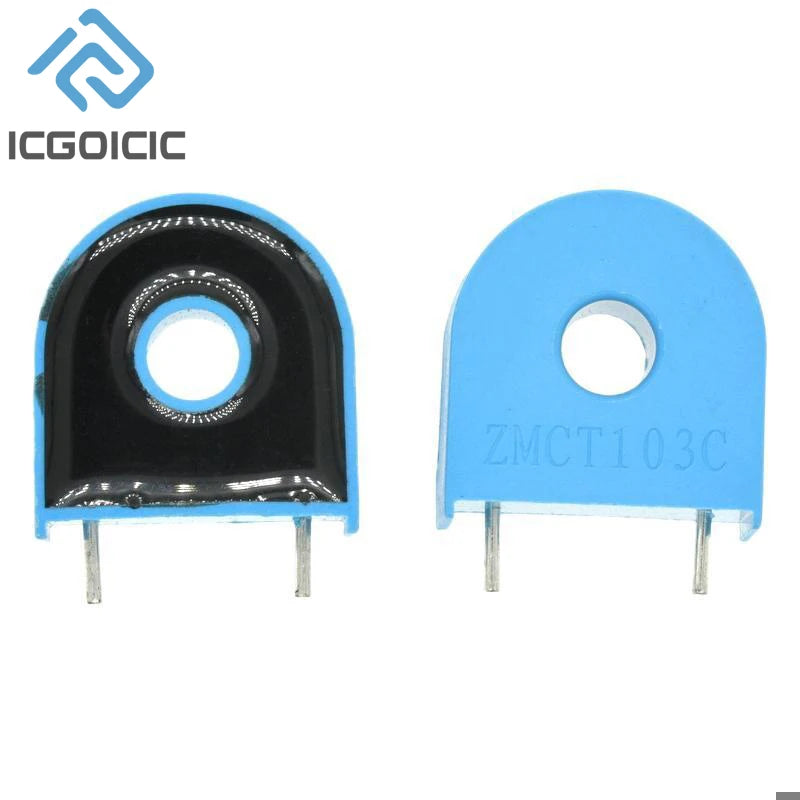

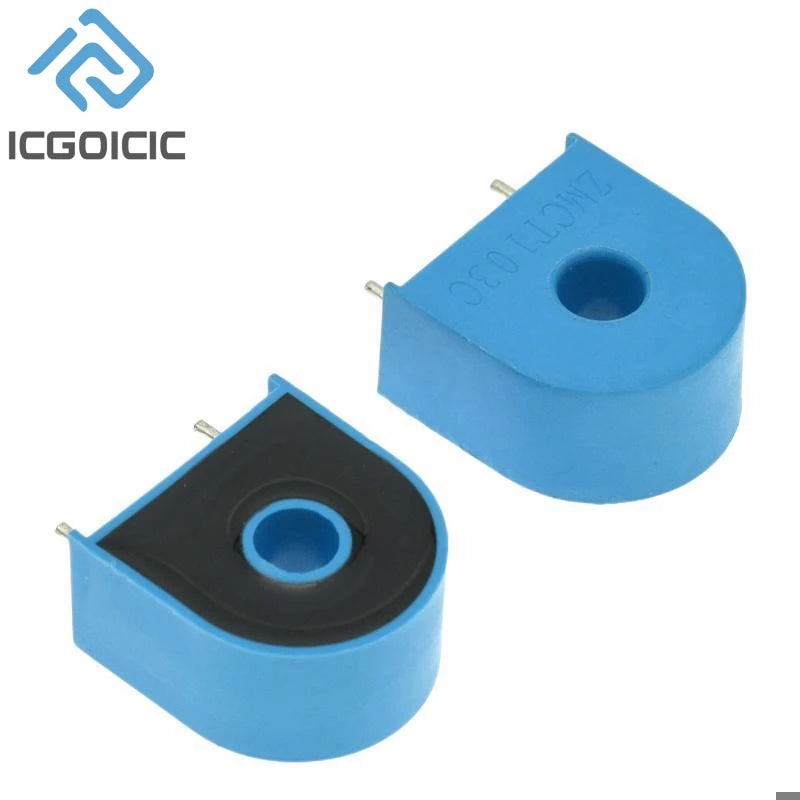

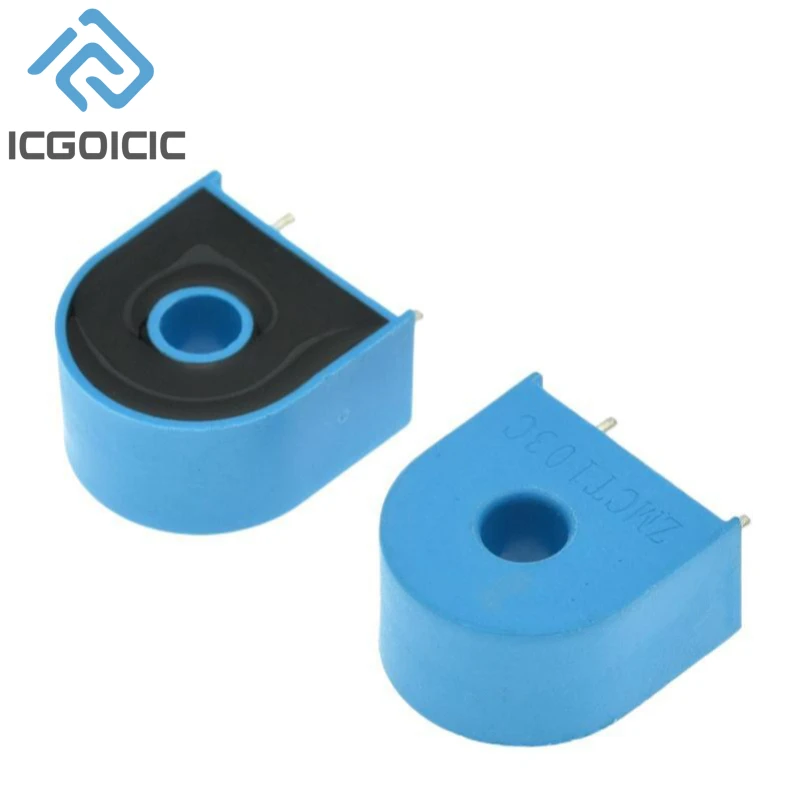

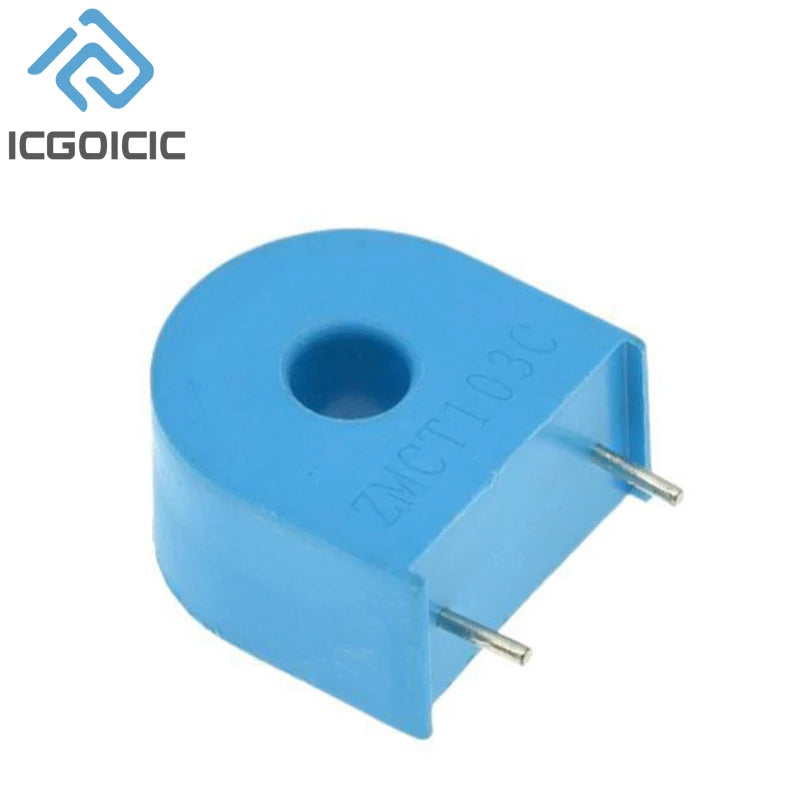

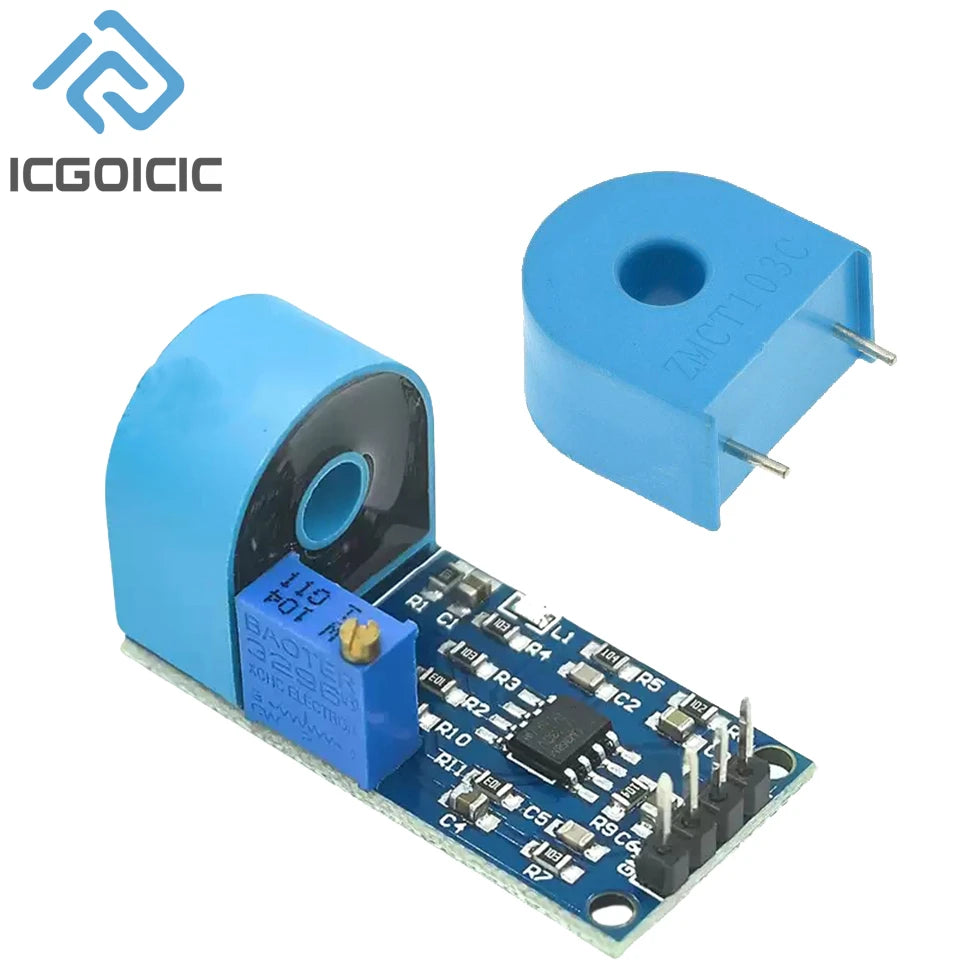

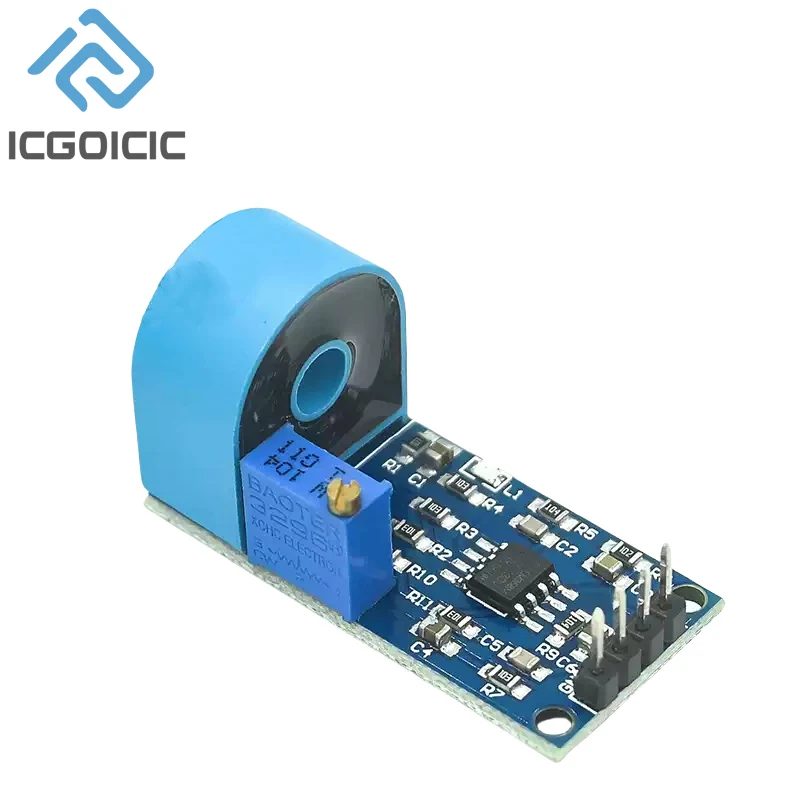

ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor
ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor
Regular price
KSh794.00
Regular price
KSh808.00
Sale price
KSh794.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Application: Computer
Brand Name: ICGOICIC
Choice: yes
Condition: New
Dissipation Power: N/A
Hign-concerned Chemical: None
Model Number: ZMCT103C
Operating Temperature: N/A
Origin: Mainland China
Supply Voltage: N/A
Type: Module
Feature:
Product model: ZMCT103C
Rated Input Current: 5A
Rated output current: 5mA
Ratio: 1000:1
Phase (when the rated input) : <= 15(100 ohm)
The linear range: 0-15A(100 ohm)
Linearity :0.2%
Isolation voltage: 4500V
Uses: For Current and power measurement
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: -40 to +85 degrees
Shell material: ABS
